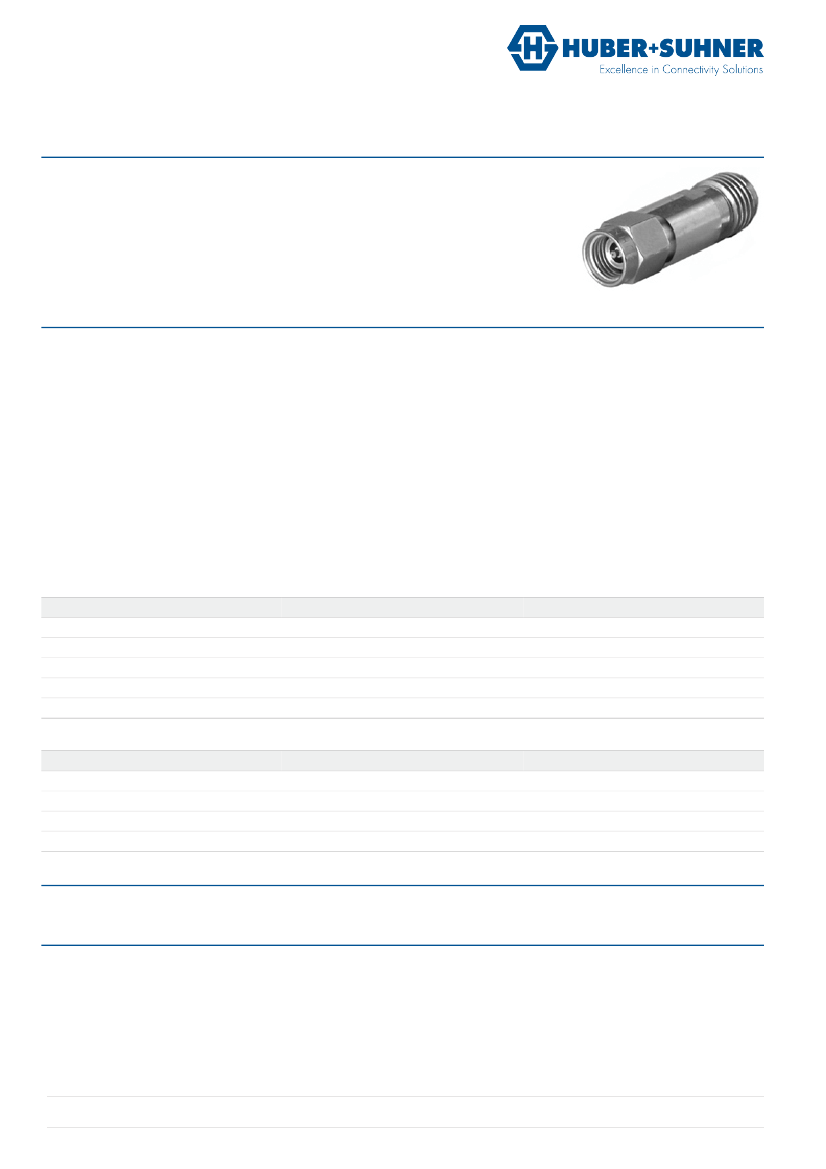

Data Sheet
Within Series Adaptor
33_PC35-50-0-2/199_N
Description
Adaptor plug/jack
PC 3.5 plug (male) / PC 3.5 jack (female)
For Test & Measurement applications
Precision adaptor
Interface standard
Series PC 3.5 - IEC 60169-23
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
33 GHz
DC to 1.5 GHz
≥ 35 dB
25.5 mm
1.5 to 6 GHz
≥ 30 dB
6 to 18 GHz
≥ 20 dB
Mechanical Data
Number of matings
Weight
500
0.0064 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-60 °C to 100 °C
compliant
Material Data
Interface - PC 3.5 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PS
Stainless Steel
Surface Plating
SUCOPRO Plating
Interface - PC 3.5 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PS
Surface Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00013875
Ordering Information
Single package
33_PC35-50-0-2/199_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194464 U / PDO J / date of publication: 12/4/2014 4:34:29 PM / uncontrolled copy
Page 1/1
