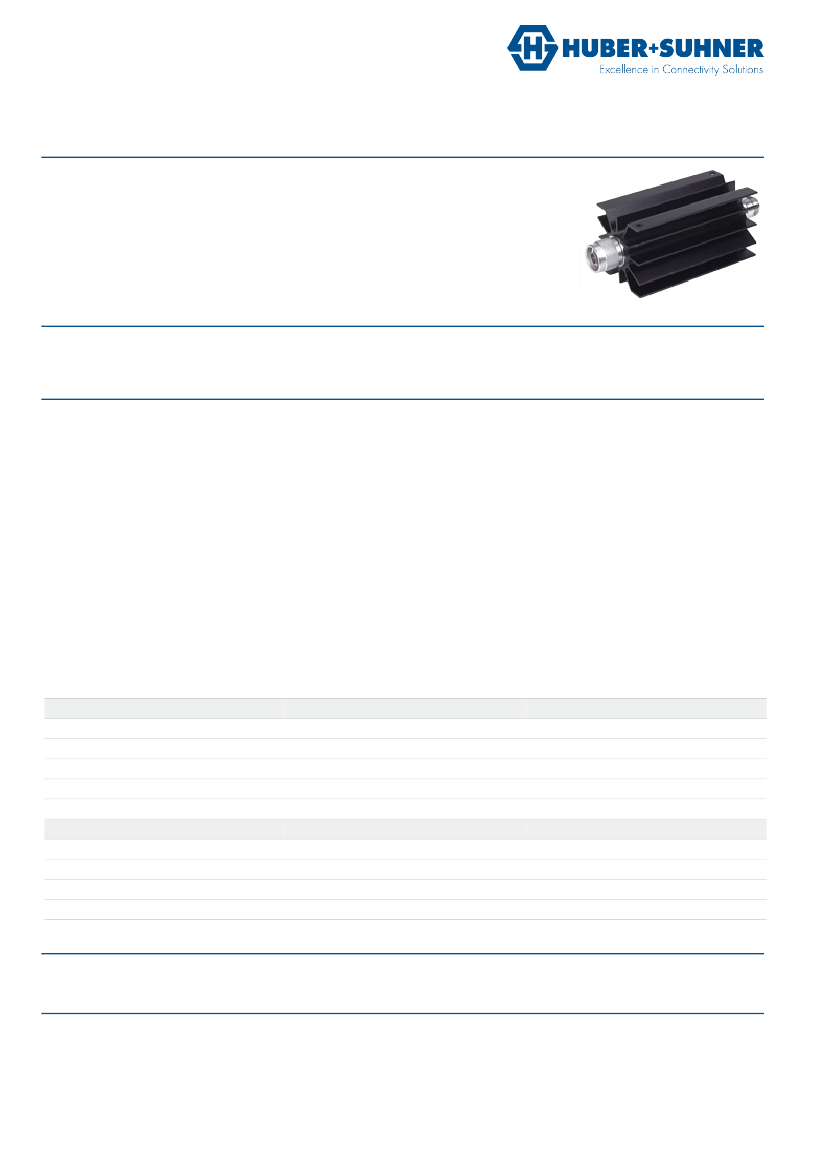

Data Sheet
RF Attenuator
5903.17.0005
Description
Standard Attenuator, Medium Power
Product Configuration
Connector (side 1 / side 2)
Interface Standards
N plug (male) / N jack (female)
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
50 Ω
3 dB
DC to 6 GHz
DC to 2
0.2
1.1
2 to 6
0.3
1.25
50 Watt average power up to 30 ˚C ambient temperature, linearly derated to 0 Watt at 130 ˚C ambient
temperature.
Convection cooled.
500 Watt peak power, 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.485 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 130 °C
compliant
Material Data
Piece Part (side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part (side2)
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Aluminium
PFA / PTFE
Brass
Material
Copper Beryllium Alloy
Brass
Aluminium
PFA / PTFE
SUCOPLATE (R) Plating
Surface Plating
Gold Plating
SUCOPLATE (R) Plating
Anodized
Surface Plating
Gold Plating
SUCOPLATE (R) Plating
Anodized
Related Documents
Outline drawing
DOU-00005339
Ordering Information
Single packaging
Important note
5903.17.0005
WARNING Beryllia Ceramic Inside! DO NOT sand, scrap or tamper with. Dispose in accordance with all
relevant regulations.
Document: DOC-0000227274 N / PDO H / date of publication: 03.03.2017 18:46:22 / uncontrolled copy
Page 1/2
Data Sheet
RF Attenuator
5903.17.0005
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000227274 N / PDO H / date of publication: 03.03.2017 18:46:22 / uncontrolled copy
Page 2/2
