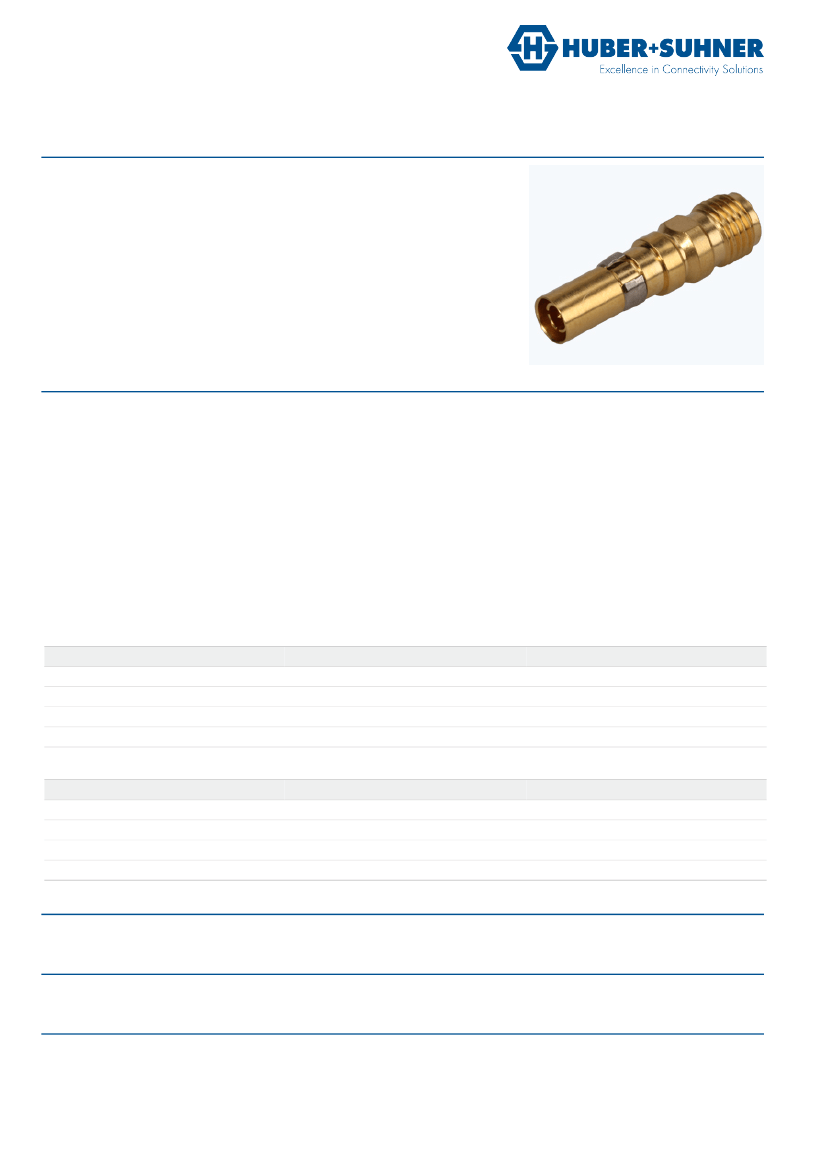

Data Sheet
Between Series Adaptor
33_1023-SMA-C50-1/111_N
Description
Adaptor plug/jack
1.0/2.3 C50 plug (male) / SMA jack (female)
Interface standards
Series 1.0/2.3 C50 - DIN 41626/2
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
4 GHz
DC to 4 GHz
≥ 27 dB
Mechanical Data
Number of matings
Weight
500
0.0029 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 125 °C
compliant
Material Data
Interface - 1.0/2.3 C50 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
DOU-00014438
Ordering Information
Single package
33_1023-SMA-C50-1/111_NE
Remarks
Insertion loss: < 0.1 dB up to 4 GHz
Document: DOC-0000195438 T / PDO F / date of publication: 01.09.2015 11:47:37 / uncontrolled copy
Page 1/2
Data Sheet
Between Series Adaptor
33_1023-SMA-C50-1/111_N
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195438 T / PDO F / date of publication: 01.09.2015 11:47:37 / uncontrolled copy
Page 2/2
