Base strip - MCD 0,5/ 2-G1-2,5 - 1894804
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 2.5 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering

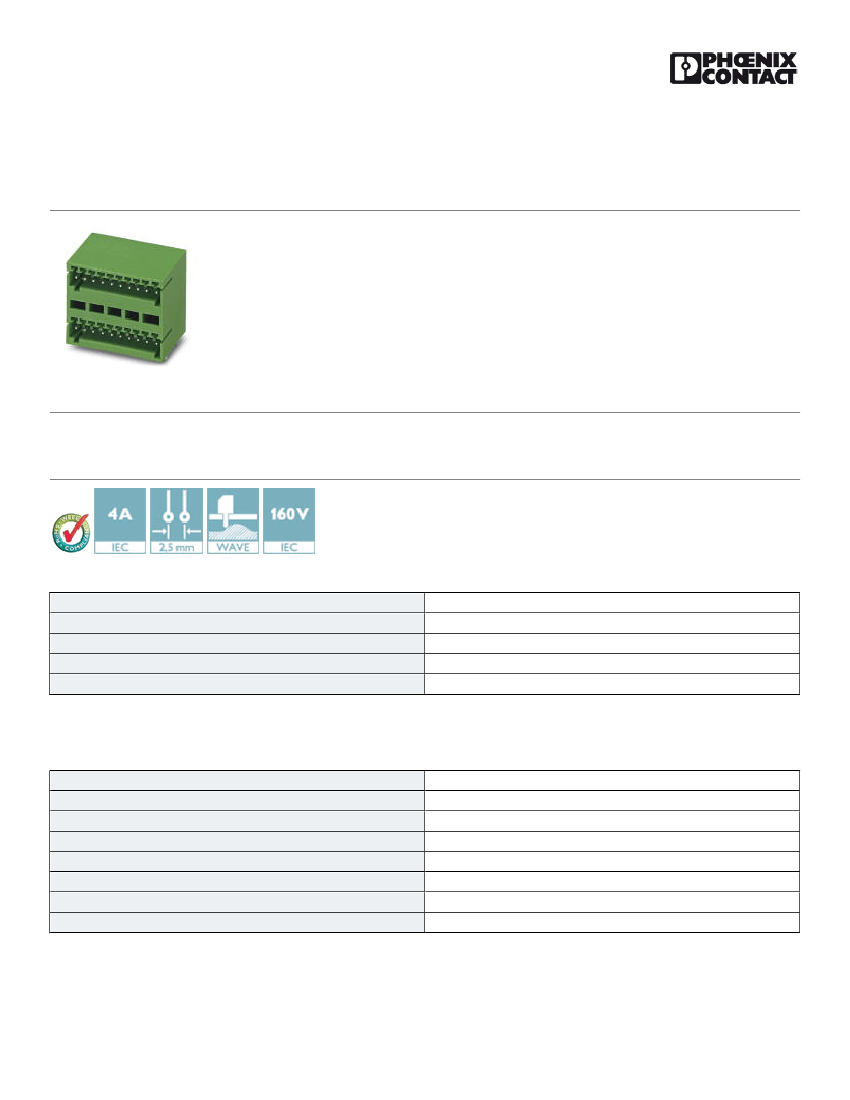

The figure shows a 10-pos. version
with 20 contacts
Product Features
■
Well-known mounting principle allows worldwide use
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
2.33 g
85366990
Poland
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
17.5 mm
2.50 mm
2.5 mm
22 mm
3.8 mm
0,8 x 0,8 mm
2.50 mm
1.2 mm
General
04/26/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1894804
Base strip - MCD 0,5/ 2-G1-2,5 - 1894804
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
MCD 0,5/..-G1
I
1.5 kV
2.5 kV
2.5 kV
80 V
160 V
320 V
EN-VDE
4A
4A
PA
V0
green
2
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
04/26/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1894804
Base strip - MCD 0,5/ 2-G1-2,5 - 1894804
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / CCA / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
4A
125 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
4A
80 V
04/26/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1894804
Base strip - MCD 0,5/ 2-G1-2,5 - 1894804
Approvals
cUL Recognized
Nominal current IN
Nominal voltage UN
B
4A
125 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
4A
80 V
CCA
Nominal current IN
Nominal voltage UN
4A
80 V
EAC
EAC
cULus Recognized
Accessories
Accessories
Coding element
Coding profile - CP-MC 0,5 - 1881435
Coding profile, is inserted into the groove in the header, red insulating material
04/26/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1894804
Base strip - MCD 0,5/ 2-G1-2,5 - 1894804
Accessories
Labeled terminal marker
Marker card - SK 2,54/2,8:FORTL.ZAHLEN - 0804853
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type:
Adhesive, for terminal block width: 2.54 mm, Lettering field: 2.54 x 2.8 mm
Additional products
Printed-circuit board connector - FK-MC 0,5/ 2-ST-2,5 - 1881325
Plug component, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 2.5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin

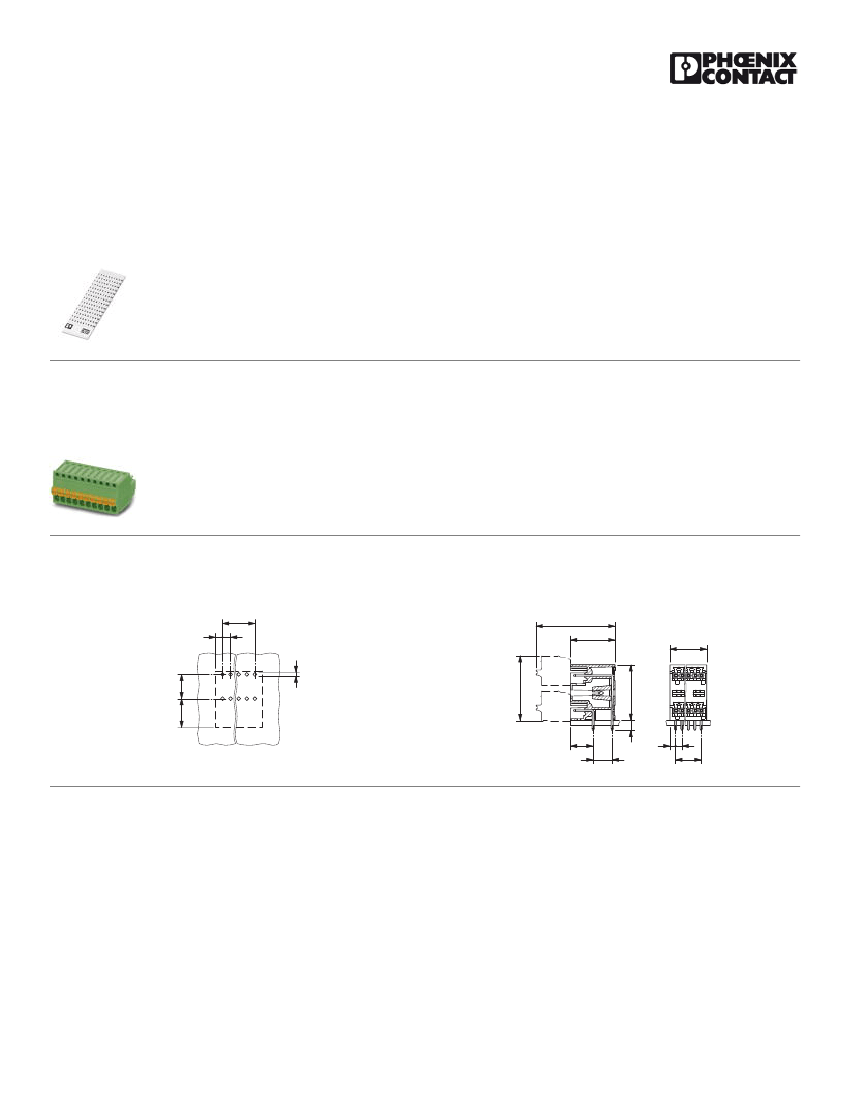

Drawings
Drilling diagram
a
2,2
2,5
Dimensional drawing
31
17,5
a+4,4
1,2
25,5
7,5
8,9
9
7,5
3,8
21,9
2,2
2,5
a
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/26/2016 Page 5 / 5
