33_SMA-MMBX-50-1/119_NE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_SMA-MMBX-50-1/119_NE Overview

RF Adapters - Between Series

33_SMA-MMBX-50-1/119_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	SMA-MMBX
Other features	STANDARD: IEC 60169-15, MIL-STD-348A/310
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	LCP/PFA/PTFE
MIL compliance	YES
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.19
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

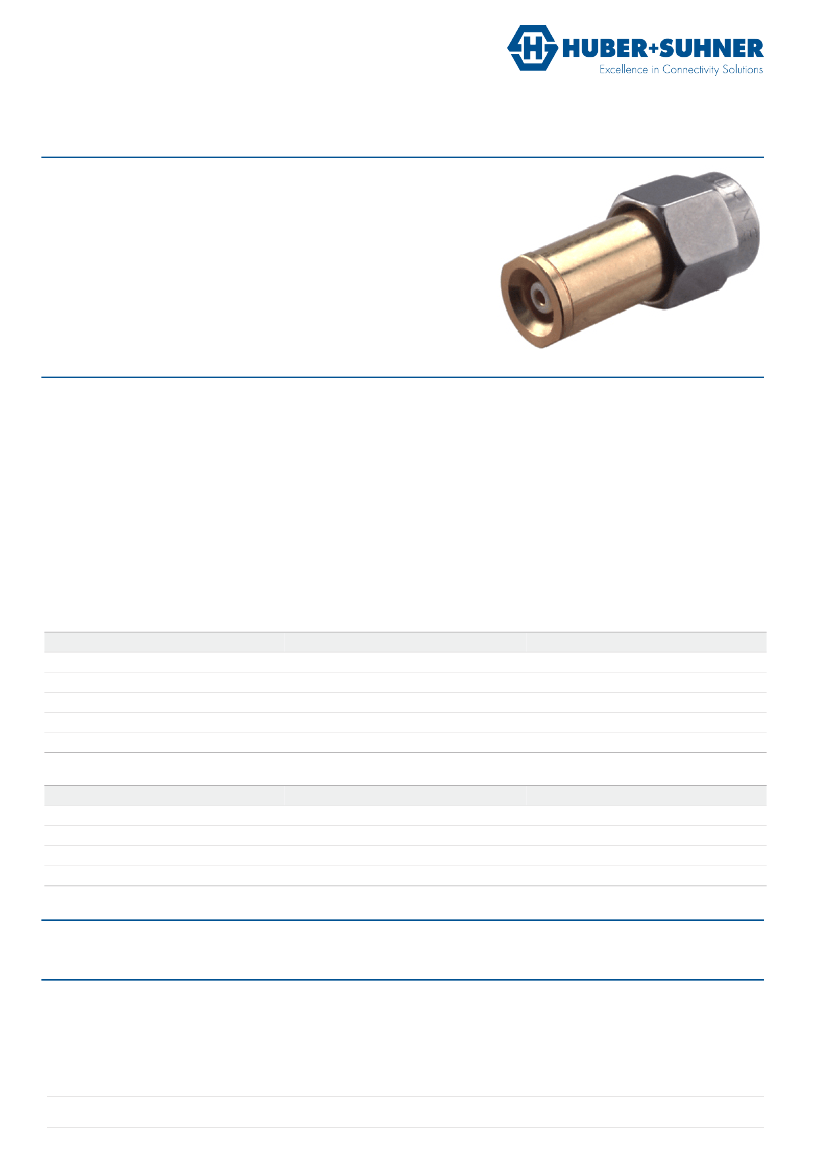

Between Series Adaptor

33_SMA-MMBX-50-1/119_N

Description

Adaptor plug/jack

SMA plug (male) / MMBX jack (female)

Interface standards

Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110

Series MMBX - SUHNER-MMBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

6 GHz

DC to 2.5 GHz

≥ 32 dB

2.5 to 6 GHz

≥ 30 dB

6 to 12.4 GHz

≥ 16 dB

Mechanical Data

Number of matings

Weight

500

0.0039 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 155 °C

compliant

Material Data

Interface - SMA plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Copper Beryllium Alloy

PFA / PTFE

Stainless Steel

Passivated (Plating)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPRO Plating

Interface - MMBX jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

LCP (Liquid crystal polymer)

Surface Plating

Gold Plating (Nickel underplated)

SUCOPRO Plating
