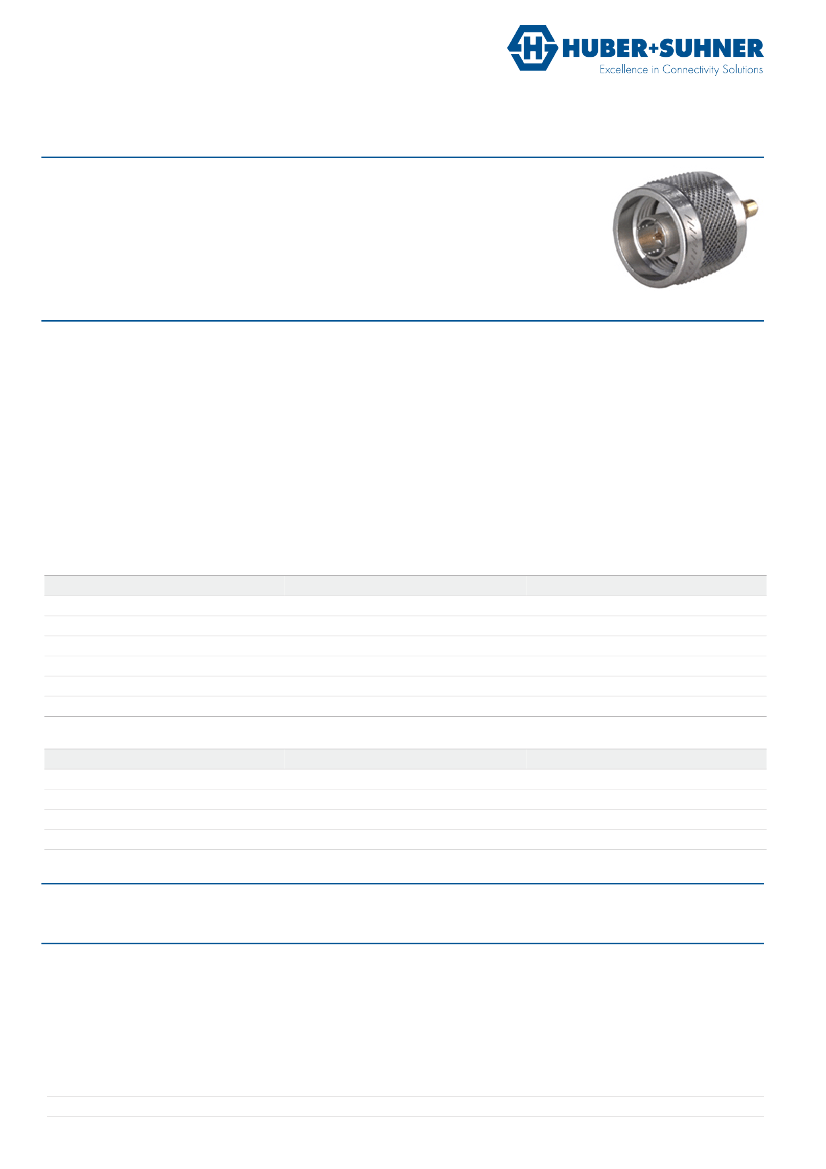

Data Sheet
Between Series Adaptor
33_N-SMC-50-1/1--_N
Description
Adaptor plug/jack
N plug (male) / SMC jack (female)
Interface standards
Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210
Series SMC - IEC 60169-9_MIL-STD-348A/312_CECC 22140
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
10 GHz
DC to 2 GHz
≥ 26 dB
2 to 4 GHz
≥ 20 dB
4 to 10 GHz
≥ 15 dB
Mechanical Data
Number of matings
Weight
500
0.0293 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - N plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Brass
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - SMC jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
DCA-00014290
Ordering Information
Single package
33_N-SMC-50-1/1--_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000195296 R / PDO D / date of publication: 08.11.2016 13:59:40 / uncontrolled copy
Page 1/1
