ATM13-08PA-BM04 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Automobile connector> ATM13-08PA-BM04

Preview

ATM13-08PA-BM04: DescriptionAuto Connector RA Flng Mnt PCB Rcpt 8POS Gry Tin Cont A; CategoryThe connector Automobile connector; File Size410KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

ATM13-08PA-BM04 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATM13-08PA-BM04	-	-	View	Buy Now

ATM13-08PA-BM04 Overview

Auto Connector RA Flng Mnt PCB Rcpt 8POS Gry Tin Cont A

ATM13-08PA-BM04 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	automotive connector
product	Connectors
Number of locations	8 Position
Type	Female
Installation style	Panel
Termination type	Through Hole
series	ATM
Encapsulation	Tray
color	Gray
Contact type	-
Current rating	13 A
high	30.3 mm
Shell material	Thermoplastic (TP)
Entrance protection	IP67
length	42.8 mm
Installation angle	Straight
Number of rows	2 Row
Voltage rating	250 V
width	35.3 mm
Contact material	Copper Alloy
Flammability rating	UL 94 V-0
Pitch	4.4 mm
line spacing	9.1 mm
Contact type	Pin (Male)
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 55 C
Factory packaging quantity	100

Preview

Download Datasheet

View All

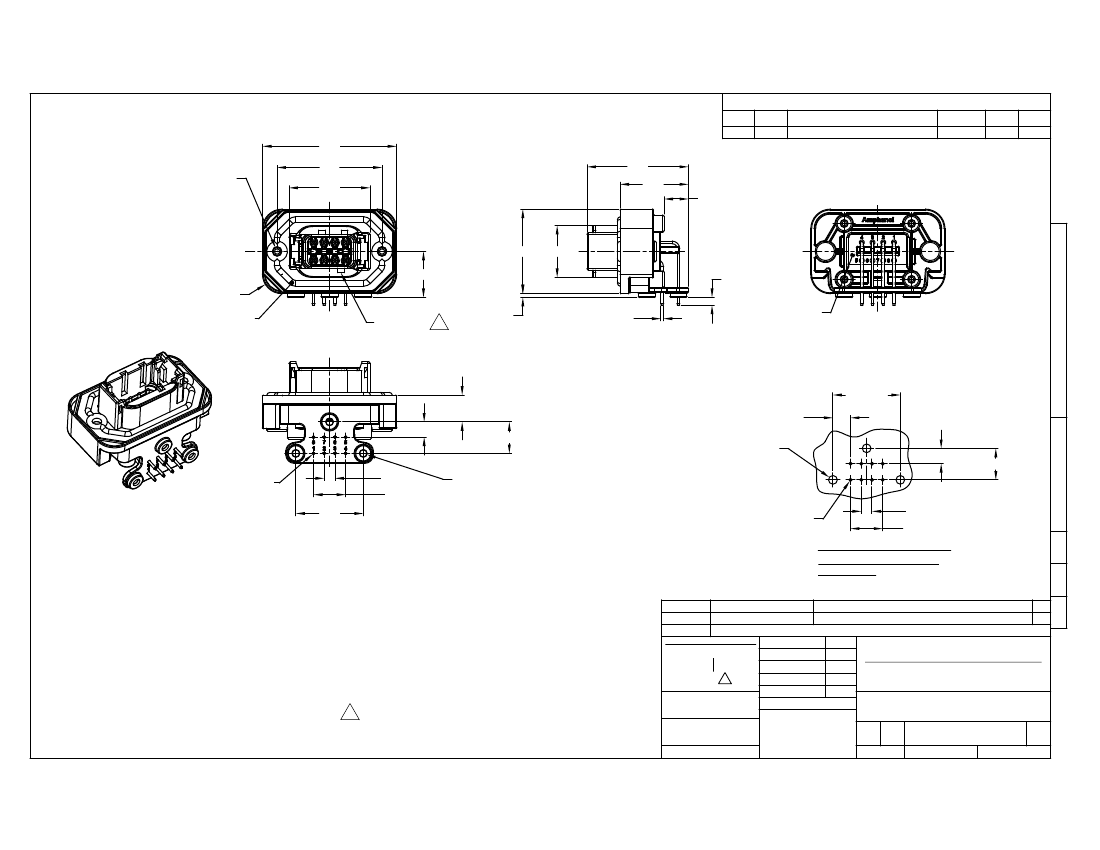

REVISIONS

REV

A1

ECO

-

DESCRIPTION

RELEASE NEW DRAWING

DATE

15JUN18

BY

APPR

SULLEN TOMMY

52.6

41.1

2x Ø3.10 x 10.2 DP

RECOMMENDED SCREW: 6-19 [M3.63 x 1.34]

THREAD-FORMING SCREW,

TORQUE: 10-20 IN-LB [1.13-2.25 NM]

31.8

39.7

26.8

9.5

TITLE:

33.1

18.1

4x R7.6

FLANGE SEAL

3X KEYWAY 6

1.5

20.3

PCB MOUNT RECEPTACLE 8PIN, RA FLANGE, ATM SERIES

3.05±0.4

8x Ø1.0±0.12

RESERVOIR

26.42±0.1

10.5

6.0

12.4

Ø3.43 (3x)

4.2

12.6

26.4

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL:

HOUSING: THERMOPLASTIC, GREY

SEAL: SILICONE RUBBER

CONTACT: COPPER ALLOY

2. CONTACT PLATING: SEE SHEET 2

3. MODIFICATIONS: FLANGE; RA PCB MOUNT

4. SPECIFICATIONS:

4.1 CURRENT RATING: 7.5 AMPS

4.2 OPERATING TEMPERATURE: -55°C TO +125°C

4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2

MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC

4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C

4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )

4.6 MATING CYCLE DURABILITY: 100 CYCLES

4.7 RoHS COMPLIANT

QUANTITY

1)

2)

1

2

3

6.91±0.1

DWG NO:

6.00±0.10

ATM13-08PX-BMXX

12.35±0.1

PIN #1

3x Ø2.79 x 8.0 DP

RECOMMENDED SCREW: 4-20 [M3.12 x 1.27]

THREAD-FORMING SCREW,

TORQUE: 6-10 IN-LB [0.68-1.13 NM]

4.20±0.05

12.60±0.10

RECOMMENDED PCB LAYOUT

VIEW FROM COMPONENTS

SIDE OF PCB

Ø1.20

+0.2

(8x)

0

REV:

A1

SH:

1

OF:

ATM13-08PX-BMXX

PART NUMBER

DESCRIPTION

MATERIALS LIST

SIGNATURES

DRAWN:

CHECKED:

ENGINEER:

APPROVAL:

ITEM

2

UNLESS OTHERWISE SPECIFIED

All dimensions are in metric(mm).

Tolerances are as follows:

PL DEC ±0.30

Fractions ±1/64

PL DEC ±0.15

Angles ±1°

PL DEC ±0.08

X

DATE

SULLEN.ZHANG 15JUN18

ORION.LI

15JUN18

TOMMY.XIE

15JUN18

Amphenol

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

5. MATING PART: ATM06-08SX-*

( X = A,B,C,D KEYS ; * = MODIFICATIONS AND COLORS)

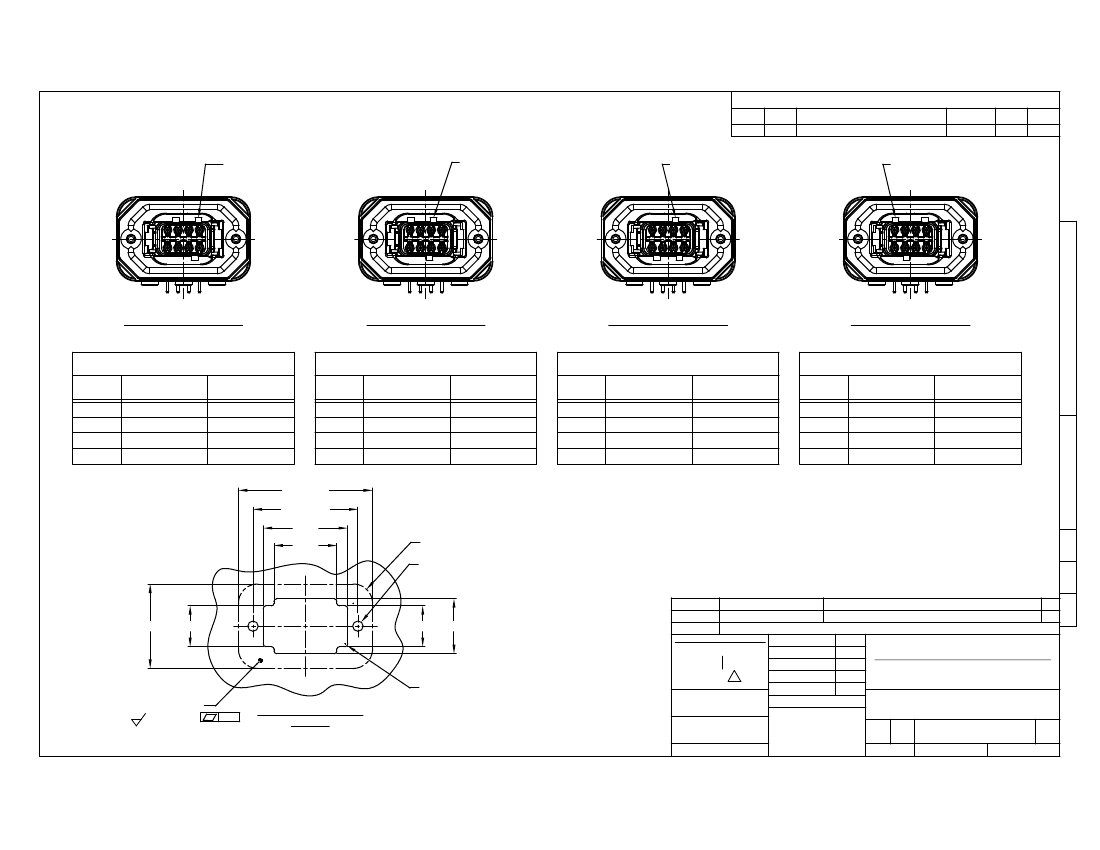

6. SEE SHEET 2 FOR OTHER KEY ARRANGEMENTS AND COLORS

3) Note reference =

MATERIAL SPECIFICATIONS:

CUSTOMER:

PROCESS SPECIFICATIONS:

7. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY

NEXT ASS'Y:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA SIZE

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

PCB MOUNT RECEPTACLE 8PIN,

RA FLANGE, ATM SERIES

TYPE

DWG NO:

B C-

NONE

ATM13-08PX-BMXX A1

SHEET

REVISION

1

OF

2
