CCP2 switch up to 100 A
200 A CCP2 switch
Contents
30, 60 and 100 amp switches
Page
200 A switches
Front and side rotary mechanisms . . . . . . . . . . . .16
Terminal shroud kits . . . . . . . . . . . . . . . . . . . . . . .16
Phase barrier kits . . . . . . . . . . . . . . . . . . . . . . . . . .16
Handle extension . . . . . . . . . . . . . . . . . . . . . . . . . .16
Auxiliary contacts
30, 60 and 100 A switches . . . . . . . . . . . . . . . . . .17
200 A switches . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PLC fuse monitor (30, 60 and 100 A switches) . . 19-20
How to order
30 and 60 A switches
Front and right side rotary switches . . . . . . . . 21-22
Switch only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Left side rotary switches . . . . . . . . . . . . . . . . . . . 24
100 A switches
Front and right side rotary switches . . . . . . . . 25-26
Switch only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Left side rotary switches . . . . . . . . . . . . . . . . . . . 28
200 A switches
200 A switches . . . . . . . . . . . . . . . . . . . . . . . . 29-30
Motor fuse sizing table . . . . . . . . . . . . . . . . . . . 31-32
Descriptions and specifications . . . . . . . . . . . . . . . . 2-3
Catalog numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Terminal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
200 A switches
Descriptions and specifications . . . . . . . . . . . . . . . . . 8
Catalog numbers and horsepower ratings . . . . . . . . 9
Available lugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Accessories
Multi-wire lug kits
30, 60 and 100 A switches . . . . . . . . . . . . . . . . . .11
200 A switches . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Handles and shafts
Selector and pistol handles . . . . . . . . . . . . . . . . . .13
Handle shafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
NFPA 79 compliant handles . . . . . . . . . . . . . . . . .14
Flange handle rod and cable operators . . . . . . . . . . .15
bus-ele-ds-10801-ccp2-cf-67.indd 1
5/2/2019 10:53:32 PM
Technical Data 10801
Effective April 2019
Compact Circuit Protector (CCP2)
UL 98 Class CF disconnect switches up to 200 A
Conductors/terminals
•
Catalog symbols for 30, 60 and 100 A switches
Symbol
CCP2-(pole)-(amps)CF
CCP2R-(pole)-(amps)CF
Description
Switch only
Right front rotary, clockwise operated switch
75°C Cu, see conductor tables for size, type and torque
information
Box lug, single/dual conductor
Fork terminal suitable for line, load or accessory connection, max .
30 A suitable for use with:
•
10-24 screw for 30 and 60 A switches
•
•
•
CCP2RL-(pole)-(amps)CF Left front rotary, clockwise operated switch
CCP2S-(pole)-(amps)CF
Right side rotary, clockwise operated switch
CCP2SL-(pole)-(amps)CF Left side rotary, counterclockwise operated
switch
1/4-28 screw for 100 A switches
Description
The revolutionary, next generation Bussmann™ series Compact
Circuit Protector (cat . no . CCP2) is a fused UL
®
98 branch circuit
disconnect switch utilizing the UL Class CF time-delay or fast-acting
CUBEFuse™ with Class J electrical performance . With up to a 51
percent smaller footprint than a traditional fusible solution, these
switches provide a high 200 kA SCCR to help improve panel and
assembly SCCR .
The 35 mm DIN-Rail mount CCP2 is available in a variety of 30,
60 and 100 amp configurations to meet many application needs
including rotary operation .
The switch-only versions of the 30, 60 and 100 A disconnects are
direct, drop-in replacements for the earlier models (noted by a
catalog number starting “CCP-”) . The auxiliary contacts and PLC
remote fuse indicator are backwards compatible . The multi-wire lug
kits and terminal shrouds are not .
Application flexibility is extended with an optional multi-wire lug
kit, featuring finger-safe shrouds, that provides three (30 and 60 A
switches) and six (100 A switches) additional wire ports on each pole
for power distribution applications .
Other accessories include a PLC fuse monitor for open fuse
indication and NO/NC auxiliary contacts that easily integrate into
various monitoring systems .
Front and side rotary operated versions are easily applied for
through-the-door or through the left or right side operation to
enhance safety .
•
Multi-wire lug kits — see accessories for details
Storage and operating temperature
•
-20°C to 75°C (-4°F to 167°F)*
* For fuse performance under or above 25°C, consult fuse performance derating
charts in the Bussmann Division publication no . 3002, titled Selecting Protective
Devices (SPD)
Lockout/tagout provisions
•
1/4” lock, direct use on switches without rotary mechanisms
requires a lock with a straight shank of sufficient length to engage
all poles
Minimum enclosure size per UL 98*
•
•
30 and 60 A switch 10”x 8”x 6”(254 x 203 x 152 mm)
100 A switch, 12” x 10” x 6” (305 x 254 x 152 mm)
* Smaller enclosures may be used at the discretion of the user, with adherence to
NEC minimum wire bend radius requirements .
Mounting**
•
35 mm DIN-Rail
** Switch is panel mount with flange handle cable operator .
Local open fuse indication minimum voltage
•
90 Vac, requires an open fuse to be in the CCP2 and the switch in
the ON position
Multi-wire lug kits with terminal shrouds
Selector and pistol handles for use with rotary operated switches
8 mm shafts for use with selector and pistol handles
Auxiliary contacts
PLC fuse monitor
NFPA 79 compliant handle
Flange handle rod and cable operators
Ratings
•
•
•
•
•
Accessories
•
•
•
•
•
•
•
Volts
347 Vac (1-pole switches)
600 Vac (2- and 3-pole switches)
125 Vdc*
30 A
60 A
100 A
200 kA RMS Sym .
100 kA DC
Amps
•
•
•
•
SCCR
•
•
Carton quantity and shipping weight
Item
30 and 60 amp switches
Switch only
Switch with side rotary mechanism
Switch with front rotary mechanism
100 amp switches
Switch only
Switch with side rotary mechanism
Switch with front rotary mechanism
Poles
1-pole
2-pole
3-pole
2-pole
3-pole
1-pole
2-pole
3-pole
2-pole
3-pole
Qty .
12
1
1
1
1
6
1
1
1
1
Weight
lb (kg)
3 .8 (1 .7)
1 .3 (0 .6)
1 .6 (0 .7)
1 .3 (0 .6)
1 .6 (0 .7)
3 .1 (1 .4)
1 .7 (0 .8)
2 .3 (1 .0)
1 .7 (0 .8)
2 .3 (1 .0)
Poles
•
1-, 2- and 3-poles catalog number dependent
* Switch amp rating and installed fuse amp rating dependent, see catalog number
table for details .
Agency information
•
•
UL 98 Listed, Guide WHTY, File E302370
cULus to Canadian Standard 22 .2 No . 4-04, Guide WHTY7
,
File E302370
RoHS compliant
CE
•
•
2
Eaton.com/bussmannseries
bus-ele-ds-10801-ccp2-cf-67.indd 2
5/2/2019 10:53:33 PM
Compact Circuit Protector (CCP2)
UL 98 Class CF disconnect switches up to 200 A
Features
•
Technical Data 10801
Effective April 2019
Uses UL Class CF time-delay or fast-acting CUBEFuse with Class
J electrical performance
Extremely compact design at 25 .4 mm (1 inch) wide per pole
Amp rating rejection disconnects will not accept a CUBEFuse amp
rating greater than switch rating
High 200 kA short-circuit current rating
Disconnect rated to provide means for load isolation
Full voltage rated at 347 Vac (1-pole switches) and 600 Vac (2- and
3-pole switches)
125 Vdc* rated to meet specialized applications
UL 98 Listed and suitable for branch circuit disconnect and branch
circuit protection with installed fuses
Horsepower rated
Open fuse indication:
•
•
•
•
•
•
•
•
•
•
•
Local open fuse indication light standard on each pole
Optional PLC fuse monitor for wired remote open fuse
indication by signaling a PLC and opening a contactor to
de-energize all phases, if required
•
Additional open fuse indication can be provided by the indicating
time-delay CUBEFuse (6 to 100 A)
Finger-safe construction with 10 AWG (6 mm
2
) wire or larger
Built-in switch interlock prohibits removing or installing the fuse
while in the ON position
Padlockable for lockout/tagout procedures with a 1/4” lock
Rotary operated versions provide for through-the-door and
through-the-side operation flexibility and enhanced safety with:
•

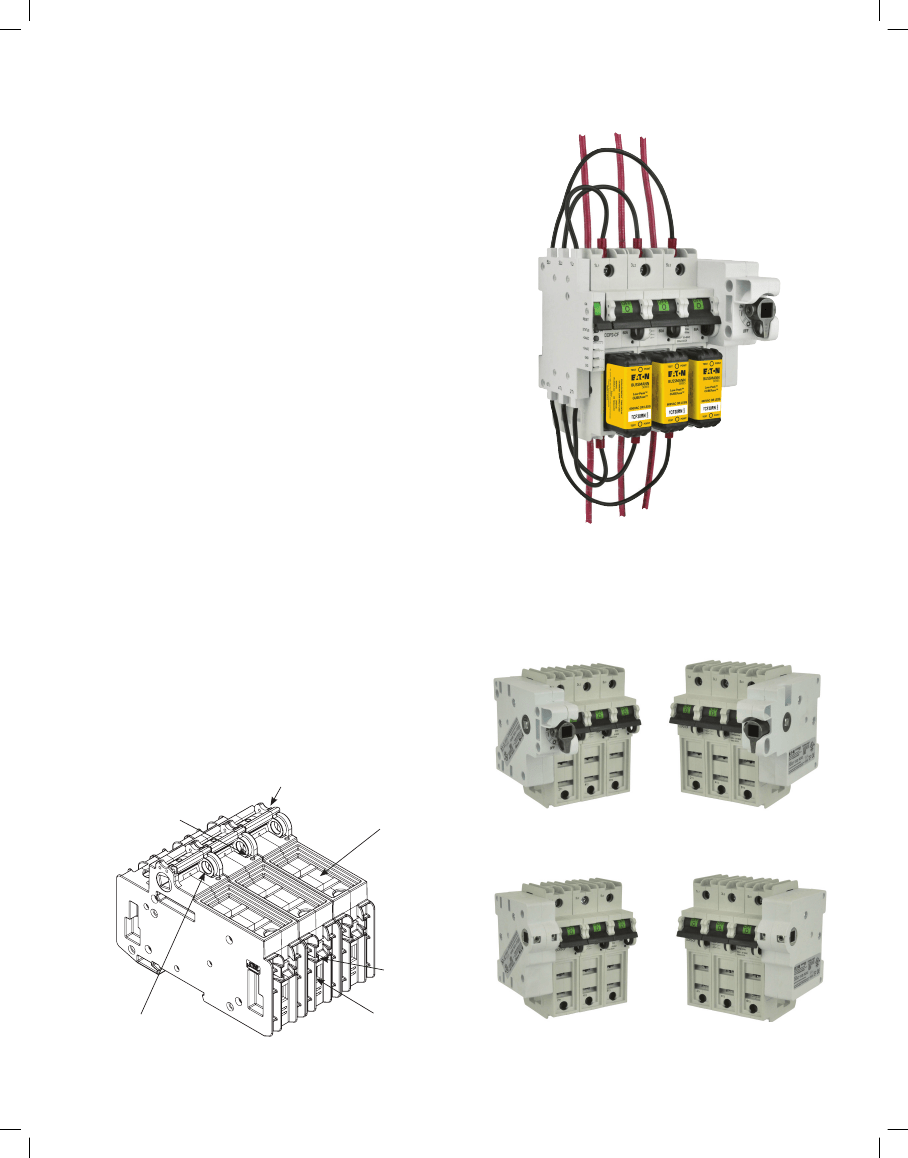

Right or left front operation
•
•
•
•
•
Right front rotary operated CCP2 switch with PLC fuse monitor .
Right or left side operation
•
Optional selector and pistol handles, and shafts available for use
with rotary operated versions
Multi-wire lug kits with terminal shrouds allow for power
distribution to multiple loads . Each lug has three (30 and 60 A
switches) or six (100 A switches) ports rated for single and dual
wires (see lug kits in accessories for details) .
Rotary operating versions
•
* Switch amp rating and installed fuse amp rating dependent, see catalog number
table for details .
Switch handle (ganged on 2- and
3-pole versions)
Open fuse
indicating light
Left front
Uses clockwise handles
Right front
Uses clockwise handles
Fuse holder
Fork terminal
1/4” Lockout/
tagout provision
Box lug terminal
Left side
Uses counterclockwise handles
Right side
Uses clockwise handles
Eaton.com/bussmannseries
3
bus-ele-ds-10801-ccp2-cf-67.indd 3
5/2/2019 10:54:01 PM
Technical Data 10801
Effective April 2019
Compact Circuit Protector (CCP2)
UL 98 Class CF disconnect switches up to 200 A
30, 60 and 100 A switch catalog numbers
Max Hp rating (Vac)
Catalog no .
30 amp switches
CCP2-1-30CF
CCP2-2-30CF
CCP2-3-30CF
CCP2R-2-30CF
CCP2R-3-30CF
CCP2RL-2-30CF
CCP2RL-3-30CF
CCP2S-2-30CF
CCP2S-3-30CF
CCP2SL-2-30CF
CCP2SL-3-30CF
60 amp switches
CCP2-1-60CF
CCP2-2-60CF
CCP2-3-60CF
CCP2R-2-60CF
CCP2R-3-60CF
CCP2RL-2-60CF
CCP2RL-3-60CF
CCP2S-2-60CF
CCP2S-3-60CF
CCP2SL-2-60CF
CCP2SL-3-60CF
100 amp switches
CCP2-1-100CF
CCP2-2-100CF
CCP2-3-100CF
CCP2R-2-100CF
CCP2R-3-100CF
CCP2RL-2-100CF
CCP2RL-3-100CF
CCP2S-2-100CF
CCP2S-3-100CF
CCP2SL-2-100CF
CCP2SL-3-100CF
1
2
3
2
3
2
3
2
3
2
3
Right front rotary, clockwise
Left front rotary, clockwise
Right side rotary, clockwise
Left side rotary, counterclockwise
Switch only
347 Vac/125 Vdc**
600 Vac/125 Vdc**
600 Vac
600 Vac/125 Vdc**
600 Vac
600 Vac/125 Vdc**
600 Vac
600 Vac/125 Vdc**
600 Vac
600 Vac/125 Vdc**
600 Vac
200 kA AC
100 kA DC
5
—
—
—
—
—
—
—
—
—
—
—
10
20
10
20
10
20
10
20
10
20
—
—
50
—
50
—
50
—
50
—
50
—
—
40
—
40
—
40
—
40
—
40
1
2
3
2
3
2
3
2
3
2
3
Right front rotary, clockwise
Left front rotary, clockwise
Right side rotary, clockwise
Left side rotary, counterclockwise
Switch only
347 Vac/125 Vdc*
600 Vac/125 Vdc*
600 Vac
600 Vac/125 Vdc*
600 Vac
600 Vac/125 Vdc*
600 Vac
600 Vac/125 Vdc*
600 Vac
600 Vac/125 Vdc*
600 Vac
200 kA AC
100 kA DC
3
—
—
—
—
—
—
—
—
—
—
—
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
7-1/2
—
—
20
—
20
—
20
—
20
—
20
—
—
10
—
10
—
10
—
10
—
10
1
2
3
2
3
2
3
2
3
2
3
Right front rotary, clockwise
Left front rotary, clockwise
Right side rotary, clockwise
Left side rotary, counterclockwise
Switch only
347 Vac/125 Vdc
600 Vac/125 Vdc
600 Vac
600 Vac/125 Vdc
600 Vac
600 Vac/125 Vdc
600 Vac
600 Vac/125 Vdc
600 Vac
600 Vac/125 Vdc
600 Vac
200 kA AC
100 kA DC
1-1/2
—
—
—
—
—
—
—
—
—
—
—
3
5
3
5
3
5
3
5
3
5
—
—
15
—
15
—
15
—
15
—
15
—
—
10
—
10
—
10
—
10
—
10
Poles
Description/switch operation
Volts
SCCR
120
240
480
600
* 125 Vdc for installed fuse amp ratings up to 40 A . 24 Vdc for installed fuse amp ratings from 45 to 60 A .
** 125 Vdc for installed fuse amp ratings up to 80 A, 24 Vdc for installed fuse amp ratings from 90 to 100 A .
4
Eaton.com/bussmannseries
bus-ele-ds-10801-ccp2-cf-67.indd 4
5/2/2019 10:54:02 PM
Compact Circuit Protector (CCP2)
UL 98 Class CF disconnect switches up to 200 A
Box lug terminal conductor data
Wire
type
AWG
range
4-6
8-18
6-8
10-18
10-18
4-18
6-18
4-18
6-18
100 A switches
12-18
10
8
4-6
1-3
4-12
12-18
10
75°C Cu
1-8
10-18
6-9
10-18
8-18
1-7
3-10
8-18
1-7
6-18
Class K, UL ferrule
Class K
Solid
Stranded, UL ferrule,
Class B/C
Single
Dual
Stranded, Class B/C
Single
2 .26 (20)
2 .82 (25)
4 .52 (40
5 .08 (45)
6 .21 (55)
5 .08 (45)
2 .26 (20)
3 .95 (35)
4 .52 (40)
Twin†
Single/Dual
Single
Dual
Single
Twin
2 .26 (20)
2 .82 (25)
2 .26 (20)
2 .26 (20)
3 .39 (30)
5 .08 (45)
2 .26 (20)
3 .39 (30)
2 .26 (20)
75
3.0
50
2.0
25
1.0
Technical Data 10801
Effective April 2019

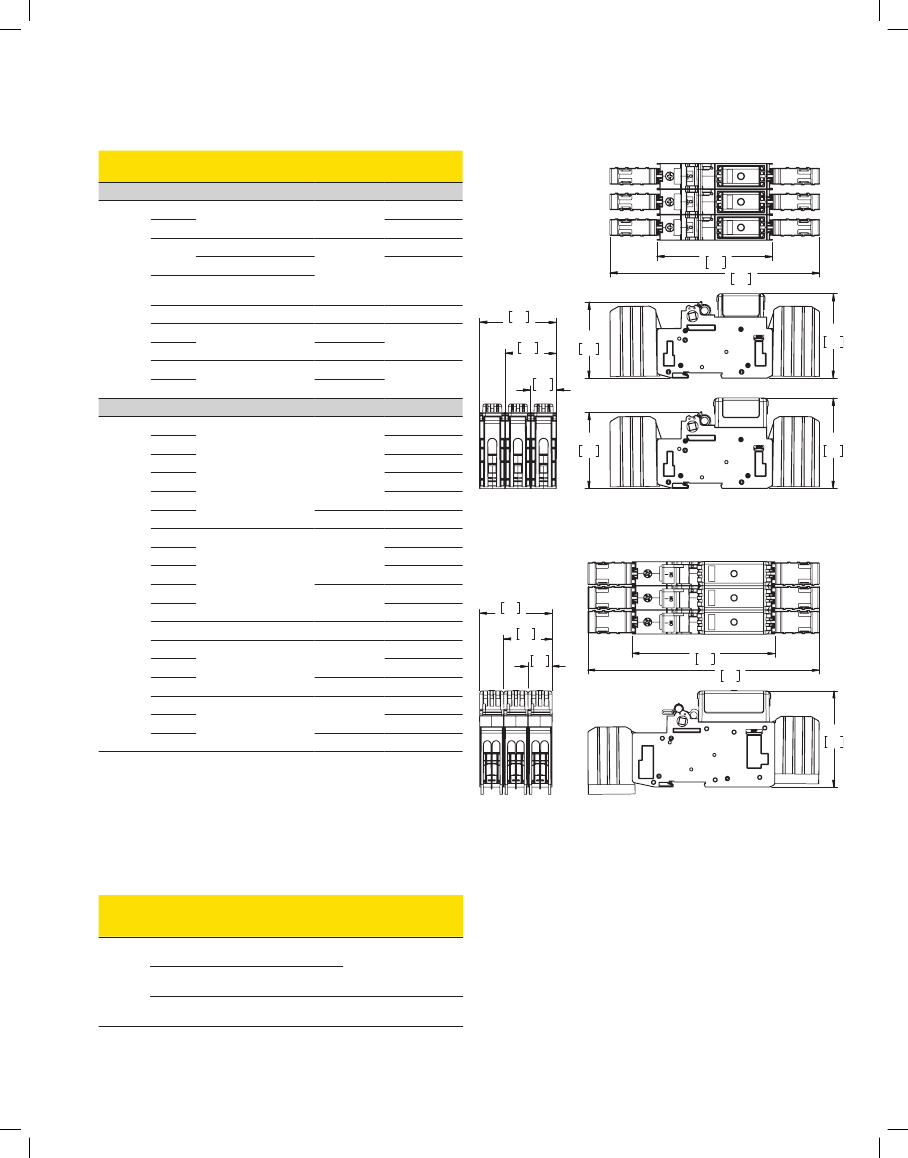

Dimensions – mm (in)
Quantity
Torque
N•m (lb-in)
3 .95 (35)
2 .26 (20)
3 .39 (30)
Dual
2 .26 (20)
2 .26 (20)
3 .39 (30)
2 .82 (25)
76
3.0
50
2.0
25
1.0
75
3.0
30A Fuse
83
3.3
114
4.5 206
8.1
Switch
(shown with optional terminal shrouds)
Class
30 and 60 A switches
Stranded, Class B
to K
Stranded, Class B/C
Stranded, Class K
Stranded, Class B
to K
Solid
Stranded, UL ferrule,
Class B/C
Stranded, UL ferrule,
Class K
Single
75°C Cu
Single/dual
Single
Twin
†
Single
Twin
†
75
3.0
89
3.5
60A Fuse
30 and 60 amp switches
148
5.8 240
9.5
100
3.9
† Two stranded conductors placed in one UL Listed twin ferrule .
Lineside and loadside fork terminal
•
Fork terminal suitable for line, load or accessory connection, max .
30 A suitable for use with:
•
10-24 screw for 30 and 60 A switches
•
100 amp switches
1/4-28 screw for 100 A switches
Available Bussmann series fuses
UL fuse
class
Type/description
Indicating time-delay, Low-Peak™
CUBEFuse (6-100 A)
Non-indicating time-delay, Low-Peak
CF
CUBEFuse (1-100 A)
Non-indicating fast-acting CUBEFuse
(1-100 A)
Data
sheet
no .
9000
Volts
600 Vac/
300 Vdc
600 Vac/dc
2147
Eaton.com/bussmannseries
5
bus-ele-ds-10801-ccp2-cf-67.indd 5
5/2/2019 10:54:09 PM
京公网安备 11010802033920号
EEWORLD
