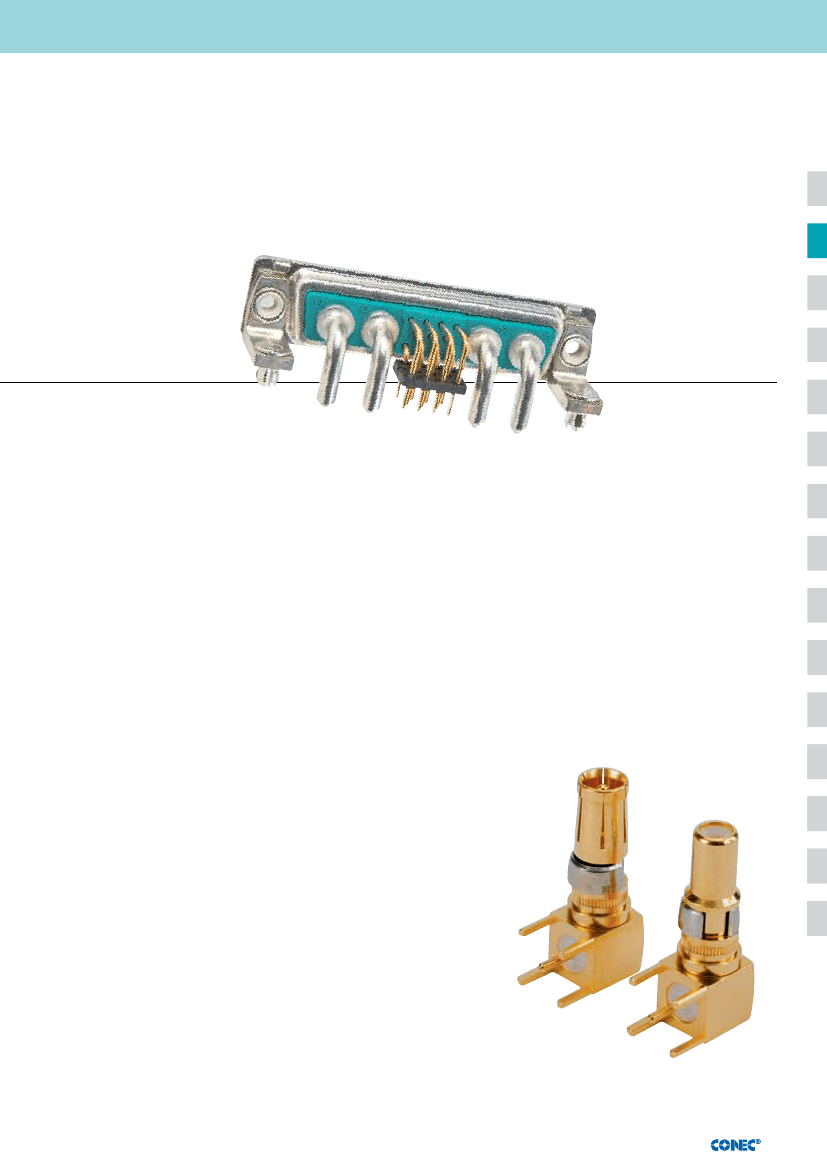

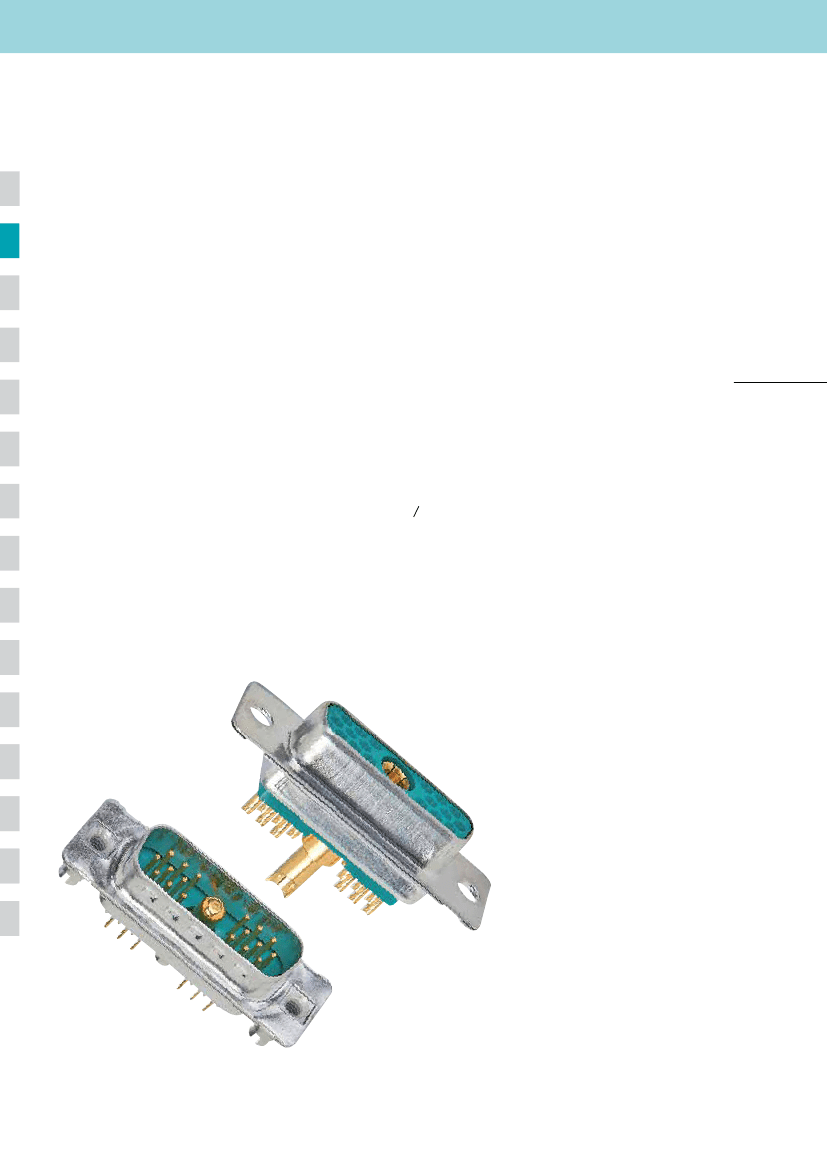

C om b ina t ion D -SUB Con nec t or s
Part Number Creator
for High Density
Product Line
1
= Shell brass tin plated
3
= Shell tin plated*
5
= Shell yellow chromated* (not RoHS compliant)
A
= Shell stainless steel*

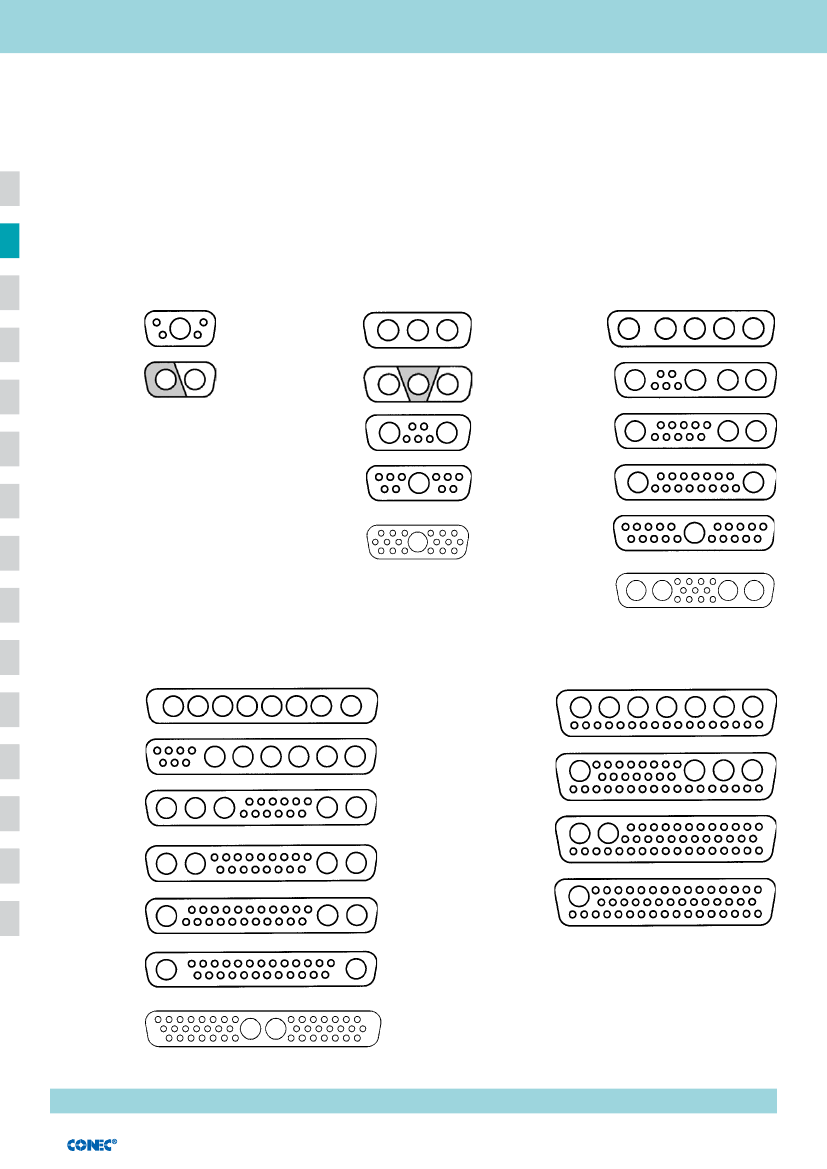

Shell size and design
2
=19W1
3
=15W4
4
=45W2
contact type
P
= Plug connector
S
= Socket connector
Quality class for SignAL contacts
A
= Quality class 3 = 50 mating cycles
B
= Quality class 2 = 200 mating cycles*
C
= Quality class 1 = 500 mating cycles
J
= Special application = > 500 mating cycles*
Termination only for SignAL contacts
M
= Solder cup
P
= Press-fit*
R
= Solder pin, straight
W
= Solder pin, angled .450" / 11,43 mm*
T
= Solder pin, angled .350" / 7,98 mm
Termination for HigH POWer- or cOAXiAL contacts
Quality class 3 Quality class 1
F2,61 F1,41 = Solder cup 10 A
F4,62 F3,42 = Solder cup 20 A
F6,63 F5,43 = Solder cup 30 A
F8,64 F7,44 = Solder cup 40 A
68 48 = Solder pin, straight 20 A, D= .077" 1.95 mm
69 49 = Solder pin, straight 20 A, D= .102" 2.60 mm
70 50 = Solder pin, straight 20 A, D= .110" 2.85 mm
71 51 = Solder pin, straight 30 A, D= .130" 3.18 mm
72 52 = Solder pin, straight 40 A, D= .150" 3.75 mm
59 55 = Solder pin, angled 15 A
73 56 = Solder pin, angled 20 A
74 57 = Solder pin, angled 30 A
75 58 = Solder pin, angled 40 A
3 H19W1 S c M 4 1 A 1 O X
*on request
H = High Density
*on request
*on request
Quality class 3 Quality class 1
77 60 = Solder pin, angled 40 A
81 66 = Solder pin, angled 20 A
82 67 = Solder pin, angled 30 A
85 65 = Solder pin, angled 30 A
G7 76 = 3 Solder pins Straight 50 Ω
G9 78 = 3 Solder pins angled 50 Ω
H1 79 = 3 Solder pins angled 50 Ω
H4 80 = 5 Solder pins angled 50 Ω
G8 86 = 3 Solder pins Straight 75 Ω
H2 88 = 3 Solder pins angled 75 Ω
H3 89 = 3 Solder pins angled 75 Ω
H5 90 = 5 Solder pins angled 75 Ω
91
= Screw termination 20 A
Quality class 1
P1 = press fit 30A
P2 = press fit 30A
P4 = press fit 30A
99 = no high power, coax or crimp
contacts loaded
Coaxial contacts with cable termination
must be ordered separately.
Mounting style
F3
A1
= Riveted
F4
A2
= M3 threaded insert
F5
A3
= 4-40 UNC threaded insert
F6
A4
= M3 threaded rear spacer
G5
A5
= 4-40 UNC threaded rear spacer
G6
A6
= Float fastening
G7
A7
= Threaded rear spacer for M3 press fit
G8
A8
= Threaded rear spacer for 4-40 UNC press fit
H5
E1
= M3 threaded rear spacer with PCB clip, PCB .063" 1.60 mm
H6
E2
= 4-40 UNC threaded rear spacer with PCB clip, PCB .063" 1.60 mm
H7
E3
= M3 threaded rear spacer with PCB clip, PCB .091" 2.30 mm
H8
E4
= 4-40 UNC threaded rear spacer with PCB clip, PCB .091" 2.30 mm
W1
E5
= M3 threaded rear spacer with PCB clip, PCB .126" 3.20 mm
W2
E6
= 4-40 UNC threaded rear spacer with PCB clip, PCB .126" 3.20 mm
F1
= M3 clip and threaded rear spacer with PCB clip, PCB .063" 1.60 mm
F2
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .063" 1.60 mm
= M3 clip and threaded rear spacer with PCB clip, PCB .091" 2.30 mm
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .091" 2.30 mm
= M3 clip and threaded rear spacer with PCB clip, PCB .126'' 3.20 mm
= 4-40 UNC clip and threaded rear spacer with PCB clip, PCB .126" 3.20 mm
= Metal bracket, M3 threaded insert for .350'' 7,98 mm
= Metal bracket, 4-40 UNC threaded insert for .350" 7,98 mm
= Metal bracket, M3 threaded insert and Clip for .350" 7,98 mm
= Metal bracket, 4-40 UNC threaded insert and Clip for .350" 7,98 mm
= Metal bracket, M3 threaded lock for .350" 7,98 mm
= Metal bracket, 4-40 UNC threaded lock for .350" 7,98 mm
= Metal bracket, M3 threaded lock and Clip for .350" 7,98 mm
= Metal bracket, 4-40 UNC threaded lock and Clip for .350" 7,98 mm
= Threaded rear spacer with M3 press in pin
= Threaded rear spacer with 4-40 UNC press in pin
0X
= Standard
2| 3
