High Temprature “DCHM”
Dura-Con™ Micro-D Plug
Connectors
Plug Connector Technology
Cinch has teamed our proven twist pin technology with these custom
designed insulators capable of meeting the extreme mechanical and
electrical needs in the harshest environments of military/aerospace and
industrial applications such as Down Hole Directional Drilling.
Cinch’s unique plug insulators are designed to provide increased
electrical protection between contact cavities preventing any potential
shorts due to exposed wire or epoxy voids. Comprised of LCP material
these connectors offer superior performance and long life in severe
environments.
Product Offerings
• Full harnessing capabilities ranging from simple point-point to complex
with many branches
•
Custom configurations and modifications available to fit unique
packaging and design requirements

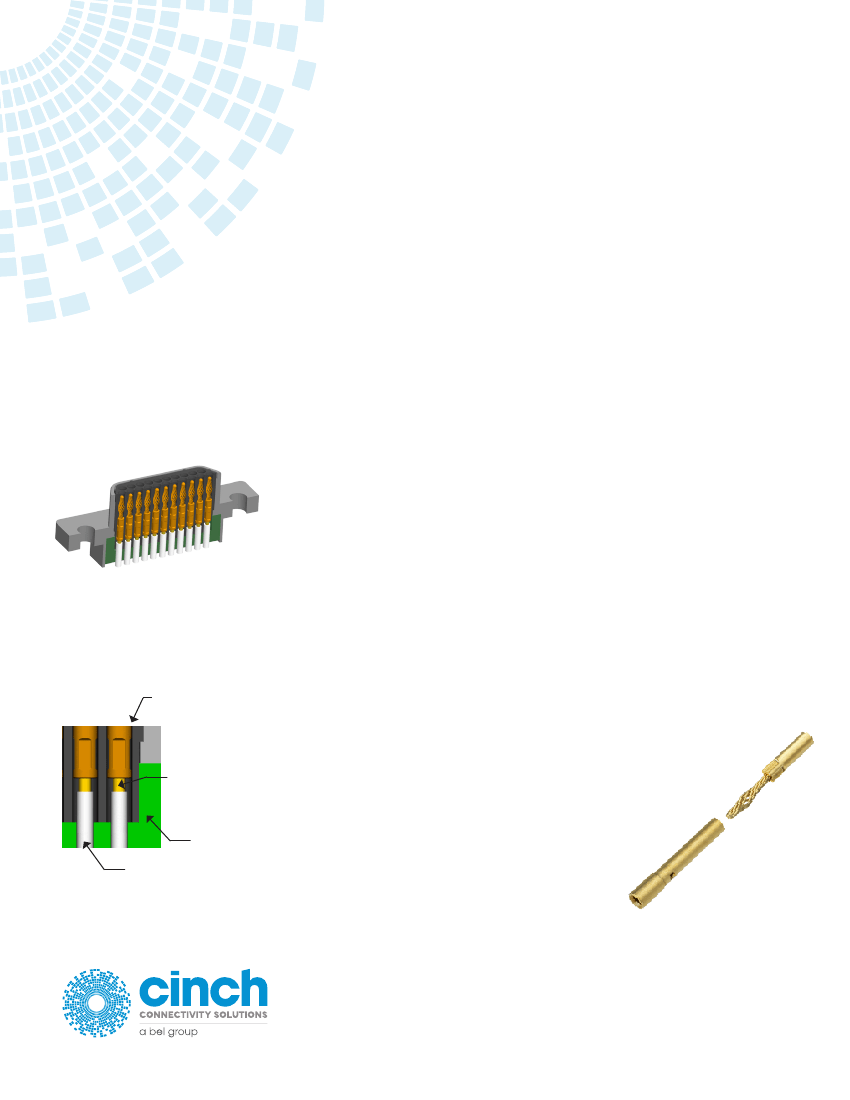

Cinch’s Twist Pin Advantage
Custom Insulator
• Combine the twist pin performance with increased temperature range
• BeCu wire strands provide seven points of
electrical contact
Exposed Conductor
Recessed Into
Insulator
• Achieve high mating cycles and better resistance
to shock and vibration
• Approved system applications
(Aerospace, Defense and Geo-Thermal)
•
Qualified and approved to Mil-DTL-83513
2-Part Epoxy
Wire Insulation
Detail of Dura-Con™ Twist Pin
Cinch Connectivity Solutions
1700 Finley Road
Lombard, IL 60148 USA
© 2015 Cinch Connectors, Inc.
+1 630.705.6000
inquiry@cinch.com
cinch.com
duracondchmplugv01.15
Dura-Con™

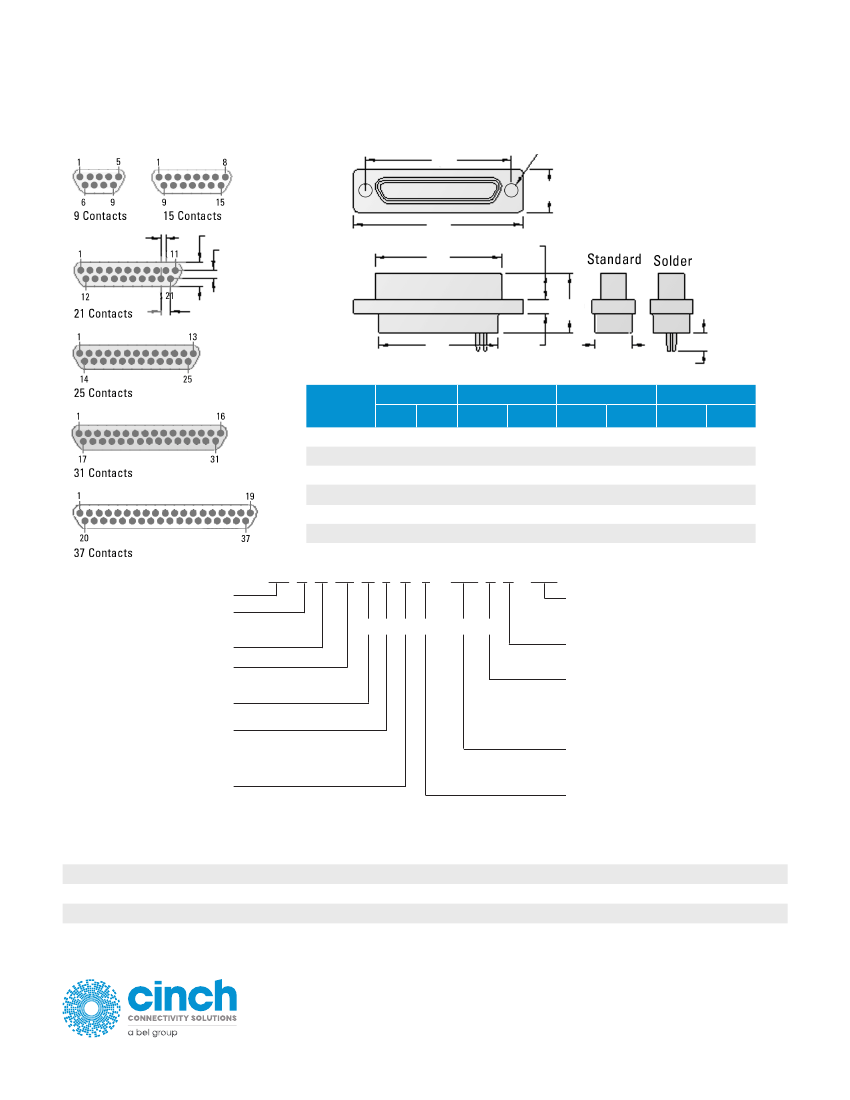

Contact Arrangements
(Face View)
Shell Dimensions
(Plug)
D
Two. Mtg. Holes
.096/ .088 Dia.
(2.44/2.24)
.308 Max.
(7.82)
A
.0254 Typ.
.130
.043
(1.09)
B
.186
(4.72)
Max.
.05 (1.27)
Typ.
.098 Max.
(2.50)
.416 Max.
(10.57)
.270
(6.86)
Max.
C
.100
(2.54)
Max.
No. of
Contacts
9 Plug
15 Plug
21 Plug
25 plug
31 Plug
37 Plug
A Max.
In.
0.785
0.935
1.085
1.185
1.335
1.485
B Max.
in.
0.334
0.484
0.634
0.734
0.884
1.034
C Max.
in.
0.400
0.550
0.700
0.800
0.950
1.100
D Nominal
in.
0.565
0.715
0.865
0.965
1.115
1.265
mm.
19.94
23.74
27.56
30.10
33.97
37.72
mm.
8.48
12.29
16.10
18.64
22.45
26.26
mm.
10.16
13.97
17.78
20.32
24.13
27.94
mm.
14.35
18.16
21.97
24.51
28.32
32.13
DC H M XX P 6 N 6 - 36.0 B N - HT1
Cinch Dura-Con “D”
Insulator Type
H=High Temperature LCP
M=Metal Shell
Contact Positions
xx = 9,15, 21, 25, 31, 37
Contact Type
P = Plug (PIN)
Wire Size (in AWG)
6=26, 8=28
S=Solder Cup
(Skip to Mounting Hardware)
Insulated Wire Type
N = Mil-W-22759/33
How to Order
Operating Temperature
HT1 = 175°C
HT2 = 200°C
Shell Plating
N = Nickel
Mounting hardware
B = No Hardware
M = Jackscrew Hex Head
Low Profile Per
M83513/05-02
Lead Length
(in Inches)
XX.X
Insulation Color
1 = White
5 = Color Coded Per Mil-Std 681 System 1
6 = Coded Per Mil-Std 681 System 1 First
10 Colors then repeat
Performance Characteristics
Operating Temperature
Shock
Vibration
Sizes
-40°C to 175°C (-40°F to 347°F) or -40°C to 200°C (-40°F to 392°F)
50 G’s per MIL-STD-1344, Method 2004, Condition E (EIA-364-27, Condition E)
20 G’s per MIL-STD-1344, Method 2005, Condition IV (EIA-364-28, Condition IV)
9, 15, 21, 25, 31 and 37. Please consult factory for larger sizes.
+1 630.705.6000
inquiry@cinch.com
cinch.com
