1. Reference Application Note M513 for reel size information.
2. MACOM recommends connecting unused package pins to
ground.
Electrical Specifications: +25°C, Z
0
= 75
Ω
Parameter
Insertion loss
Filter Isolation
Filter Return Loss (all ports)
Frequency Test Conditions (MHz)
5 - 42
54 - 1218
5 - 42
42 - 54
54 - 1218
5 - 42
54 - 750
750 - 1218
39 - 40.5
40.5 - 42
55.25 - 58.83
61.25 - 64.83
67.25 - 70.83
Units
dB
dB
dB
Min.
—
45
26
45
22
22
20
—
Typ.
1.0
1.0
50
30
50
24
24
24
10
17
17
10
6
Max.
1.3
1.3
—
—
Group Delay
ns
—
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0018759
MAFL-011078
CATV Diplex Filter
5 - 42 / 54 - 1218 MHz
Absolute Maximum Ratings
3,4
Parameter
RF Power
DC Current
Operating Temperature
Storage Temperature
Absolute Maximum
1000 mW
30 mA
-40°C
to +85°C
-20°C
to +125°C
Rev. V1
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4.
MACOM does not recommend sustained operation near these
survivability limits.

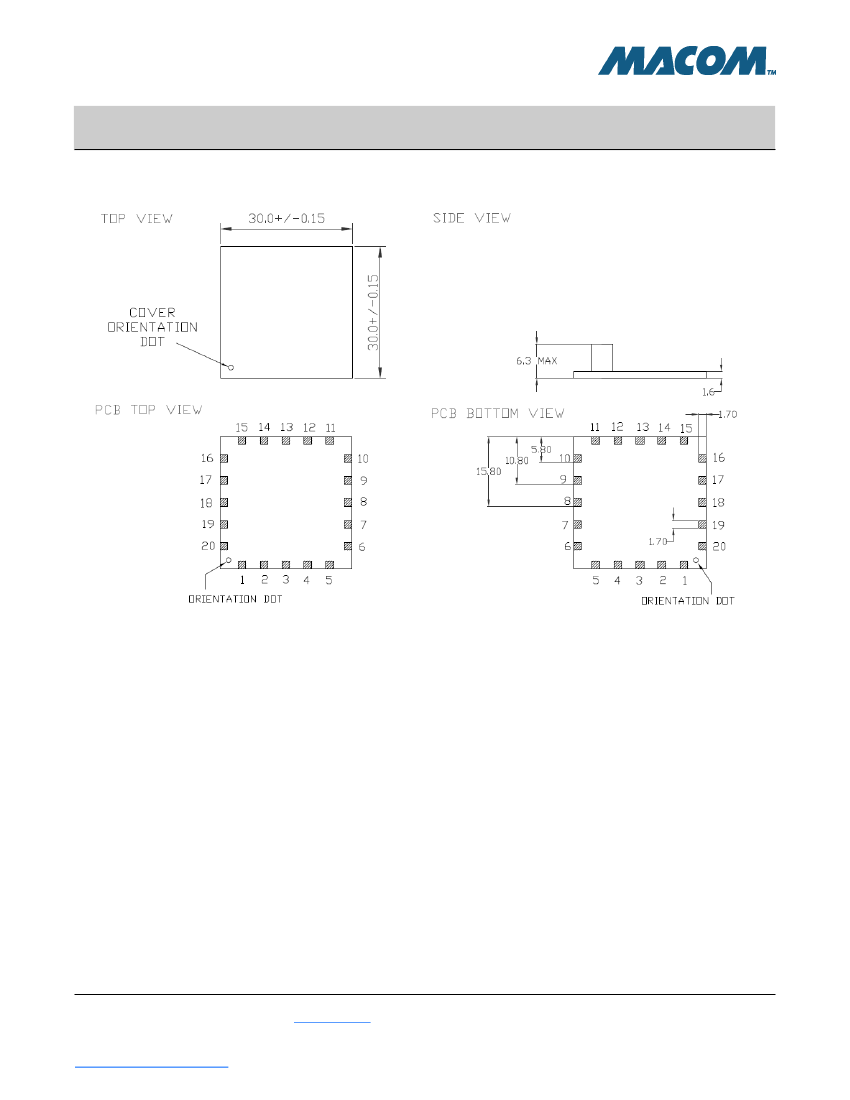

Recommended PCB Configuration
Dimensions in mm. Tolerance: .x ± 0.1, .xx ± 0.05
2
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0018759
MAFL-011078
CATV Diplex Filter
5 - 42 / 54 - 1218 MHz
Typical Performance Curves
Input Port Return Loss
Low Pass Filter Performance
Rev. V1
High Pass Filter Performance
Filter Isolation
Low Pass port Return Loss
High Pass port Return Loss
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0018759
MAFL-011078
CATV Diplex Filter
5 - 42 / 54 - 1218 MHz
Outline Drawing
Rev. V1
Dimensions in mm. Tolerance: .x ± 0.1, .xx ± 0.05
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0018759
MAFL-011078
CATV Diplex Filter
5 - 42 / 54 - 1218 MHz
Tape & Reel Orientation
Rev. V1
Tape & Reel Information
Parameter
Qty per reel
Reel Size
Tape Width
Pitch
Ao
Bo
Ko
Orientation
Units
-
mm
mm
mm
mm
mm
mm
-
Value
200
330
56.00
40.00
30.3
30.3
6.4
F30
Reference Application Note ANI-019 for orientation
5
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
