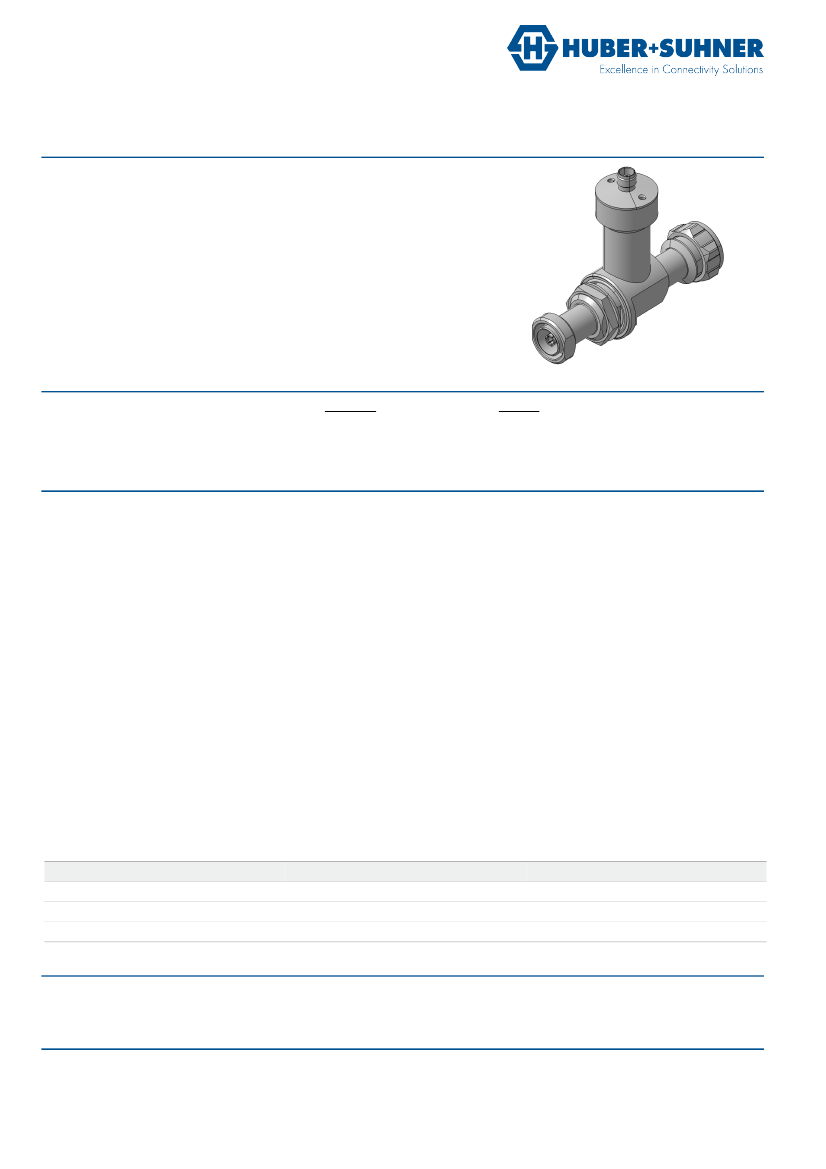

Data Sheet
EMP Protector
3410.41.0039
Description
High-power/low-IM GDT hybrid technology with bias-T
Benefits
Broad-band design
Replaceable GDT 9071.99.0548, (90 V) included
AISG compliant for 2.176 MHz carrier
Mounting screw set included
Compliant to IEC 61643-21
Product Configuration
Main path connectors
DC injection port connector
Mounting and grounding
Side of bulkhead
Port 1: unprotected, 7/16 jack (female) - Port 2: protected, 7/16 plug (male)
Port 3: TNC jack (female)
MH110 (bulkhead mounting), M8 (screw), brk (bracket)
unprotected side
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
DC Injection port decoupling
DC supply voltage
DC injection current
Surge current handling capability
Residual pulse energy
50 Ω
2.176 MHz
20 dB typ.
0.2 dB typ.
690 - 2700 MHz
≥ 26 dB
≤ 0.2 dB
≤ 500 W
-155 dBc max.
≥30 dB
≤ 48 V
≤ 3.5 A
30 single / 20 multiple kA (test pulse 8/20 µs)
20 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
300 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) DC injection port
Mechanical Data
Number of matings
Weight
500
570 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EC (RoHS)
-40 °C to +85 °C
IP67 (according to IEC 60529, data refer to the coupled state)
compliant
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Brass
Bronze
Brass
Surface Plating
SUCOPLATE (R) Plating
Silver Plating
Silver Plating
Related Documents
Outline drawing
Mounting instruction
DOU-00275723
DOC-0000471434
Remarks
- Supports DC feed and AISG signal between port 3 and port 1
- Resistance DC injection por 3: < 10 mOhm
- Recommended port 3 cabel assembly material:
Document: DOC-0000681437 D / PDO A / date of publication: 13.07.2017 18:53:56 / uncontrolled copy
Page 1/2
Data Sheet
EMP Protector
3410.41.0039
connector: 11_TNC-50-2-27 (84101205) and
heat shrink tubing: (90056301)
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000681437 D / PDO A / date of publication: 13.07.2017 18:53:56 / uncontrolled copy
Page 2/2
