Data Sheet

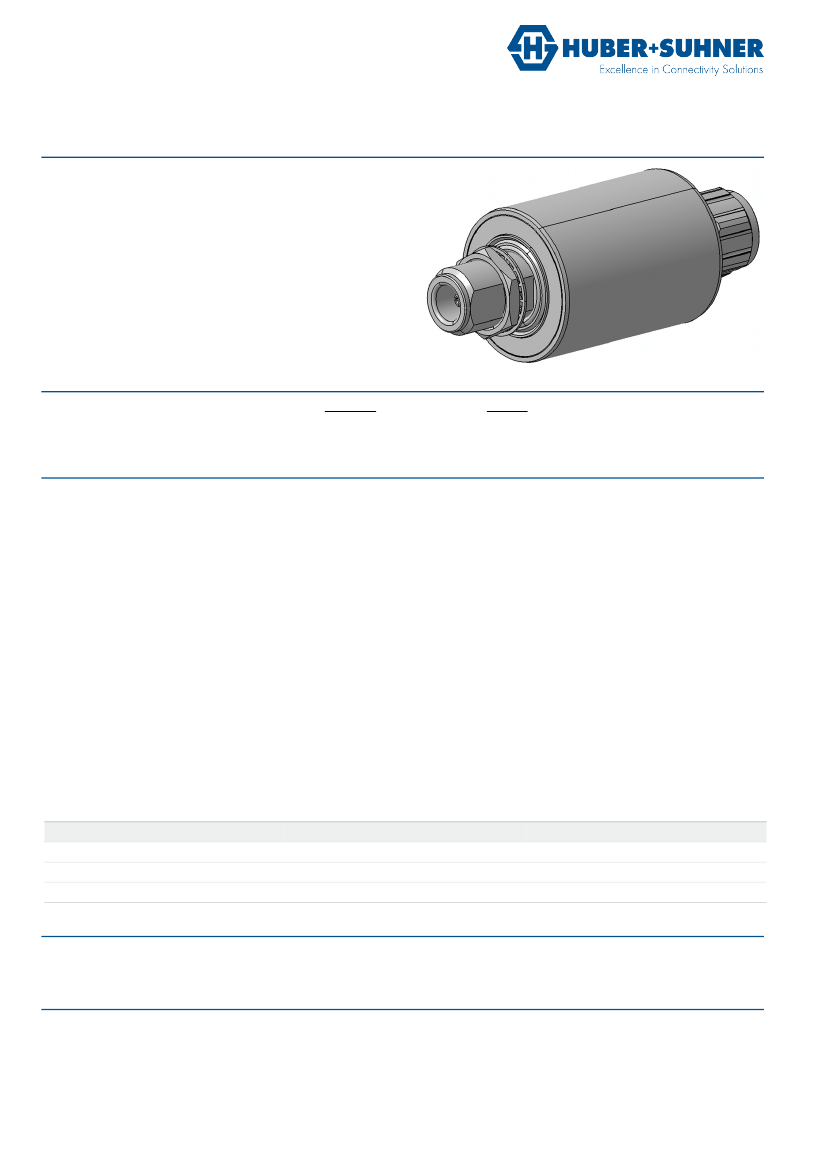

EMP Protector
3403.17.0063
Description
Fine protector hybrid technology
Benefits
Broad-band design
DC continuity for remote powering
Permanently installed gas discharge tube
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Side of bulkhead
Port 1: unprotected, N jack (female) - Port 2: protected, N plug (male)
MH12 (bulkhead mounting), brk (bracket)
unprotected side
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
DC supply voltage
DC current
Surge current handling capability
Residual pulse energy
50 Ω
800 - 2500 MHz
≥ 26.44 dB
≤ 0.3 dB
≤ 50 W
not specified
≤6V
≤4A
20 single kA (test pulse 8/20 µs)
6 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
100
104 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EC (RoHS)
-40 °C to +85 °C
IP67 (according to IEC 60529, data refer to the coupled state)
compliant acc. Annex III
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Aluminium
Copper Beryllium Alloy
Brass
Surface Plating
Chromatized
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting instruction
DOU-00096689.1
DOC-0000176104
Remarks
Recommendation: if this protector is mated with connectors made of copper-alloy base material and trimetal or nickel plating the
connector area must be taped to improve long-term durability.
Document: DOC-0000252690 P / PDO G / date of publication: 28.03.2017 18:47:42 / uncontrolled copy
Page 1/2
Data Sheet
EMP Protector
3403.17.0063
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000252690 P / PDO G / date of publication: 28.03.2017 18:47:42 / uncontrolled copy
Page 2/2
