3403.17.0045 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Surge suppressor> 3403.17.0045

3403.17.0045: DescriptionSurge suppressor PROTECTOR,EMP 50 OHM FEMALE; CategoryCircuit protection Surge suppressor; File Size117KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

3403.17.0045 Overview

Surge suppressor PROTECTOR,EMP 50 OHM FEMALE

3403.17.0045 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	surge suppressor
product	Connector Protection Devices
Voltage rating	15 V
Current rating	3 A
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C

Preview

Download Datasheet

View All

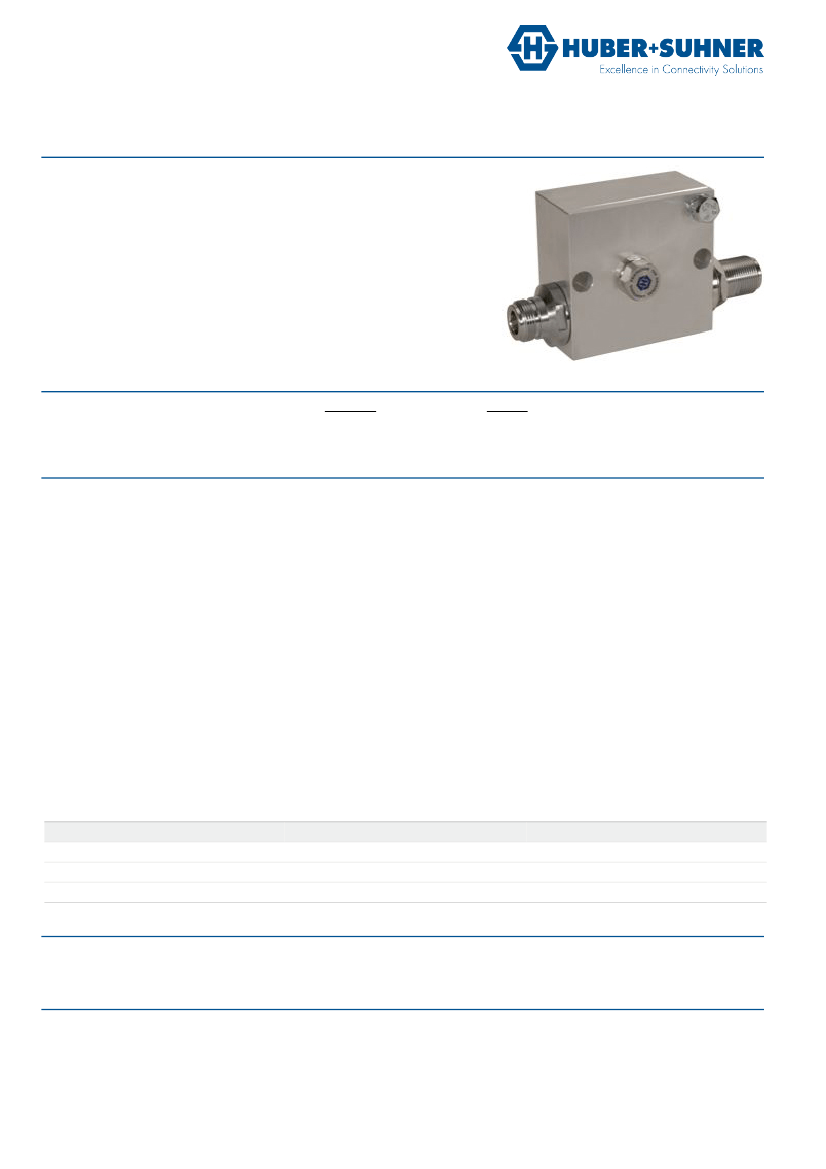

Data Sheet

EMP Protector

3403.17.0045

Description

Fine protector hybrid technology

Benefits

Broad-band design

DC continuity for remote powering

Replaceable GDT 9071.99.0548, (90 V) included

Compliant to IEC 61643-21

Product Configuration

Main path connectors

Mounting and grounding

Side of bulkhead

Port 1: unprotected, N jack (female) - Port 2: protected, N jack (female)

MH119 (bulkhead mounting), M4 (screw), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

DC supply voltage

DC current

Surge current handling capability

Residual pulse energy

50 Ω

800 - 2000 MHz

≥ 20 dB

≤ 0.4 dB

≤ 50 W

not specified

1500 - 1600 MHz

≥ 26.44 dB

≤ 0.4 dB

≤ 50 W

not specified

≤ 15 V

≤3A

30 single / 20 multiple kA (test pulse 8/20 µs)

6 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

Mechanical Data

Number of matings

Weight

500

330 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EC (RoHS)

-40 °C to +85 °C

IP66 (according to IEC 60529, data refer to the coupled state)

compliant acc. Annex III

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Aluminium

Copper Beryllium Alloy

Surface Plating

Chromatized

Gold Plating (without Nickel underplating)
