TPSMDJ24A/TPSMDJ24CA datasheet, PDF

Datasheet> All Categories > TPSMDJ24A/TPSMDJ24CA

TPSMDJ24A/TPSMDJ24CA: DescriptionAutomotive grade TVS tube TPSMDJ24A/TPSMDJ24CA, compliant with AEC-Q101 certification standards, SMC/DO-214AB package, peak pulse power 3000W, used in overvoltage protection of sensitive electronic parts, covering automotive electronics, consumer electronics, industrial equipment, household Electrical appliances, communication equipment and other fields.; File Size1MB，3 Pages; ManufacturerDowosemi; Websitehttp://www.dowosemi.cn

Download Datasheet View All

TPSMDJ24A/TPSMDJ24CA Overview

Automotive grade TVS tube TPSMDJ24A/TPSMDJ24CA, compliant with AEC-Q101 certification standards, SMC/DO-214AB package, peak pulse power 3000W, used in overvoltage protection of sensitive electronic parts, covering automotive electronics, consumer electronics, industrial equipment, household Electrical appliances, communication equipment and other fields.

Preview

Download Datasheet

View All

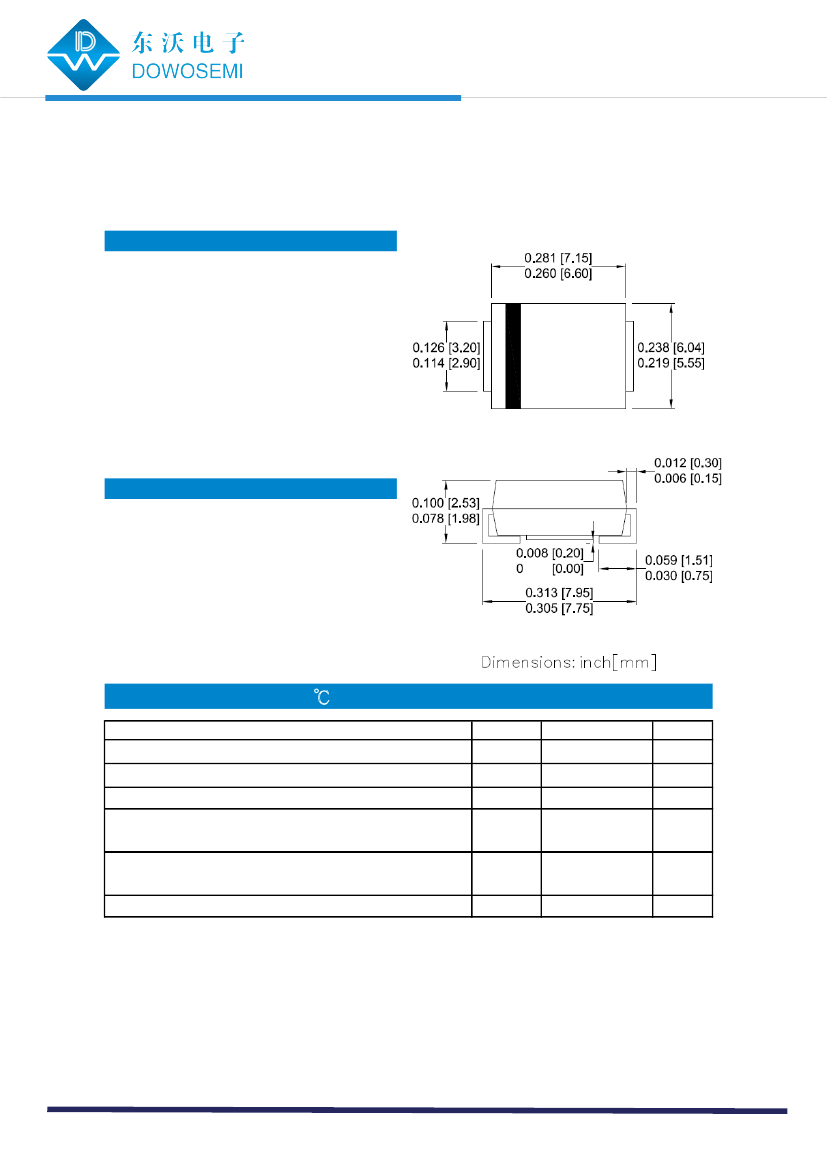

TPSMDJ Series

Working Voltage: 10 to 43 V

Peak Pulse Power: 3000 W

Features

●

Surface Mount

Transient Voltage Suppressors

SMC/ DO-214AB

Glass passivated chip

3000 W peak pulse power capability with a

10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

High reliability application and automotive

grade AEC Q101 qualified

Low leakage

Uni and Bidirectional unit

Excellent clamping capability

Very fast response time

RoHS compliant

Case: Molded plastic

Epoxy: UL 94V-0 rate flame retardant

Lead: Solderable per MIL-STD-750, method

2026

Polarity: Color band denotes cathode end

except Bipolar

Mounting position: Any

●

Mechanical Data

●

Maximum Ratings(T

=25℃ unless otherwise noted)

Value

Parameter

Symbol

(1)

3000

Peak power dissipation with a 10/1000μs waveform

See Next Table

Peak pulse current with a 10/1000μs waveform

(1)

Power dissipation on infinite heatsink at T

= 50 °C

6.5

Peak forward surge current, 8.3 ms single half sine-wave

FSM

300

unidirectional only

(2)

Maximum instantaneous forward voltage at 100A for

3.5/5.0

(3)

unidirectional only

, T

STG

Operating junction and storage temperature range

- 55 to +150

Note:

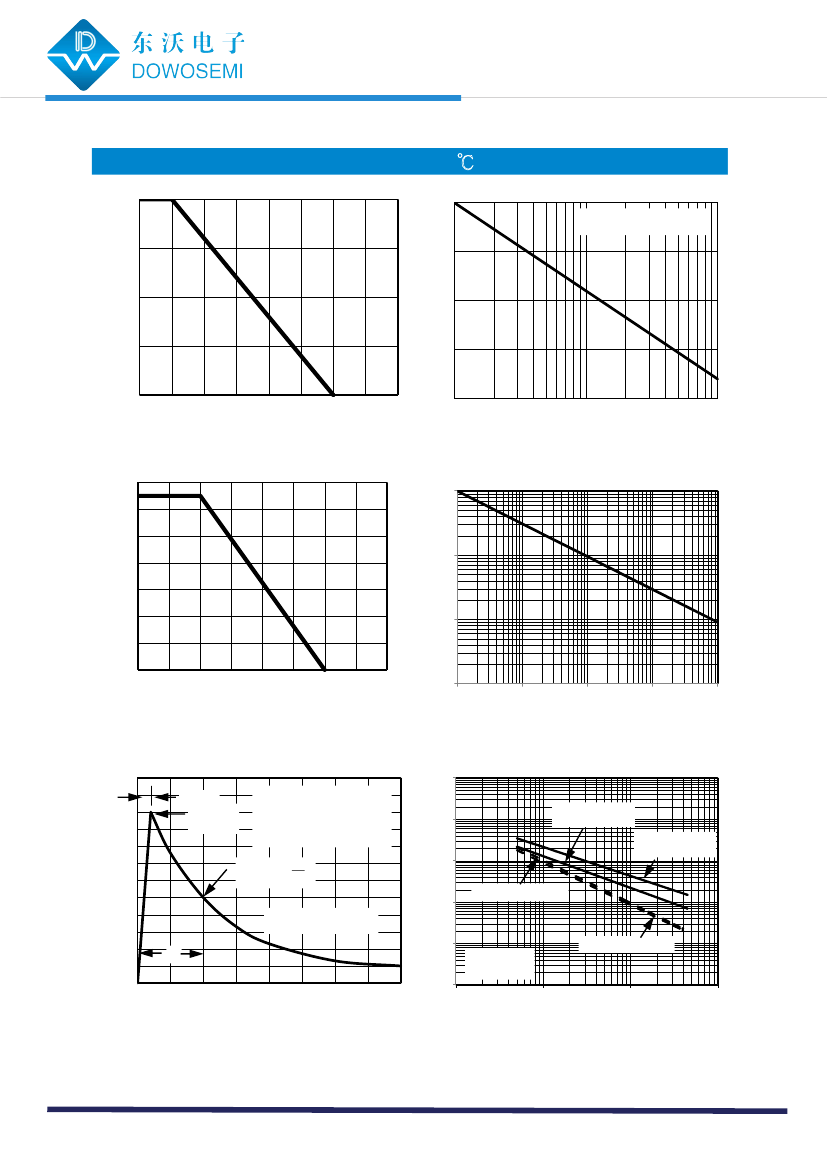

(1)Non-repetitive current pulse per Fig.5 and derated above T

= 25 °C per Fig.1

(2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

(3)V

<3.5V for devices of V

<200V and V

<5.0V for devices of V

>201V

Unit

°C

www.dowosemi.cn

P. 1
