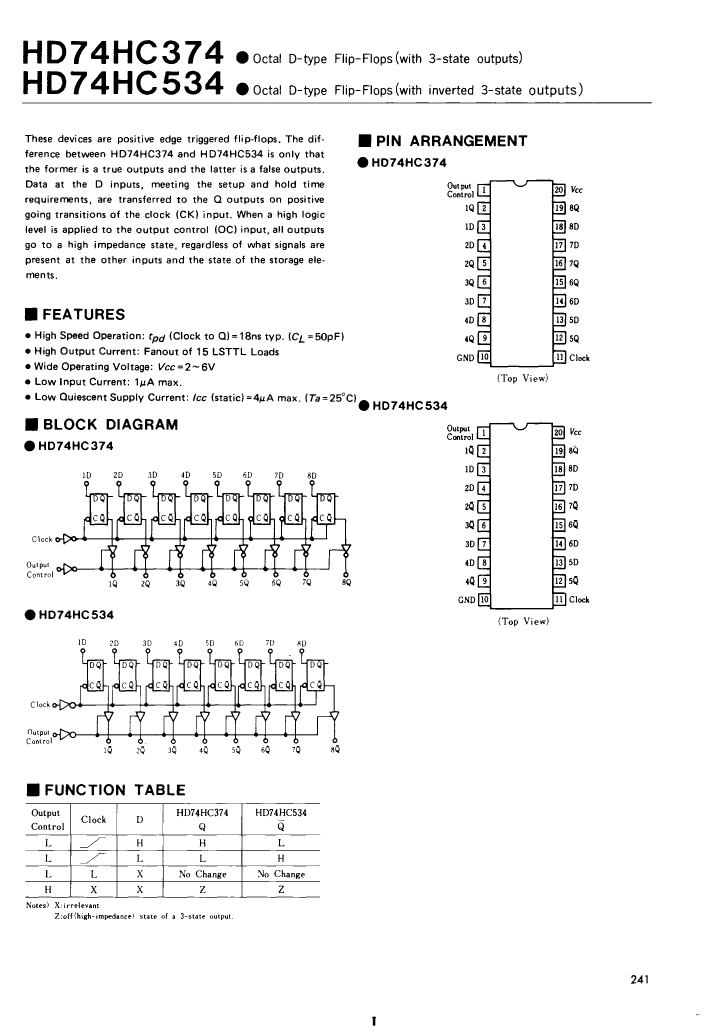

Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, EIAJ, SOP-20

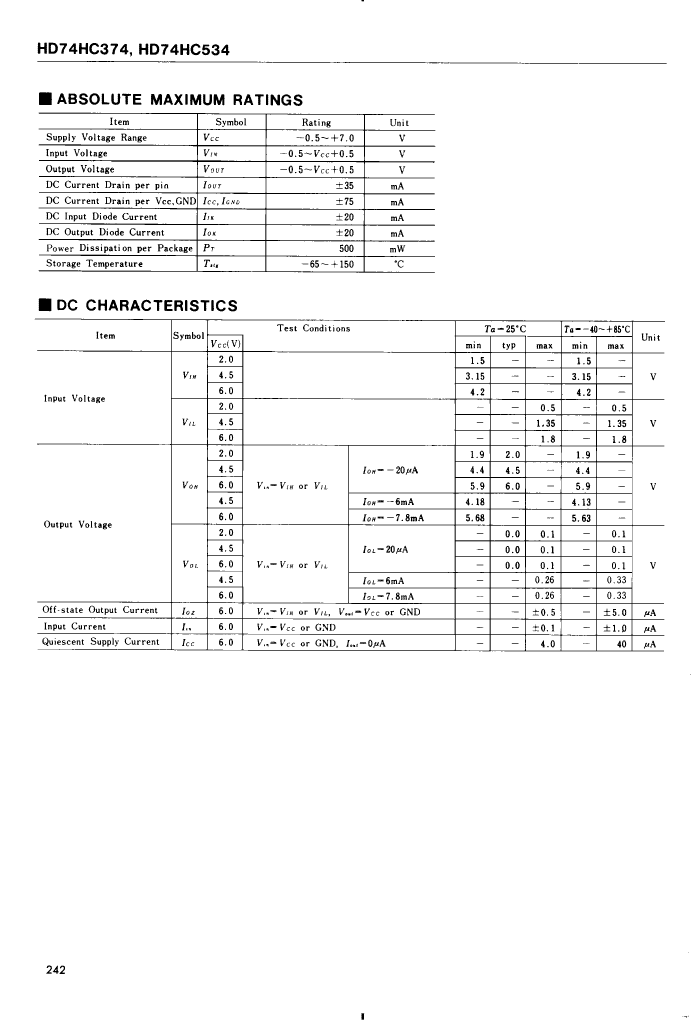

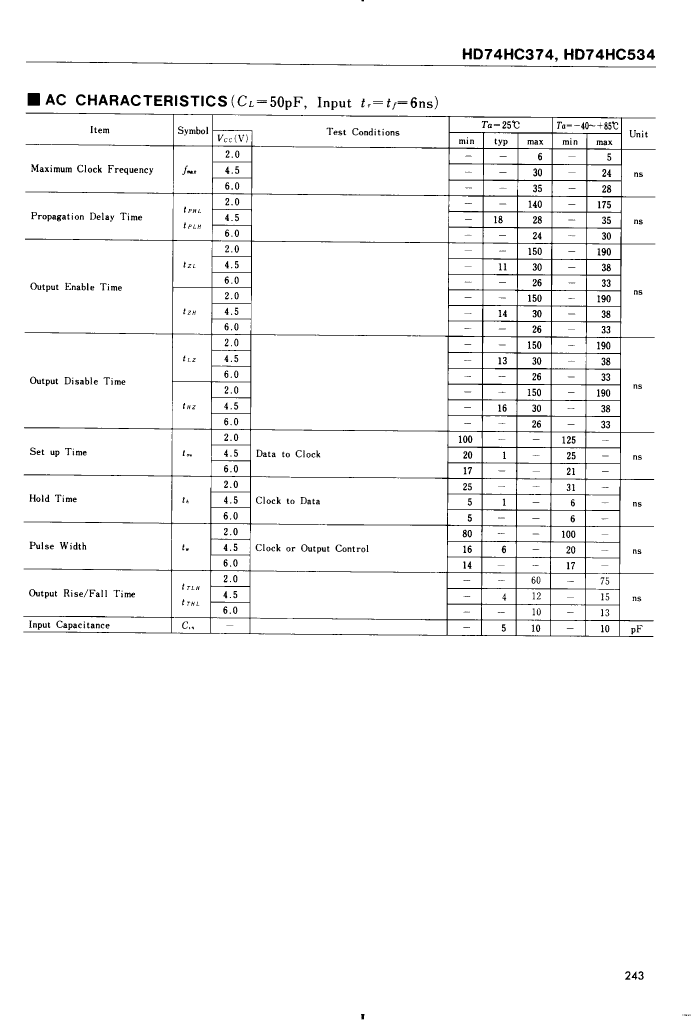

| Parameter Name | Attribute value |
| Maker | Hitachi （Renesas ） |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| series | HC/UH |
| JESD-30 code | R-PDSO-G20 |
| length | 12.6 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 35 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.2 mm |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 5.5 mm |
| Base Number Matches | 1 |
| HD74HC374FP-EL | HD74HC534RP-EL | HD74HC374RP-EL | HD74HC534FP-EL | |
|---|---|---|---|---|
| Description | Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, EIAJ, SOP-20 | Bus Driver, HC/UH Series, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO20, SOP-20 | Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOP-20 | Bus Driver, HC/UH Series, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO20, EIAJ, SOP-20 |
| Maker | Hitachi （Renesas ） | Hitachi （Renesas ） | Hitachi （Renesas ） | Hitachi （Renesas ） |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOP, | SOP, | SOP, | SOP, |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 12.6 mm | 12.8 mm | 12.8 mm | 12.6 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | INVERTED | TRUE | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 35 ns | 35 ns | 35 ns | 35 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.2 mm | 2.65 mm | 2.65 mm | 2.2 mm |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 5.5 mm | 7.5 mm | 7.5 mm | 5.5 mm |
