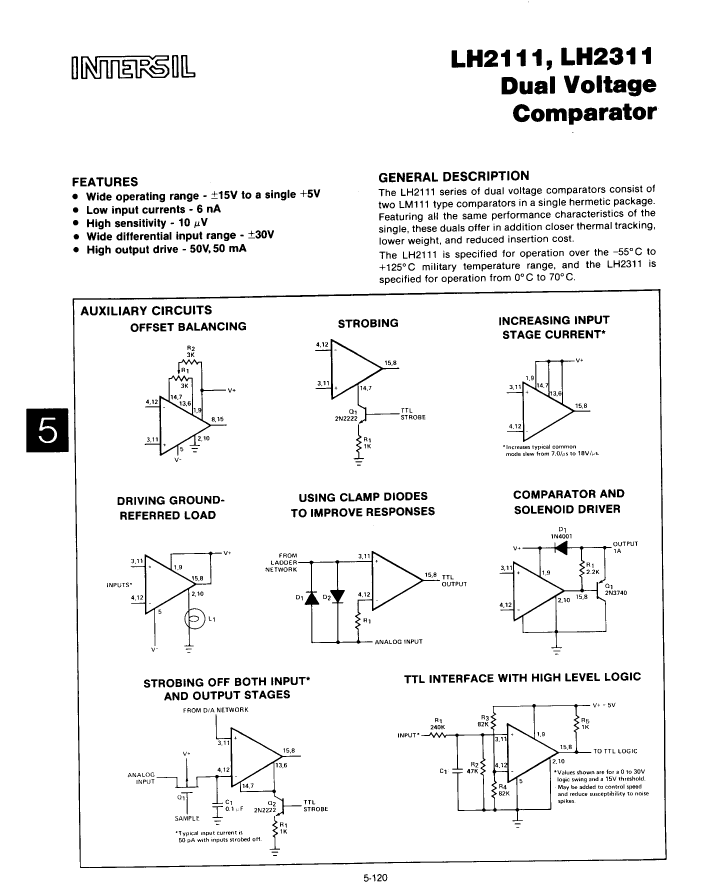

Preview

LH2111D/883B: DescriptionBasic information of LH2111D/883B amplifier: LH2111D/883B is a COMPARATOR. Commonly used packaging methods are DIP, DIP16,.3 LH2111D/883B amplifier core information: The minimum operating temperature of LH2111D/883B is -55 °C and the maximum operating temperature is 125 °C. The nominal supply voltage of LH2111D/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. Relevant dimensions of LH2111D/883B: LH2111D/883B has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. LH2111D/883B amplifier other information: Its temperature grade is: MILITARY. LH2111D/883B does not comply with Rohs certification. The corresponding JESD-30 code is: R-XDIP-T16. The corresponding JESD-609 code is: e0. The packaging code of LH2111D/883B is: DIP. LH2111D/883B packaging materials are mostly CERAMIC. The package shape is RECTANGULAR. LH2111D/883B package pin formats are: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAmplifier circuit The comparator; File Size134KB，2 Pages; ManufacturerGeneral Electric Solid State; Alternative parts：LH2111D/883B

Download Datasheet Parametric View All

LH2111D/883B Overview

Basic information of LH2111D/883B amplifier:

LH2111D/883B is a COMPARATOR. Commonly used packaging methods are DIP, DIP16,.3

LH2111D/883B amplifier core information:

The minimum operating temperature of LH2111D/883B is -55 °C and the maximum operating temperature is 125 °C.

The nominal supply voltage of LH2111D/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V.

Relevant dimensions of LH2111D/883B:

LH2111D/883B has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.

LH2111D/883B amplifier other information:

Its temperature grade is: MILITARY. LH2111D/883B does not comply with Rohs certification. The corresponding JESD-30 code is: R-XDIP-T16. The corresponding JESD-609 code is: e0. The packaging code of LH2111D/883B is: DIP.

LH2111D/883B packaging materials are mostly CERAMIC. The package shape is RECTANGULAR. LH2111D/883B package pin formats are: IN-LINE. Its terminal form is: THROUGH-HOLE.

LH2111D/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	General Electric Solid State
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	COMPARATOR
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

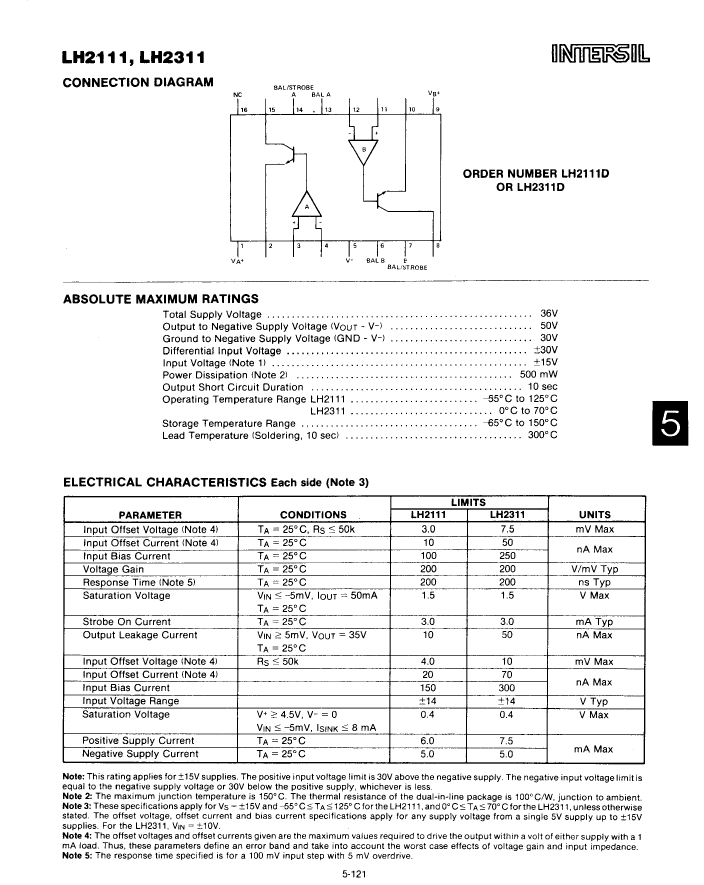

Preview
