832-00087 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > filter> 832-00087

832-00087: DescriptionData Line Filter, 2 Function(s), 250V, 0.65A, LEAD FREE PACKAGE-4; Categoryfilter; File Size57KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

832-00087 Overview

Data Line Filter, 2 Function(s), 250V, 0.65A, LEAD FREE PACKAGE-4

832-00087 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
package instruction	LEAD FREE PACKAGE-4
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum DC resistance	0.48 Ω
filter type	DATA LINE FILTER
high	16.51 mm
inductance	2100 µH
length	15.88 mm
Manufacturer's serial number	832-00087
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
physical size	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)
Rated current	0.65 A
Rated voltage	250 V
width	11.43 mm
Base Number Matches	1

Preview

Download Datasheet

View All

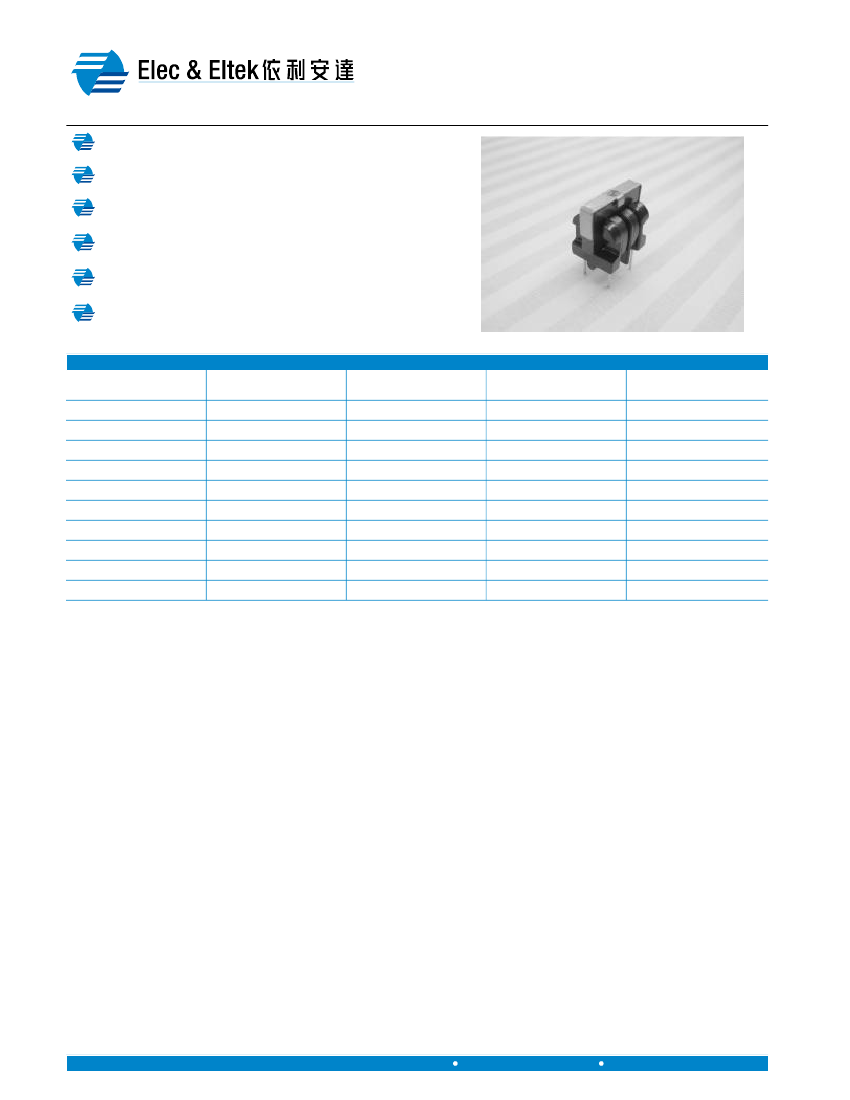

COMMON MODE CHOKE

E & E Magnetic Products Limited

THRU THOLE, 4 PIN

Rated voltage: 250V, DC to 400Hz

2000VAC isolation between winding

750VAC isolation between winding to core

CHEMATICS

Operating temperature range: -55°C to +105°C

Temperature rise: 50°C max

Lead(Pb)-free versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

832-00083

832-00084

832-00085

832-00086

832-00087

832-00088

832-00089

832-00090

832-00091

832-00092

Notes:

1. Inductance is measured at 1kHz.

OCL

(mH) Min.

0.39

0.68

0.90

1.40

2.10

3.30

4.90

7.40

11.50

18.70

Rated Current, Irms

(A) Max.

1.60

1.20

1.00

0.80

0.65

0.50

0.40

0.35

0.27

0.22

DCR

(

Ω)

Max.

0.08

0.13

0.19

0.30

0.48

0.74

1.20

1.80

2.80

4.45

Marking

(xxx)

083

084

085

086

087

088

089

090

091

092

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PC001(02)

Revised in 04/06

832-00087 Related Products

	832-00087	832-00089	832-00088	832-00091	832-00083	832-00092	832-00084	832-00085	832-00086	832-00090
Description	Data Line Filter, 2 Function(s), 250V, 0.65A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.4A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.5A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.27A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1.6A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.22A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1.2A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 1A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.8A, LEAD FREE PACKAGE-4	Data Line Filter, 2 Function(s), 250V, 0.35A, LEAD FREE PACKAGE-4
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.48 Ω	1.2 Ω	0.74 Ω	2.8 Ω	0.08 Ω	4.45 Ω	0.13 Ω	0.19 Ω	0.3 Ω	1.8 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm	16.51 mm
inductance	2100 µH	4900 µH	3300 µH	11500 µH	390 µH	18700 µH	680 µH	900 µH	1400 µH	7400 µH
length	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm	15.88 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)	L15.88XB11.43XH16.51 (mm)/L0.625XB0.45XH0.65 (inch)
Rated current	0.65 A	0.4 A	0.5 A	0.27 A	1.6 A	0.22 A	1.2 A	1 A	0.8 A	0.35 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm	11.43 mm
package instruction	LEAD FREE PACKAGE-4	-	LEAD FREE PACKAGE-4	LEAD FREE PACKAGE-4	LEAD FREE PACKAGE-4	LEAD FREE PACKAGE-4	-	LEAD FREE PACKAGE-4	-	-
Manufacturer's serial number	832-00087	832-00089	832-00088	832-00091	832-00083	832-00092	832-00084	832-00085	-	832-00090
Base Number Matches	1	1	1	1	1	1	1	1	-	-
