851560

Description
SAW Filter, 1 Function(s), 70MHz
Categoryfilter
File Size25KB,1 Pages
ManufacturerQorvo
Websitehttps://www.qorvo.com
Download Datasheet Parametric View All

851560 Overview

SAW Filter, 1 Function(s), 70MHz

851560 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerQorvo
Reach Compliance Codeunknown
Is SamacsysN
Center frequency or cutoff frequency (fo/fc)70 MHz
filter typeSAW FILTER
high5.33 mm
input resistance50 OHM
Maximum insertion loss26 dB
JESD-609 codee0
length22.1 mm
Manufacturer's serial number851560
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Output impedance50 OHM Ω
physical sizeL22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
Terminal surfaceTin/Lead (Sn/Pb)
width12.65 mm
Base Number Matches1

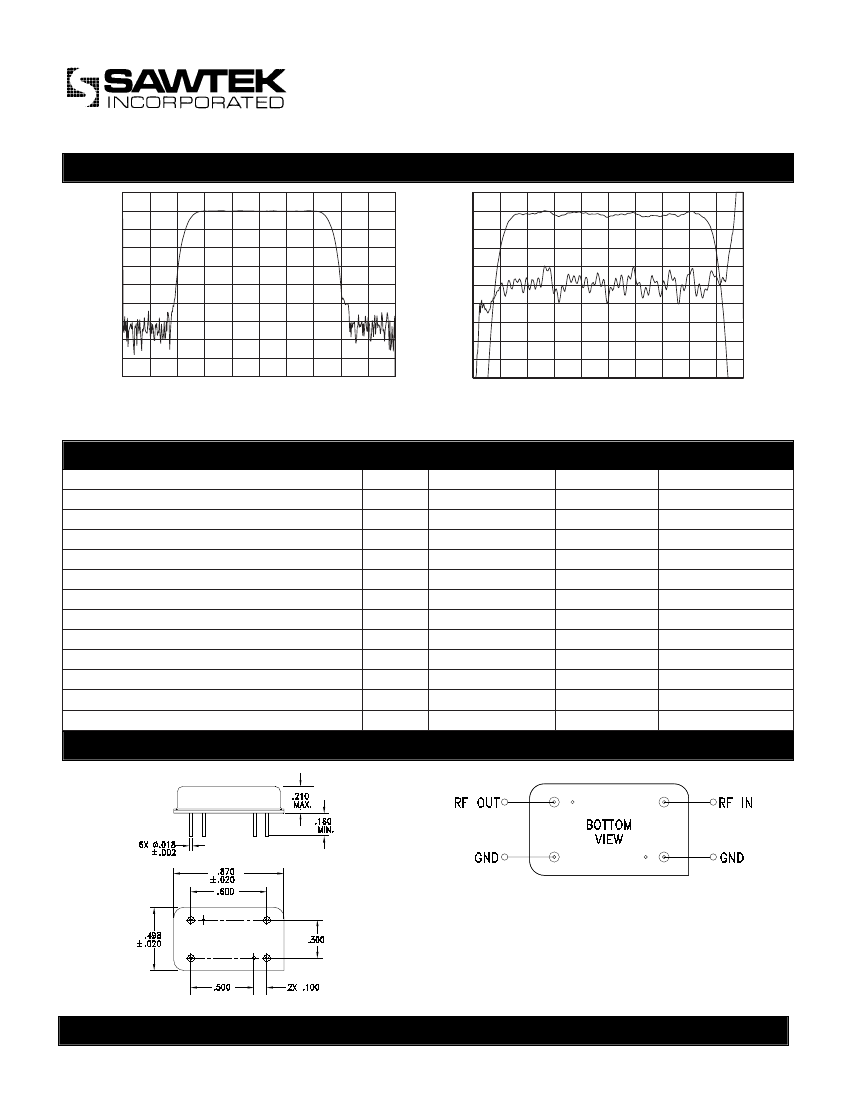

70 MHz Bandpass Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
72 74
60 62 64 66 68 70
2 MHz/Div
76 78 80
Vertical: 10 dB/Div
1
75
0
60
-1
45
-2
30
-3
15
-4
0
-5
-15
-6
-30
-7
-45
-8
-60
-9
-75
Horizontal: 1.2 MHz/Div
64 65.266.467.6 68.8 70 71.2 72.4 73.6 74.8 76
Vertical: 1 dB/Div
Vertical: 15 nsec/Div
9.5 MHz Bandwidth
Part Number 851560
Parameter
Center Frequency
Insertion Loss at f
o
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Variation
Phase Linearity
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
dB
deg
nsec
µsec
dB
-
°C
69.88
-
9.1
9.5
-
-
-
-
-
50
-
-
Typical
70
24
9.24
9.58
12.11
0.29
2
30
1.9
60
YZ LiNbO
3
25
Maximum
70.12
26
-
-
12.3
0.8
4
60
-
-
-
-
Package Outline
Matching Configuration
No Matching Required
Nominal Source/Load Impedance = 50Ω
Package Style I
11/17/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
