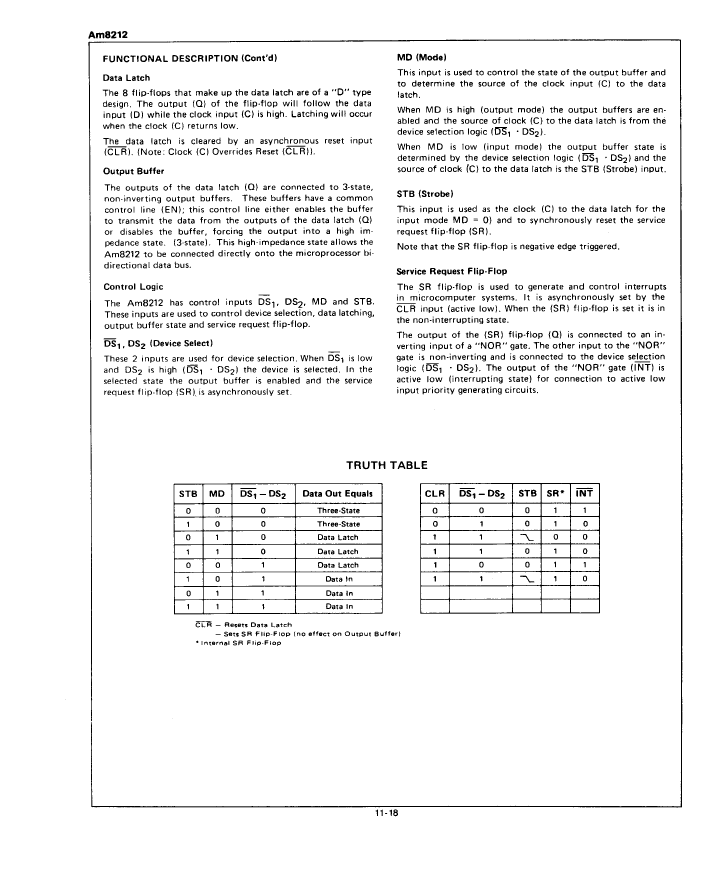

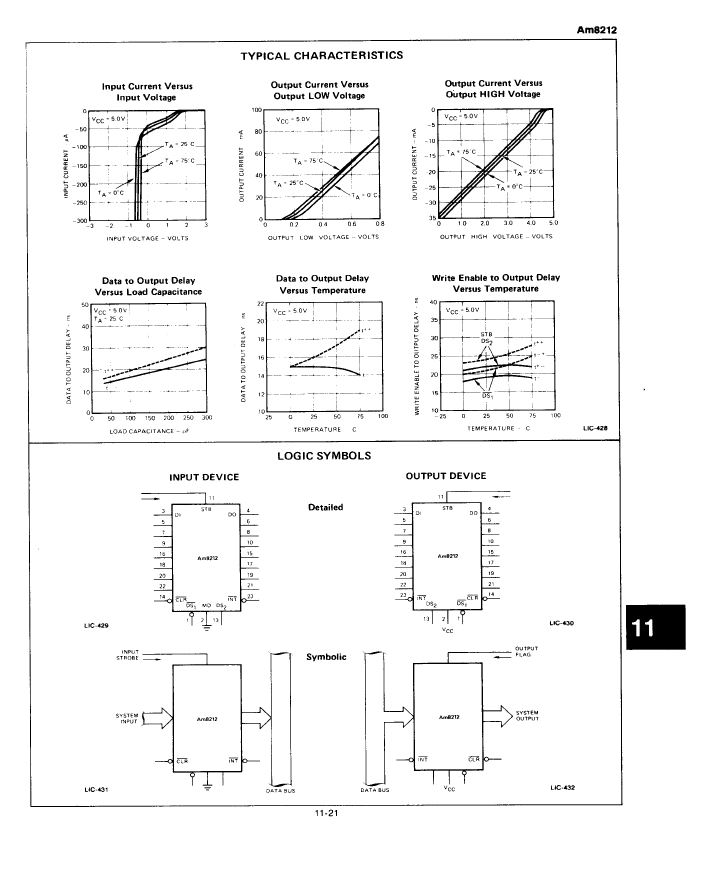

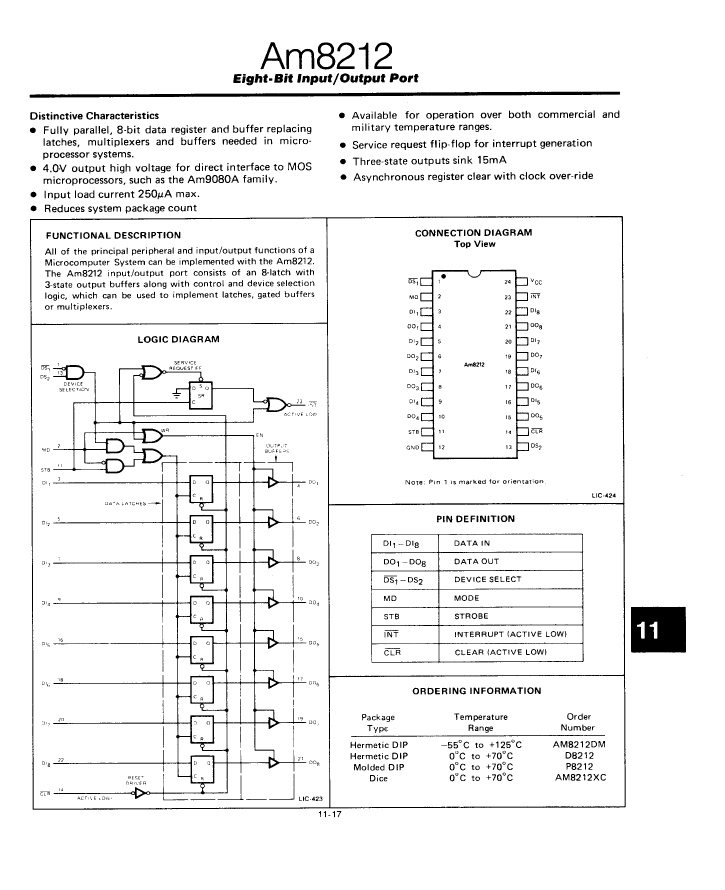

Registered Bus Transceiver, 82 Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SIDE BRAZED, DIP-24

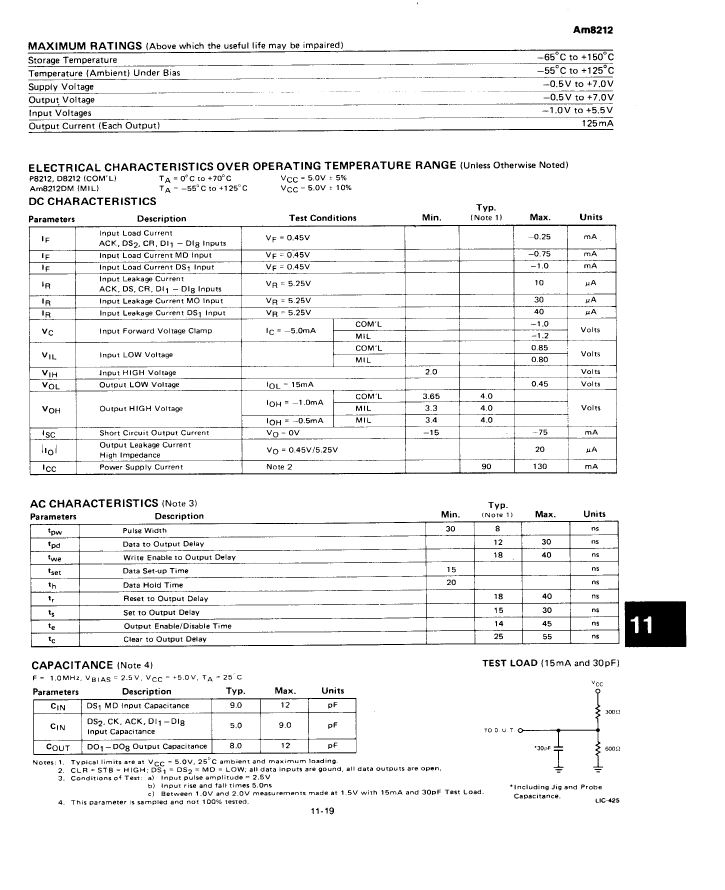

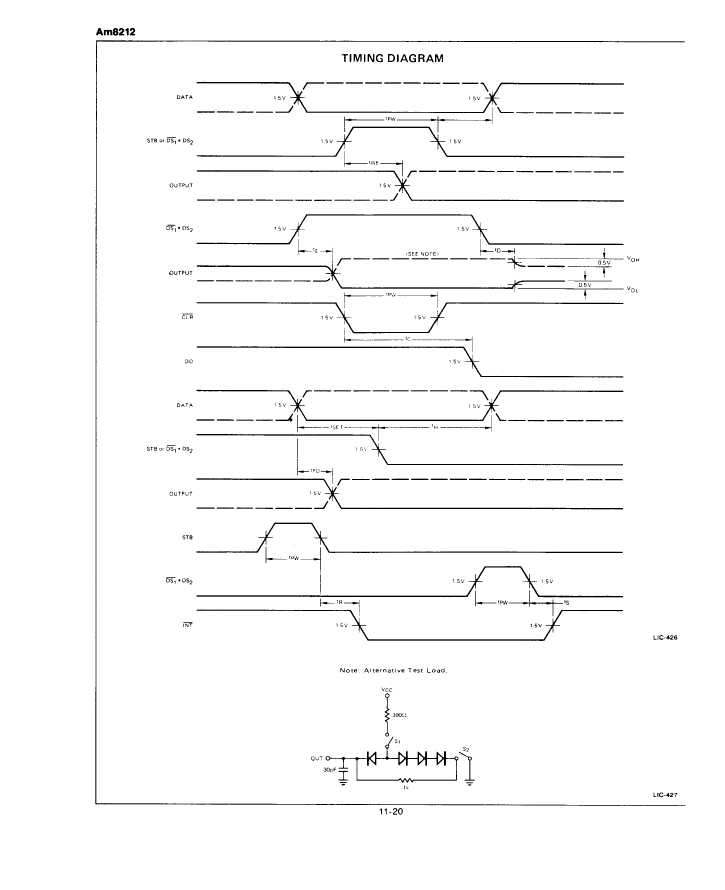

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| series | 82 |
| JESD-30 code | R-CDIP-T24 |
| JESD-609 code | e0 |
| length | 30.099 mm |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| propagation delay (tpd) | 30 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| Base Number Matches | 1 |
| D8212 | AM8212DM | P8212 | AM8212XC | |
|---|---|---|---|---|
| Description | Registered Bus Transceiver, 82 Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SIDE BRAZED, DIP-24 | Registered Bus Transceiver, 82 Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, HERMETIC SEALED, SIDE BRAZED, DIP-24 | Registered Bus Transceiver, 82 Series, 1-Func, 8-Bit, True Output, TTL, PDIP24, PLASTIC, DIP-24 | Registered Bus Transceiver, 82 Series, 1-Func, 8-Bit, True Output, TTL, 0.091 X 0.112 INCH, DIE-24 |
| Parts packaging code | DIP | DIP | DIP | DIE |
| package instruction | DIP, | DIP, | DIP, | DIE, |
| Contacts | 24 | 24 | 24 | 24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | 82 | 82 | 82 | 82 |
| JESD-30 code | R-CDIP-T24 | R-CDIP-T24 | R-PDIP-T24 | R-XUUC-N24 |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | UNSPECIFIED |
| encapsulated code | DIP | DIP | DIP | DIE |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | UNCASED CHIP |
| propagation delay (tpd) | 30 ns | 30 ns | 30 ns | 30 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.5 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.5 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | UPPER |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - |
| Maker | AMD | - | AMD | AMD |
| JESD-609 code | e0 | e0 | e0 | - |
| length | 30.099 mm | 30.099 mm | 31.877 mm | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.461 mm | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| width | 15.24 mm | 15.24 mm | 15.24 mm | - |
