AR16-HZL/07-TT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > socket> AR16-HZL/07-TT

AR16-HZL/07-TT: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT; Categorysocket; File Size139KB，2 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric Compare View All

AR16-HZL/07-TT Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT

AR16-HZL/07-TT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ASSMANN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0
body width	0.4 inch
body length	0.8 inch
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact material	PHOSPHOR BRONZE
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Shell material	THERMOPLASTIC POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

NOTES:

MATERIAL

1.Pin(outer sleeve): Brass, machined CuZn38Pb2

2.Clip(contact 4 finger): Beryllium copper, heat treated

3.Plating(outer sleeve): HZL: 2um/80u"nickel, 5um/200u"Tin

HGL: 2um/80u"nickel, Gold flash

4.Plating(contact): 2um/80u"nickel, Gold flash or 10u", 30u" Gold

5.Insulator Material: Glass filled PBT, UL94V-0 Black

ELECTRICAL

1.Current Rating: 3Amps/contact max.

2.Contact Resistance: 4mΩ/contact max.

3.Insulation Resistance: ≥10000MΩ at 500VAC

4.Operating Voltage: 100 VRMS/150VDC

MECHANICAL

1.Average Insertion force with steel pin of

∅

0.43mm/0.017": <250g

2.Average Withdrawal force with steel pin of

∅

0.43mm/0.017": >50g min.

3.Mechanical life cycle: 200 min.

4.Operation Temperature: -40°C to +105°C

5.Wave Soldering temperature: +245°C, 5-10s max.

Packing: Tube

Order Code:

No. of contact

06 ~ 64

Versions

-TT

/7-TT

Plating

HZL

HZL/01

HZL/07

HGL

AR xx- x x

- Standard

- Only for 24+28 poles*

(Dim C: 7.62)

outer sleeve / contact

- Sleeve tin / clip gold flash

- Sleeve tin / clip 10u" gold

- Sleeve tin / clip 30u" gold

- Sleeve gold flash / clip gold flash

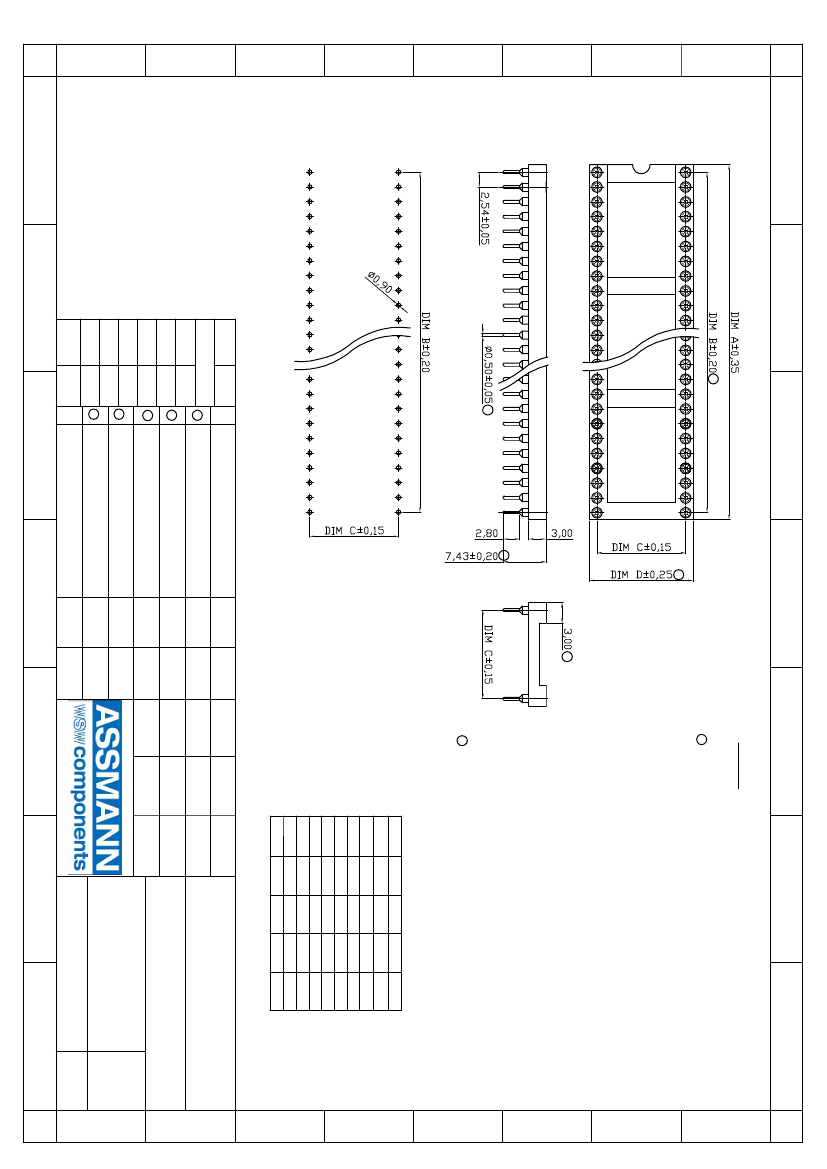

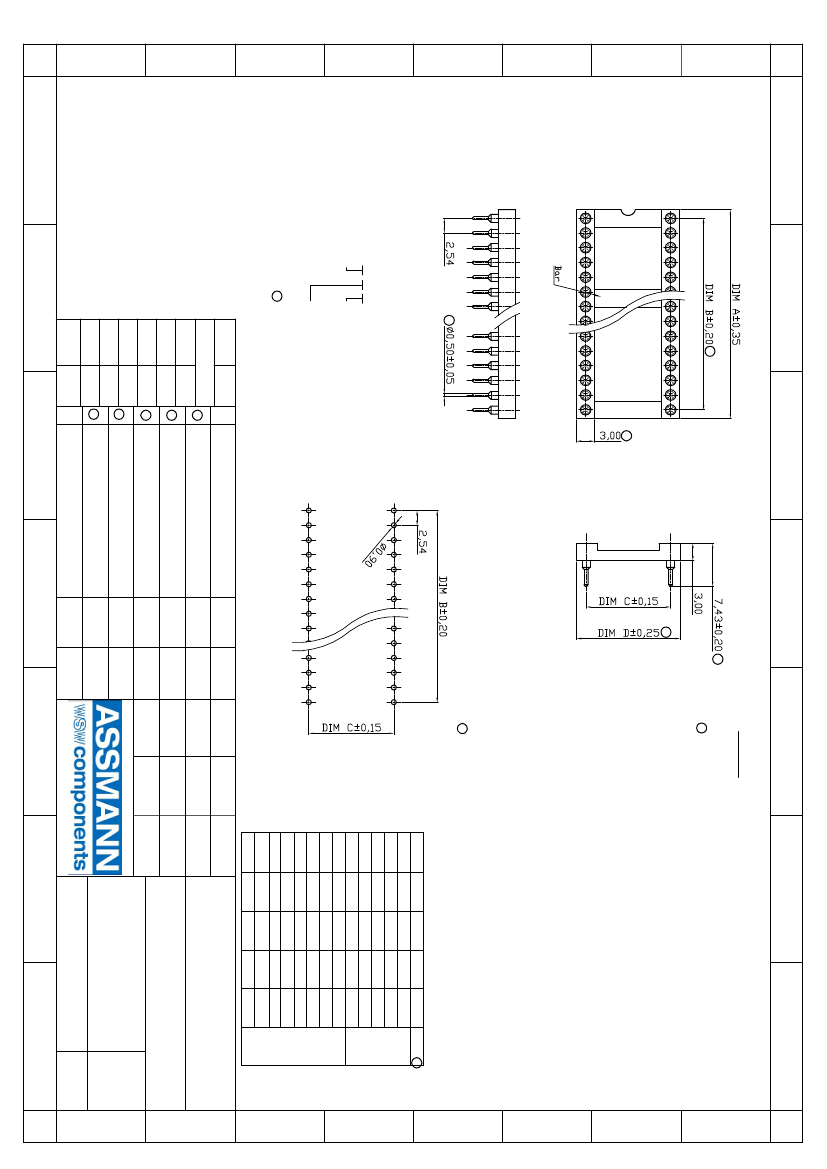

PCB LAYOUT

Contact

24*

28*

Dim A

7.62

10.16

12.70

17.78

20.32

22.86

25.40

27.94

30.48

35.56

Dim B

5.08

7.62

10.16

15.24

17.78

20.32

22.86

25.40

27.94

33.02

Dim C

7.62

10.16

7.62

15.24

7.62

Dim D

Note 3

10.16

10.16 w/o bar

10.16

12.70

10.16 with bar

17.78

10.16

Scale

X.X

Free

TOLERANCE

Update wave solder temp.

16.08.2017

Amy

Drawn

Date

23.07.2012

35.56

40.64

33.02

38.10

15.24

17.78

RoHS compliant

Unit:mm

Name

Customer-No.

Lucas

±0.50

±0.30

3 Update to new drawing

28.10.2016

Amy

Approved

16.08.2017

Amy

ASSMANN WSW-No.

±0.20

2 Add "HGL"-Version,corrected P/N code 28.01.2014 A. Plate

X.XX

X.XXX ±0.10

Add sheet 2

16.08.2012

Lucas

AR xx-x x

DIM

Angle

TOL

Drawing-No.

5°

TOL

Id.

Drawn

Modification

23.07.2012

Date

Lucas

Name

ASS 4852 CO

rev04

Replace

Sheet

1/2

AR16-HZL/07-TT Related Products

	AR16-HZL/07-TT	AR08-HZL/07-TT	AR18-HZL/07-TT	AR18-HZL/07-TT-R	AR24-HZL/07-TT	AR48-HZL/07-TT
Description	IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT	IC Socket, DIP48, 48 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	ROHS COMPLIANT	STANDARD: UL 94V-0	STANDARD: UL 94V-0
body width	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.7 inch	0.7 inch
body length	0.8 inch	0.4 inch	0.9 inch	0.9 inch	1.2 inch	2.4 inch
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD OVER NICKEL (80)	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	GOLD OVER NICKEL (80)	Tin (Sn)	Tin (Sn)
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A	3 A	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP16	DIP8	DIP18	DIP18	DIP24	DIP48
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	16	8	18	18	24	48
Maximum operating temperature	125 °C	125 °C	125 °C	105 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.6 mm	0.6 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Shell material	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER	-	THERMOPLASTIC POLYESTER	THERMOPLASTIC POLYESTER
JESD-609 code	e3	e3	e3	-	e3	e3
