SMD
B
23-21/G6C-KP1P2B/2A
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
․Compliance
with EU REACH
․Compliance
Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).
Description

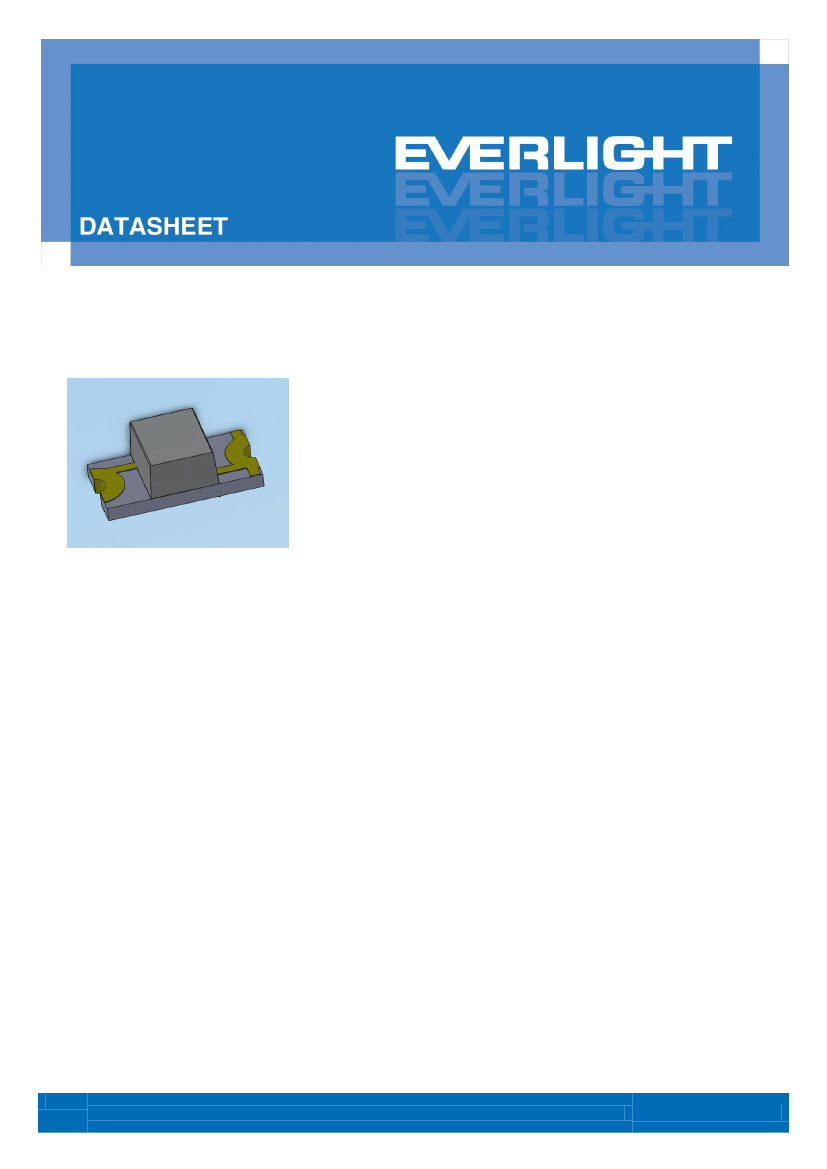

․The
23-21 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing
density, reduced storage space and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
1
Copyright © 2010, Everlight All Rights Reserved. Release Date :Jun.5.2015 Issue No: DSE-00001059 Rev.2
www.everlight.com
DATASHEET
SMD
B
23-21/G6C-KP1P2B/2A
Device Selection Guide
Chip
Materials
AlGaInP
Emitted Color
Resin Color
Brilliant Yellow Green
Water Clear
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Symbol
V
R
I
F
I
FP
Pd
ESD
HBM
T
opr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
2
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jun.5.2015 Issue No: DSE-00001059 Rev.2
www.everlight.com
DATASHEET
SMD
B
23-21/G6C-KP1P2B/2A
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous
Intensity
Viewing Angle
Peak
Wavelength
Dominant
Wavelength
Spectrum
Radiation
Bandwidth
Forward
Voltage
Reverse
Current
V
F
I
R
△
λ
-----
20
-----
nm
V
μA
V
R
=5V
λd
I
F
=20mA
Symbol
Iv
2θ
1/2
Min.
Typ.
-----
130
Max.
Unit
mcd
deg
Condition
45.0
-----
72.0
-----
λp
-----
575
-----
nm
569.5
----
575.5
nm
1.75
-----
----
-----
2.35
10
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jun.5.2015 Issue No: DSE-00001059 Rev.2
www.everlight.com
DATASHEET
SMD
B
23-21/G6C-KP1P2B/2A
Bin Range of Luminous Intensity
Bin Code
P1
P2
Min.
45.0
57.0
Max.
57.0
72.0
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Dom. Wavelength
Bin Code
C16
C17
C18
Min.
569.5
571.5
573.5
Max.
571.5
573.5
575.5
nm
I
F
=20mA
Unit
Condition
Bin Range Of Forward Voltage
Bin Code
0
1
2
Min.
1.75
1.95
2.15
Max.
1.95
2.15
2.35
V
I
F
=20mA
Unit
Condition
Note:
1.Tolerance of Luminous Intensity: ±11%
2.Tolerance of Dominant Wavelength ±1nm
3. Tolerance of Forward Voltage: ±0.1V
4
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jun.5.2015 Issue No: DSE-00001059 Rev.2
www.everlight.com
DATASHEET
SMD
B
23-21/G6C-KP1P2B/2A

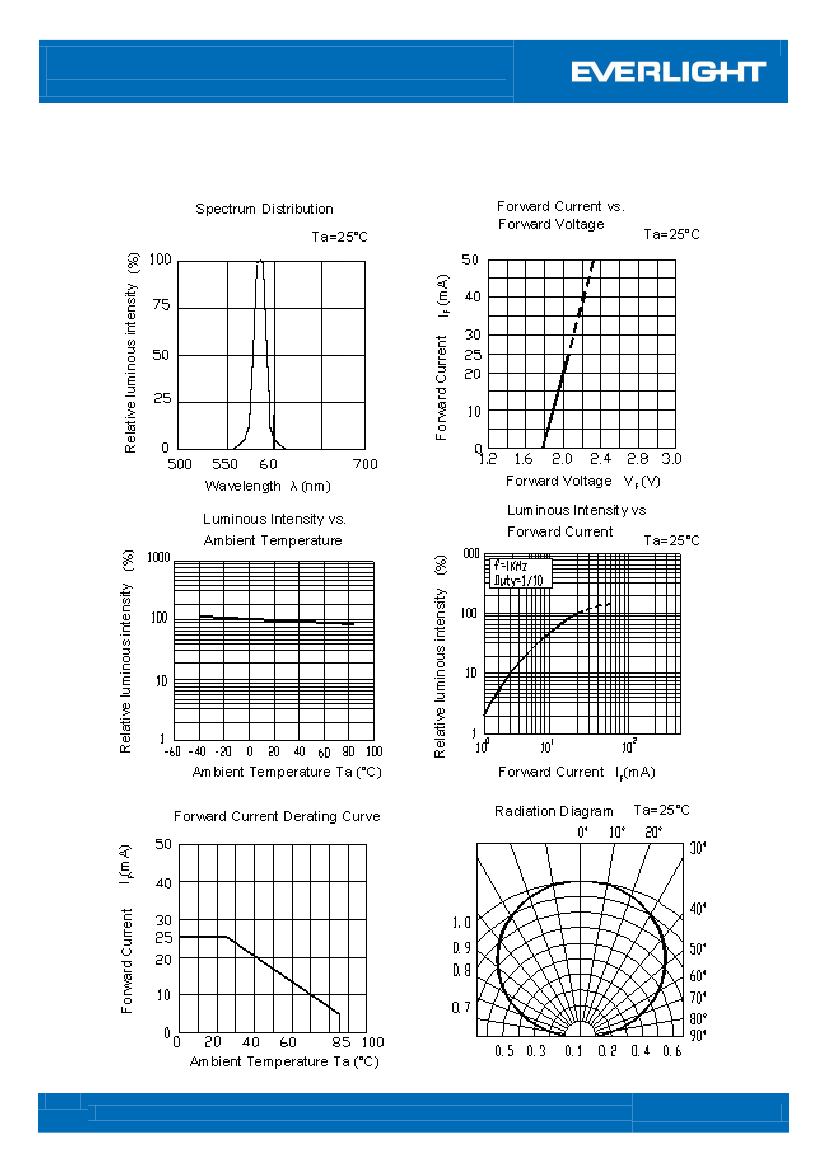

Typical Electro-Optical Characteristics Curves
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : Jun.5.2015 Issue No: DSE-00001059 Rev.2
www.everlight.com
