BQ2005S-N datasheet, PDF - EEWORLD Datasheet

BQ2005S-N: DescriptionBattery Charge Controller, CMOS, PDSO20,; CategoryThe power supply circuit; File Size437KB，12 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

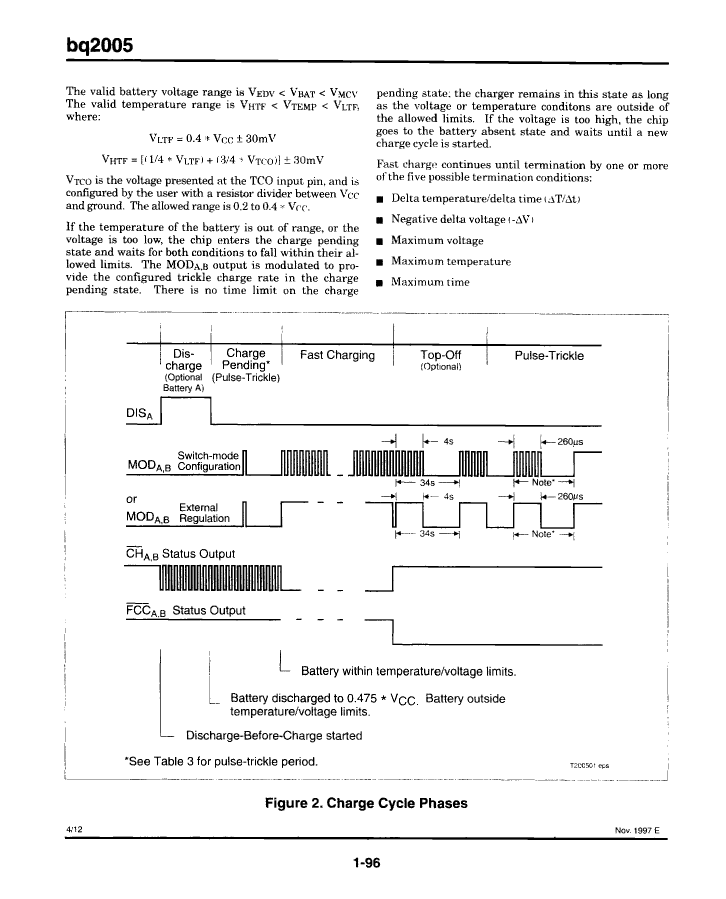

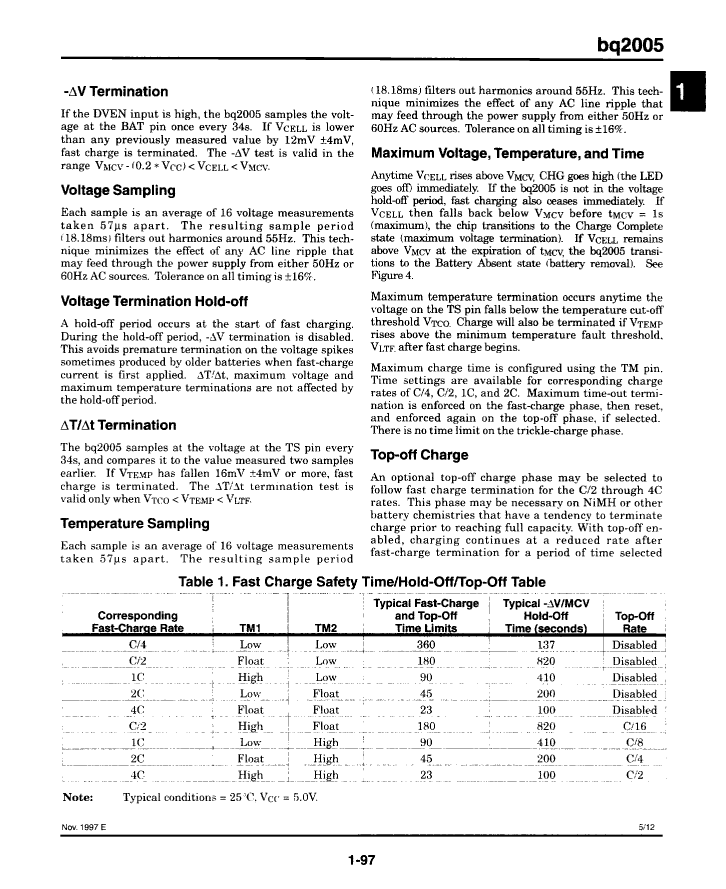

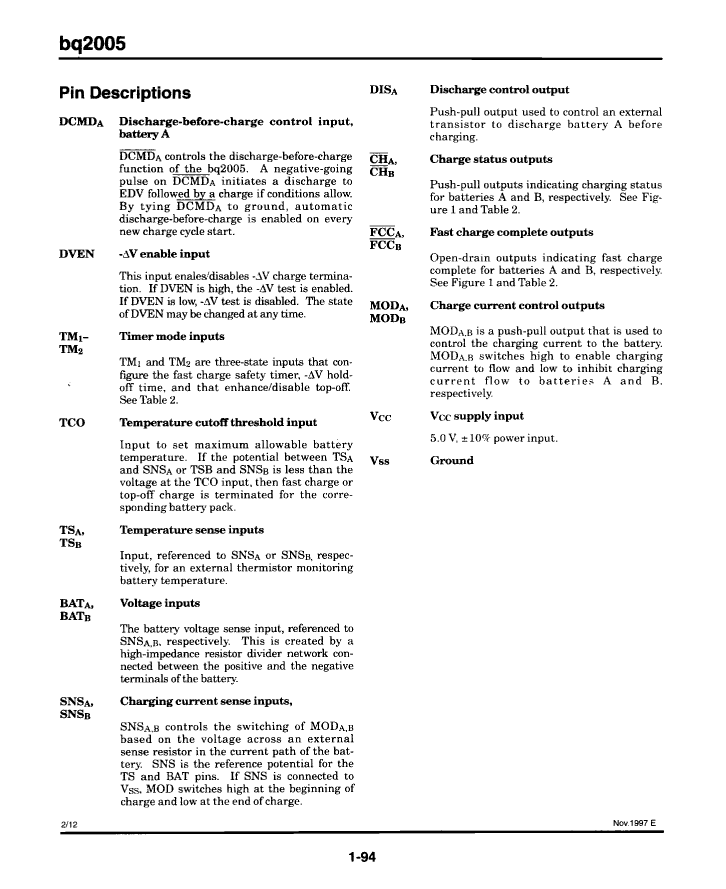

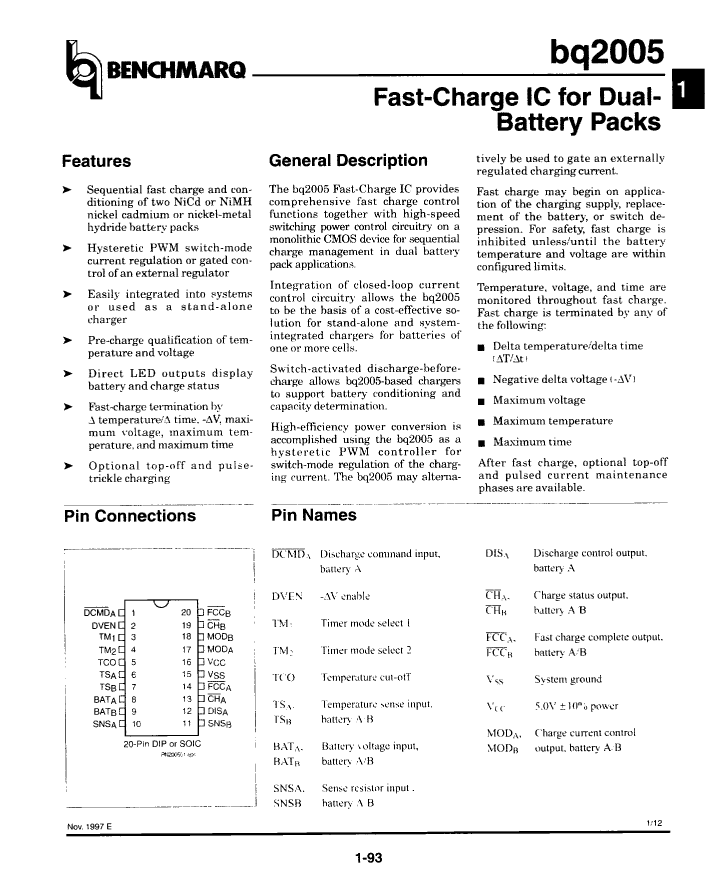

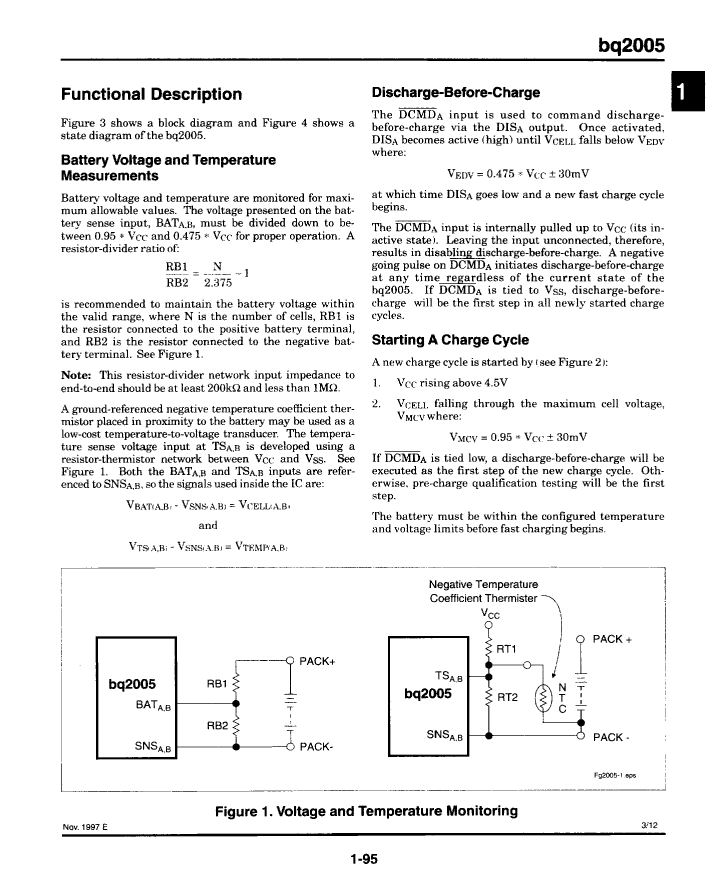

BQ2005S-N Overview

Battery Charge Controller, CMOS, PDSO20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown
Is Samacsys	N
Other features	DUAL BATTERY FAST CHARGER
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE
Control Technology	FREQUENCY MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	3 mA
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	300 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BQ2005S-N	BQ2005PN-N
Description	Battery Charge Controller, CMOS, PDSO20,	Battery Charge Controller, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Other features	DUAL BATTERY FAST CHARGER	DUAL BATTERY FAST CHARGER
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	FREQUENCY MODULATION	FREQUENCY MODULATION
Maximum input voltage	5.5 V	5.5 V
Minimum input voltage	4.5 V	4.5 V
Nominal input voltage	5 V	5 V
JESD-30 code	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA
surface mount	YES	NO
Switch configuration	SINGLE	SINGLE
Maximum switching frequency	300 kHz	300 kHz
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
