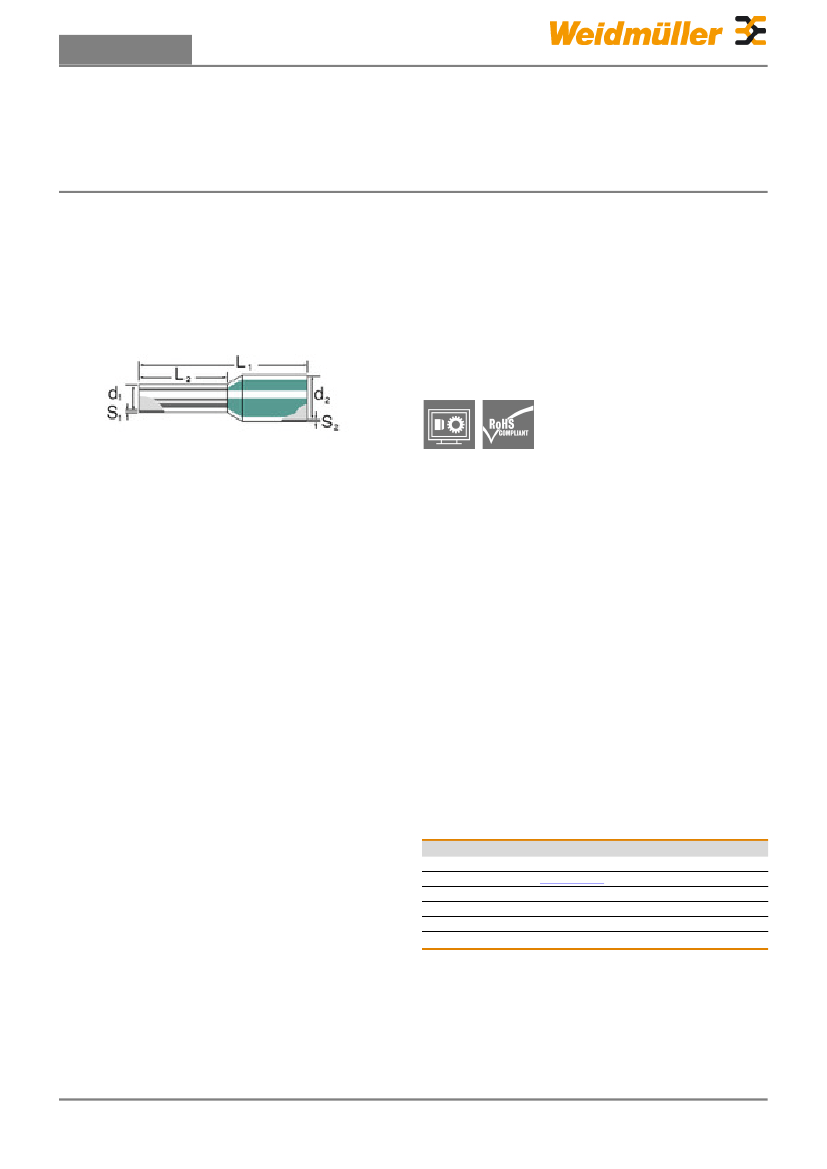

Data sheet
Connecting elements
H1,5/16 R BD GSP
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
• Linked wire-end ferrules on reel (5,000 pcs.)
• Weidmüller colour code
• DIN colour code
• other colour code
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Packaging
H1,5/16 R BD GSP
1476050000
Wire-end ferrule, insulated, 12 mm, 10 mm, red
4050118282948
5,000 pc(s).
Reel
Creation date May 16, 2019 10:30:19 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
Connecting elements
H1,5/16 R BD GSP
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
16 mm
0.153 g
Width (inches)
Dimensions and weights
Width
Net weight
0.63 inch
Technical data
Version
insulated
Wire-end ferrules
Collar diameter (D2)
Conductor cross-section
Contact surface length (L2)
Metal sleeve thickness (S1)
Stripping length
3.5 mm
1.5 mm²
10 mm
0.15 mm
12 mm
Colour code
Contact surface diameter (D1)
L1 in mm
Plastic collar thickness (S2)
Wire connection cross section AWG,
max.
Weidmüller
1.7 mm
16 mm
0.25 mm
AWG 16
Classifications
ETIM 3.0
ETIM 5.0
eClass 5.1
eClass 7.1
eClass 9.0
EC000005
EC000005
27-40-02-01
27-40-02-01
27-40-02-01
ETIM 4.0
ETIM 6.0
eClass 6.2
eClass 8.1
eClass 9.1
EC000005
EC000005
27-40-02-01
27-40-02-01
27-40-02-01
Approvals
ROHS
Conform
Downloads
Engineering Data
EPLAN
Creation date May 16, 2019 10:30:19 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
Connecting elements
H1,5/16 R BD GSP
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Similar to illustration
Creation date May 16, 2019 10:30:19 AM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
