VXM1-1D2-30M000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> VXM1-1D2-30M000

Preview

VXM1-1D2-30M000: DescriptionParallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size100KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric Compare View All

VXM1-1D2-30M000 Overview

Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 2 PIN

VXM1-1D2-30M000 Parametric

Parameter Name	Attribute value
package instruction	SMD, 2 PIN
Reach Compliance Code	compli
Other features	TR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	70 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

VXM1 Ultra Miniature SMD Crystals

Package:

Frequency Range:

Mode:

Stability:

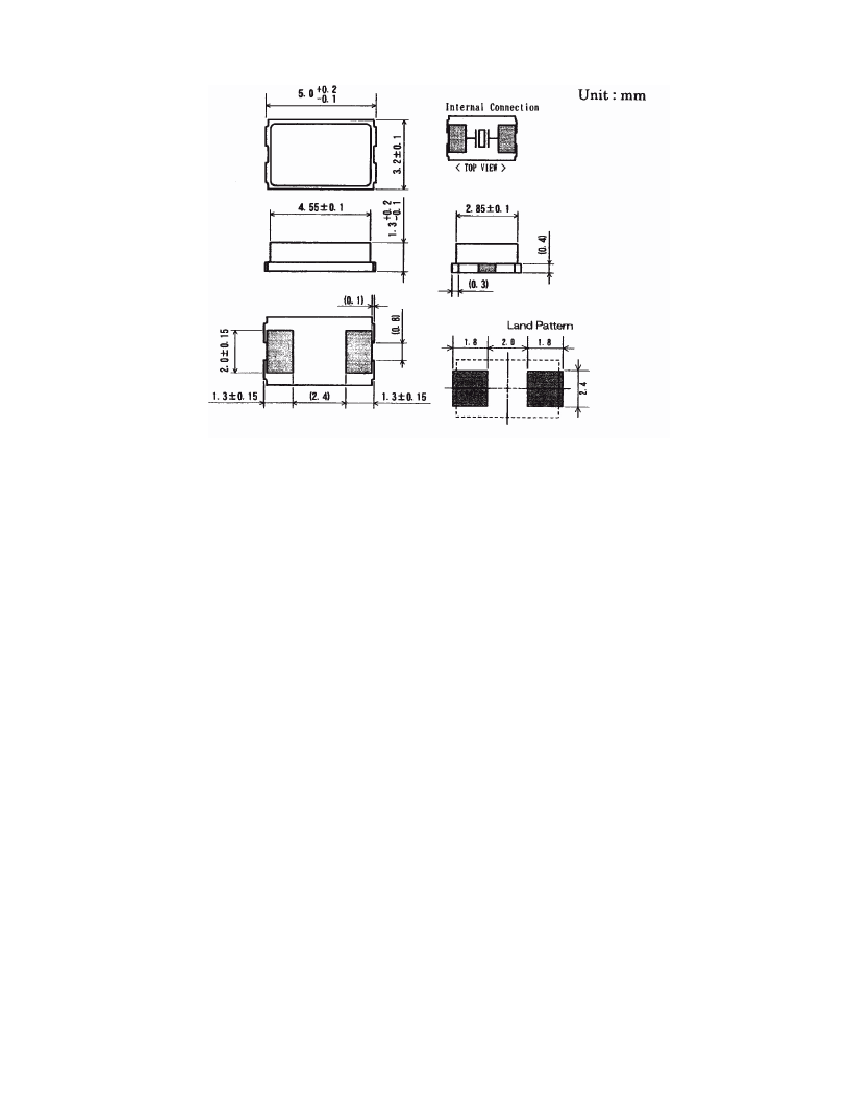

5.0 x 3.2 x 1.3 mm tall 2 pads

10.0 to 60 MHz

1 =

Fundamental

C

A

=

±

100 PPM - 20° to + 70°

B

= ± 50 PPM - 20° to + 70°

C

C =

± 100 PPM - 40° to + 85°

C

D

= ± 50 PPM - 40° to + 85°

C

E

= ± 25 PPM - 20° to + 70°

C

F

= ± 30 PPM - 20°C to + 70°

C

0 =

Series Resonant

1 =

16 pF

2 =

20 pF

3

= 32 pF

4 =

18 pF

5 =

10 pF

6 =

30 pF

±

30 ppm at +25C

150 Max. for 10 to 12 MHz, 100 Max. for 12 to 16 MHz

70 Max. for 16 to 30 MHz, 50 Max. 30 to 60 MHz

7 pF Maximum

10 to 100 uW

-40C to +85C

Tape & Reel (1000 pcs minimum)

VXM1-1B2-28M224

M1

= 5 x 3.2 x 1.3 mm 2 pads

1

= Fundamental Mode

B

= ± 50 PPM -20°C to + 70°

C

2

= 20 pF load

Load Capacitance (CL):

STD Calibration Tolerance:

ESR:

Shunt Capacitance Co:

Drive Level:

Storage Temperature:

Standard Packaging:

Typical P/N:

1

VXM1-1D2-30M000 Related Products

	VXM1-1D2-30M000	VXM1-1B6-28M224	VXM1-1B0-28M224	VXM1-1F0-28M224	VXM1-1E6-28M224
Description	Parallel - Fundamental Quartz Crystal, 30MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 28.224MHz Nom	Series - Fundamental Quartz Crystal, 28.224MHz Nom	Series - Fundamental Quartz Crystal, 28.224MHz Nom	Parallel - Fundamental Quartz Crystal, 28.224MHz Nom
Reach Compliance Code	compli	compliant	compliant	compliant	compli
Other features	TR	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.005%	0.005%	0.005%	0.003%	0.0025%
frequency tolerance	30 ppm	30 ppm	30 ppm	30 ppm	30 ppm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	30 MHz	28.224 MHz	28.224 MHz	28.224 MHz	28.224 MHz
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-20 °C	-20 °C	-20 °C	-20 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5XB3.2XH1.3 (mm)	L5XB3.2XH1.3 (mm)	L5XB3.2XH1.3 (mm)	L5XB3.2XH1.3 (mm)
Series resistance	70 Ω	50 Ω	50 Ω	50 Ω	50 Ω
surface mount	YES	YES	YES	YES	YES
load capacitance	20 pF	30 pF	-	-	30 pF
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
JESD-609 code	-	e4	e4	e4	e4
Manufacturer's serial number	-	VXM1	VXM1	VXM1	VXM1
Terminal surface	-	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Maker	-	-	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.
