E103J1ZGE2 datasheet, PDF - EEWORLD Datasheet

E103J1ZGE2: DescriptionRocker Switch, SPDT, On-off-on, 7.5A, 28VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,; Categoryswitch Become warped plate switch; File Size850KB，15 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

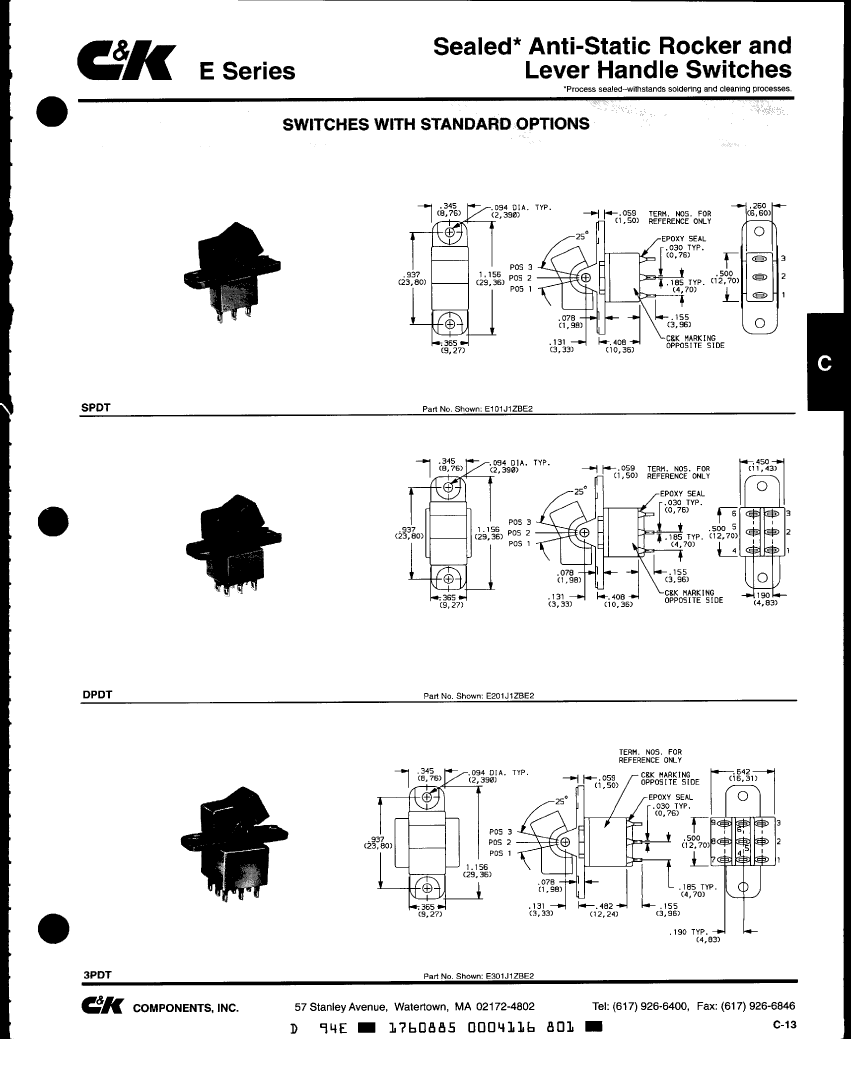

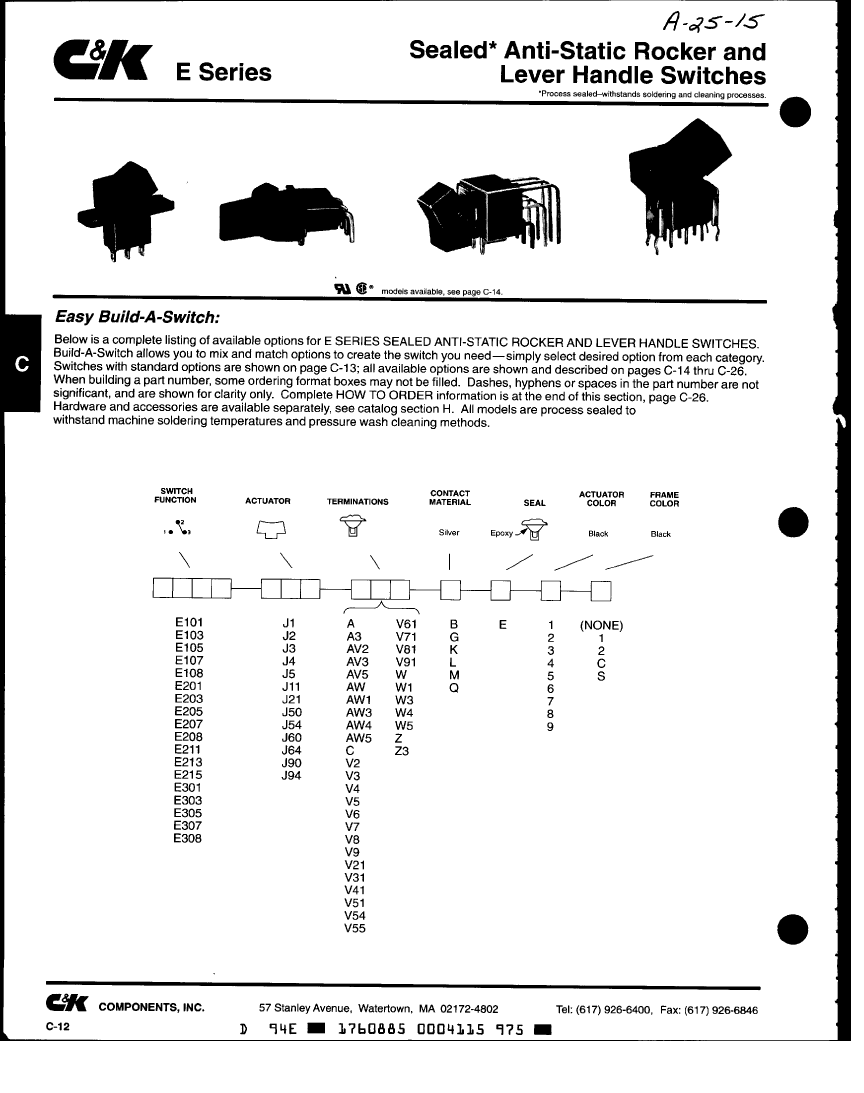

E103J1ZGE2 Overview

Rocker Switch, SPDT, On-off-on, 7.5A, 28VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknown
Is Samacsys	N
Actuator angle	25 deg
Actuator color	BLACK
Executor completed	MATTE

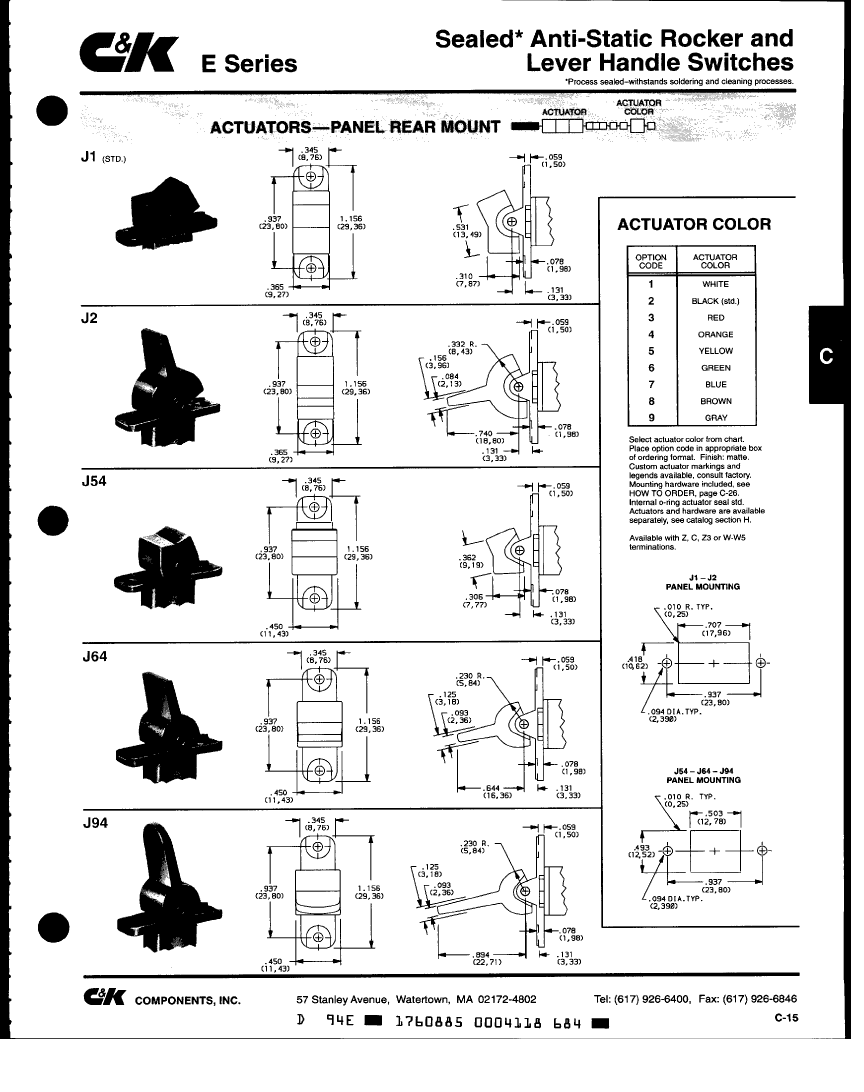

Actuator length	0.299 inch
Actuator material	NYLON

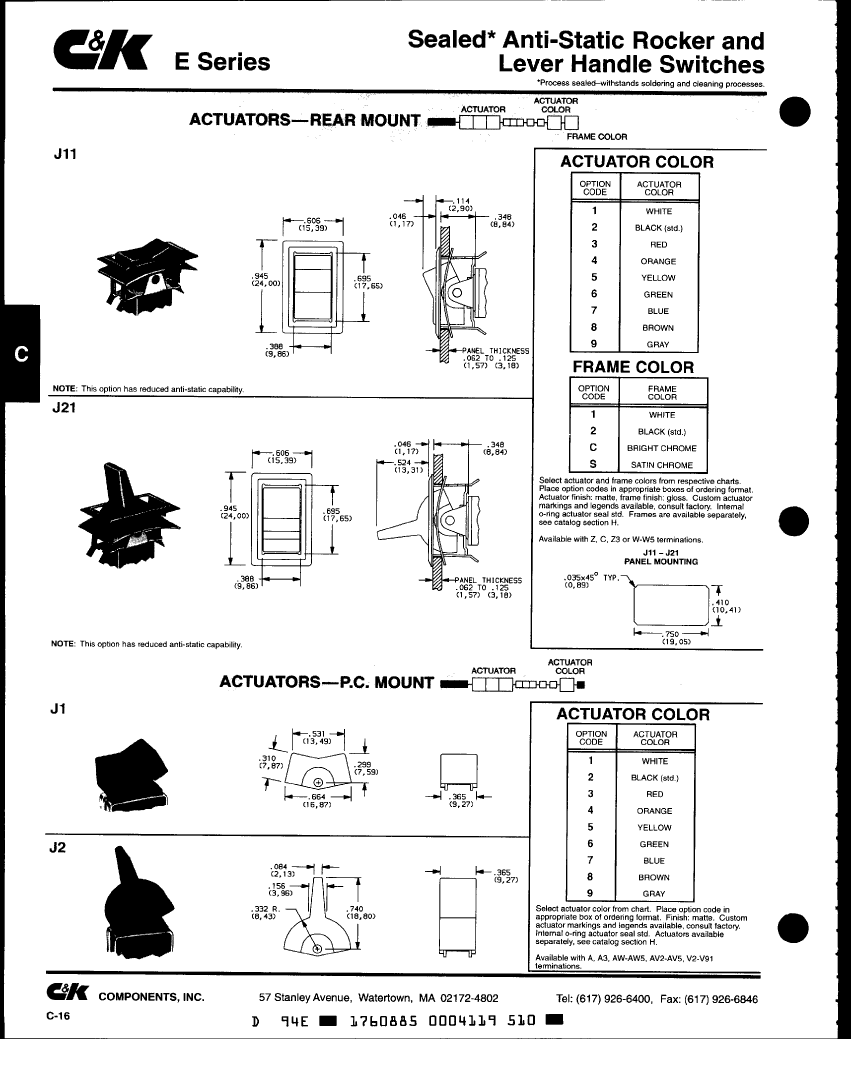

Actuator type	ROCKER
Other features	RESISTS 15KV ESD
body width	6.604 mm
body height	25.2222 mm
Body length or diameter	12.7 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	7.5 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	7.5A@28VDC

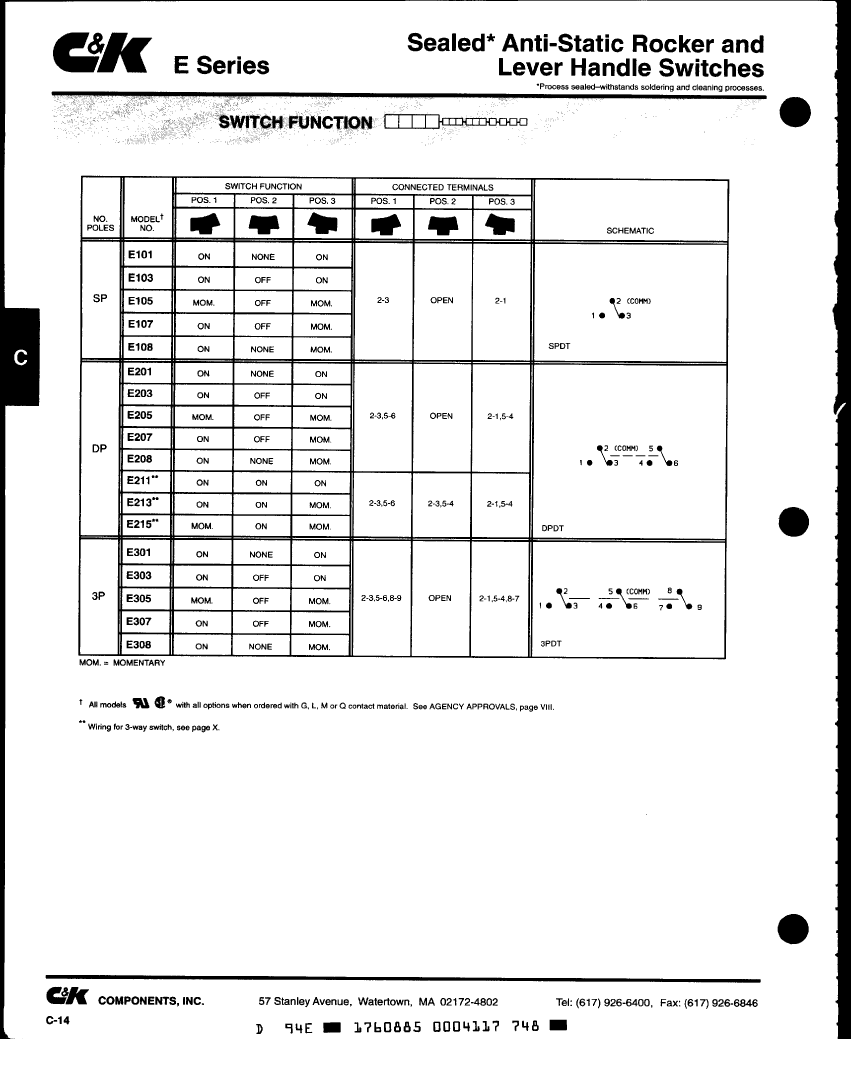

Contact function	ON-OFF-ON
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	40000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	SPRING STEEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	E
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.155 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER LUG
Washability	PRESSURE
Base Number Matches	1

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer
