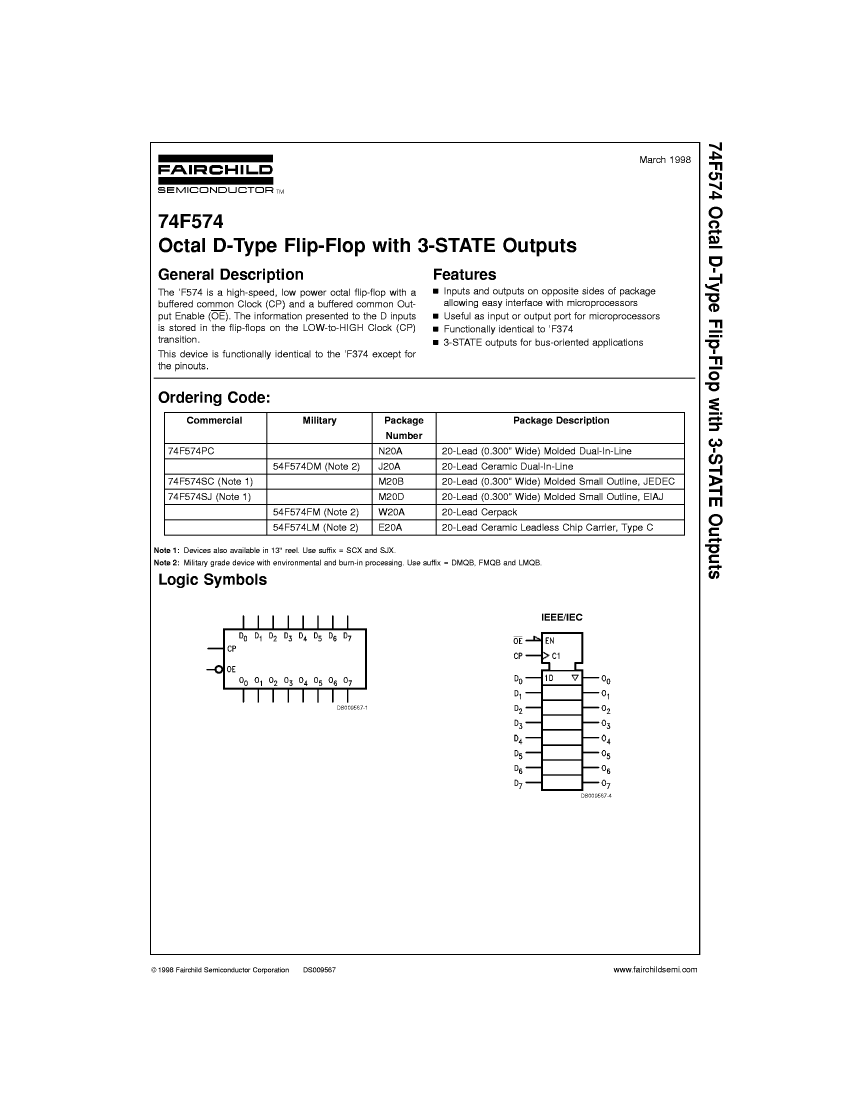

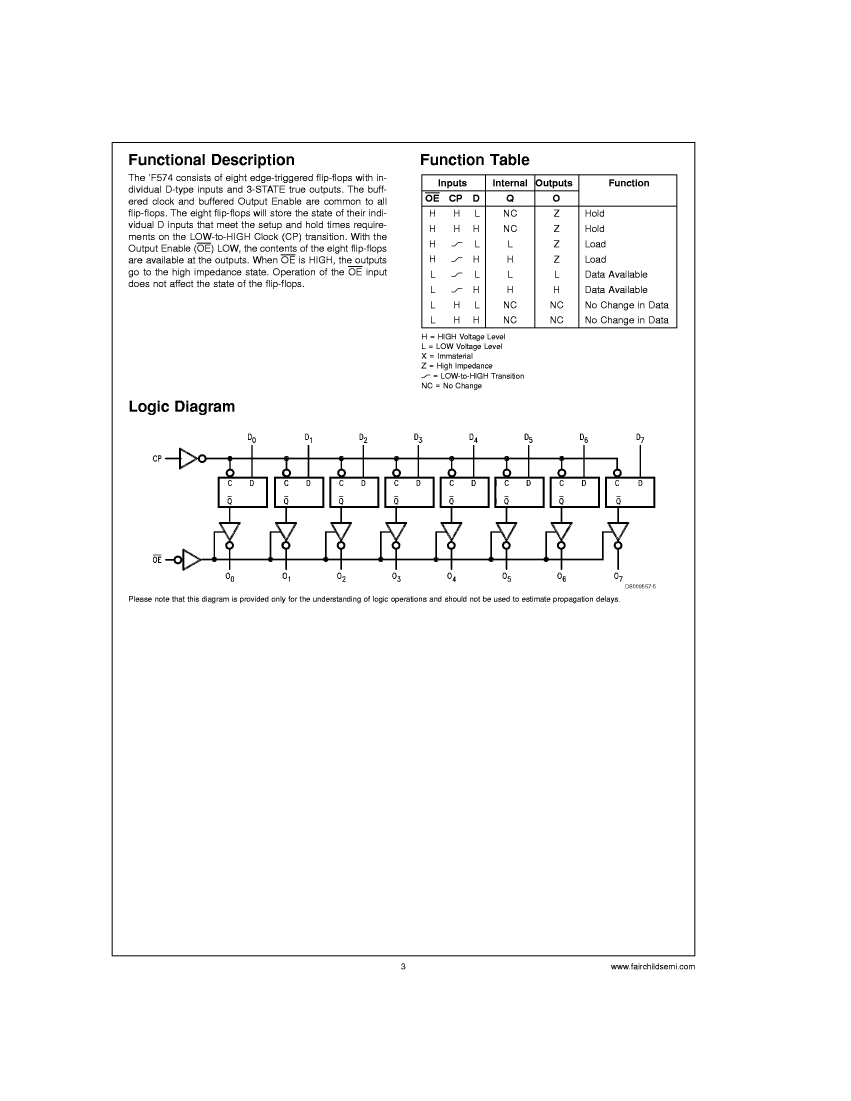

Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20, CERPACK-20

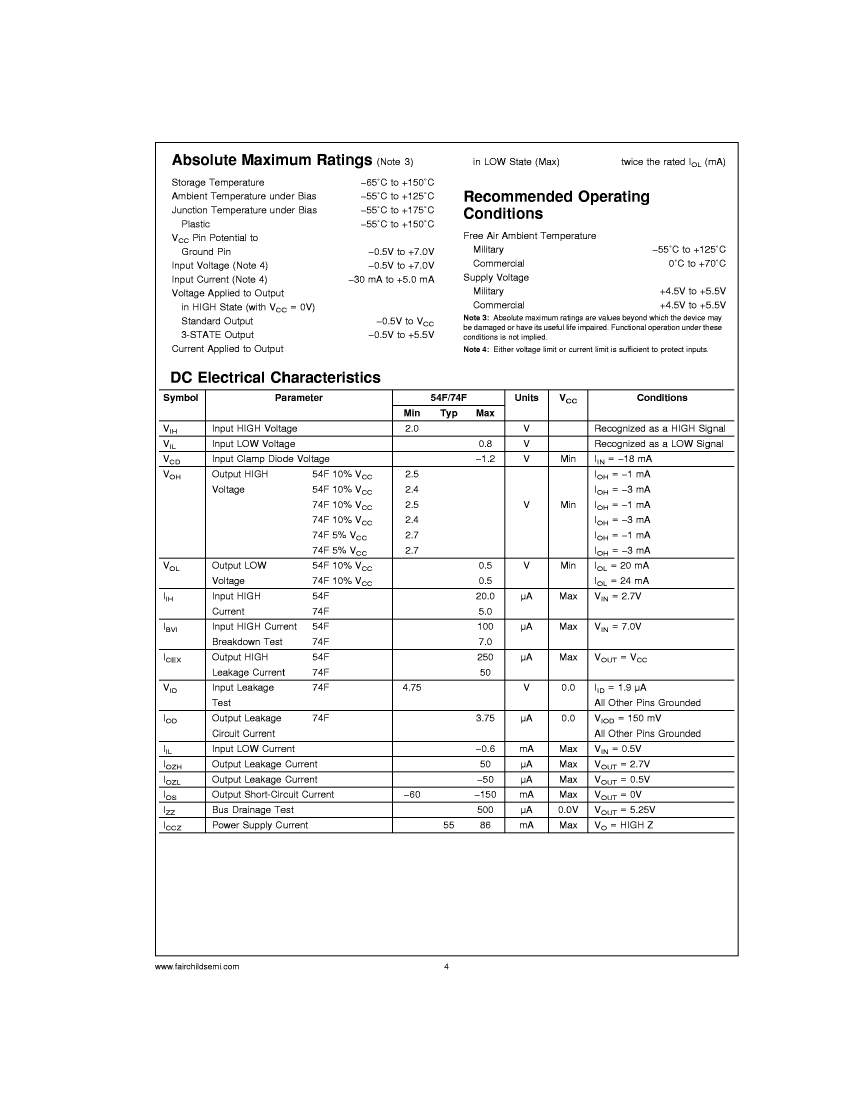

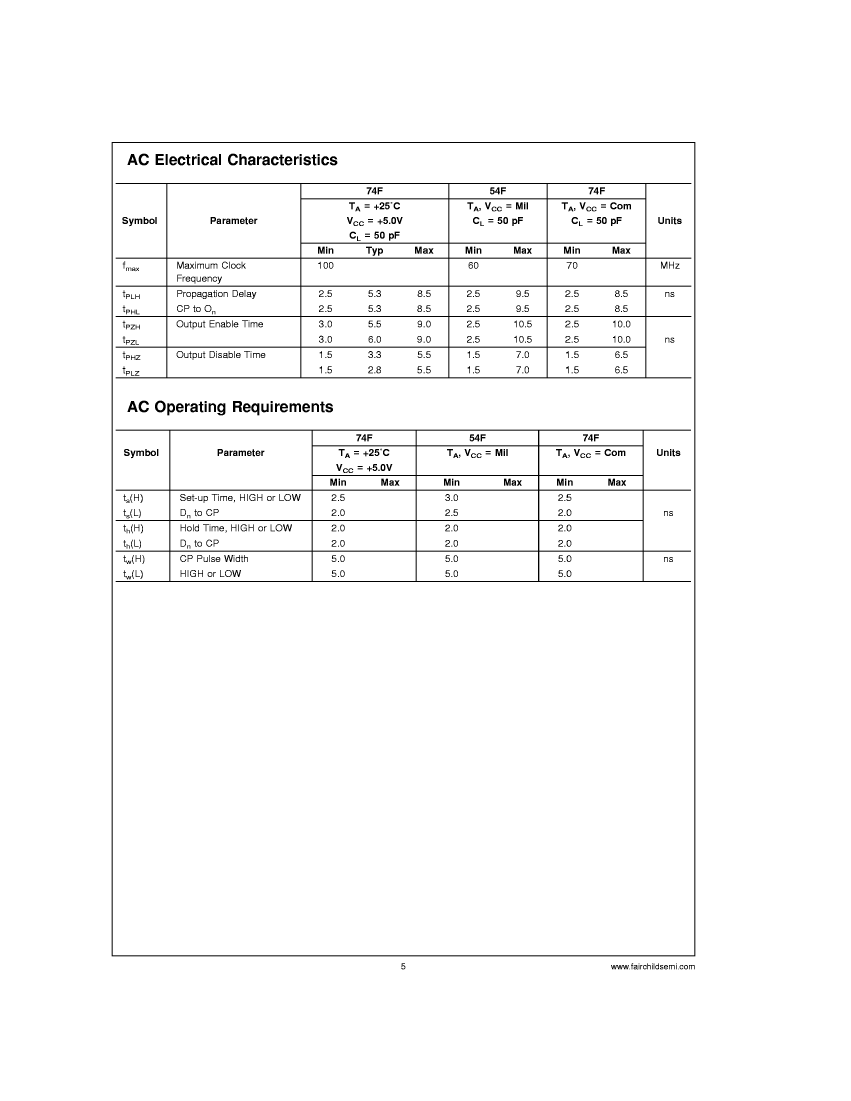

| Parameter Name | Attribute value |
| Maker | Fairchild |
| Parts packaging code | DFP |
| package instruction | CERPACK-20 |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | BROADSIDE VERSION OF 374 |
| series | F/FAST |
| JESD-30 code | R-GDFP-F20 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.286 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.731 mm |
| Base Number Matches | 1 |
| 54F574FM | 54F574LM | 54F574LMQB | 54F574DM | 54F574DMQB | 54F574FMQB | |
|---|---|---|---|---|---|---|
| Description | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20, CERPACK-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20 | Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP20, CERPACK-20 |
| Parts packaging code | DFP | QLCC | QLCC | DIP | DIP | DFP |
| package instruction | CERPACK-20 | QCCN, | QCCN, LCC20,.35SQ | DIP, DIP20,.3 | DIP, DIP20,.3 | CERPACK-20 |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 | BROADSIDE VERSION OF 374 |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDFP-F20 | S-CQCC-N20 | S-CQCC-N20 | R-GDIP-T20 | R-GDIP-T20 | R-GDFP-F20 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | QCCN | QCCN | DIP | DIP | DFP |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | FLATPACK |
| propagation delay (tpd) | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.286 mm | 1.905 mm | 1.905 mm | 5.08 mm | 5.08 mm | 2.286 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | QUAD | DUAL | DUAL | DUAL |
| width | 6.731 mm | 8.89 mm | 8.89 mm | 7.62 mm | 7.62 mm | 6.731 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | - | - | incompatible | incompatible | incompatible | incompatible |
| JESD-609 code | - | - | e0 | e0 | e0 | e0 |
| Encapsulate equivalent code | - | - | LCC20,.35SQ | DIP20,.3 | DIP20,.3 | FL20,.3 |
| Peak Reflow Temperature (Celsius) | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | - | - | 5 V | 5 V | 5 V | 5 V |
| Terminal surface | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Maximum time at peak reflow temperature | - | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | - | - | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
