DDM-24W7PTI

Description
D Type Connector, 24 Contact(s), Female, Solder Lug Terminal, Hole .125-.137, Plug
CategoryThe connector
File Size546KB,8 Pages
ManufacturerBel Fuse
Download Datasheet Parametric Compare View All

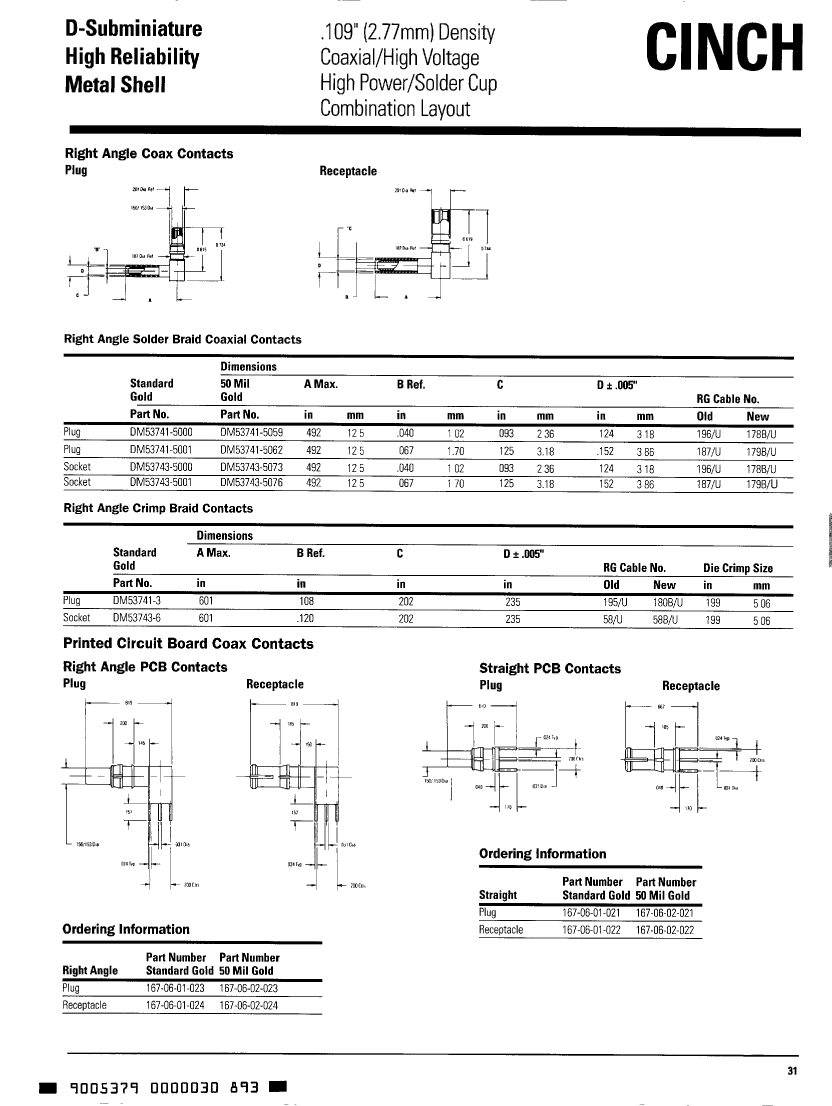

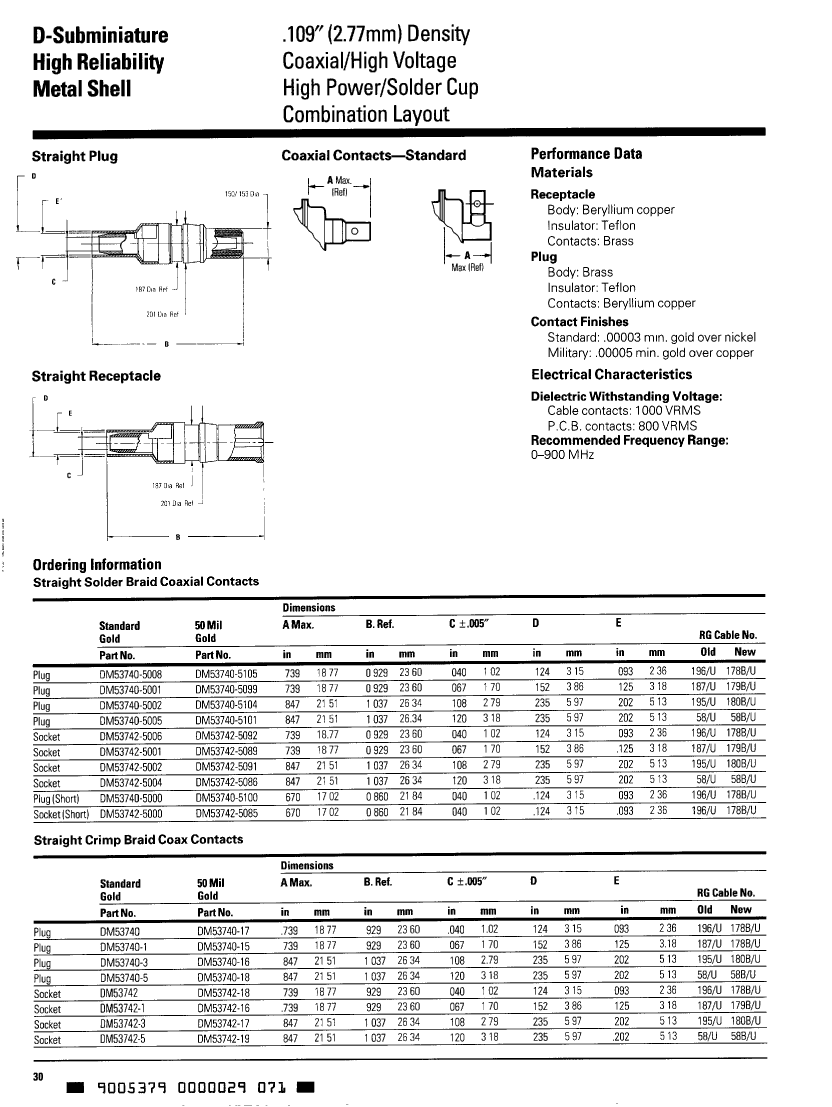

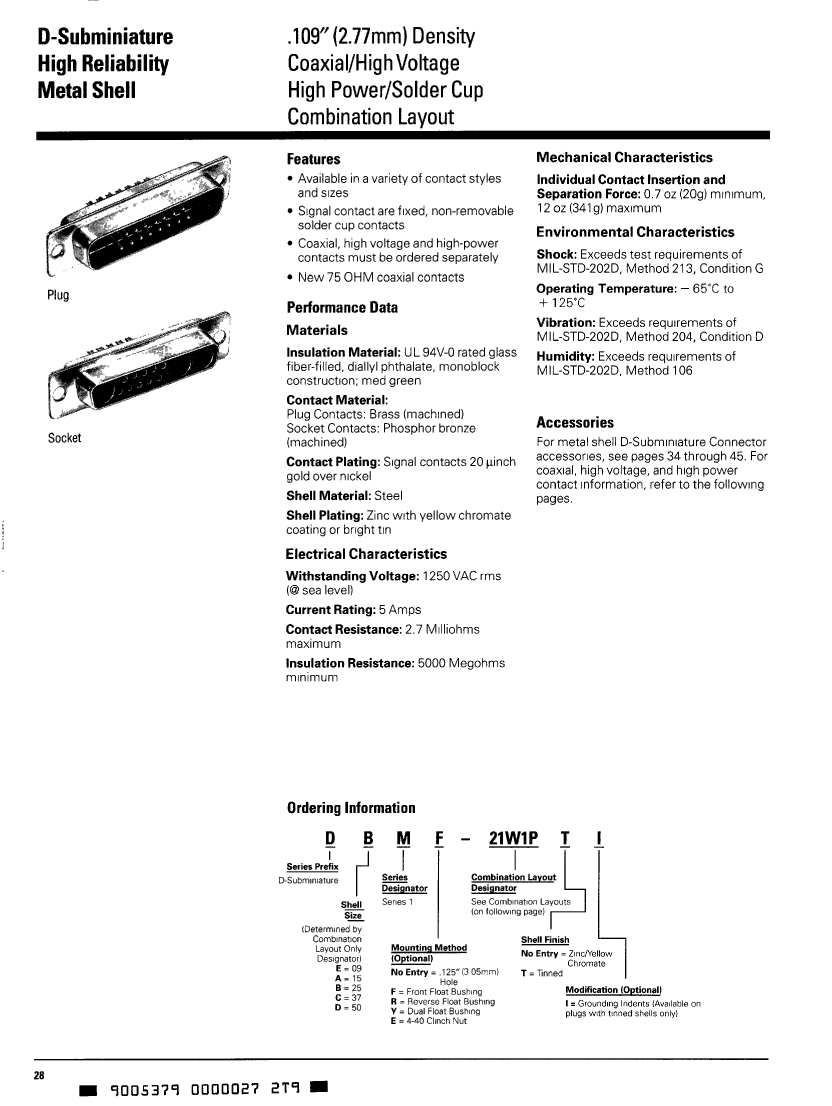

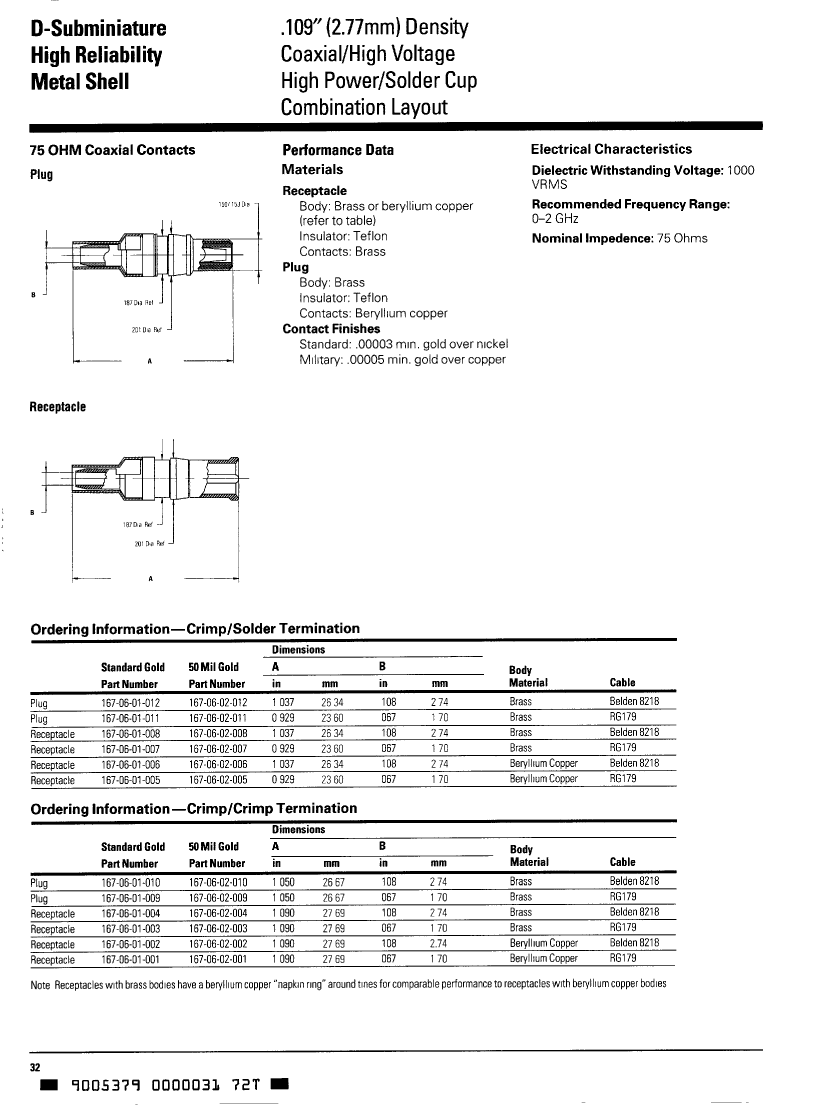

DDM-24W7PTI Overview

D Type Connector, 24 Contact(s), Female, Solder Lug Terminal, Hole .125-.137, Plug

DDM-24W7PTI Parametric

Parameter NameAttribute value
MakerBel Fuse
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
body width0.605 inch
body length2.635 inch
Body/casing typePLUG

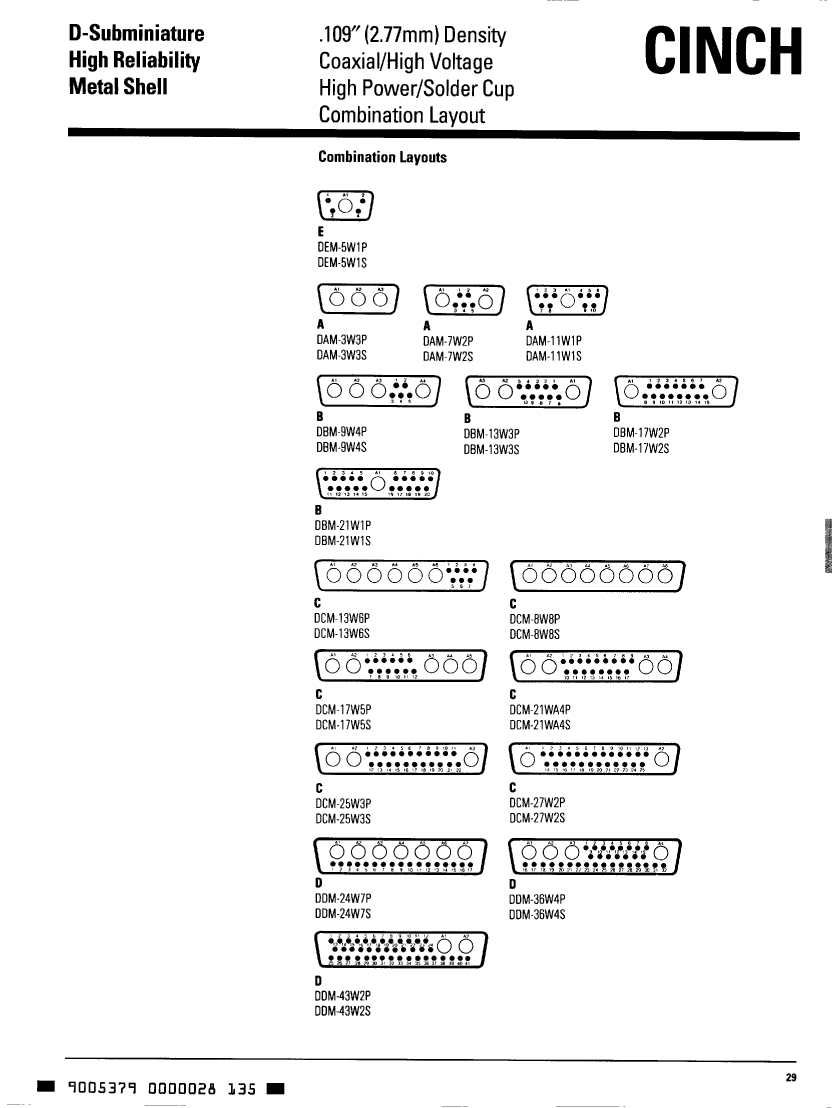

Contact arrangementS17C7
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance2.7 mΩ
Contact styleHYBRID
Dielectric withstand voltage1250VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorGREEN
insulator materialDIALLYL PHTHALATE
Manufacturer's serial number1
Mixed contactsYES
Installation option 1HOLE .125-.137
Installation methodSTRAIGHT
Installation typePANEL
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Plating thickness20u inch
Rated current (signal)5 A
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Termination typeSOLDER LUG
Total number of contacts24
Evacuation force-minimum value.1946 N
Base Number Matches1
