PTH03010WAHT Overview

1-OUTPUT DC-DC REG PWR SUPPLY MODULE

PTH03010WAHT Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	10
Rated input voltage	3.3 V
Maximum limit input voltage	3.65 V
Minimum limit input voltage	2.95 V
Processing package description	ROHS COMPLIANT, DIP-10
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Craftsmanship	mix
packaging shape	Rectangle
Package Size	MICROELECTRONIC ASSEMBLY
Terminal form	PIN/PEG
terminal coating	tin
Terminal location	pair
Packaging Materials	UNSPECIFIED
Adjustable output	Yes
Number of outputs	1
Maximum output voltage 1	2.5 V
Minimum output voltage 1	0.8000 V
Analog IC other types	DC-DC REG power supply module

PTH03010WAHT Preview

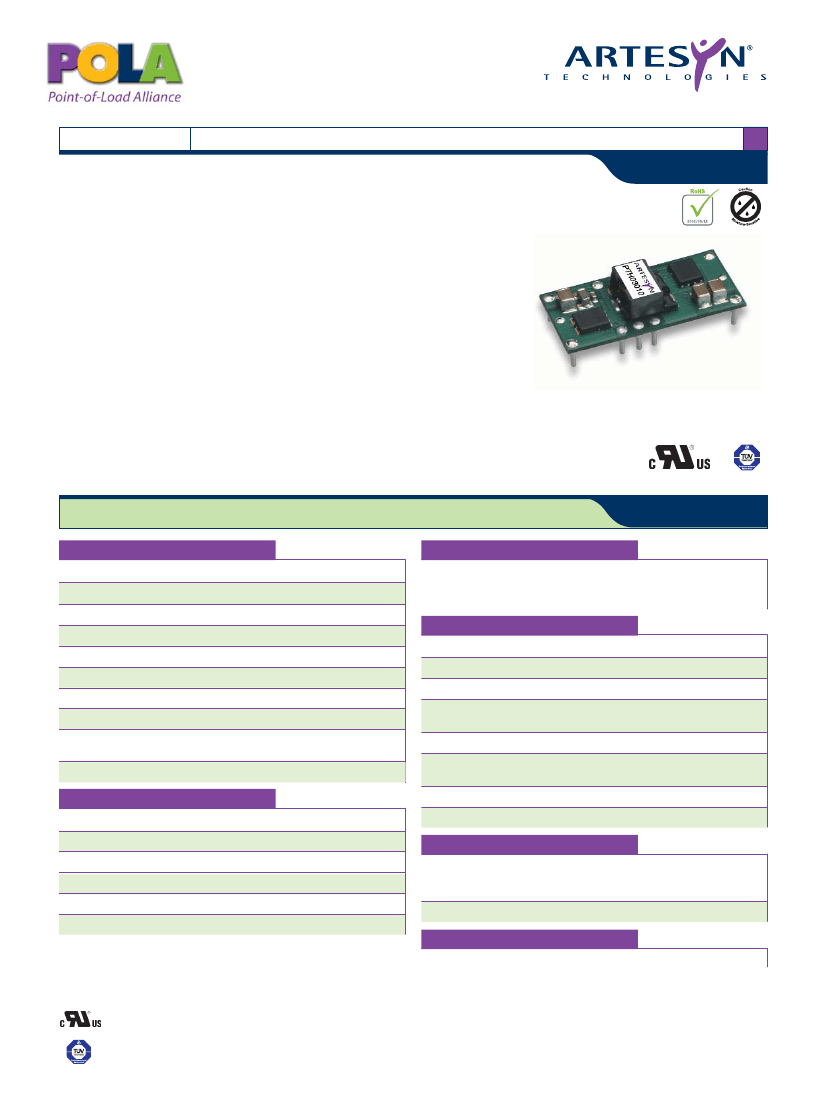

3.3 Vin single output

DC-DC CONVERTERS

•

POLA Non-isolated

NEW Product

15 A output current

3.3 V input voltage

Wide-output voltage adjust (0.8 V to 2.5 V)

Auto-track™ sequencing*

Margin up/down controls

Pre-bias start-up capability

Efficiencies up to 93%

Output ON/OFF inhibit

Output voltage sense

Point-of-Load-Alliance (POLA) compatible

Available RoHS compliant

PTH03010

The PTH03010 is a next generation series of non-isolated dc-dc converters offering some

of the most advanced POL features available in the industry. The primary new feature

provides for sequencing between multiple modules, a function, which is becoming a

necessity for powering advanced silicon including DSP’s, FPGA’s and ASIC’s requiring

controlled power-up and power-down Other industry leading features include margin

up/down controls, pre-bias start-up capability and efficiencies up to 93%. The PTH03010

has an input voltage of

2.95 V to 3.65 V

and offers a wide 0.8 V to 2.5 V output voltage

range with up to 15 A output current, which allows for maximum design flexibility and a

pathway for future upgrades.

All specifications are typical at nominal input, full load at 25 °C unless otherwise stated

= 470 µF, C

out

= 0 µF

OUTPUT SPECIFICATIONS

Voltage adjustability

Setpoint accuracy

Line regulation

Load regulation

Total regulation

Minimum load

Ripple and noise

20 MHz bandwidth

(See Note 4)

0.8-2.5 V

±2.0% Vo

±10 mV typ.

±12 mV typ.

±3.0% Vo

20 mV pk-pk

±0.5% Vo

GENERAL SPECIFICATIONS

Efficiency

Insulation voltage

Switching frequency

Approvals and

standards

Material flammability

Dimensions

Weight

(See Note 3)

No load

(See Note 1)

2.95-3.65 V

10 mA typ.

Positive logic

1 V/ms

2.8-2.95 V typ.

Pin 8 (See Note 6, 7)

±0.3 Vin

PROTECTION

Short-circuit

International Safety Standard Approvals

UL/cUL CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1,

File No. E174104

TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044

CB Report and Certificate to IEC60950, Certificate No.

US/8292/UL

2 YEAR WARRANTY

SPECIFICATIONS

EMC CHARACTERISTICS

Electrostatic discharge

Conducted immunity

Radiated immunity

EN61000-4-2, IEC801-2

EN61000-4-6

EN61000-4-3

(See Efficiency Table)

93% max.

Non-isolated

300 kHz typ. ±25 kHz

EN60950

UL/cUL60950

UL94V-0

(L x W x H)

34.80 x 15.75 x 9.00 mm

1.370 x 0.620 x 0.354 in

5 g (0.18 oz)

Telcordia SR-332

7,092,000 hours

Temperature co-efficient -40 ºC to +85 ºC

Transient response

(See Note 5)

Margin adjustment

INPUT SPECIFICATIONS

Input voltage range

Input current

Remote ON/OFF

Start-up time

Undervoltage lockout

Track input voltage

70 µs recovery time

Overshoot/undershoot 100 mV

±5.0% Vo

MTBF

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

(See Note 2)

MSL (‘Z’ suffix only)

Operating ambient,

temperature

Non-operating

JEDEC J-STD-020C

-40 ºC to +85 ºC

-40 ºC to +125 ºC

Level 3

Auto reset

27.5 A typ.

*Auto-track™ is a trade mark of

Texas Instruments

File Name: pth03010.pdf Rev (06): 16 Dec 2005

3.3 Vin single output

DC-DC CONVERTERS

POLA Non-isolated

NEW Product

For the most current data and application support visit www.artesyn.com/powergroup/products.htm

OUTPUT

POWER

(MAX.)

37.5 W

OUTPUT

CURRENT

(MIN.)

OUTPUT

CURRENT

(MAX.)

15 A

PTH03010

INPUT

VOLTAGE

2.95-3.65 V

OUTPUT

VOLTAGE

0.8-2.5 V

EFFICIENCY

(MAX.)

93%

REGULATION

LINE

±10 mV

LOAD

±12 mV

MODEL

NUMBER

(9,10)

PTH03010

Part Number System with Options

PTH03010WAST

Packaging Options

No Suffix = Trays

T = Tape and Reel

(8)

Mounting Option

(9)

D = Horizontal Through-Hole (Matte Sn)

H = Horizontal Through-Hole (Sn/Pb)

S = Surface-Mount (63/37 Sn/Pb

pin solder material)

Z = Surface-Mount (96.5/3.0/0.5 Sn/Ag/Cu

pin solder material)

Pin Option

A = Through-Hole Std. Pin Length (0.140”)

A = Surface-Mount Tin/Lead Solder Balll

Output Voltage Code

W = Wide

Output Voltage Adjustment of the PTH03010 Series

Product Family

Point of Load Alliance

Compatible

Input Voltage

03 = 3.3 V

Output Current

01 = 15 A

Mechanical Package

Always 0

The ultra-wide output voltage trim range offers major advantages to users who

select the PTH03010. It is no longer necessary to purchase a variety of

modules in order to cover different output voltages. The output voltage can be

trimmed in a range of 0.8 Vdc to 2.5 Vdc. When the PTH03010 converter

leaves the factory the output has been adjusted to the default voltage of 0.8 V.

Notes

Remote ON/OFF. Positive Logic

ON:

Pin 3 open; or V > Vin - 0.5 V

OFF:

Pin 3 GND; or V < 0.8 V (min - 0.2 V).

See Figures 1 and 2 for safe operating curves.

A 470 µF electrolytic input capacitor is required for proper operation. The

capacitor must be rated for a minimum of 700 mA rms of ripple current.

An external output capacitor is not required for basic operation. Adding

330 µF of distributed capacitance at the load will improve the transient

response.

1 A/µs load step, 50 to 100% I

omax

, C

out

= 330 µF.

If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).

The pre-bias start-up feature is not compatible with Auto-Track™. This is

because when the module is under Auto-Track™ control, it is fully active

and will sink current if the output voltage is below that of a back-feeding

source. Therefore to ensure a pre-bias hold-off, one of the following two

techniques must be followed when input power is first applied to the

module. The Auto-Track™ function must either be disabled, or the

module’s output held off using the Inhibit pin. Refer to Application Note

150 for more details.

Tape and reel packaging only available on the surface-mount versions.

To order Pb-free (RoHS compatible) surface-mount parts replace the

mounting option ‘S’ with ‘Z’, e.g. PTH03010WAZ. To order Pb-free

(RoHS compatible) through-hole parts replace the mounting option ‘H’

with ‘D’, e.g. PTH03010WAD.

NOTICE: Some models do not support all options. Please contact your

local Artesyn representative or use the on-line model number search tool at

http://www.artesyn.com/powergroup/products.htm to find a suitable

alternative.

EFFICIENCY TABLE (I

= 10 A)

OUTPUT VOLTAGE

Vo = 1.0 V

Vo = 1.2 V

Vo = 1.5 V

Vo = 1.8 V

Vo = 2.0 V

Vo = 2.5 V

EFFICIENCY

85%

87%

89%

91%

92%

93%

File Name: pth03010.pdf Rev (06): 16 Dec 2005

3.3 Vin single output

DC-DC CONVERTERS

POLA Non-isolated

NEW Product

For the most current data and application support visit www.artesyn.com/powergroup/products.htm

PTH03010

TEMPERATURE (ºC)

8 10 12

OUTPUT CURRENT (A)

400 LFM

200 LFM

100 LFM

Nat conv

TEMPERATURE (ºC)

8 10 12

OUTPUT CURRENT (A)

400 LFM

200 LFM

100 LFM

Nat conv

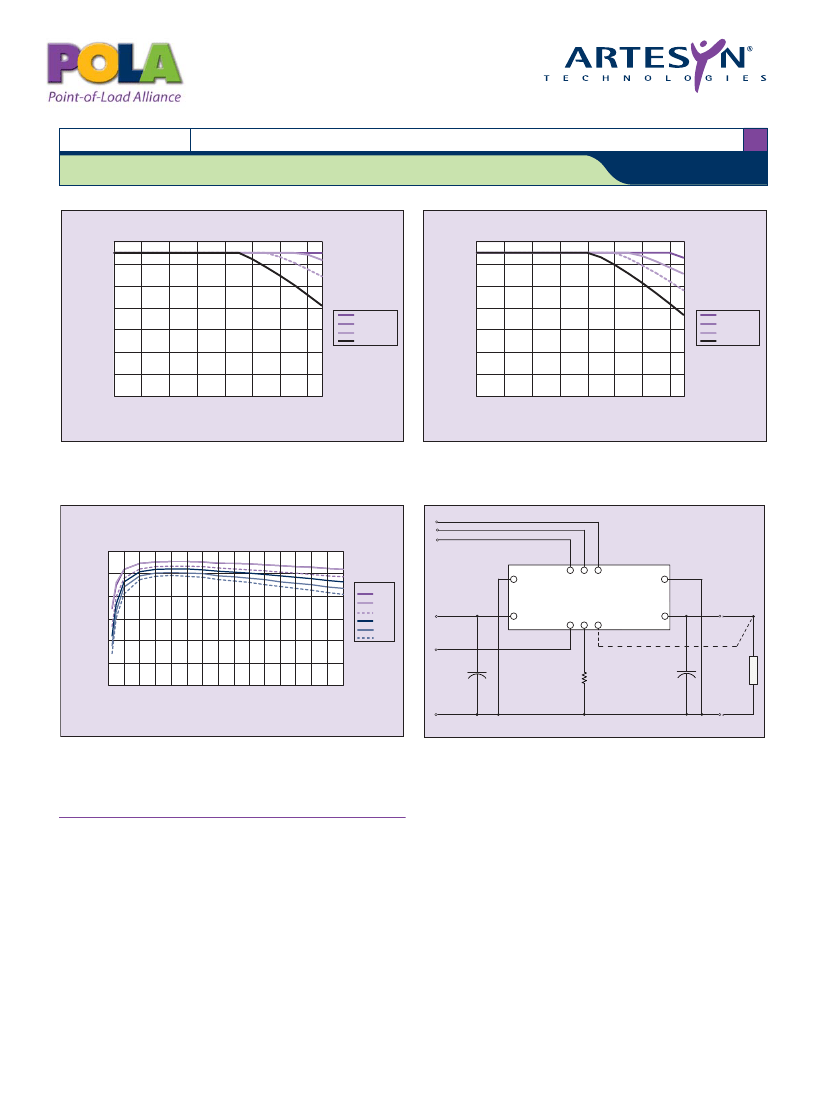

Figure 1 - Safe Operating Area

Vin = 3.3 V, Output Voltage = 2.5 V (See Note A)

Figure 2 - Safe Operating Area

Vin = 3.3 V, Output Voltage = 1.0 V (See Note A)

Track

Margin Down

Margin Up

100

Vout

2.5V

2.0V

1.8V

1.5V

1.2V

1.0V

EFFICIENCY (%)

9 10 11 12 13 14 15

PTH03010

(Top View)

Vout

Inhibit

Sense

470µF

(Required)

SET

0.5%, 0.1W

(Required)

out

330µF

(Optional)

GND

OUTPUT CURRENT (A)

Figure 3 - Efficiency vs Load Current

Vin = 3.3 V (See Note B)

Figure 4 - Standard Application

Notes

SOA curves represent the conditions at which internal components are

within the Artesyn derating guidelines.

Characteristic data has been developed from actual products tested at

25 °C. This data is considered typical data for the converter.

File Name: pth03010.pdf Rev (06): 16 Dec 2005

3.3 Vin single output

DC-DC CONVERTERS

POLA Non-isolated

NEW Product

For the most current data and application support visit www.artesyn.com/powergroup/products.htm

PTH03010

1.370 (34.80)

0.125 (3.18)

0.375

(9.52)

0.060

(1.52)

0.140

(3.55)

0.625 (15.88)

ø0.040 (1.02)

5 Places

0.060

(1.52)

0.620

0.500 (15.75)

(12.70)

0.070 (1.78)

(Standoff Shoulder)

TOP VIEW

Lowest Component

0.010 min. (0.25)

Bottom side Clearance

PIN CONNECTIONS

PIN NO.

FUNCTION

Ground

Vin

Inhibit*

Vo adjust

Vo sense

Vout

Ground

Track

Margin down*

Margin up*

Host Board

0.354 (9.00)

MAX.

SIDE VIEW

Dimensions in Inches (mm)

Tolerances (unless otherwise specified)

2 Places

±0.030

(±0.76)

3 Places

±0.010

(±0.25)

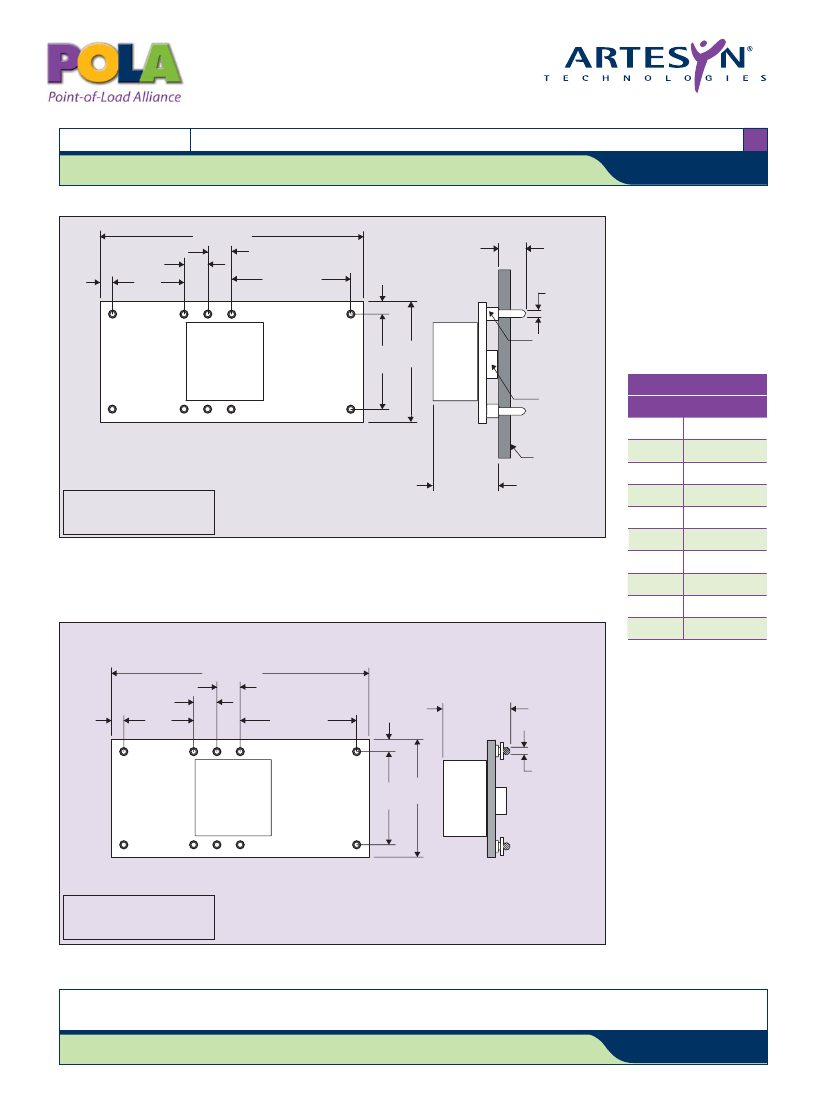

Figure 5 - Plated Through-Hole Mechanical Drawing

1.370 (34.80)

0.125 (3.18)

0.375

(9.52)

0.060

(1.52)

*After solder reflow

on customer board

*Denotes negative logic:

Open = Normal operation

Ground = Function active

0.625 (15.88)

0.500 0.620

(12.70) (15.75)

0.354 (9.00)

max.*

0.060

(1.52)

Solder Ball

ø0.040 (1.02)

10 Places

TOP VIEW

SIDE VIEW

Dimensions in Inches (mm)

Tolerances (unless otherwise specified)

2 Places

±0.030

(±0.76)

3 Places

±0.010

(±0.25)

Figure 6 - Surface-Mount Mechanical Drawing

The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising

from printing errors or inaccuracies. The information and specifications contained or described herein are subject to change in any manner at any time without notice. No rights under any patent

accompany the sale of any such product(s) or information contained herein.

Please consult our website for the following items:

Application Note

www.artesyn.com

File Name: pth03010.pdf Rev (06): 16 Dec 2005

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PTH03010WAHT Related Products

	PTH03010WAHT	PTH03010	PTH03010WADT
Description	1-OUTPUT DC-DC REG PWR SUPPLY MODULE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE	1-OUTPUT DC-DC REG PWR SUPPLY MODULE
Number of functions	1	1	1
Number of terminals	10	10	10
Rated input voltage	3.3 V	3.3 V	3.3 V
Maximum limit input voltage	3.65 V	3.65 V	3.65 V
Minimum limit input voltage	2.95 V	2.95 V	2.95 V
Processing package description	ROHS COMPLIANT, DIP-10	ROHS COMPLIANT, DIP-10	ROHS COMPLIANT, DIP-10
Lead-free	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE
Craftsmanship	mix	mix	mix
packaging shape	Rectangle	Rectangle	Rectangle
Package Size	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
terminal coating	tin	tin	tin
Terminal location	pair	pair	pair
Packaging Materials	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Adjustable output	Yes	Yes	Yes
Number of outputs	1	1	1
Maximum output voltage 1	2.5 V	2.5 V	2.5 V
Minimum output voltage 1	0.8000 V	0.8000 V	0.8000 V
Analog IC other types	DC-DC REG power supply module	DC-DC REG power supply module	DC-DC REG power supply module

Recommended Resources

Simple and supreme 200W fully symmetrical power amplifier

STK459 audio IC circuit diagram

TDA1552Q power amplifier circuit diagram

Digital reverberator circuit

Charge-discharge IGBT turn-off snubber circuit

Computer motherboard circuit diagram 440LX_27

SVPWM principle, implementation, simulation analysis: [i=s]This post was last edited by Guadi on 2019-12-27 19:18[/i]This post mainly introduces the implementation and simulation analysis of SVPWM.In motor control, we hope to use a specific spatial magne...; 瓜弟 Motor Drive Control（Motor Control）

A question about AD7891: Has anyone used AD7891? The data sheet says that AD7891 can sample up to 500K for one channel, and up to 62.5K for 8 channels. I sample two signals in parallel, but the sampling rate can only reach a ...; huabuaa MCU

Where are keilc51 variables stored?: In Keil's small mode, constants are placed in ROM and local variables are placed in a fixed memory space? I don't understand this sentence. Does that memory space include R0-R7? Then where are externa...; snowolf Embedded System

The Final Battle of the 2011 National Undergraduate Electronic Design Competition - Summary of Test Questions and Strategies: [i=s]This post was last edited by paulhyde on 2014-9-15 09:01[/i](Medium) Update:(See the attachment for details of 1W2K words)61Electronic2011/07/18 [[i] This post was last edited by 61 Electronics o...; 61电子 Electronics Design Contest

Can the GRAPH control change height during operation?: [size=14px]Can an expert please tell me whether the height of a GRAPH control can be changed during operation? Thank you! [/size]...; chenbingjy Real-time operating system RTOS

[Data Sharing] May be the most powerful MP3 voice chip solution: Usually, I just hang out in the forum, read the posts, and see everyone's experience and summary. It is indeed an opportunity to increase my knowledge. Sometimes I can answer questions that I can answ...; qyvhome MCU

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
