KS82C50A-8CP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> KS82C50A-8CP

KS82C50A-8CP: DescriptionSerial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40; CategoryMicrocontrollers and processors; File Size937KB，25 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KS82C50A-8CP Overview

Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40

KS82C50A-8CP Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Is Samacsys	N
Address bus width	3
boundary scan	NO
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.0762939453125 MBps
External data bus width	8
JESD-30 code	R-PDIP-T40
length	52.07 mm
low power mode	YES
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum slew rate	6 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

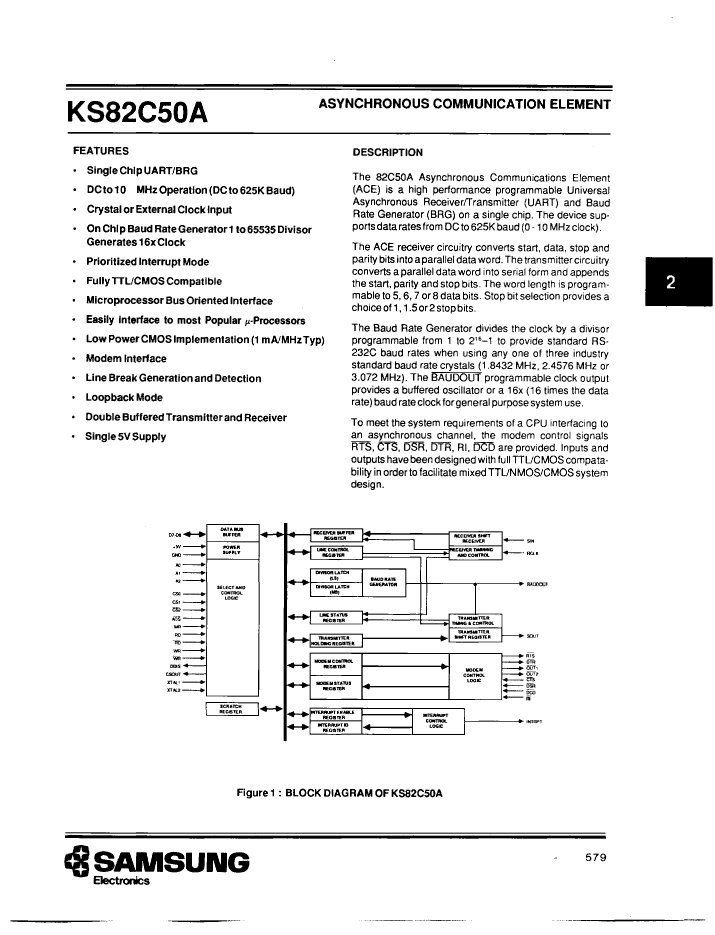

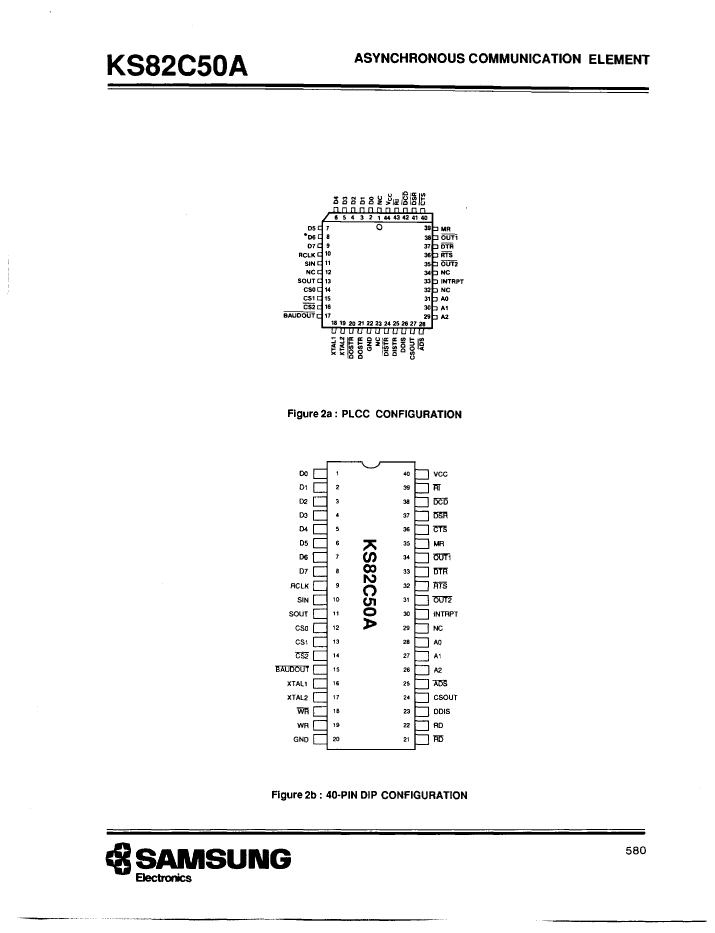

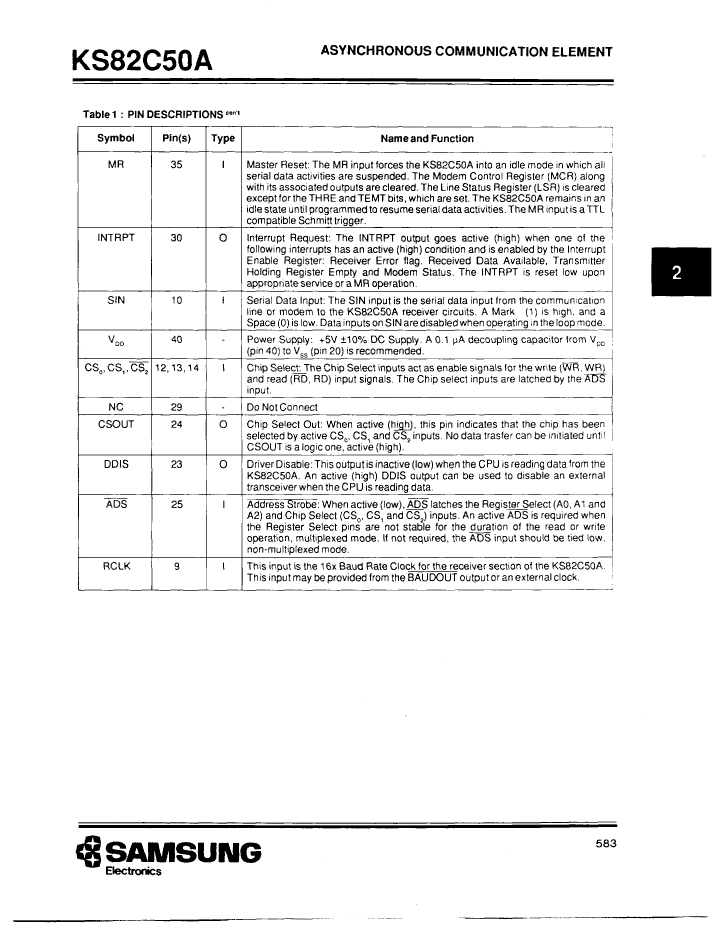

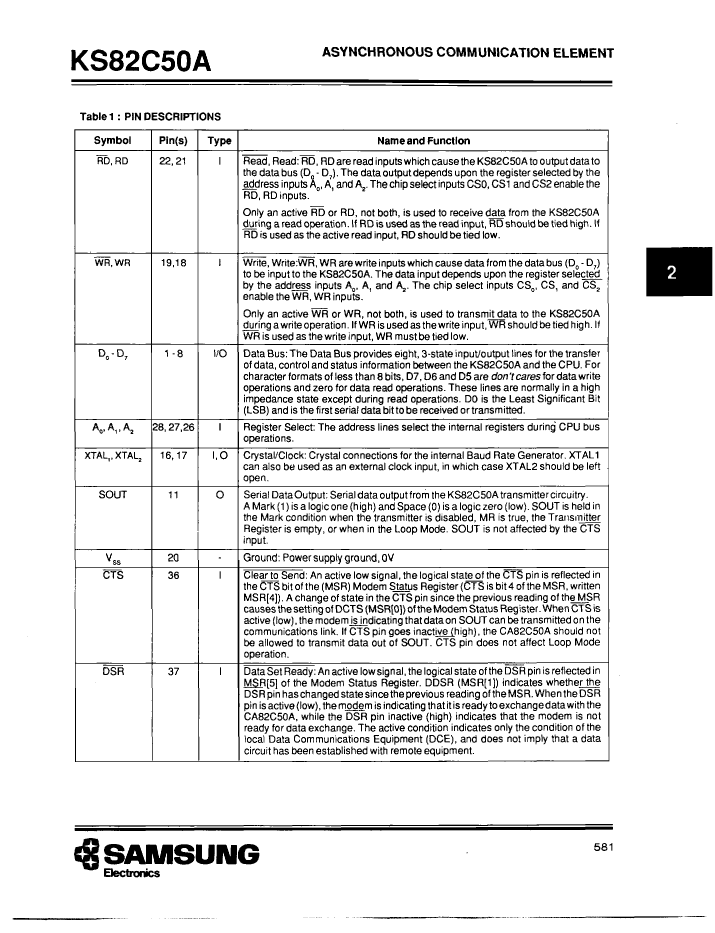

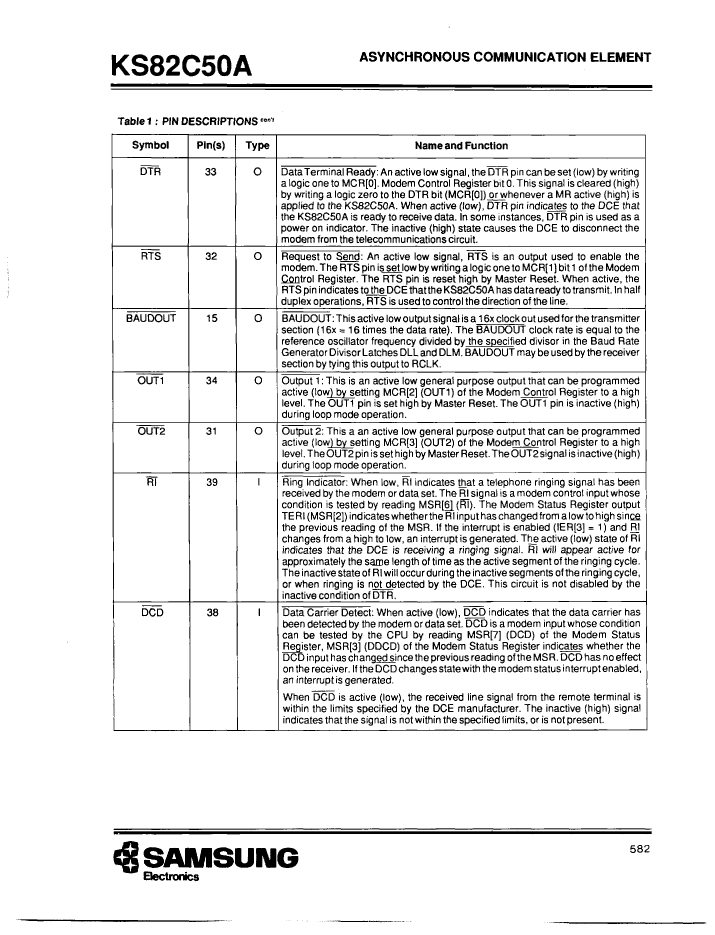

Preview

Download Datasheet

View All

KS82C50A-8CP Related Products

	KS82C50A-8CP	KS82C50A-8CL	KS82C50A-8IP	KS82C50A-10IP	KS82C50A-8IL	KS82C50A-10IL	KS82C50A-10CL	KS82C50A-10CP
Description	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), 0.0762939453125MBps, CMOS, PDIP40, PLASTIC, DIP-40
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIP	LCC	DIP	DIP	LCC	LCC	LCC	DIP
package instruction	DIP,	QCCJ,	DIP,	DIP, DIP40,.6	QCCJ,	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	40	44	40	40	44	44	44	40
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	compliant	compliant	compliant
Address bus width	3	3	3	3	3	3	3	3
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps	0.0762939453125 MBps
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40
length	52.07 mm	16.5862 mm	52.07 mm	52.07 mm	16.5862 mm	16.5862 mm	16.5862 mm	52.07 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of serial I/Os	1	1	1	1	1	1	1	1
Number of terminals	40	44	40	40	44	44	44	40
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	DIP	QCCJ	QCCJ	QCCJ	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL
width	15.24 mm	16.5862 mm	15.24 mm	15.24 mm	16.5862 mm	16.5862 mm	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
