VFOV101-29BBBS8-10.000MHZ datasheet, PDF

Datasheet> All Categories > oscillator> VFOV101-29BBBS8-10.000MHZ

VFOV101-29BBBS8-10.000MHZ: DescriptionSine Output Oscillator, 10MHz Nom,; Categoryoscillator; File Size417KB，4 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

VFOV101-29BBBS8-10.000MHZ Overview

Sine Output Oscillator, 10MHz Nom,

VFOV101-29BBBS8-10.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Is Samacsys	N
Ageing	0.3 PPM/YEAR
Maximum control voltage	4.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
frequency stability	0.01%
Frequency Stability - Voltage	0.001 ppm
input power	1.2 W
Installation features	THROUGH HOLE MOUNT
Number of terminals	5
offset frequency	1 kHz
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	1.262 V
Oven power supply voltage	12V
Encapsulate equivalent code	MODULE,5LEAD,.6
phase noise	-155 dBc/Hz
physical size	20.2mm x 20.2mm x 11.7mm
Maximum supply voltage	12.6 V
Minimum supply voltage	11.4 V
Nominal supply voltage	12 V
surface mount	NO
Preheating power	3.5 W
Maximum warm-up time	3 Minute
Base Number Matches	1

Preview

Download Datasheet

View All

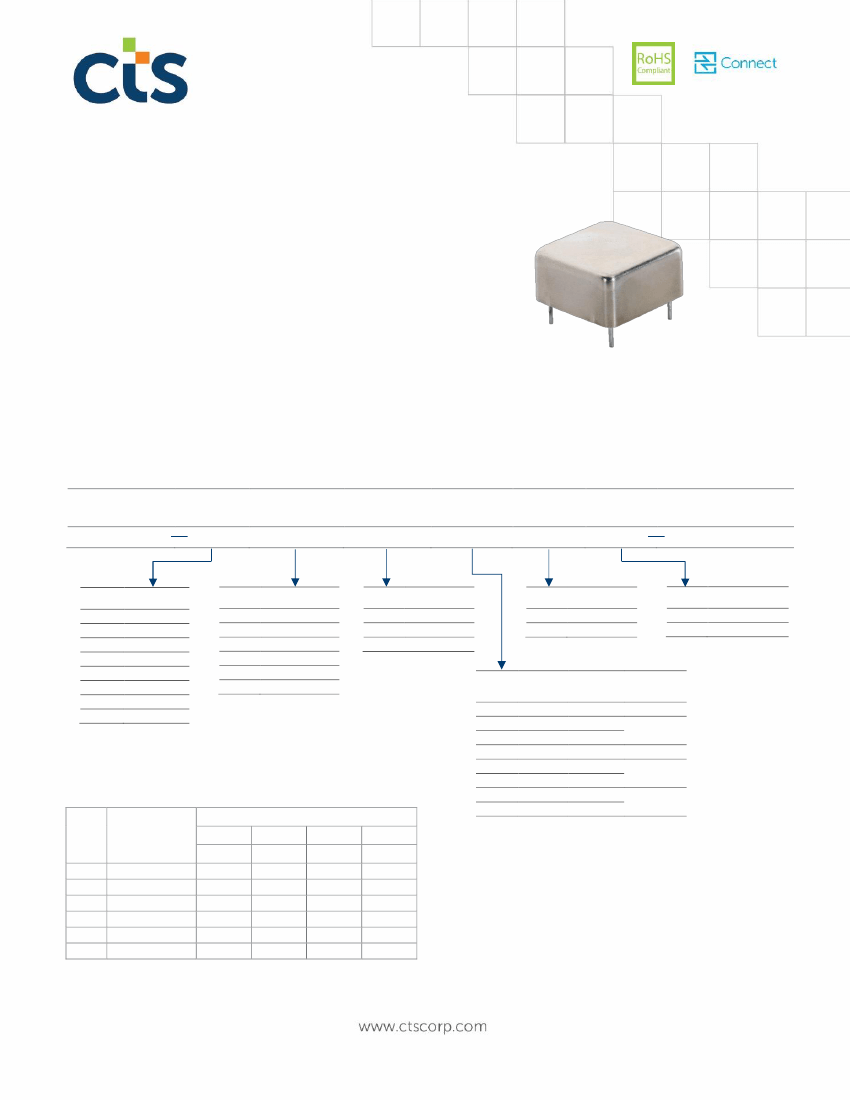

VFOV101

OCXO – High Frequency, High Stability

Features



5 to 150 MHz Frequency Range

High stability (to 0.5 ppb)

-40°C to +85°C operating temperature range

Sine wave or HCMOS output

Applications

PLL reference for telecommunications systems

Microwave communications / RADAR signal source

GPS holdover

Instrumentation / test and measurement

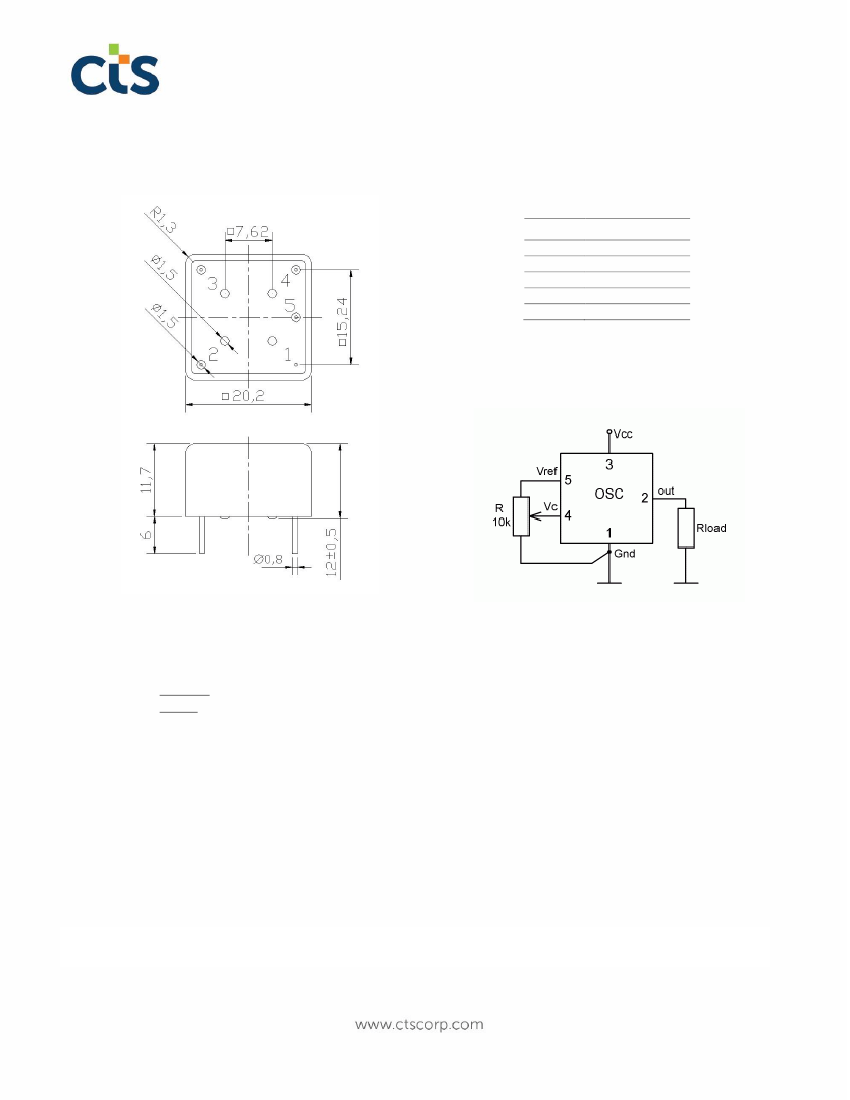

Dimensions: 20.2 × 20.2 x 12 mm

Ordering Information – Table 1

Model

Stability

Temperature

Range

Supply

Voltage

Aging

Output

Diameter

Frequency, MHz

VFOV101

10.000MHz

Code

Stability

1x10

5x10

-8

2x10

-8

1x10

-8

5x10

-9

2x10

-9

1x10

-9

5x10

-10

-7

Code

Temp range

0 to 50°C

0 to 70°C

-10 to 60°C

-20 to 70°C

-30 to 70°C

-40 to 85°C

Code

Supply

5.0V ±5%

3.3V ±5%

12V ±5%

Code

Output

HCMOS

Sine wave

Code

blank

Diameter

0.8 mm (std)

0.5 mm

Code

Per

day

5 ppb

3 ppb

2 ppb

1 ppb

0.5 ppb

0.4 ppb

0.2 ppb

0.1 ppb

Per

year

0.5 ppm

0.3 ppm

0.2 ppm

0.1 ppm

60 ppb

50 ppb

20 ppb

15 ppb

≤150 MHz

≤120 MHz

≤40 MHz

≤20 MHz

≤10 MHz

Temperature Stability Matrix

Temperature

Range

0 to 50°C

0 to 70°C

-10 to 60°C

-20 to 70°C

-30 to 70°C

-40 to 85°C

Stability (10MHz/100MHz)

5x10

-9

*/*

2x10

-9

*/*

1x10

-9

5x10

-10

Code

Part Number Example:

VFOV101-VGEDH8-10.000MHz

Rev. C_0918

Page 1 of 4
