Tel : 886-2-66296288
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
Programmable Rolling Code Encoder IC
DESCRIPTION
PT2283
PT2283 is a programmable rolling code encoder IC utilizing CMOS Technology specially designed for remote
control applications. It supports up to 20 or 24 bits of programmable address codes, 8 or 4 data bits and 16
bits programmable rolling code. A total of 65,536 rolling code combinations as well as power saving feature
and low battery warn mode(except PT2283L) are also provided.
PT2283 encodes the programmed codes into a coded waveform suitable for RF modulation. Pin assign-
ments and application circuit are optimized for easy PCB Layout and cost saving advantage. Housed in
either 8 pins or 16 pins DIP or SOP package.
FEATURES
•
•
•
•
•
•
•
•
•
•
•
CMOS Technology
Low Power Consumption
Least External Components
High Noise Immunity
Operating Voltage: 4V to 10V
Up to 20 or 24 Address Codes
Up to 8 or 4 Data Bits
Up to 2
43
Output Code Combinations
Power Saving Feature
Low Battery Warn Mode (except PT2283L)
Available in 8 or 16 pins, SOP or DIP Package
APPLICATIONS
•
•
•
•
•
Burglar Alarm System
Car Security System
Car/Garage Door Controller
Home/Office Security System
Personal Alarm System
PT2283 v1.2
Page 1
February 2003

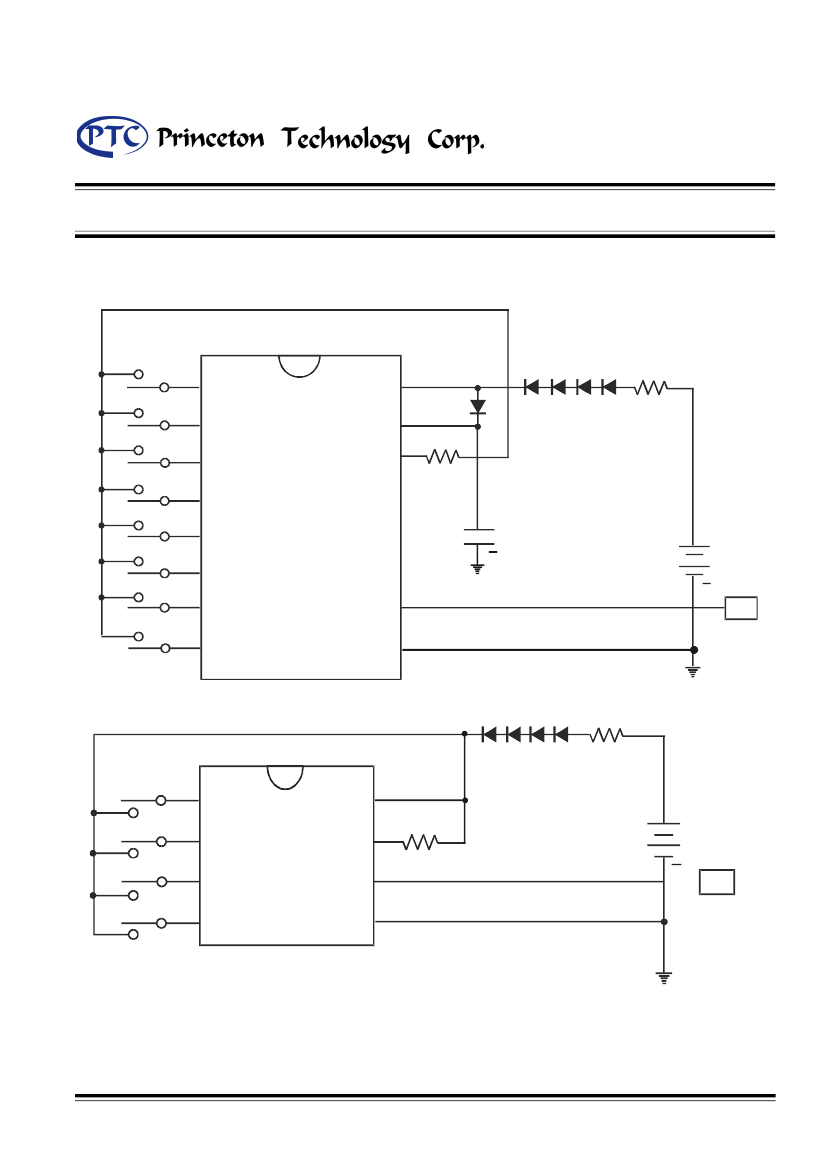

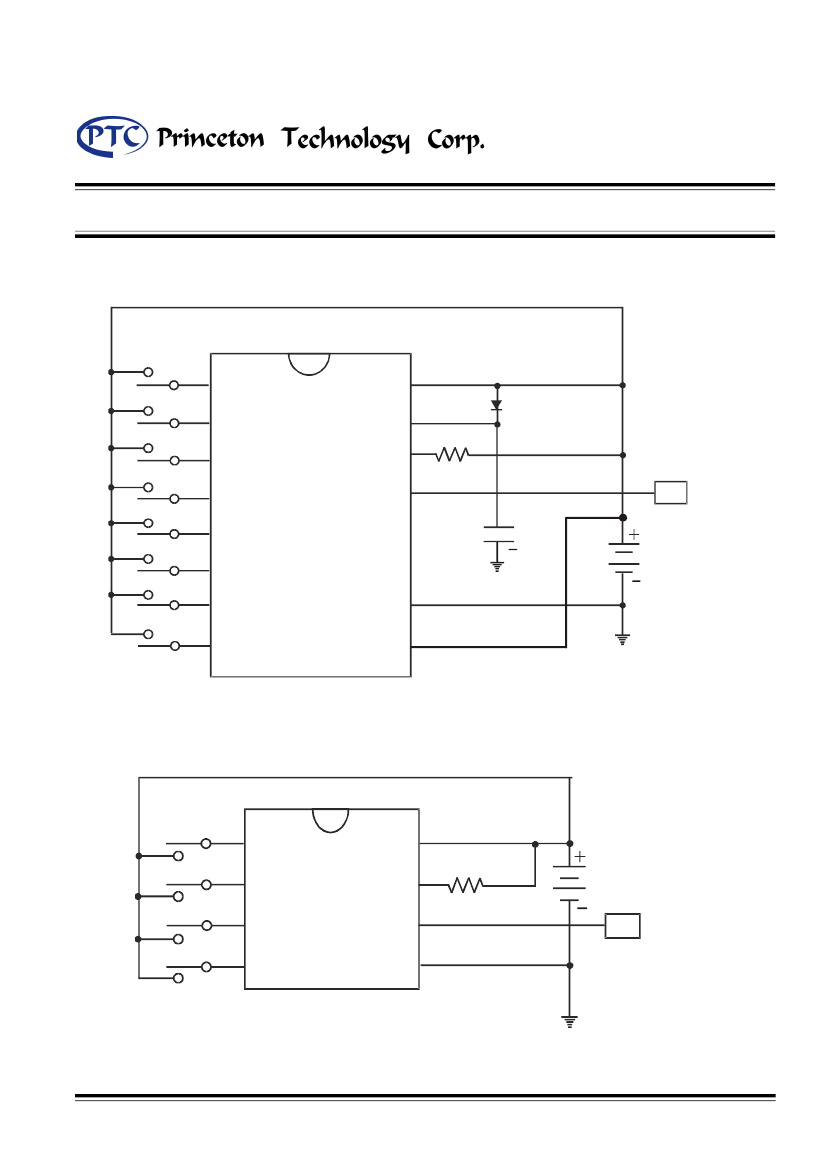

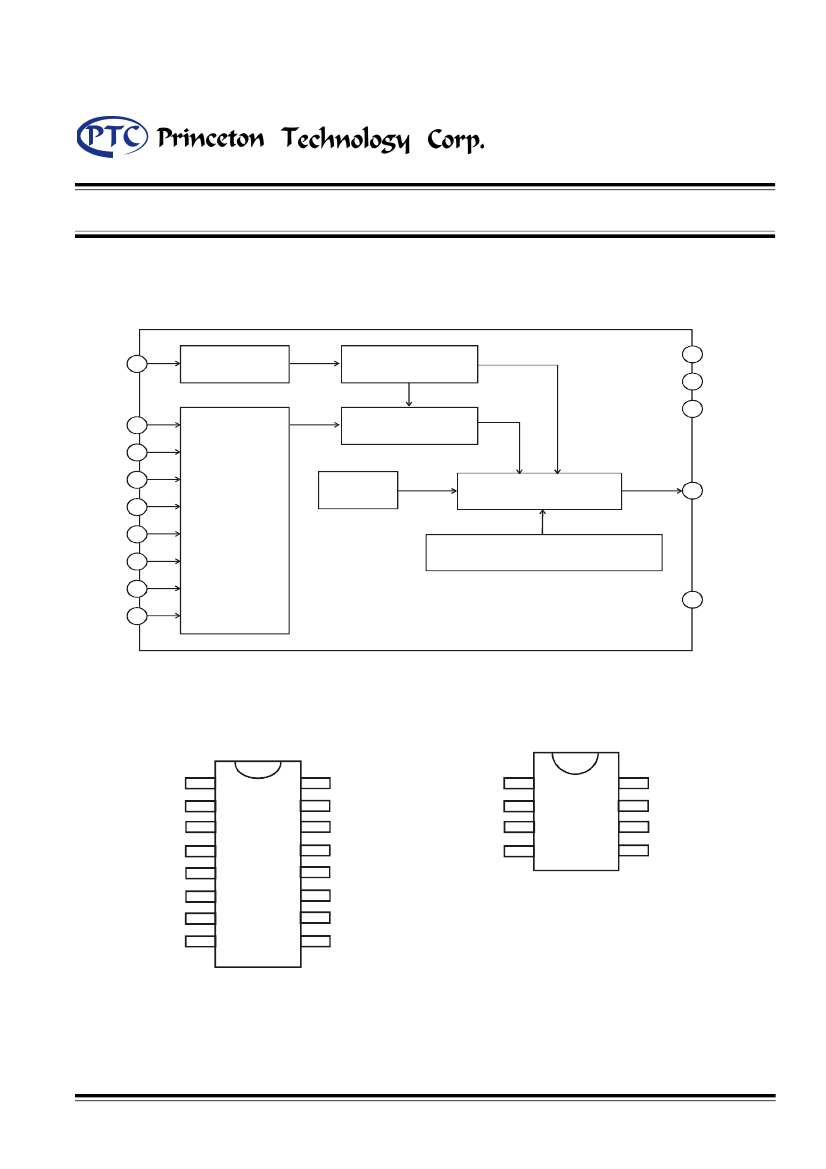

Tel : 886-2-66296288
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
Programmable Rolling Code Encoder IC
ORDER INFORMATION
O rd e r P a rt N u m b e r
PT2283
PT2283L
PT2283-S
PT2283L-S
PT2283-16
PT2283-16S
PT2283P
PT2283LP
PT2283P-S
PT2283LP-S
PT2283P-16
PT2283P-16S
8 P in s , D I P
Package Type
( 3 0 0 m il) , P r o g r a m m a b le
PT2283
To p C o d e
PT2283
PT2283L
PT2283-S
PT2283L-S
PT2283-16
PT2283-16S
PT2283P
PT2283LP
PT2283P-S
PT2283LP-S
PT2283P-16
PT2283P-16S
8 P in s , D I P ( 3 0 0 m il) , P r o g r a m m a b le ,
N o B a tte r y W a r m M o d e
8 P in s , S O P ( 1 5 0 m il) , P r o g r a m m a b le
8 P in s , S O P ( 1 5 0 m il) , P r o g r a m m a b le ,
N o . B a tte r y W a r m M o d e
1 6 P in s , D I P ( 3 0 0 m il) , P r o g r a m m a b le
1 6 P in s , S O P ( 1 5 0 m il) , P r o g r a m m a b le
8 P in s , D I P ( 3 0 0 m il) , P r o g r a m m e d
8 P in s , D I P ( 3 0 0 m il) , P r o g r a m m a b le ,
N o B a tte r y W a r m M o d e
8 P in s , S O P ( 1 5 0 m il) , P r o g r a m m e d
8 P in s , S O P ( 1 5 0 m il) , P r o g r a m m a b le ,
N o B a tte r y W a r m M o d e
1 6 P in s , D I P ( 3 0 0 m il) , P r o g r a m m e d
1 6 P in s , S O P ( 1 5 0 m il) , P r o g r a m m e d
PT2283 v1.2
Page 5
February 2003
