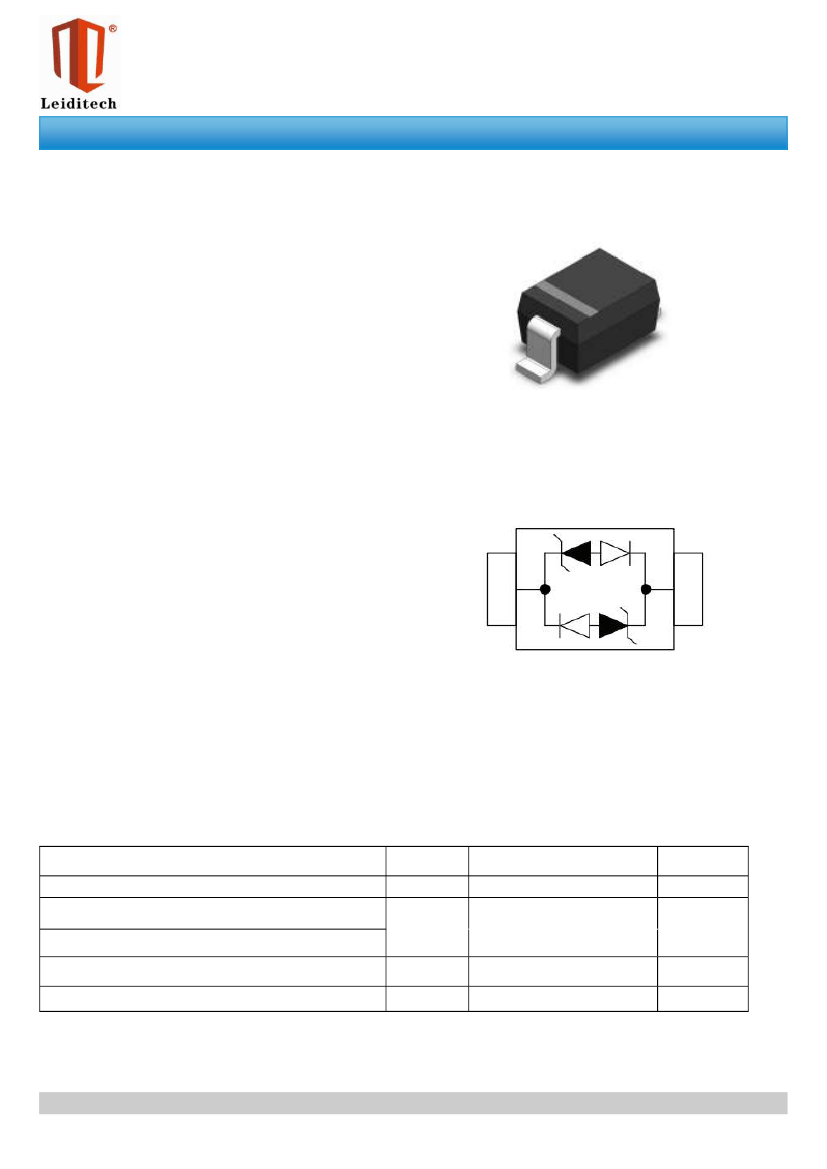

LC05CI
1-Line Low Capacitance Bi-directional TVS Diode
Features
●
●
●
●
●
●
●
450W peak pulse power (8/20μs)
Ultra low capacitance: 2pF typical
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Protects one power line or data line
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-4 (EFT) 40A (5/50ns)
– IEC61000-4-5 (Lightning) 18A (8/20μs)
RoHS Compliant
Dimensions SOD-323
●
Pin Configuration
Applications
●
●
●
●
USB Ports
Smart Phones
Wireless Systems
Ethernet 10/100/1000 Base T
Mechanical Characteristics
●
●
●
●
●
●
●
Package: SOD-323
Lead Finish: Matte Tin
Case Material: “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 3 per J-STD-020
Terminal Connections: See Diagram Below
Marking Information: See Below
Absolute Maximum Ratings
(Tamb=25°C unless otherwise specified)
Parameter
Peak Pulse Power (8/20µs)
ESD per IEC 61000−4−2 (Air)
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
T
J
T
STJ
Symbol
Ppp
V
ESD
Value
450
±
30
±
30
Unit
W
Kv
℃
℃
-55 to +125
-55 to +150
Rev
:
01.06.2015
1/3
www.leiditech.com
LC05CI

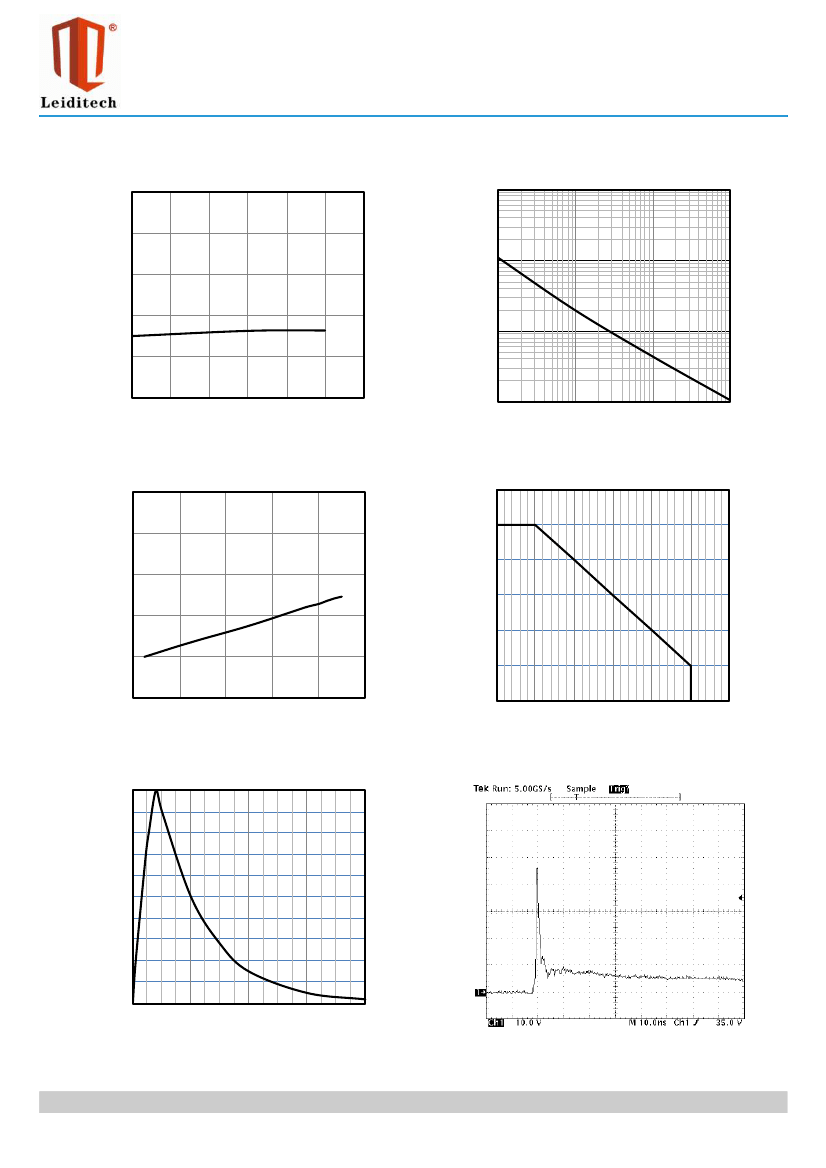

Typical Performance Characteristics (TA=25°C unless otherwise Specified)
5.00
10
Peak Power_Ppp(W)
0
1
2
3
4
5
Peak Pulse Current_Ipp (A)
6
Clamping Voltage_Vc (V)
4.00
3.00
2.00
1.00
1
0.1
0.00
0.01
0.1
1
10
Pulse Duration_tp(uS)
100
Junction Capacitance vs. Reverse Voltage
50.00
120
Peak Pulse Power vs. Pulse Time
Clamping Voltage_Vc (V)
% of Rated Power
0
4
8
12
16
Peak Pulse Current_Ipp (A)
20
40.00
100
80
60
30.00
20.00
10.00
40
20
0
0.00
0
25
50
75
100 125
Ambient Temperature_Ta(℃)
150
Clamping Voltage vs. Peak Pulse Current
100
90
% of Peak Pulse Current
80
70
60
50
40
Power Derating Curve
30
20
10
0
0
20
40
Time_t(uS)
60
80
8 X 20uS Pulse Waveform
ESD Clamping Voltage
8 kV Contact per IEC61000−4−2
3/4
Rev
:
01.06.2015
www.leiditech.com
LC05CI

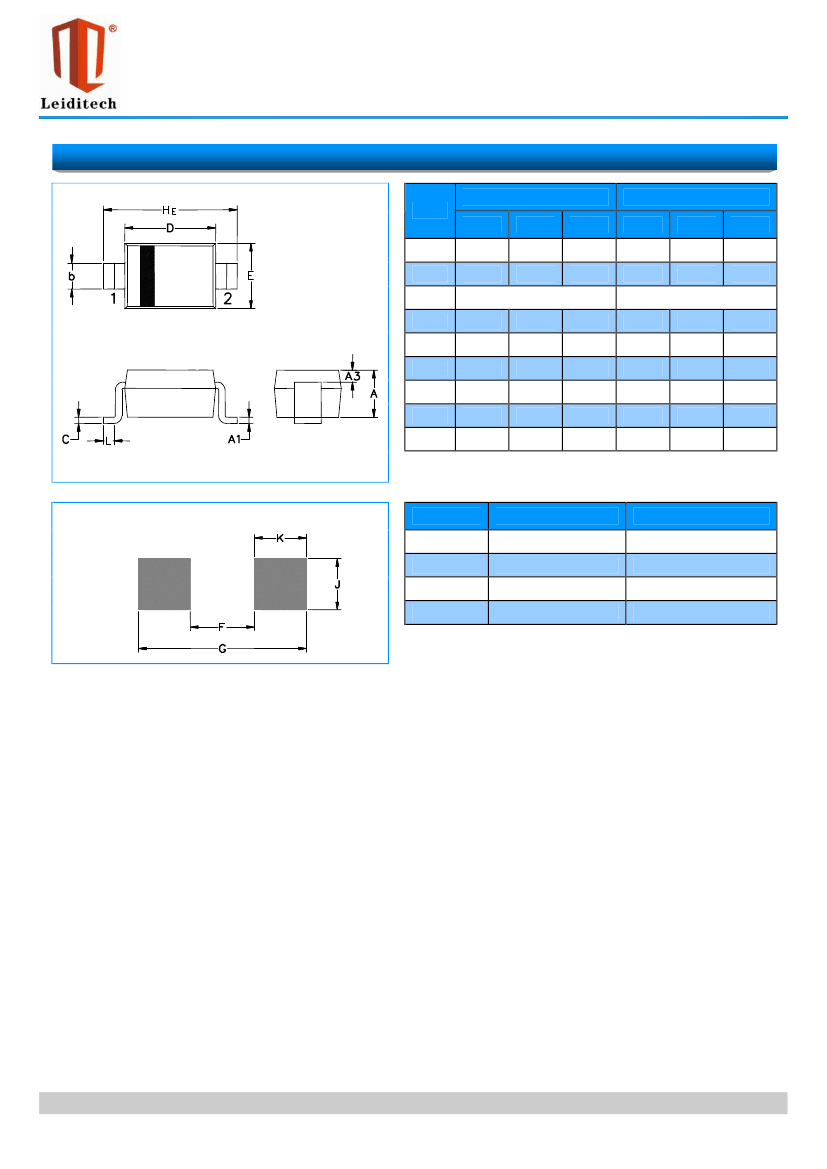

SOD-323 Package Outline & Dimensions
Millimeters
Symbol
Min.
A
A1
A3
b
C
D
E
L
H
E
0.25
0.089
1.60
1.15
0.08
2.30
2.50
2.70
0.80
0.00
Nom.
0.90
0.05
0.15 REF
0.32
0.12
1.70
1.25
0.40
0.177
1.80
1.35
0.010
0.003
0.062
0.045
0.003
0.090
0.098
0.105
Max.
1.00
0.10
Min.
0.031
0.000
Nom.
0.035
0.002
0.006 REF
0.012
0.005
0.066
0.049
0.016
0.007
0.070
0.053
Max.
0.040
0.004
Inches
Soldering Footprint
Symbol
F
G
J
K
Millimeters
1.60
2.85
0.83
0.63
Inches
0.063
0.112
0.033
0.025
Shanghai Leiditech Electronic Co.,Ltd
Email: sale1@leiditech.com
Tel : +86- 021 50828806
Fax : +86- 021 50477059
