10SVP33M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 10SVP33M

10SVP33M: DescriptionPin spacing (mm): - Capacitance: 33uF Accuracy: ±20% Rated voltage: 10V ESR series resistance: 70mΩ @ 100kHz ~ 300kHz Rated ripple current: 1.1A @ 120Hz; CategoryPassive components capacitor; File Size49KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

10SVP33M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10SVP33M	-	-	View	Buy Now

10SVP33M Overview

Pin spacing (mm): - Capacitance: 33uF Accuracy: ±20% Rated voltage: 10V ESR series resistance: 70mΩ @ 100kHz ~ 300kHz Rated ripple current: 1.1A @ 120Hz

10SVP33M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	70 mΩ
high	5.9 mm
leakage current	0.165 mA
length	6 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	55 mA
size code	1717
surface mount	YES
Delta tangent	0.12
Terminal shape	FLAT
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

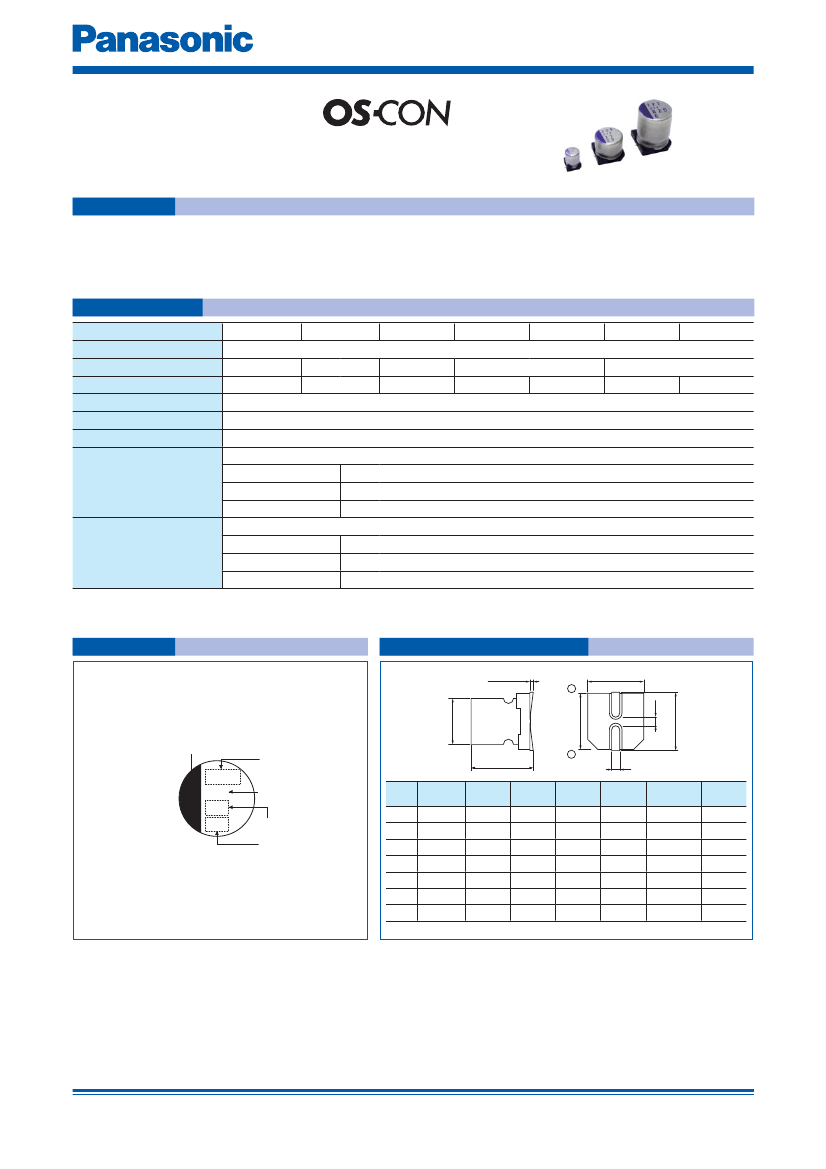

Conductive Polymer Aluminum Solid Capacitors

Surface Mount Type

Series :

SVP

Features

●

Standard

●

Wealth

models

●

RoHS compliance, Halogen free

Specifications

Size code

E12

F12

Category temperature range

–55 °C to +105 °C

Rated voltage range

4 V.DC to 16 V.DC 4 V.DC to 20 V.DC 2.5 V.DC to 20 V.DC

4 V.DC to 20 V.DC

2.5 V.DC to 20 V.DC

Rated capacitance range 3.3 µF to 33 µF 10 µF to 68 µF 22 µF to 220 µF 33 µF to 330 µF 56 µF to 680 µF 100 µF to 680 µF 150 µF to 1500 µF

Capacitance tolerance

±20 % (120 Hz / + 20 °C)

Leakage current

Please see the attached characteristics list

Dissipation factor (tan

Please see the attached characteristics list

+105 °C, 2000 h, rated voltage applied

Capacitance change Within ±20 % of the initial value

Endurance

tan

150 % of the initial limit

DC leakage current Within the initial limit

+60 °C, 90 % to 95 %, 1000 h, No-applied voltage

Capacitance change Within ±20 % of the initial value

Damp heat

(Steady State)

tan

150 % of the initial limit

DC leakage current Within the initial limit (after voltage processing)

Marking

Dimensions (not to scale)

0.2 max.

–

Polarity marking (−)

Lot. No.

Series

R. Capacitance

R. Voltage

Unit : mm

Size

code

fD±0.5

4.0

5.0

6.3

8.0

10.0

8.0

10.0

−0.4

5.4

5.9

6.9

7.9

11.9

12.6

+0.1

W±0.2 H±0.2 C±0.2

4.3

5.3

6.6

8.3

10.3

8.3

10.3

4.3

5.3

6.6

8.3

10.3

8.3

10.3

5.0

6.0

7.3

9.0

11.0

9.0

11.0

0.6 to 0.8

0.8 to 1.1

P±0.2

1.0

1.4

2.1

3.2

4.6

3.2

4.6

E12

F12

Externals of ﬁgure are the reference.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01 Nov. 2015
