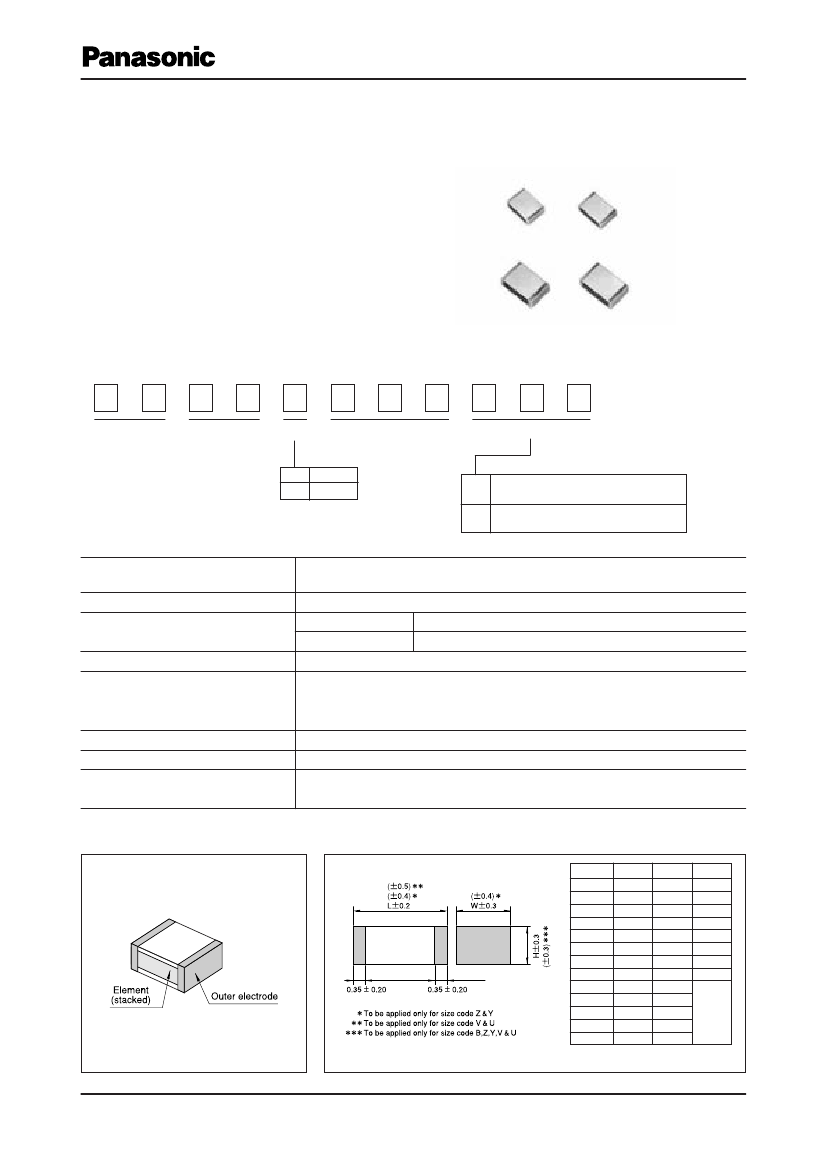

Film Chip Capacitor
Type:
ECWU(C)
Stacked metallized PEN film dielectric with simple
mold-less construction
sFeatures
•
Small in size
•
For reflow soldering
sRecommended
Applications
•
DC Blockiing for xDSL
sExplanation
of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
C
W
U
Rated voltage
Capacitance
V
Suffix
Product code
Dielectric
&
construction
2
4
250VDC
400VDC
V16
for xDSL,Withstand voltage:400VDC
Cap.tol
:
±5%
for xDSL,Withstand voltage:600VDC
V17
Cap.tol
:
±5%
sSpecifications
Category temp.range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Withstand voltage
Dissipation factor
Insulation resistance
Soldering conditions
–55 to +85˚C
250VDC, (V16), 400VDC, (V17)
250VDC(V16)
0.001 to 0.12 µF (E12)
400VDC(V17)
±5%(J)
0.001 to 0.15 µF (E12)
Between terminals
250VDC(V16) : 400VDC
400VDC(V17) : 600VDC
<
1.0%(20˚C,1kHz)
=
60s
60s
>
=
3000MΩ(20˚C,100VDC, 60s)
Reflow soldering
240˚C max. and 60 sec max. at more than 220˚C (Temp. at cap. surface)
sConstruction
sDimensions
in mm (not to scale)
Size code
E1
E2
E3a
E3
D2
D3
D4
D5
B
Z
Y
V
U
L
4.8
4.8
4.8
4.8
6.0
6.0
6.0
6.0
6.0
7.1
7.1
9.8
9.8
W
3.3
3.3
3.3
3.3
4.1
4.1
4.1
4.1
5.0
5.0
6.3
6.3
8.0
H
1.4
2.0
2.4
2.8
2.0
2.4
2.8
3.2
g
gRefer
to the column “Rating, Dimensions
& Quantity”.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Mar. 2005
Plastic Film Capacitors
sTaping
Specification for Automatic Mounting
Refer to the taping specification.
s
Rating, Dimensions & Quantity/Reel
qCapacitance
tolerance : ±5 % (J)
Cap.
(µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
0.12
0.15
Rated volt. 250VDC
Part No
ECWU2102V16
ECWU2122V16
ECWU2155V16
ECWU2182V16
ECWU2222V16
ECWU2272V16
ECWU2332V16
ECWU2392V16
ECWU2472V16
ECWU2562V16
ECWU2682V16
ECWU2822V16
ECWU2103V16
ECWU2123V16
ECWU2153V16
ECWU2183V16
ECWU2223V16
ECWU2273V16
ECWU2333V16
ECWU2393V16
ECWU2473V16
ECWU2563V16
ECWU2683V16
ECWU2823V16
ECWU2104V16
ECWU2124V16
Dimensions (mm)
Rated volt. 400VDC
Size
code
Q'ty
L
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
6.0
6.0
6.0
6.0
6.0
6.0
6.0
W
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
4.1
4.1
4.1
4.1
5.0
5.0
5.0
H
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
2.0
2.0
2.4
2.8
2.0
2.4
2.8
3.2
3.2
3.8
4.5
Part No
ECWU4102V17
ECWU4122V17
ECWU4155V17
ECWU4182V17
ECWU4222V17
ECWU4272V17
ECWU4332V17
ECWU4392V17
ECWU4472V17
ECWU4562V17
ECWU4682V17
ECWU4822V17
ECWU4103V17
ECWU4123V17
ECWU4153V17
ECWU4183V17
ECWU4223V17
ECWU4273V17
ECWU4333V17
ECWU4393V17
ECWU4473V17
ECWU4563V17
ECWU4683V17
ECWU4823V17
ECWU4104V17
ECWU4124V17
ECWU4154V17
Dimensions (mm)
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E1
E2
E2
E3a
E3
D2
D3
D4
D5
B
B
B
3,000
2,000
3,000
2,000
1,500
L
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
4.8
6.0
6.0
6.0
6.0
6.0
6.0
7.1
7.1
7.1
7.1
9.8
9.8
9.8
9.8
W
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
4.1
4.1
4.1
4.1
5.0
5.0
5.0
5.0
6.3
6.3
6.3
6.3
8.0
8.0
H
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
2.0
2.0
2.4
2.8
2.0
2.4
2.8
3.2
3.0
3.6
3.2
3.8
3.6
4.4
3.4
4.0
3.8
4.6
Size
code
Q'ty
E1
E1
E1
E1
E1
E1
E1
E1
E1
E2
E2
E3a
E3
D2
D3
D4
D5
B
B
Z
Z
Y
Y
V
V
U
U
3,000
2,000
3,000
2,000
1,500
1,000
sRecommened
for Land Dimensions (mm)
Size code
E1, E2, E3a, E3
D2, D3, D4, D5
B
Z
Y
V
U
Land dimensions for
reflow soldering
A
B
C
2.6
3.8
3.8
4.5
4.5
7.2
7.2
6.6
7.8
7.8
9.0
9.0
11.9
11.9
3.0
3.8
4.6
4.6
5.7
5.7
7.2
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Mar. 2005
