TESTING
AQY280S
AQY284S
UL, C-UL BSi
pending
AQY282S, AQW280S
pending
AQW282S, AQW284S
GU (General Use) Type
[1, 2-Channel (Form A)
4, 8-Pin Type]
FEATURES
4.3
.169
4.4
.173
2.1
.083
PhotoMOS
RELAYS
TYPICAL APPLICATIONS
• Modem
• Telephone equipment
• Security equipment
• Sensors
• Amusement
9.37
.369
4.4
.173
2.1
.083
mm
inch
1. Low cost type.
2. High sensitivity, Low ON resistance
Can control a maximum 0.5A (AQY282S,
AQW282S) load current with a 5mA input
current.
Low ON resistance of 2.5Ω (AQY282S,
AQW282S).
Stable operation because there are no
metallic contact parts.
3. Various package design (DIP4,
SOP4, DIP8, SOP8 packages are
available)
4. Low-level off state leakage current
The SSR has an off state leakage current
of several milliamperes, where as the
PhotoMOS relay has only 100pA even
with the rated load voltage of 350V
(AQY280S, AQW280S).
SOP TYPE
SOP 4pin
Type
Output rating*
Load voltage Load current
60 V
500 mA
350 V
400 V
120 mA
100 mA
Part No.
Picked from the 1/2-pin side
Picked from the 3/4-pin side
AQY282SX
AQY282SZ
AQY280SX
AQY284SX
AQY280SZ
AQY284SZ
Packing quantity in tape and reel
AC/DC type
1,000 pcs.
*Indicate the peak AC and DC values.
Notes: (1) Tape package is the standard packing style. Also available in tube. (Part No. suffix “X” or “Z” is not needed when ordering; Tube: 100 pcs.;
Case: 2,000 pcs.)
(2) For space reasons, the initial letters of the product number “AQY” and “S”, the package type indicator “X” and “Z” are omitted from the seal.
SOP 8pin
Type
Output rating*
Load voltage
60 V
350 V
400 V
Load current
350 mA
100 mA
80 mA
Part No.
Picked from the 1/2/3/4-pin side
AQW282SX
AQW280SX
AQW284SX
Picked from the 5/6/7/8-pin side
AQW282SZ
AQW280SZ
AQW284SZ
Packing quantity in tape and reel
AC/DC type
1,000 pcs.
* Indicate the peak AC and DC values.
Notes: (1) Tape package is the standard style. Also available in tube. (Part No. suffix “X” or “Z” is not needed when ordering; Tube: 50 pcs.; Case: 1,000
pcs.)
(2) For space reasons, the package type indicator “X” and “Z” are omitted from the seal.
PhotoMOS Relays
ASCT1B257E ’03.3
New
1
AQ❍28❍S
RATING
1. Absolute maximum ratings (Ambient temperature: 25°C
77°F)
SOP 4pin
Item
LED forward current
LED reverse voltage
Input
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current (peak AC)
Output
Peak load current
Symbol
I
F
V
R
I
FP
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
60 V
0.5 A
1.5 A
AQY282S
AQY280S
50 mA
5V
1A
75 mW
350 V
0.12 A
0.3 A
f = 100 Hz,
Duty factor = 0.1%
400 V
0.1 A
0.24 A
100 ms (1 shot),
V
L
= DC
AQY284S
Remarks
Power dissipation
Total power dissipation
I/O isolatiom voltage
Operating temperature
Storage temperature
300 mW
350 mW
1,500 V AC
–40°C to +85°C
–40°F to +185°F
–40°C to +100°C
–40°F to +212°F
Non-condensing at low temperature
SOP 8pin
Item
LED forward current
LED reverse voltage
Input
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current (peak AC)
Output
Peak load current
Power dissipation
Total power dissipation
I/O isolatiom voltage
Operating temperature
Storage temperature
Symbol
I
F
V
R
I
FP
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
AQW282S
AQW280S
50 mA
5V
1A
75 mW
350 V
0.1 (0.13) A
0.3 A
600 mW
650 mW
1,500 V AC
–40°C to +85°C
–40°F to +185°F
–40°C to +100°C
–40°F to +212°F
Non-condensing at low temperature
f = 100 Hz,
Duty factor = 0.1%
400 V
0.08 (0.1) A
0.24 A
AQW284S
Remarks
60 V
0.35 (0.5) A
1.05 A
( ): in case of using only 1 channel
100 ms (1 shot),
V
L
= DC
2. Electrical characteristics (Ambient temperature: 25°C
77°F)
SOP 4pin
Item
LED operate current
Input
LED turn off current
LED dropout voltage
On resistance
Output
Off state leakage current
Turn on time*
Transfer
characteristics
Turn off time*
I/O capacitance
Initial I/O isolation resistance
Maximum
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
I
Leak
T
on
T
off
C
iso
R
iso
0.9 ms
3 ms
0.5 ms
2 ms
0.8 pF
1.5 pF
1,000 MΩ
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
R
on
2.5Ω
25Ω
1µA
0.3 ms
35Ω
Symbol
I
Fon
I
Foff
V
F
AQY282S
AQY280S
1.8 mA
3.0 mA
0.2 mA
1.6 mA
1.14 V (1.25 V at I
F
= 50mA)
1.5 V
0.85Ω
20Ω
28Ω
AQY284S
Condition
I
L
= Max.
I
L
= Max.
I
F
= 5 mA
I
F
= 5 mA
I
L
= Max.
Within 1 s on time
I
F
= 0 mA
V
L
= Max.
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0V
500 V DC
2
AQ❍28❍S
SOP 8pin
Item
LED operate current
Input
LED turn off current
LED dropout voltage
On resistance
Output
Off state leakage current
Turn on time*
Transfer
characteristics
Turn off time*
I/O capacitance
Initial I/O isolation resistance
*Turn on/Turn off time
Maximum
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
I
Leak
T
on
T
off
C
iso
R
iso
0.9 ms
3 ms
0.5 ms
2 ms
0.8 pF
1.5 pF
1,000 MΩ
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
R
on
2.5Ω
25Ω
1µA
0.3 ms
35Ω
Symbol
I
Fon
I
Foff
V
F
AQW282S
AQW280S
1.8 mA
3.0 mA
0.2 mA
1.6 mA
1.14 V (1.25 V at I
F
= 50mA)
1.5 V
0.85Ω
20Ω
28Ω
AQW284S
Condition
I
L
= Max.
I
L
= Max.
I
F
= 5 mA
I
F
= 5 mA
I
L
= Max.
Within 1 s on time
I
F
= 0 mA
V
L
= Max.
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0V
500 V DC
Input
90%
Output
Ton
Toff
10%
3-4 the terminal leads receive solder plating or solder dip plating.
REFERENCE DATA
[SOP type]
1. Load current vs. ambient temperature
characteristics
Allowable ambient temperature: –40°C to +85°C
–40°F to +185°F
Type of connection: A
(1) AQY282S
1000
(2) AQY280S, AQY284S
200
(3) AQW282S
800
Load current, mA
Load current, mA
750
150
AQY280S
100
AQY284S
Load current, mA
600
Using only 1 channel
400
Using 2 channels
200
500
250
50
0
–40 –20
0
20
40
60
8085 100
Ambient temperature,
°C
0
–40 –20
0
20
40
60
8085 100
Ambient temperature,
°C
0
–40 –20
0
20
40
60
8085 100
Ambient temperature,
°C
3
AQ❍28❍S, AQ❍28❍EH

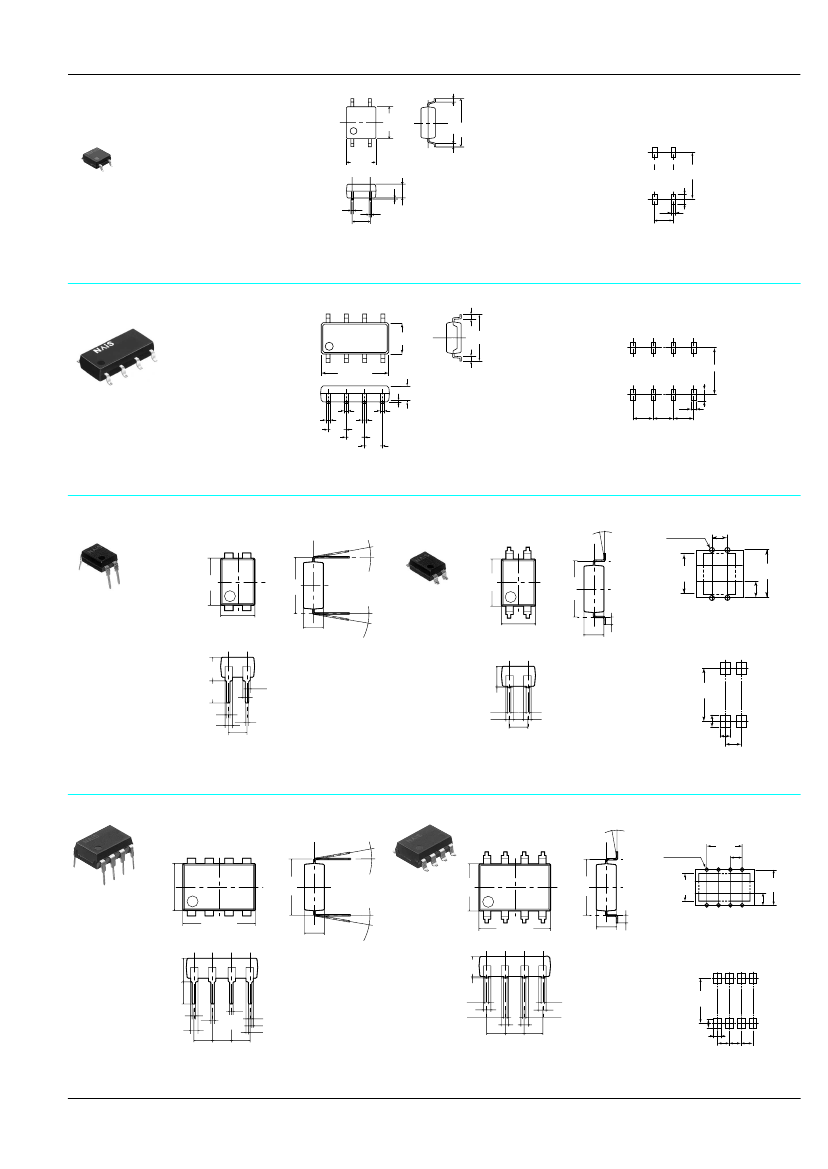

DIMENSIONS
AQY28❍S
4.4
±0.2
.173
±.008
0.5
.020
6.8
±0.4
.268
±.016
0.5
.020
2.0
±0.2
.079
±.008
0.1
.004
0.8
.031
2.54
.100
mm
inch
Recommended mounting pad
(Top view)
4.3
±0.2
.169
±.008
6
1.2
.236
.047
0.4
.016
0.4
2.54
.016
.100
Terminal thickness = 0.15
.006
General tolerance:
±0.1
±.004
Tolerance:
±0.1
±.004
AQW28❍S
4.4±0.2
.173±.008
0.5
.020
6.8±0.4
.268±.016
Recommended mounting pad
(Top view)
9.37±0.2
.369±.008
2
±
0.2
.079
±
.008
0.4
0.4
0.4
.016
0.4
.016
.016
2.54
.016
.100
2.54
.100
2.54
.100
0.1
.004
0.5
.020
1.2
.047
0.8
.031
2.54 2.54 2.54
.100 .100 .100
6
.236
Terminal thickness = 0.15
.006
General tolerance:
±0.1
±.004
Tolerance:
±0.1
±.004
PC board pattern (Bottom view)
4-0.8 dia.
4-.031 dia.
2.54
.100
7.62
.300
AQY28❍EH(A)
Through hole terminal type
Max. 10°
Surface mount terminal type
Max. 10°
6.4±0.05
.252±.002
7.62±0.05
.300±.002
Max. 10°
4.78±0.05
.188±.002
6.4±0.05
.252±.002
6.4
.252
7.62±0.05
.300±.002
2.54
.100
4.78±0.05
.188±.002
1.0
.039
2.7±0.05
.106±.002
2.7±0.05
.106±.002
Tolerance:
±0.1
±.004
Mounting pad (Top view)
3.2±0.2
.126±.008
3.0
.118
0.47
.019
1.0
.039
2.54
.100
0.2
.008
0.33
.013
0.47
.019
2.7±0.05
.106±.002
0.2
±0.2
0
.008
±.008
0
0.47
.019
1.0
.039
2.54
.100
0.47
.019
1.0
.039
8.3
.327
Terminal thickness = 0.2
.008
General tolerance:
±0.1
±.004
Terminal thickness = 0.2
.008
General tolerance:
±0.1
±.004
Surface mount terminal type
Max. 10°
Max. 10°
1.9
.075
1.5
.059
2.54
.100
Tolerance:
±0.1
±.004
PC board pattern
(Bottom view)
8-0.8 dia.
8-.031 dia.
7.62
.300
2.54
.100
7.62±0.05
.300±.002
2.54
.100
AQW28❍EH(A)
Through hole terminal type
6.4±0.05
.252±.002
7.62±0.05
.300±.002
Max. 10°
9.86±0.05
.388±.002
2.7±0.05
.106±.002
6.4±0.05
.252±.002
7.62±0.05
.300±.002
1.0
.039
2.7±0.05
.106±.002
6.4±0.05
.252±.002
9.86±0.05
.388±.002
Tolerance:
±0.1
±.004
Mounting pad (Top view)
3.2±0.2
.126±.008
3.0
.118
0.47
.019
1.0
.039
0.47
.019
0.47
0.2
.019
0.47
.008
.019
0.33
2.54 2.54 2.54
.013
.100 .100 .100
2.7±0.05
.106±.002
0.2
±0.2
0
.008
±.008
0
0.47
.019
1.0
.039
0.47 1.0
1.0
.019 .039
.039
2.54 2.54 2.54
.100 .100 .100
0.47
.019
1.0
.039
0.47
.019
8.3
.327
1.9
.075
1.5
.059
2.54 2.54 2.54
.100 .100 .100
Terminal thickness = 0.2
.008
General tolerance:
±0.1
±.004
Terminal thickness = 0.2
.008
General tolerance:
±0.1
±.004
Tolerance:
±0.1
±.004
