35SVPK82M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Solid electrolytic capacitor> 35SVPK82M

35SVPK82M: DescriptionPin spacing (mm): - Capacitance: 82uF Accuracy: ±20% Rated voltage: 35V ESR series resistance: 25mΩ @ 100kHz ~ 300kHz Rated ripple current: 960mA @ 100kHz; CategoryPassive components Solid electrolytic capacitor; File Size339KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

35SVPK82M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35SVPK82M	-	-	View	Buy Now

35SVPK82M Overview

Pin spacing (mm): - Capacitance: 82uF Accuracy: ±20% Rated voltage: 35V ESR series resistance: 25mΩ @ 100kHz ~ 300kHz Rated ripple current: 960mA @ 100kHz

35SVPK82M Parametric

Parameter Name	Attribute value
Foot distance (mm)	-
Capacitance	82uF
Accuracy	±20%
Rated voltage	35V
ESR series resistor	25mΩ @ 100kHz ~ 300kHz
life span	1000Hrs @ 125℃
Rated ripple current	960mA @ 100kHz
Appearance size(￠DxL,mm)	8x6.9
Operating temperature	-55℃ ~ +125℃

Preview

Download Datasheet

View All

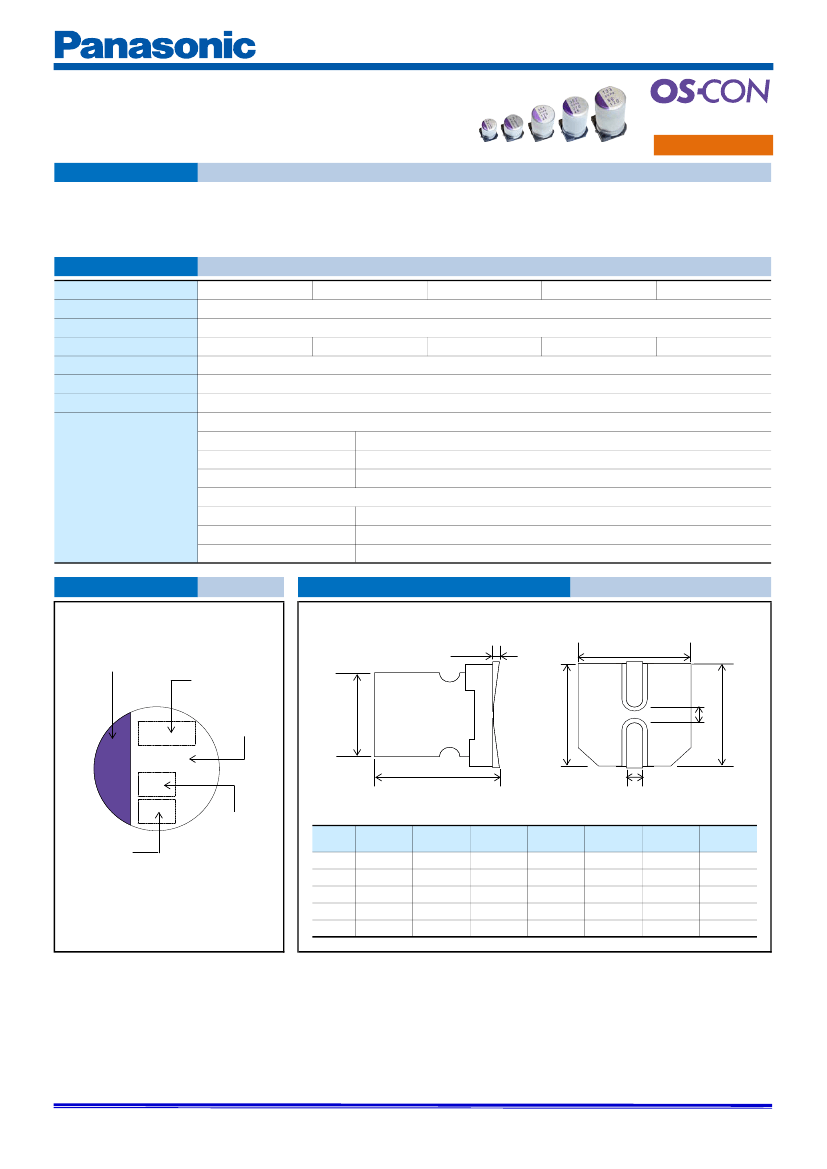

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Surface Mount Type

Series:

SVPK

Features

● High voltage (50 V.DC max.)

● 125 ℃ 1000 h

● RoHS compliance, Halogen free

UP GRADE

Specifications

E12

F12

Category temp. range

–55 ℃ to +125 ℃

Rated voltage range

16 V.DC to 50 V.DC

Nominal cap.range

10 μF to 100 μF 22 μF to 220 μF 33 μF to 330 μF 68 μF to 680 μF 120μF to 1200μF

Capacitance tolerance

±20 % (120 Hz / +20 ℃)

DC leakage current

Please see the attached characteristics list

Dissipation factor (tan δ)

Please see the attached characteristics list

+125 ℃, 1000 h, rated voltage applied

Capacitance change

Within ±20 % of the initial value

Dissipation factor (tanδ) ≦ 200 % of the initial limit

DC leakage current

Within the initial limit

Endurance

+60 ℃, 90 % to 95 %, 1000 h, No-applied voltage

Capacitance change

Within ±20 % of the initial value

Dissipation factor (tanδ) ≦ 150 % of the initial limit

DC leakage current

Within the initial limit (after voltage processing)

Size code

Marking

Dimensions (not to scale)

0.2 max

Polarity marking (−)

Lot No.

φD

⊖

Series

R. Capacitance

(μF)

⊕

Unit：½½

R. Voltage

（V.DC)

Size

φD±0.5

code

5.0

6.3

8.0

E12

8.0

F12

10.0

+0.1

-0.4

W±0.2

5.3

6.6

8.3

10.3

H±0.2

5.3

6.6

8.3

10.3

C±0.2

6.0

7.3

9.0

11.0

0.6½0.8

0.8½1.1

P±0.2

1.4

2.1

3.2

4.6

5.9

6.9

11.9

12.6

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

01-Nov-18
