Detector Switches/ESE13
ESE13 Detector Switches
Type:
ESE13
Features
Thin type : Height=1.2 mm
Highly reliable contact
SMD type (Embossed taping, Reflow soldering)
Recommended Applications
Detection of media in portable electronic equipment
(Mobile phones / Digital still cameras / Camcorders)
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
Product Code
6th
H
V
Type
Design No
From under to top operation type
From top to under operation type
9th
A
B
C
D
Positioning
Without Boss
With Boss
Without Boss
With Boss
Terminal Type
J-bent Type
J-bent Type
Straight Type
Straight Type
Rating
Contact Resistance
Insulation Resistance
Dielectric Withstanding Voltage
Operating Force
Mounting Height
Poles and Throws
Full Travel (Pushing distance)
Operating Life
Temperature Range
Heat Resistance
Low Temperature Resistance
Humidity Resistance
Minimum Quantity/Packing Unit
Quantity/Carton
ESE13H
ESE13V
ESE13H
ESE13V
50 μA 3 V DC to 10 mA 5 V DC (Resistive load)
50 0 m
Ω
max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
3 0 0 m N m a x.
1.2 mm
1-pole 1-throw
ESE13 V Type : 2.15 mm (2.15 mm)
ESE13 H Type : 3.05 mm (2.15 mm)
50,0 0 0 cycles min.
–10 °C to +60 °C (Standard), –40 °C to +85 °C (Automotive)
+70 °C for 9 6 hours
–25 °C for 9 6 hours
+40 °C 9 0 % to 95 % RH for 9 6 hours
5,0 0 0 pcs. Embossed Taping (Reel Pack)
3 ,0 0 0 pcs. Embossed Taping (Reel Pack)
30 ,00 0 pcs.
18,0 0 0 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
2017.06
industrial.panasonic.com/ac/e/
–1–
Panasonic Corporation 2017
ANCTB48E 201706-Fd
Detector Switches/ESE13

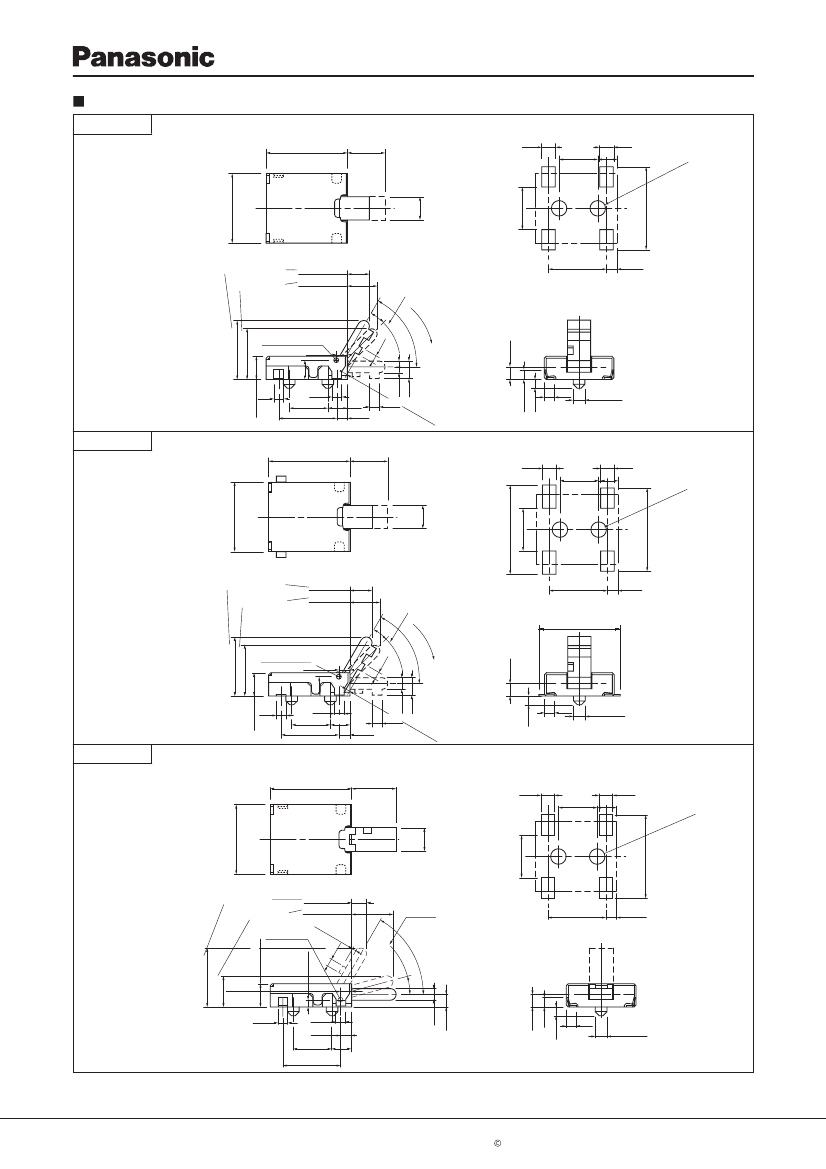

Dimensions in mm (not to scale)
No. 1
With boss
ESE13V01B
Without boss
ESE13V01A
ESE13V
J-bent terminals
1-pole 1-throw
Common
terminal
C
4.2
A
1.95
0.7
Common
terminal C
2.0
1.0
0.7
A
0.8
2-
φ
4.3
.1
+0
-0
3.6
1.2
Separate
D
terminal
Release position
ON start
position
B
1.14±0.3
1.55±0.35
Separate
terminal D
ON angular dimension
Ac
2.2
3.0
B
0.55
PWB mounting hole for reference
(Pitch tolerance: ±0.05)
ction
dire
tion
˚)
(60
)
˚
(15
3.05±0.3
2.65±0.3
0.4
(0.58)
(1)
1.2±0.2
1.0
0.55
0.5
0.2
ma
x
.
No. 2
With boss
ESE13V01D
Without boss
ESE13V01C
ESE13V
Straight terminals
1-pole 1-throw
4.2
Common
terminal
C
A
1.95
Common
terminal
0.5
0.45
0.5
0.5
2±0.05
3.0
0.6
0.9
0.65
Pivot center
0.5
0
φ0.6
-0.1
0.7
C
2.0 1.0
0.7
A
0.8
2-
φ
4.3
1
+0.
-0
3.6
1.2
Separate
terminal
D
B
1.14±0.3
1.55±0.35
Release position
ON start
position
B
D
Separate
3.0
0.55
terminal
PWB mounting hole for reference
ON angular dimension
(Pitch tolerance: ±0.05)
Ac
4.2
3.05±0.3
2.65±0.3
0.4
(0.58)
1.2±0.2
(1)
0.55
0.5
0.2
ma
x
.
No. 3
ESE13H
J-bent terminals
1-pole 1-throw
Common
terminal
4.2
C
A
2.3
0.7
Common
terminal
C
1.2
0.7
2.0
1.0
With boss
ESE13H01B
Without boss
ESE13H01A
0.45
0.5
0.5
2±0.05 1.0
3.0
0.6
0.9
0.65
Pivot center
4.6
2.2
ction
dire
tion
˚)
(60
˚)
(15
0.5
0
φ
0.6
-0.1
A
0.8
2-
φ
.1
+00
3.6
2.2
1.2±0.2
3.05±0.3
1.6±0.3
(0.58)
0.5
0.5
0.55
2±0.05 1.0
3.0
0.65
0.5
0.45
0.6
0.65
(0.38)
0.4
Separate
B
D
terminal
0.77±0.3
Full travel
2.14±0.35
ON start
position
0.2
ma
Pivot center
x.
ON angular
dimension
°)
(60
°)
(15
Separate
terminal
D
3.0
0.55
PWB mounting hole for reference
(Pitch tolerance: ±0.05)
B
0.5
φ0.6
–0.1
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
4.3
0
–2–
Panasonic Corporation 2017
ANCTB48E 201706-Fd
Detector Switches/ESE13

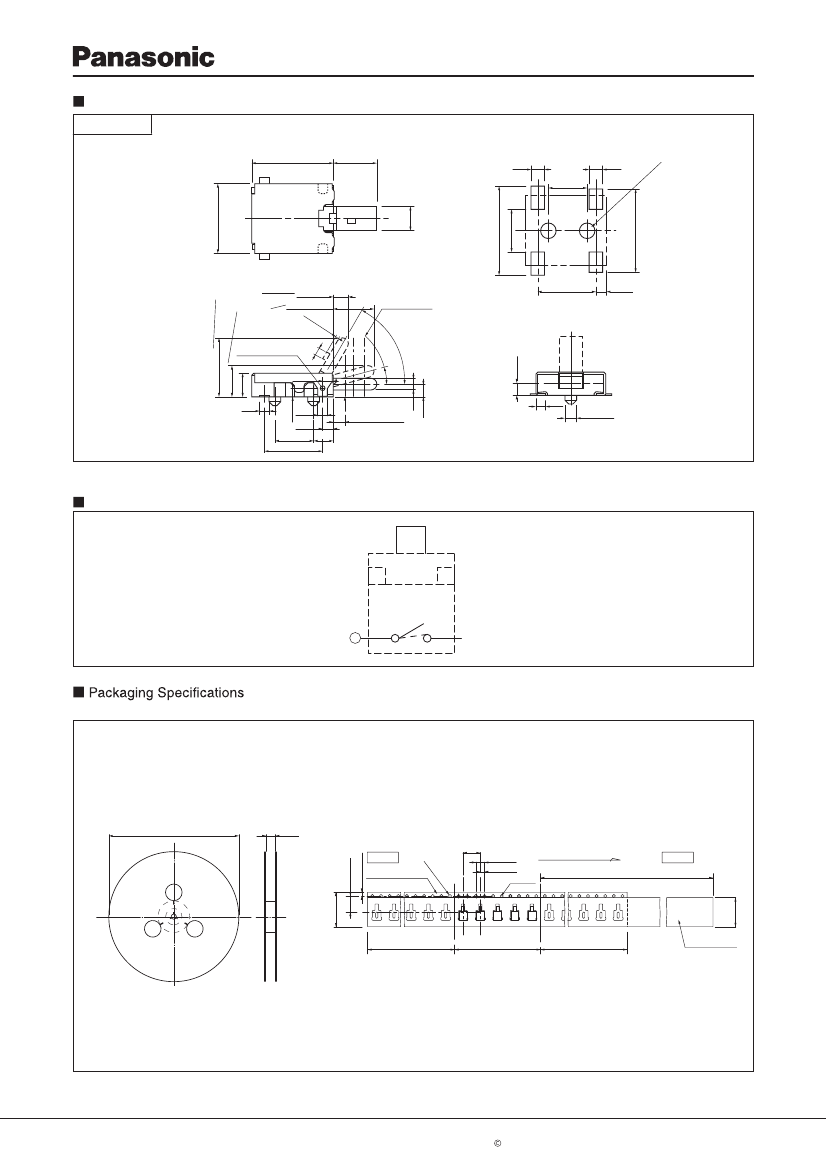

Dimensions in mm (not to scale)
No. 4
ESE13H
Straight terminals
1-pole 1-throw
4.2
Common
terminal
C
A
2.3
Common 0.7
terminal
C
0.7
2.0
A
With boss
ESE13H01D
Without boss
ESE13H01C
0
φ
2-
-
.8
.1
+0 0
3.6
1.2
4.6
2.2
Separate
terminal
D
B
0.77±0.3
(2.14±0.35)
Full travel
ON start
position
0.2
ON angular
dimension
Separate
terminal
D
3
B
0.55
ma
x.
PWB mounting hole for reference
(Pitch tolerance: ±0.05)
3.05±0.3
1.6±0.3
1.2±0.2
Pivot center
0.4
(0.58)
0.65
0.5
0.5
0.55
2±0.05 1.0
3.0
(0.38)
0.6
0.65
0.5
0
φ0.6
-0.1
0.6
Circuit Diagram
1-pole 1-throw (N.O)
Common
C
terminal
Standard Reel Dimensions in mm (not to scale)
Taping Reel
Embossed Carrier Taping
φ380.0±2.0
16.4
7.5±0.1
1.75±0.1
END
Carrier tape
P=8.0±0.1
4.0±0.1 Drawing direction
TOP
2.0±0.1
Leading portion 400 mm min
Pilot holes
13.5
Non-packed portion
(160 mm min.)
Packed portion
Non-packed portion
(100 mm min.)
Cover tape
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
16.0±0.3
4.3
ANCTB48E 201706-Fd
(60
˚)
(15
˚)
–3–
.5
φ
1
.1
+0 0
Panasonic Corporation 2017
