35SVPF22M

Description
Pin spacing (mm): - Capacitance: 22uF Accuracy: ±20% Rated voltage: 35V ESR series resistance: 35 mΩ @ 100kHz Rated ripple current: 2.6A @ 100kHz 2600mA (ripple current rms)/35mΩ (ESR)
CategoryPassive components    capacitor
File Size109KB,2 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

35SVPF22M Online Shopping

Suppliers Part Number Price MOQ In stock
35SVPF22M - - View Buy Now

35SVPF22M Overview

Pin spacing (mm): - Capacitance: 22uF Accuracy: ±20% Rated voltage: 35V ESR series resistance: 35 mΩ @ 100kHz Rated ripple current: 2.6A @ 100kHz 2600mA (ripple current rms)/35mΩ (ESR)

35SVPF22M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPanasonic
package instruction, 2626
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Samacsys DescriptionPanasonic 22μF 35 V dc Polymer Aluminium Electrolytic Capacitor C6, OS-CON Series 5000h 6.3 x 5.9mm
capacitance22 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (SOLID POLYMER)
ESR35 mΩ
high5.9 mm
leakage current0.154 mA
length7.3 mm
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formSMT
method of packingTR
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)35 V
ripple current130 mA
size code2626
surface mountYES
Delta tangent0.12
Terminal shapeFLAT
width6.6 mm

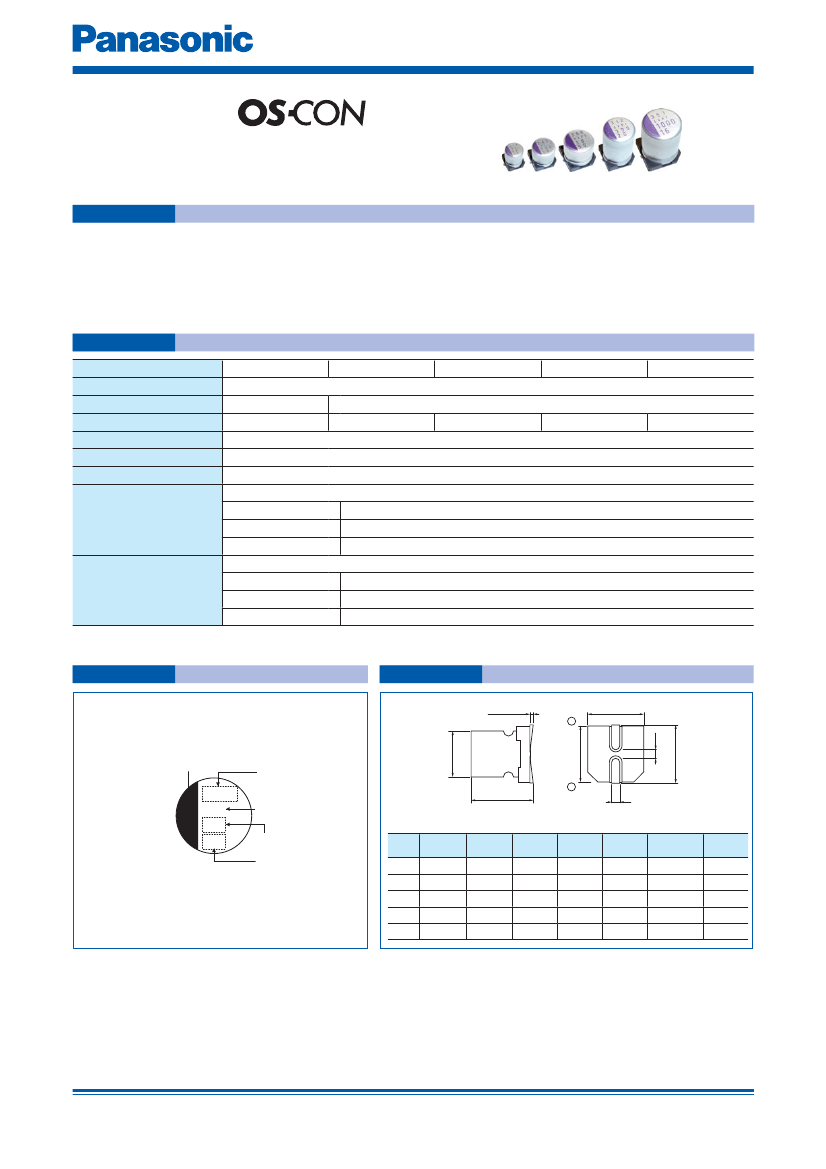

导电性聚合物铝固½电解电容器
表面贴装型
系列 :
SVPF
高耐压产品(50 V.DC max.)
大容量产品(1000
μF
max.)
105 ℃ 5000小时保证品
已应对RoHS指令,无卤对应完成
E7
E12
–55 °C ~ +105 °C
16 V.DC ~ 25 V.DC
16 V.DC ~ 50 V.DC
27 μF ~ 82 μF
10 μF ~ 180 μF
18 μF ~ 270 μF
39 μF ~ 560 μF
±20 % (120 Hz / + 20 °C)
请参照特性一览表
请参照特性一览表
对电容½加额定电压
+105 °C 5000
小时后 满足下列条件
静电容量变化
初始值
±20%以内
损耗角的正切
不大于初始标准值的
150 %
漏电流
初始标准值以下
+60 °C, 90 % ~ 95 %,
对电容½加额定电压
1000
小时后,满足下列条件
静电容量变化
初始值
±20%以内
损耗角的正切
不大于初始标准值的
150 %
漏电流
电压处理后的,初期规格值以下
B6
C6
F12
尺寸代码
类别温度范围
额定电压范围
静电容量范围
静电容量容差
漏电流
损耗角的正切(tan
d)
耐久性
68 μF ~ 1000 μF
高温高湿
(恒定)
外观尺寸
0.2 max.
H
W
P
fD
极性标示(ー)
号码
L
系列
+
R
(单½ :
mm)
静电容量
额定电压
尺寸
代码
fD±0.5
5.0
6.3
8.0
8.0
10.0
+0.1
L
−0.4
W±0.2 H±0.2 C±0.2
5.3
6.6
8.3
8.3
10.3
5.3
6.6
8.3
8.3
10.3
6.0
7.3
9.0
9.0
11.0
C
R
0.6 ~ 0.8
0.6 ~ 0.8
0.6 ~ 0.8
0.8 ~ 1.1
0.8 ~ 1.1
P±0.2
1.4
2.1
3.2
3.2
4.6
B6
C6
E7
E12
F12
5.9
5.9
6.9
11.9
12.6
