Product Specification
产
品
规
格
书
Product Name :
Fast Acting Surface Mount Chip Fuse
AEM Part Number :
F1206FA8000V024TM
Customer :
深圳宝龙达信息技术股½有限公司
Revision: 3
Date:
2012-09-27
AEM Components (Suzhou) Co., Ltd
458 Shenhu Road, Suzhou Industrial Park
Jiangsu, P.R China, 215122
TEL: 86-512-6258-0028
FAX: 86-512-6258-0018
www.aemchina.com
*.The specification are the property of AEM Components Co.Ltd and shall not be copied or used as
commercial purposes without permission.
*.此规格书½AEM科技（苏州）有限公司所有，未经许可，不得复制及用于其它商业用途
Prepared by
Lingling Li
Checked by
Approved by
Accepted by customer
深圳宝龙达信息技术股½有限公司
Jing Shi
Jing Shi
Signature
Page: 1/10
Product Specification
CUSTOMER:
深圳宝龙达信息技术股½有限公司
Fast Acting Surface Mount Chip Fuse
快断片式熔断器
F1206FA8000V024TM
AEM Part Number:
1 Operating Temperature Range
-55℃ ~ +125℃
2 Ratings
Current Rating Voltage Rating
(A)
(VDC)
8.0
24
Nominal Cold
DCR
(
Ω
)
1
0.008
AEM Part Number
F1206FA8000V024TM
DCR
Min
(Ω)
0.006
DCR
Max
(Ω)
0.010
1. Measured at
≤10%
rated current and 25℃ambient.
3 Clear-Time Characteristics(Fast Acting):
% of current rating
100%
250%
400%
Clear-time at 25
℃
4 hours ( min )
5 seconds ( max )
0.05 seconds ( max )
4 Interrupting Ratings:
8.0A
45A at rated voltages
5 Marking(Optional):
Black Marking Character Code
8.0A:R
6 Agency Approval:
Recognized Under the Components Program of Underwriters Laboratories.
File Number: E232989
Page: 2/10
Product Specification
CUSTOMER:
深圳宝龙达信息技术股½有限公司
Fast Acting Surface Mount Chip Fuse
快断片式熔断器
F1206FA8000V024TM
AEM Part Number:

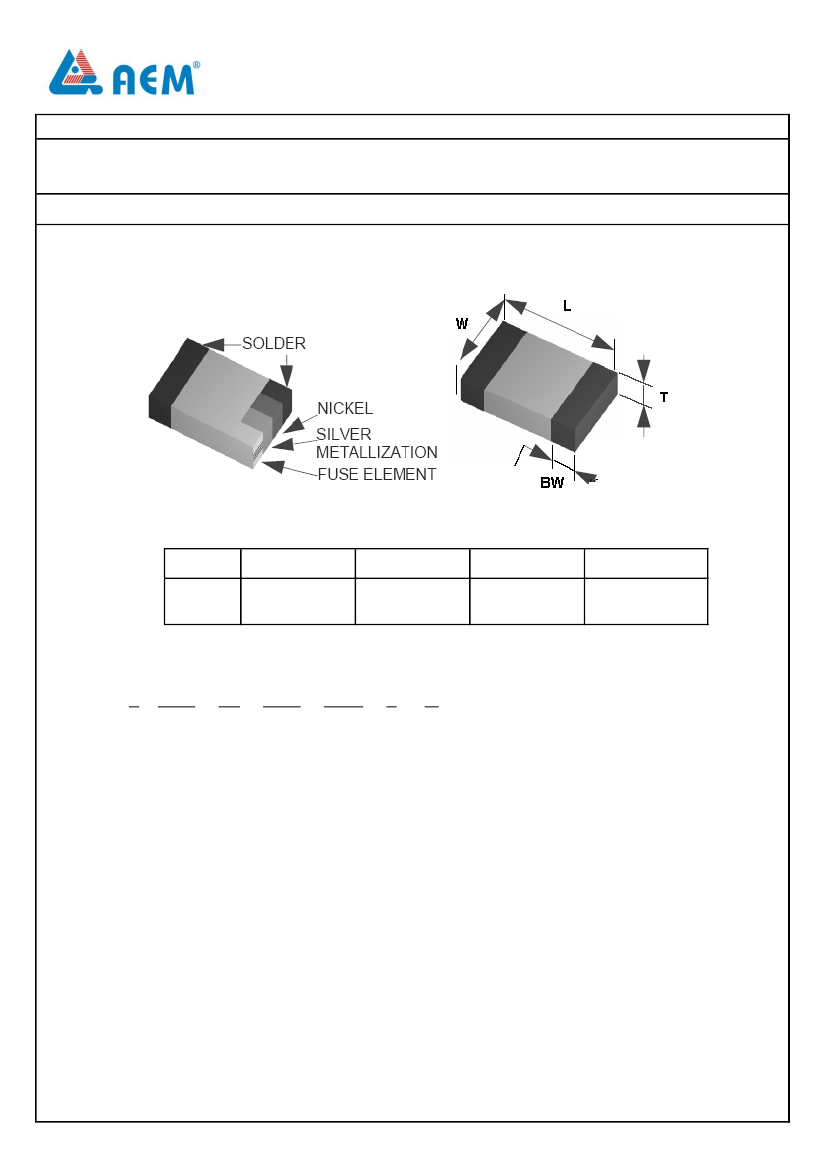

7 Shape and Dimensions: Inch (mm)
Size
1206
(3216)
L
0.126±0.008
(3.20±0.20)
W
0.063±0.008
(1.60±0.20)
T
0.043±0.008
(1.10±0.20)
BW
0.020±0.010
(0.51±0.25)
8 Product Identification
F
(1)
(1)
(2)
1206
(2)
FA
(3)
8000
(4)
V024
(5)
T
(6)
M
(7)
Series code: F - Chip Fuse
Dimension code: L x W (inch)
The first two digits - L (length)
The last two digits - W (width)
(3)
(4)
(5)
(6)
Characteristic code: FA - Fast Acting
Current rating code: 8000 - 8000 mA
Voltage rating code: V024 - 24 VDC
Package code:
T - Tape & Reel
B - Bulk
(7)
Marking code: M - with mark
Page: 3/10
Product Specification
CUSTOMER:
深圳宝龙达信息技术股½有限公司
Fast Acting Surface Mount Chip Fuse
AEM Part Number:
9
快断片式熔断器
F1206FA8000V024TM

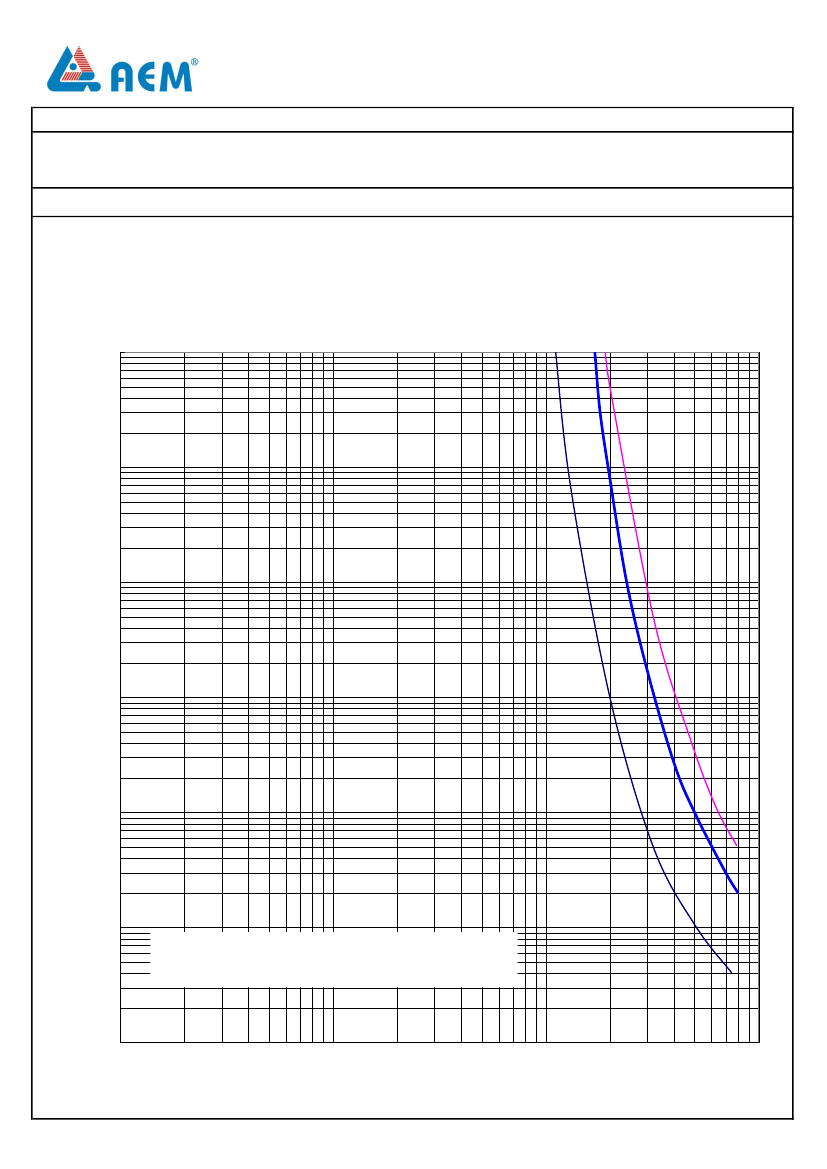

Clear Time Curves:
F1206FA8000V024TM
10
1
Clear-Time (s)
0.1
0.01
0.001
0.0001
Upper curve represents the maximum clear-times
Middle curve repersents the average clear-times
Lower curve represents the minimum clear-times
0.00001
0.1
1
10
100
Current (A)
Page: 4/10
Product Specification
CUSTOMER:
深圳宝龙达信息技术股½有限公司
Fast Acting Surface Mount Chip Fuse
AEM Part Number:

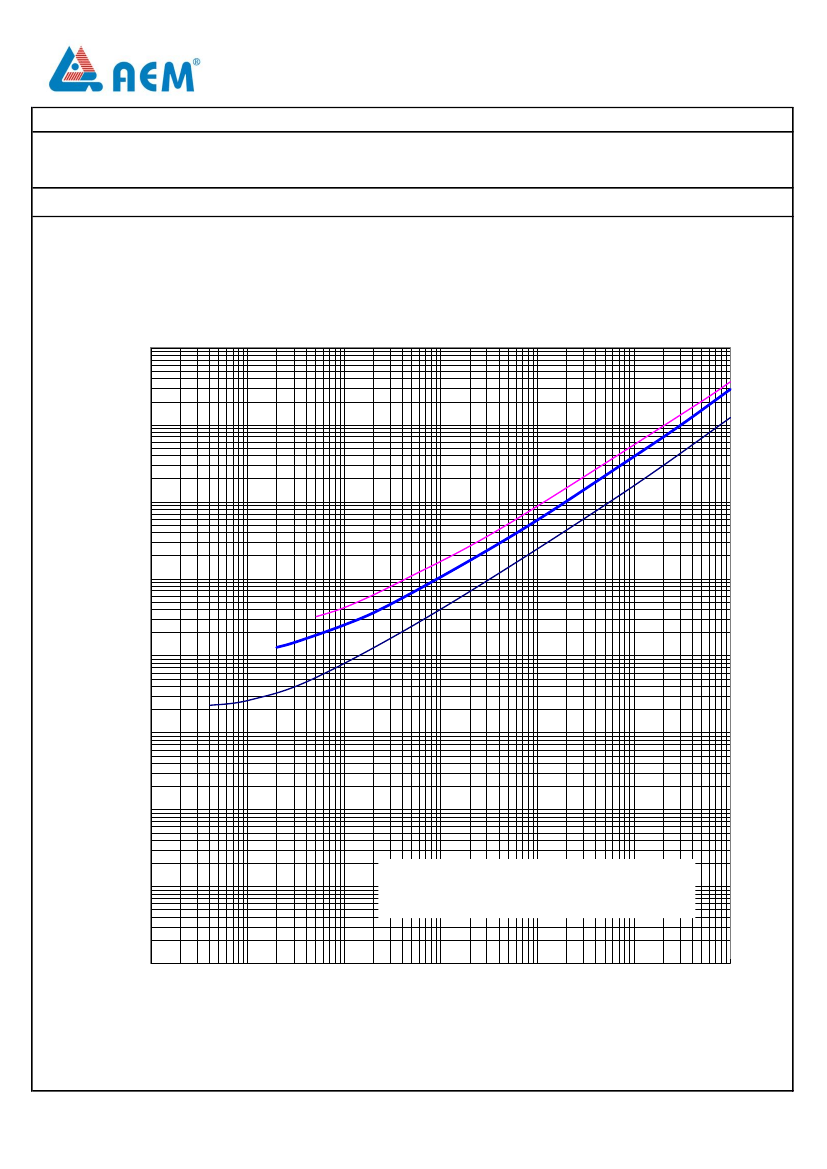

10 I
2
t vs .t Curves:
快断片式熔断器
F1206FA8000V024TM
F1206FA8000V024TM
10000
1000
100
I2t (A2s)
10
1
0.1
0.01
0.001
Upper curve represents the maximum I²
t
Middle curve repersents the average I²
t
Lower curve represents the minimum I²
t
0.0001
0.00001
0.0001
0.001
0.01
0.1
1
10
Time (s)
Page: 5/10
