Product Name :
High Inrush Current Surface Mount Chip Fuse
AEM Part Number :
F0603HI5000V032T
Customer :
深圳市裕富照明有限公司
Revision: 5
Date:
2013-12-10
AEM Components (Suzhou) Co., Ltd
138 West Shenhu Road, Suzhou Industrial Park
Jiangsu, P.R China, 215122
TEL: 86-512-6258-0028
FAX: 86-512-6258-0018
www.aemchina.com
*.The specification are the property of AEM Components Co.Ltd and shall not be copied or used as
commercial purposes without permission.
*.此规格书½AEM科技（苏州）有限公司所有，未经许可，不得复制及用于其它商业用途
Prepared by
Lingling Li
Signature
Checked by
Approved by
Accepted by customer
深圳市裕富照明有限公司
Dongming Tan
Dongming Tan
Page: 1/10
Product Specification
CUSTOMER:
深圳市裕富照明有限公司
High Inrush Current Surface Mount Chip Fuse
耐浪涌片式熔断器
F0603HI5000V032T
AEM Part Number:
1 Operating Temperature Range
-55℃ ~ +125℃ (with de-rating)
2 Ratings
AEM Part Number
F0603HI5000V032T
Current
Rating (A)
5.0
Voltage
Rating
(VDC)
32
Nominal
Cold DCR
1
(Ω)
0.013
DCR
Min
(Ω)
0.009
DCR
Max
(Ω)
0.017
Nominal I
2
t
(A
2
s)
2
3.25
1. Measured at
≤10%
of rated current and 25℃ ambient.
2. Melting I
2
t at 1000% current rating
3 Clear-Time Characteristics:
% of current rating
100%
200%
1000%
Clear-time at 25
℃
4 hours ( min )
1 second ( min )
60 seconds ( max )
0.0002 seconds ( min )
0.02 seconds ( max )
4 Interrupting Rating:
50A at rated voltage
5 Marking(Optional):
Without marking
6 Agency Approval:
Recognized Under the Components Program of Underwriters Laboratories.
File Number: E232989
Page: 2/10
Product Specification
CUSTOMER:
深圳市裕富照明有限公司
High Inrush Current Surface Mount Chip Fuse
耐浪涌片式熔断器
F0603HI5000V032T
AEM Part Number:

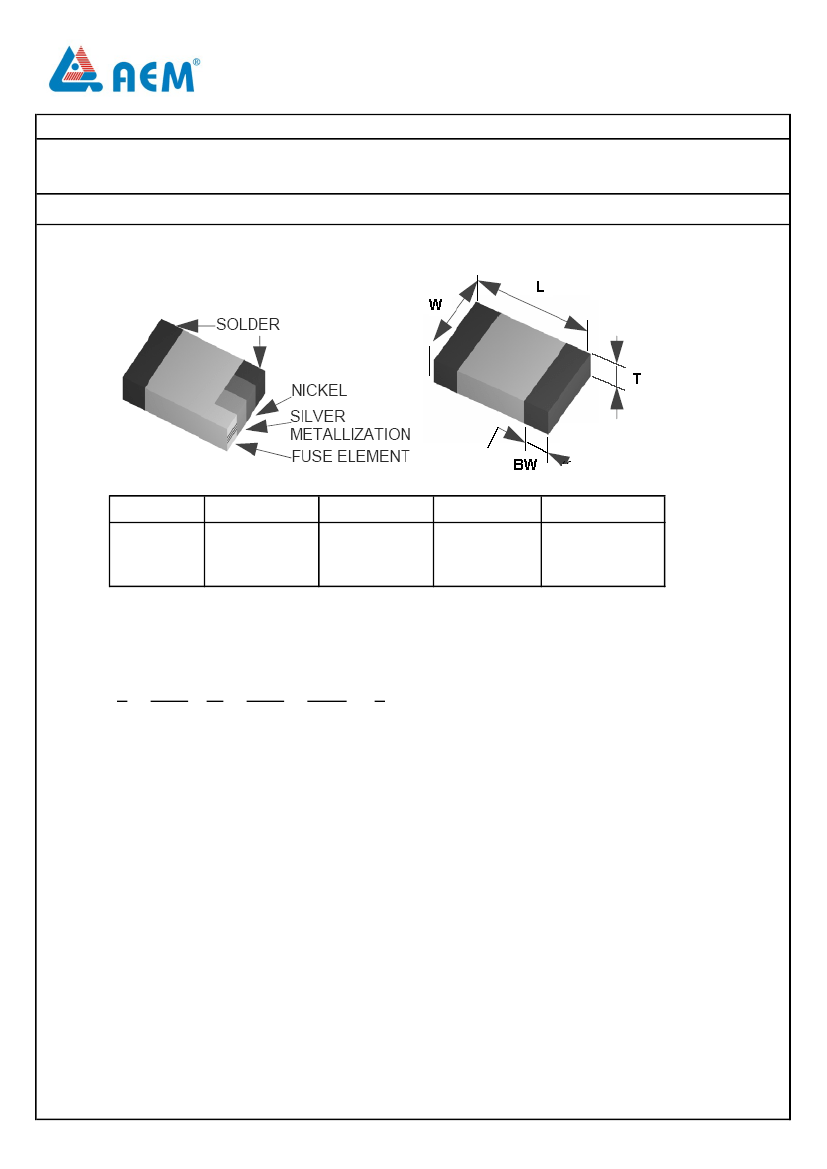

7 Shape and Dimensions: Inch (mm)
Size
0603 (1608)
L
0.063±0.006
(1.60±0.15)
W
0.031±0.006
(0.80±0.15)
T
0.031±0.006
(0.80±0.15)
BW
0.014±0.006
(0.36±0.15)
8 Product Identification
F
(1)
(1)
(2)
0603
(2)
HI
(3)
5000
(4)
V032
(5)
T
(6)
Series code: F - Chip Fuse
Dimension code: L x W (inch)
The first two digits - L (length)
(3)
(4)
(5)
(6)
The last two digits - W (width)
Characteristic code: HI - High Inrush
Current rating code: 5000 - 5000 mA
Voltage rating code: V032 - 32 VDC
Package code:
T - Tape & Reel
B - Bulk
Page: 3/10
Product Specification
CUSTOMER:
深圳市裕富照明有限公司
High Inrush Current Surface Mount Chip Fuse
AEM Part Number:
耐浪涌片式熔断器
F0603HI5000V032T

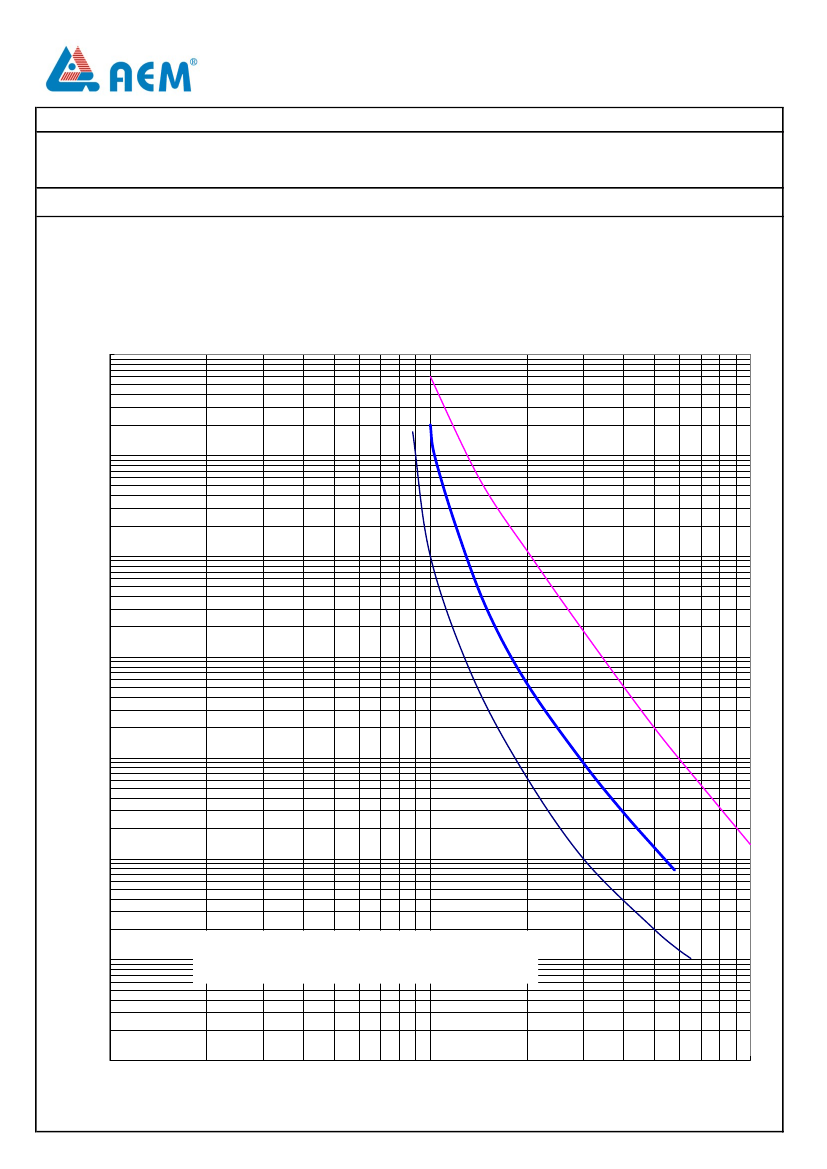

9 Clear Time Curves:
F0603HI5000V032T
100
10
1
Clear-Time (s)
0.1
0.01
0.001
0.0001
Upper curve represents the maximum clear-times
Middle curve repersents the average clear-times
Lower curve represents the minimum clear-times
0.00001
1
10
100
Current (A)
Page: 4/10
Product Specification
CUSTOMER:
深圳市裕富照明有限公司
High Inrush Current Surface Mount Chip Fuse
AEM Part Number:

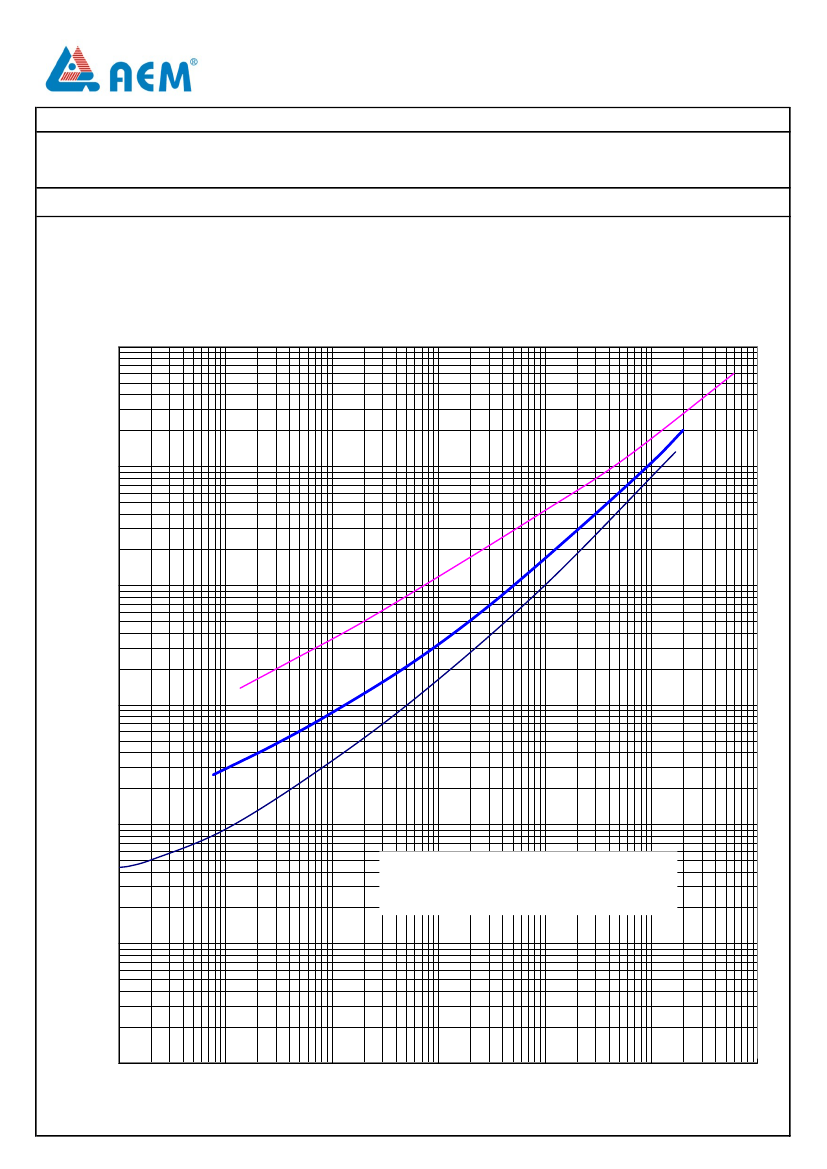

10 I
2
t vs t Curves:
耐浪涌片式熔断器
F0603HI5000V032T
F0603HI5000V032T
10000
1000
100
I2t (A2s)
10
1
Upper curve represents the maximum I²
t
Middle curve repersents the average I²
t
Lower curve represents the minimum I²
t
0.1
0.01
0.0001
0.001
0.01
0.1
1
10
100
Time (s)
Page: 5/10
