SSSS810201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> Toggle switch> SSSS810201

SSSS810201: DescriptionRated voltage DC: 5V Contact rated current: 300mA @ 5VDC Switch function: On-On Circuit structure: SPDT Rated voltage AC: - 1.4(H)mm Stroke 2mm; Categoryaccessories Toggle switch; File Size662KB，4 Pages; ManufacturerALPS; Websitehttp://www.alps.com/

Download Datasheet Parametric View All

SSSS810201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SSSS810201	-	-	View	Buy Now

SSSS810201 Overview

Rated voltage DC: 5V Contact rated current: 300mA @ 5VDC Switch function: On-On Circuit structure: SPDT Rated voltage AC: - 1.4(H)mm Stroke 2mm

SSSS810201 Parametric

Parameter Name	Attribute value
Rated voltage DC	5V
Button action direction	Horizontal
Switch height	1.5mm
Contact material	-
Contact rated current	300mA @ 5VDC
switch function	On-On
Operating temperature	-40°C ~ 85°C
force	1.5N
Contact plating	-
Installation type	Surface Mount, Right Angle
Operating life	10000
Actuator type	Standard
Termination type	SMD(SMT) Tab
Circuit configuration	SPDT
Rated voltageAC	-
Switch time limit	Not Specified

Preview

Download Datasheet

View All

2018/5/24

SSSS8系列½基本信息

1.4(H)mm, 1.5/2.0mm⾏程的表⾯贴装型 SSSS8系列

⾏程

操½部½向

操½部厚度

电路数

接点数

动½⼒

切换时限

接地端⼦

焊接½法

½½温度范围

最⼤额定/最⼩额定(电阻负½½)

电性½

接触电阻

(初期/寿½后)

绝缘电阻

耐电压

机械性½

端⼦强度

操½部强度

操½½向

拉引½向

耐久性½

½负½½寿½

负½½寿½(最⼤额定负½½)

耐环境性½

耐寒性½

耐热性½

耐湿性½

最⼩订货单½(pcs.)

½本

2mm

Horizontal

1.1mm

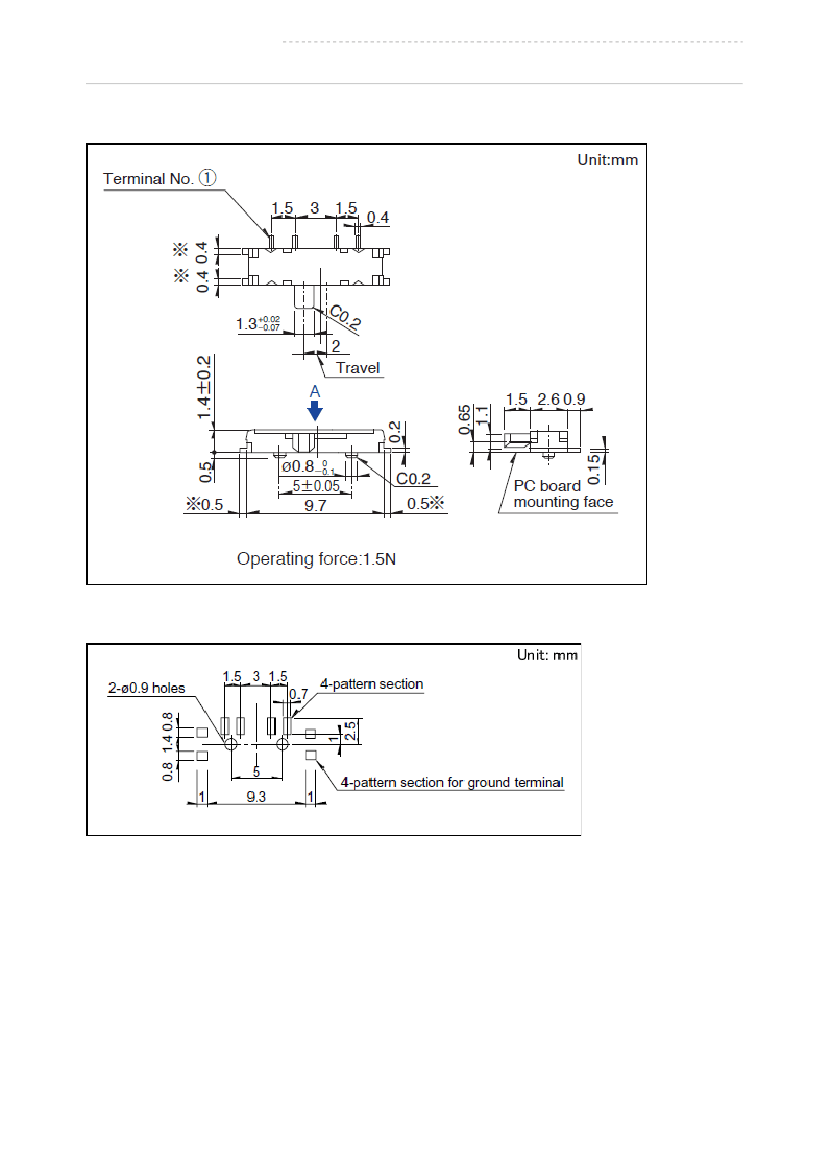

参阅外½图

Not speciﬁed

有

Reﬂow

-40℃ to +85℃

0.3A 5V DC/50µA 3V DC

70mΩ max./130mΩ max.

100MΩ min. 100V DC

100V AC for 1 minute

3N for 1 minute

10N

10,000 cycles 100mΩ max.

10,000 cycles 130mΩ max.

-40℃ 500h

85℃ 500h

60℃, 90 to 95%RH 500h

4,500

1/4

https://www.alps.com/prod/info/C/HTML/Switch/Slide/SSSS8/SSSS810201.html
