SSSF Series - Basic information
8.5(H)mm, 2.0mm-travel Type SSSF Series
Travel
Actuator directions
Actuator length
Poles
Positions
Operating force
Mounting method
Changeover timing
Soldering
Operating temperature range
Rating (max.)/(min.) (Resistive load)
Electrical
performance
Contact resistance
(Initial performance/After lifetime)
Insulation resistance
Voltage proof
Mechanical
performance
Terminal strength
Actuator strength
Operating direction
Pulling direction
Durability
Operating life without load
Operating life with load
(at max. rated load)
Environmental
performance
Cold
2mm
Vertical
6mm
2
2
Refer to the dimensions.
Snap-in (t1.6)
Non shorting
Manual, Dip
-40℃ to +85℃
0.1A 30V DC/10µA 1V DC
25mΩ max./65mΩ max.
100MΩ min. 500V DC
500V AC for 1 minute
5N for 1 minute
30N
30N
10,000 cycles 45mΩ max.
10,000 cycles 65mΩ max.
-40℃ 500h
http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSF/SSSF021500.html
1/4
2018/3/21
SSSF Series - Basic information
Dry heat
Damp heat
Minimum order unit (pcs.)
Japan
Export
85℃ 500h
60℃, 90 to 95%RH 500h
800
4,000

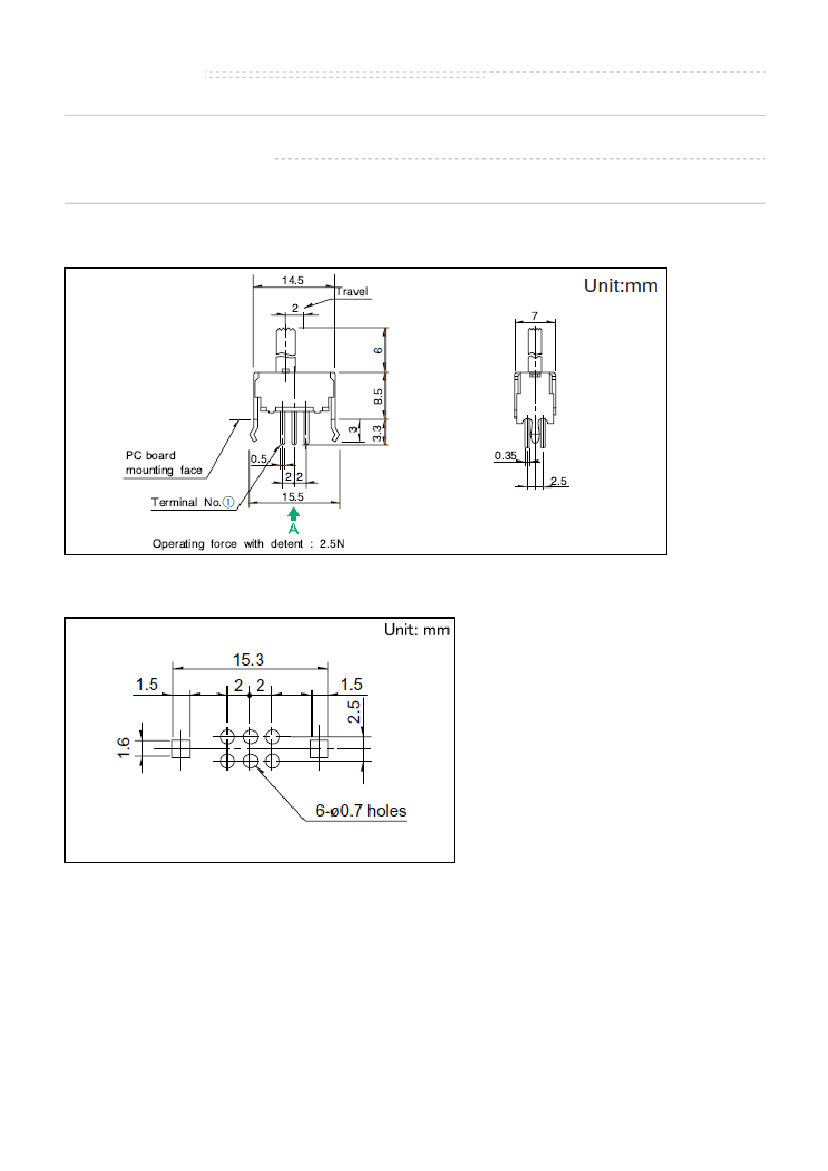

Dimensions
Mounting Hole Dimensions
Viewed from direction A in the dimensions.
Actuator Configuration
http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSF/SSSF021500.html
2/4
2018/3/21
SSSF Series - Basic information

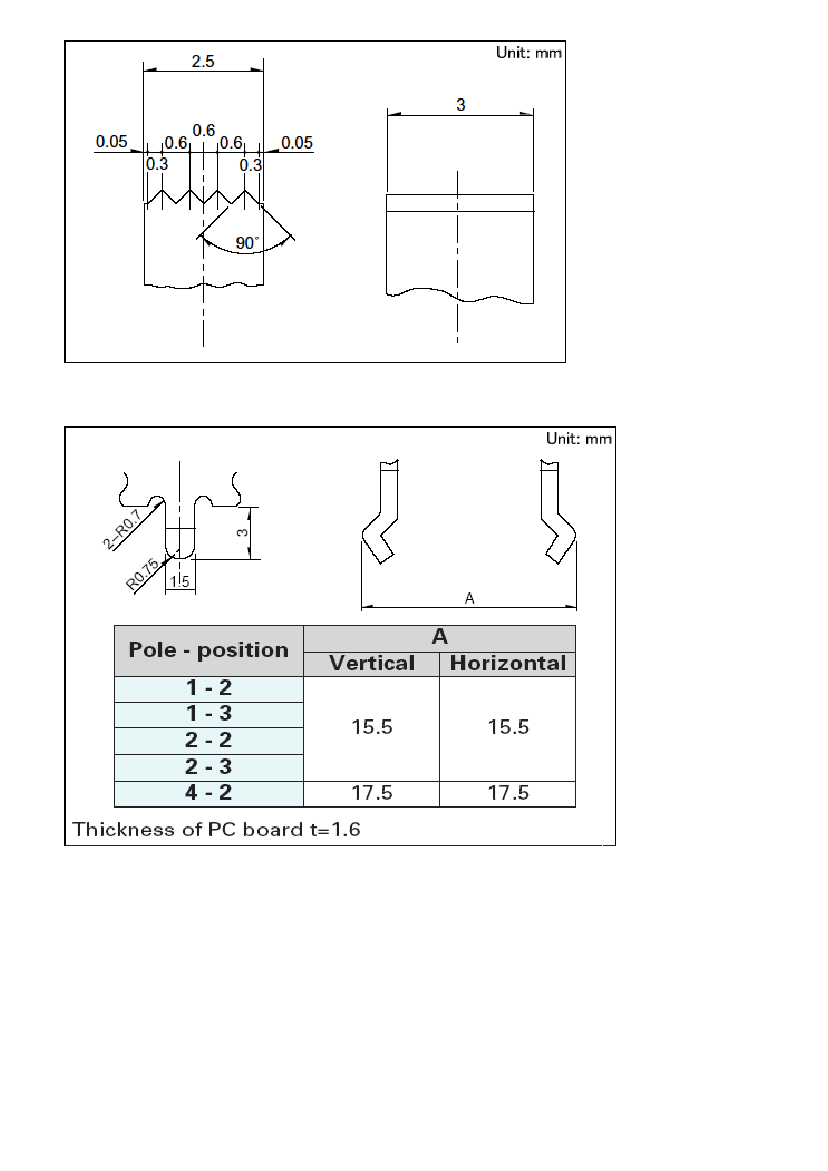

Shape of Frame Leg
Circuit Diagram
http://www.alps.com/prod/info/E/HTML/Switch/Slide/SSSF/SSSF021500.html
3/4
2018/3/21
SSSF Series - Basic information
Packing Specifications
Bulk
Number of packages 1 case / Japan
(pcs.)
1 case / export
packing
Export package measurements (mm)
800
4,000
400×270×290
Soldering Conditions
Reference for Dip Soldering
Items
Preheating temperature
Preheating time
Dip soldering
Soldering temperature
Duration of immersion
Reference for Hand Soldering
Soldering temperature
Soldering time
350±10℃
3+1/0s
100℃ max.
60s max.
260±5℃
10±1s
Notes are common to this series/models.
1. This site catalog shows only outline specifications. When using the products, please obtain formal
specifications for supply.
2. Please place purchase orders per minimum order unit (integer).
3. Products other than those listed in the above chart are also available. Please contact us for details.
