SSAH120100

Description
Rated voltage DC: 5V Contact rated current: 1mA @ 5VDC Switching function: On-On-On Circuit structure: SP3T Rated voltage AC: -
Categoryaccessories    Toggle switch
File Size317KB,4 Pages
ManufacturerALPS
Websitehttp://www.alps.com/
Download Datasheet Parametric View All

SSAH120100 Online Shopping

Suppliers Part Number Price MOQ In stock
SSAH120100 - - View Buy Now

SSAH120100 Overview

Rated voltage DC: 5V Contact rated current: 1mA @ 5VDC Switching function: On-On-On Circuit structure: SP3T Rated voltage AC: -

SSAH120100 Parametric

Parameter NameAttribute value
Rated voltage DC5V
Button action directionHorizontal
Switch height1.5mm
Contact material-
Contact rated current1mA @ 5VDC
switch functionOn-On-On
Operating temperature-30°C ~ 60°C
force0.9N/1.2N
Contact plating-
Installation typeSurface Mount, Right Angle
Operating life10000
Actuator typeStandard
Termination typeSMD(SMT) Tab
Circuit configurationSP3T
Rated voltageAC-
Switch time limitNot Specified
2019/1/15
SSAH系列½基本信息
0.9(H)mm, 1.5mm行程的表面贴装型 SSAH系列
行程
操½部方向
电路数
接点数
动½力
切换时限
焊接方法
定½销
½用温度范围
最大额定/最小额定(电阻负½½)
电性½
接触电阻
(初期/寿½后)
绝缘电阻
耐电压
机械性½
端子强度
操½部强度
操½方向
拉引方向
耐久性½
无负½½寿½
负½½寿½(最大额定负½½)
耐环境性½
耐寒性½
耐热性½
耐湿性½
最小订货单½(pcs.)
日本
出口
1.5mm
Horizontal
1
3
参阅外½图
Not specified

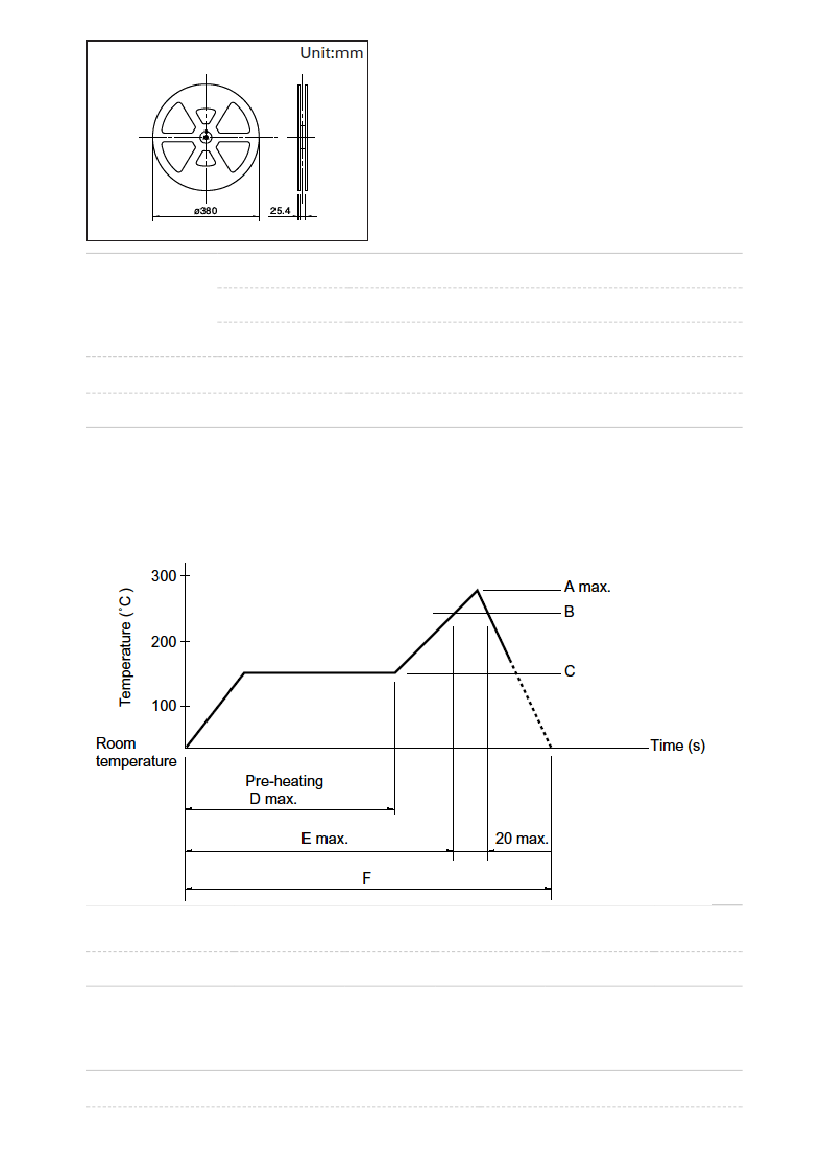

Reflow
-30℃ to +60℃
1mA 5V DC/50µA 3V DC
200mΩ max./300mΩ max.
100MΩ min. 100V DC
100V AC for 1 minute
3N for 1 minute
10N
10N
10,000 cycles 300mΩ max.
10,000 cycles 300mΩ max.
-40℃ 96h
85℃ 96h
60℃, 90 to 95%RH 240h
4,000
16,000

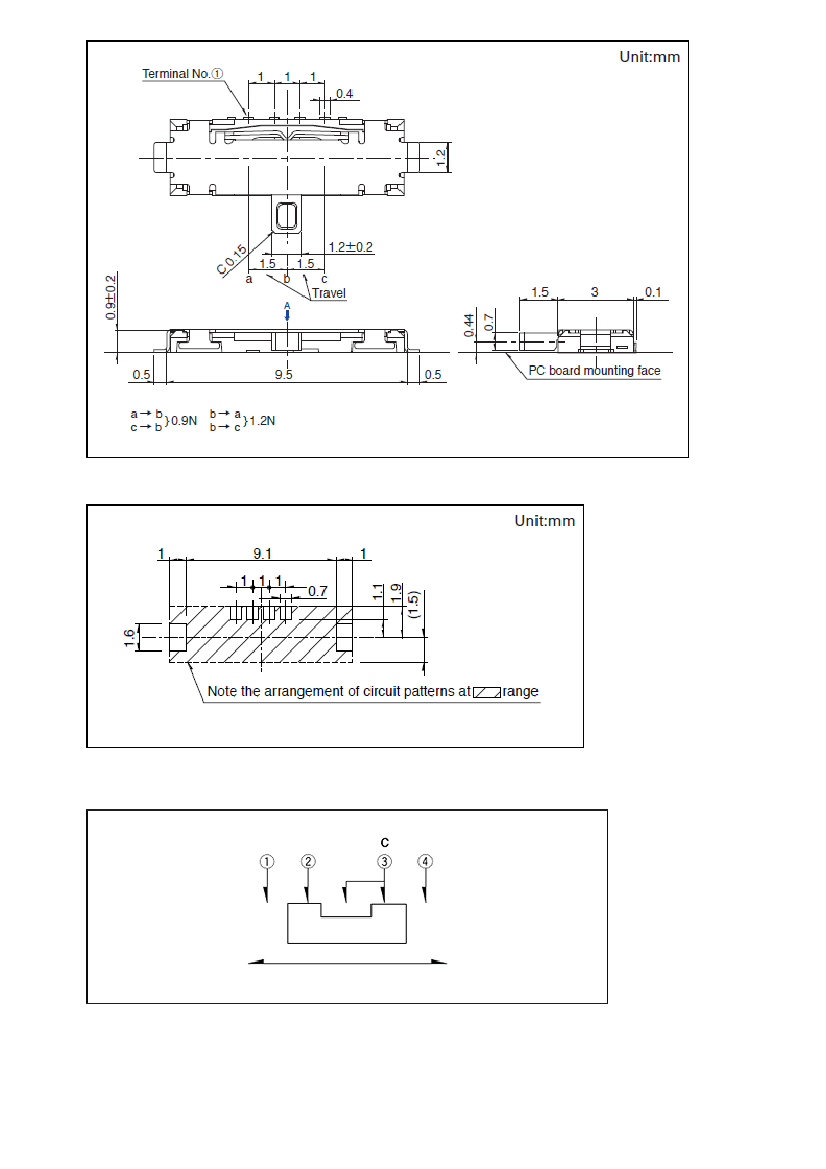

外½图
https://www.alps.com/prod/info/C/HTML/Switch/Slide/SSAH/SSAH120100.html
1/4
