SDDJE Series - Basic information
10A 250V AC Qualified Type SDDJE Series
Type
Circuit arrangement
Travel
Operating force
Mounting method
Terminal type
Frame
Marking (knob)
C-UL-US
SEMKO
VDE
BS
Ratings satisfying local electrical appliance and material safety
law
Operating temperature range
Rating
Electrical
performance
Contact resistance
Insulation resistance
Voltage proof
Mechanical
performance
Terminal strength
Rocker
SPST
3.4mm
3±2N
Snap-in
Right angle
With
Without
10AGP 250V AC
6A/96A 250V~, 10(6)/250~
6A/96A 250V~, 10(6)/250~
6A/96A 250V~, 10(6)/250~
125V 10A‡
-10℃ to +55℃
10AGP 250V AC, 6A/96A 250V~
100mΩ max.
500MΩ min. 500V DC
2,000V AC for 1 minute
50N for 1 minute (lead terminal)
5N for 1 minute (right-angle terminal)
Operating direction
Perpendicular
direction
25N
25N
Actuator strength
Durability
Operating life
10,000 cycles 10A 250V AC
1/4
https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJE/SDDJE12200.html
2018/9/5
SDDJE Series - Basic information
Environmental
performance
Cold
Dry heat
Damp heat
-20℃ 96h
85℃ 96h
40℃, 90 to 95%RH 96h
250
1,250
Minimum order unit (pcs.)
Japan
Export

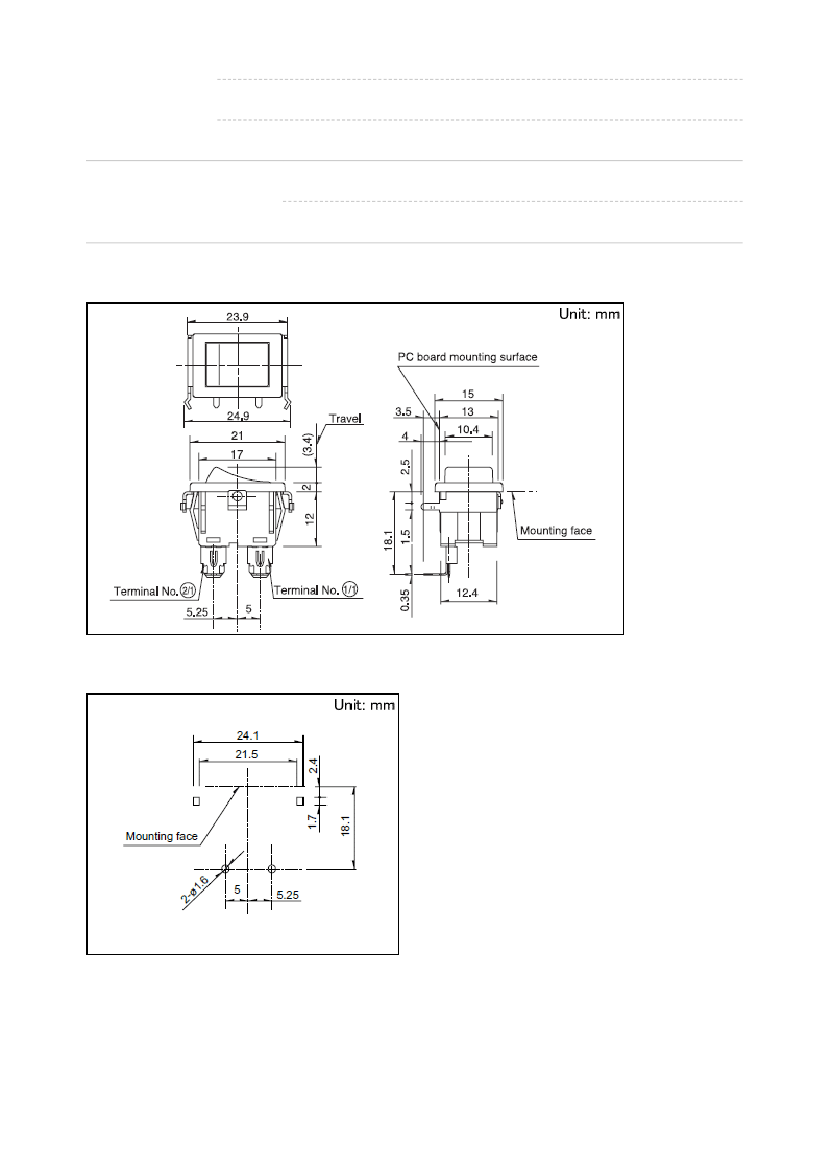

Dimensions

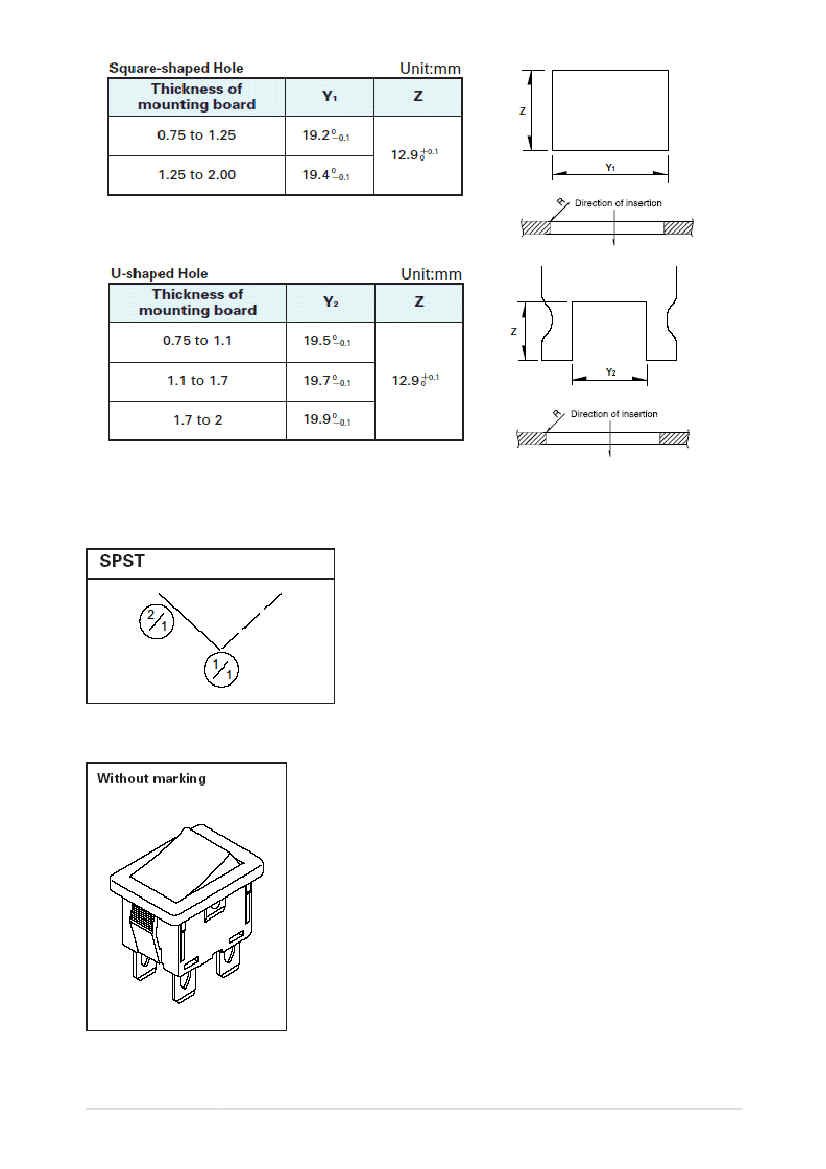

Mounting Hole Dimensions
Mounting Hole Reference Size
https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJE/SDDJE12200.html
2/4
2018/9/5
SDDJE Series - Basic information
Verify the performance under actual product conditions before use.
Circuit Diagram
Marking (knob)
Packing Specifications
Tray
https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJE/SDDJE12200.html
3/4
2018/9/5
SDDJE Series - Basic information
Number of packages 1 case / Japan
(pcs.)
1 case / export
packing
Export package measurements (mm)
250
1,250
411×328×379
Soldering Conditions
Reference for Hand Soldering
Soldering temperature
Soldering time
350±10℃
3+1/0s
Notes are common to this series/models.
1. This site catalog shows only outline specifications. When using the products, please obtain formal
specifications for supply.
2. The lead terminals are also used as tab terminals (#187). (Use a positive lock connector type.)
3. The lead terminal type can be mounted onto a board. (Manual soldering required.)
4. Standard products apply Grade V-2 material (Flame Class). For Grade V-0 type please contact us.
5. Please place purchase orders per minimum order unit (integer).
6. Products other than those listed in the above chart are also available. Please contact us for details.
