SDDJF Series - Basic information
16A 250V AC Qualified Type SDDJF Series
Type
Circuit arrangement
Travel
Operating force
Mounting method
Terminal type
Marking (knob)
C-UL-US
SEMKO
VDE
BS
Ratings satisfying local electrical appliance and material safety law
Operating temperature range
Rating
Electrical performance
Contact resistance
Insulation resistance
Voltage proof
Mechanical
performance
Terminal strength
Rocker
DPST
5.2mm
6±3N
Snap-in
For Lead
●mark
16AGP 250V AC
16(6)/250~
16(6)/250~
16(6)/250~
125V 16A‡
-10℃ to +55℃
16Agp 250V AC, 16(6) 250~
100mΩ max.
500MΩ min. 500V DC
2,000V AC for 1 minute
60N for 1 minute (lead terminal)
10N for 1 minute (right-angle terminal)
Operating direction
25N
Actuator strength
Perpendicular direction 25N
Durability
Environmental
performance
Operating life
Cold
Dry heat
Damp heat
Minimum order unit (pcs.)
Japan
10,000 cycles 16A 250V AC
-20℃ 96h
85℃ 96h
40℃, 90 to 95%RH 96h
150
Export
1,500
About Cookies on this site:
This site uses cookies to improve your online experience. By continuing to use this site without changing
your cookie preferences, we will assume that you are agreeing to our use of cookies. For more information,
Dimensions
visit our
Terms of Use.
https://www.alps.com/prod/info/E/HTML/Switch/Power/SDDJF/SDDJF30100.html
Accept
1/3
2019/2/21
SDDJF Series - Basic information

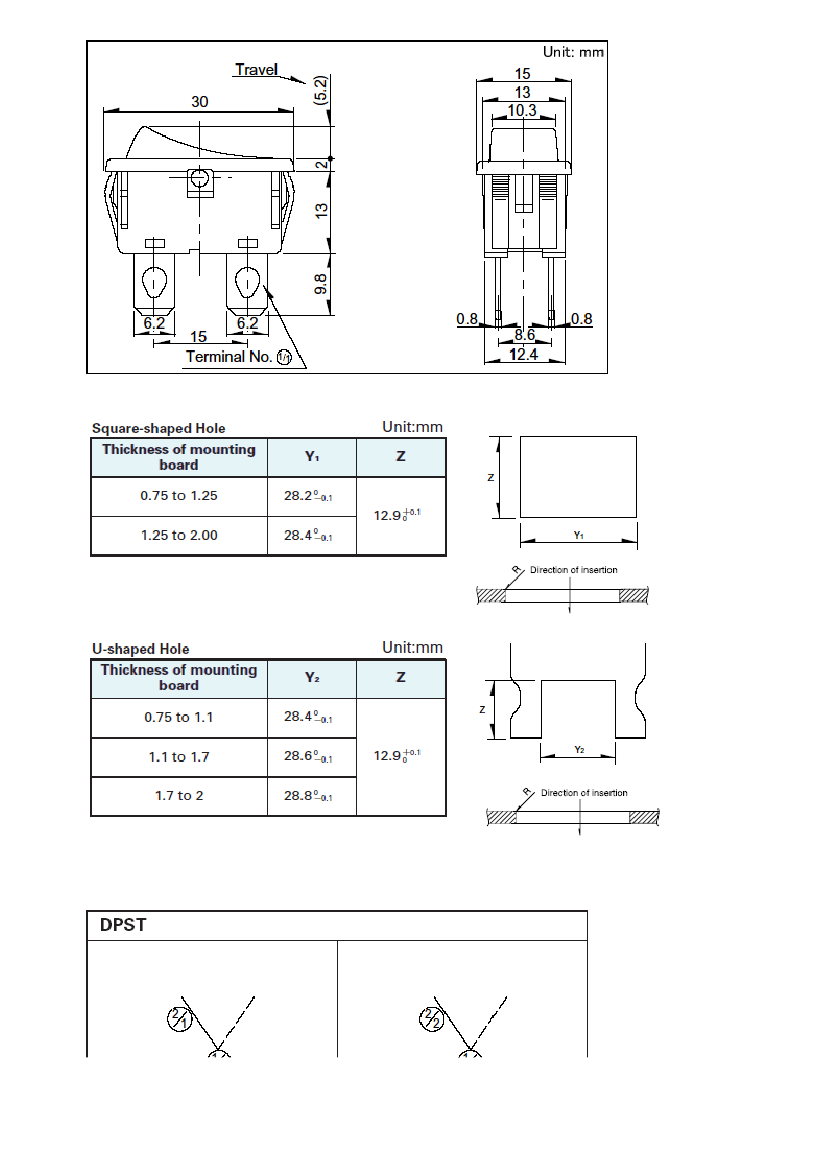

Mounting Hole Reference Size
