ACPL-W314-000E

Description
Input type: - Number of channels: 1 Isolation voltage: 5000Vrms Product type: IC output driver optocoupler
CategoryLED optoelectronic/LED    photoelectric
File Size197KB,14 Pages
ManufacturerAVAGO
Websitehttp://www.avagotech.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

ACPL-W314-000E Online Shopping

Suppliers Part Number Price MOQ In stock
ACPL-W314-000E - - View Buy Now

ACPL-W314-000E Overview

Input type: - Number of channels: 1 Isolation voltage: 5000Vrms Product type: IC output driver optocoupler

ACPL-W314-000E Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAVAGO
package instructionROHS COMPLIANT, PLASTIC, SOP-6
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time22 weeks
Samacsys DescriptionBroadcom ACPL-W314-000E DC Input Phototransistor Output Optocoupler, Surface Mount, 6-Pin SO
Other featuresUL RECOGNIZED
ConfigurationSINGLE
Maximum forward current0.025 A
Maximum insulation voltage5000 V
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of components1
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Optoelectronic device typesLOGIC IC OUTPUT OPTOCOUPLER
Maximum power dissipation0.25 W
Nominal response time7e-7 ns
Minimum supply voltage10 V
Nominal supply voltage30 V
surface mountYES
Terminal surfaceMatte Tin (Sn)
ACPL-P314 and ACPL-W314
0.6 Amp Output Current IGBT Gate Driver Optocoupler
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS
6
fully
compliant options available;
-xxxE denotes
a
lead-free
product
Description
The ACPL-P314/W314 consists of a GaAsP LED optically
coupled to an integrated circuit with a power output
stage. These optocouplers are ideally suited for driving
power IGBTs and MOSFETs used in motor control inverter
applications. The high operating voltage range of the
output stage provides the drive voltages required by
gate controlled devices. The voltage and current supplied
by this optocoupler makes it ideally suited for directly
driving small or medium power IGBTs.
Features
High speed response.
Ultra high CMR.
Bootstrappable supply current.

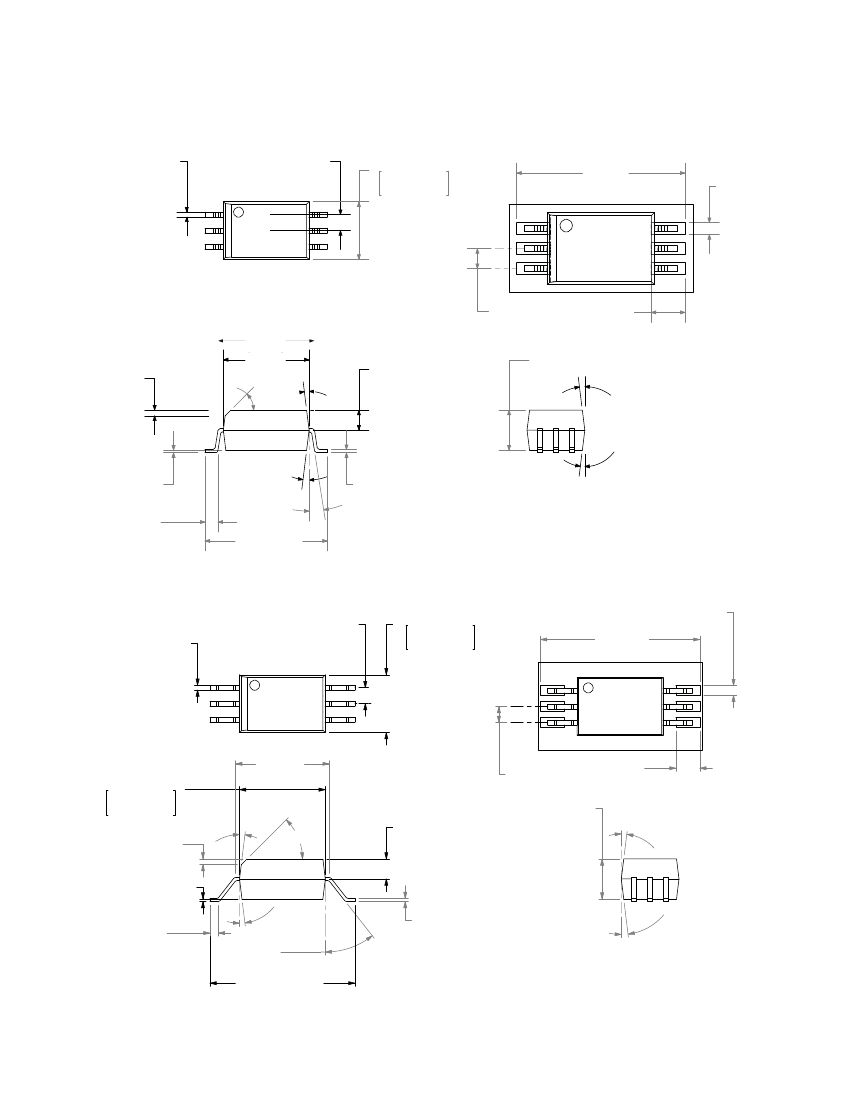

Available in Stretched SO-6 package
Package Clearance/Creepage at 8mm (ACPL-W314)
Safety Approval:
UL1577 recognized with 3750 Vrms for 1 minute for
ACPL-P314 and 5000 Vrms for 1 minute for ACPL-
W314.
CSA Approved.
IEC/EN/DIN EN 60747-5-2 Approved
V
IORM
= 891Vpeak for ACPL-P314
V
IORM
= 1140Vpeak for ACPL-W314
Applications
Isolated IGBT/Power MOSFET gate drive
AC and brushless DC motor drives
Industrial inverters
Inverter for home appliances
Induction cooker
Switching Power Supplies (SPS)
Specifications
0.6 A maximum peak output current.
0.4 A minimum peak output current.
0.7 μs maximum propagation delay over temperature
range.
I
CC(max)
= 3 mA maximum supply current.
25 kV/μs minimum common mode rejection (CMR) at
V
CM
= 1500 V.
Wide V
CC
operating range: 10 V to 30 V over tempera-
ture range.
Wide operating temperature range: –40°C to 100°C.
Functional Diagram
ANODE 1
N.C. 2
CATHODE 3
SHIELD
6 V
CC
5 V
O
4 V
EE
Truth Table
LED
VO
OFF
ON
LOW
HIGH
Note: A 0.1 μF bypass capacitor
must be connected between
pins V
CC
and VEE.
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
