Features
■
RoHS compliant*
■
4 isolated resistors in an 0804 size
■
Suitable for most types of soldering
CO
M
package
■
E24 series from 10 ohms to 1 megohm
■
Concave termination style
■
Resistance tolerance ±5 %
processes
■
Paper tape on plastic reel for automatic
placement
*R
oH
S

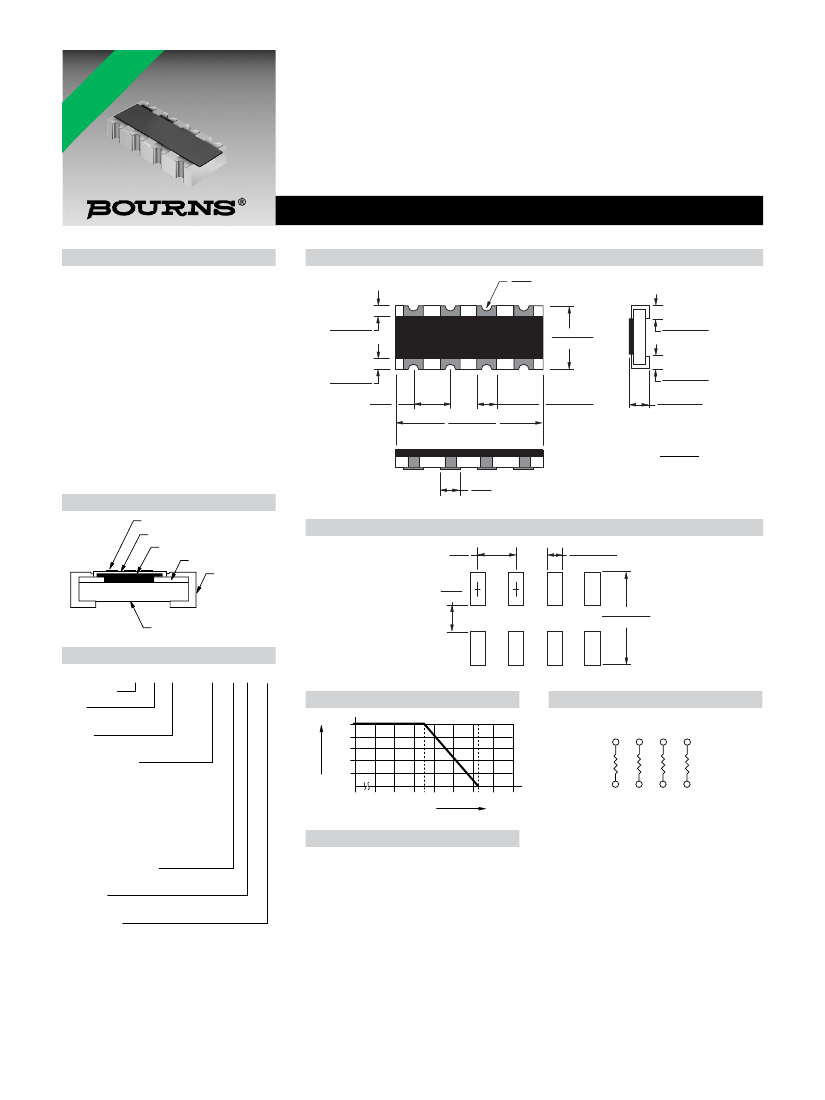

Model CAT10 - Chip Resistor Array
Characteristics
Number of Elements............. 4 (isolated)
Power Rating per Resistor @ 70 °C
.............................................0.0625 W
Package Power Rating @ 70 °C
...............................................0.250 W
Operating Temperature Range
............................... -55 °C to +125 °C
Derated to 0 Load @..................+125 °C
Max. Working Voltage......................25 V
Max. Overload Voltage ....................50 V
Resistance Tolerance .................... ±5 %
Resistance Range/E24 Series
........................10 ohms to 1 megohm
plus Zero-ohm Jumper
T.C.R. ................................ ±250 ppm/°C
Packaging........... 10,000 pieces per reel
Construction
Marking
Protective Glass Overcoat
Thick Film Resistive Element
Conductor
Side Termination
0.45
(0.018)
1.45 ~ 1.85
(0.057 ~ 0.073)
Product Dimensions
0.15
(.006)
0.20
±
0.10
(.008
±
.004)
1.0
±
0.10
(.039
±.004)
0.30
±
0.15
(.012
±
.006)
0.20
±
0.10
(.008
±
.004)
0.5
(.020)
2.0
±
0.10
(.079
±
.004)
0.28
±
0.10
(.011
±
.004)
0.30
±
0.15
(.012
±
.006)
0.40
±
0.15
(.015
±
.006)
DIMENSIONS:
0.25
(.010)
MM
(INCHES)
Land Pattern
0.50
(0.020)
0.25 ~ 0.30
(0.010 ~ 0.012)
High Purity Alumina Substrate
How To Order
CA T 10 - 103 J 4 LF
Chip Arrays
Type
• T = Concave
Model
• 10 = 0804 Package Size
Resistance Code
• <10 ohms: “R” represents decimal
point (example: 4R7 = 4.7 ohms)
• ≥10 ohms: First two digits are
significant, third digit represents
number of zeros to follow
(example: 474 = 470k ohms)
• 000 = Zero Ohm Jumper
Resistance Tolerance
• J = ±5 %
Resistors
• 4 = 4 pcs.
Terminations
• LF = Tin-plated (RoHS compliant)
Derating Curve
100
80
60
40
20
0
-55
70
°C
125
°C
Isolated Circuit
ISOLATED CIRCUITS
8
R
1
2
7
R
3
6
R
4
5
R
Rated Load (%)
40 60 80 100 120 140 160
Ambient Temp. (°C)
Typical Part Marking
None on part. Label on reel will include
part number.
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
