HD04-T: DescriptionReverse peak voltage: 400V Average rectified current (Io): 800mA Forward voltage drop (Vf): 1V @ 400mA 400V, 0.8A; CategoryDiscrete semiconductor Rectifier bridge; File Size67KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

HD04-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HD04-T	-	-	View	Buy Now

HD04-T Overview

Reverse peak voltage: 400V Average rectified current (Io): 800mA Forward voltage drop (Vf): 1V @ 400mA 400V, 0.8A

HD04-T Parametric

Parameter Name	Attribute value
Reverse peak voltage	400V
Average rectified current (Io)	800mA
Forward voltage drop (Vf)	1V @ 400mA

Preview

Download Datasheet

View All

HD01 – HD06

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Features and Benefits

•

Glass Passivated Die Construction

Low Forward Voltage Drop

Surge Overload Rating to 30A Peak

Ideally Suited for Automated Assembly

Miniature Package Saves Space on PC Boards

UL Listed Under Recognized Component Index, File Number

E94661

Lead Free Finish, RoHS Compliant (Note 1)

Mechanical Data

•

Case: MiniDIP

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish

⎯

Tin. Plated Leads, Solderable per MIL-STD-

202, Method 208

Polarity: As Marked on Case

Marking: Type Number, Date Code & Polarity Markings

Weight: 0.125 grams (approximate)

Equivalent Circuit

Ordering Information

(Note 2)

Device*

HDxx-T

*xx = Device type, e.g. HD02-T or HD04-T, etc.

Notes:

1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes

2. For packaging details, visit our website at http://www.diodes.com.

Packaging

MiniDIP

Shipping

3K/Tape & Reel, 13-inch

Marking Information

HDxx

HDxx = Product Type Marking Code (ex: HD04)

YM = Date Code Marking

Y = Last Digit of the Year

M = See Month/Code Table Below

Month

Code

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

HD01 – HD06

Document number: DS17003 Rev. 13 - 2

1 of 4

www.diodes.com

December 2010

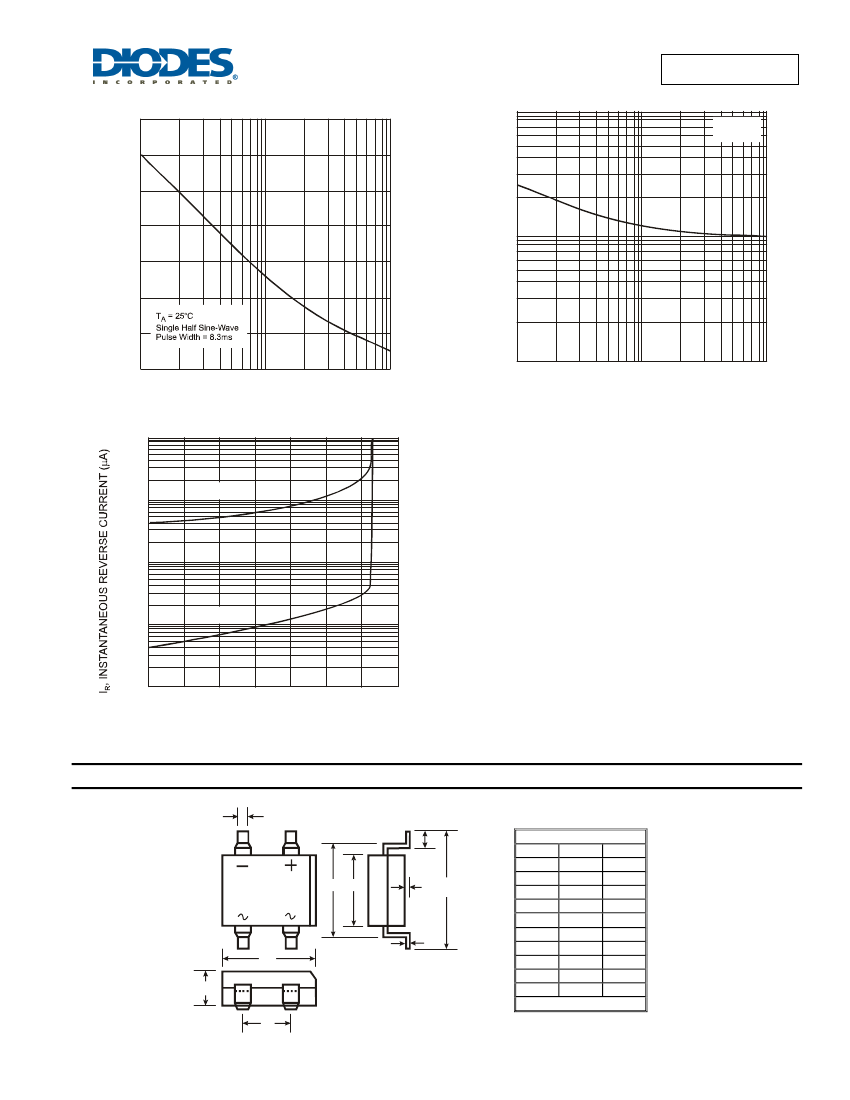

HD01 – HD06

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

HD01 – HD06

Document number: DS17003 Rev. 13 - 2

4 of 4

www.diodes.com

December 2010
