B360AM-13-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Schottky diode> B360AM-13-F

B360AM-13-F: DescriptionDC reverse withstand voltage (Vr): 60V Average rectified current (Io): 3A Forward voltage drop (Vf): 700mV @ 3A 60V, 3A, VF=0.7V@3A; CategoryDiscrete semiconductor Schottky diode; File Size414KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

B360AM-13-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B360AM-13-F	-	-	View	Buy Now

B360AM-13-F Overview

DC reverse withstand voltage (Vr): 60V Average rectified current (Io): 3A Forward voltage drop (Vf): 700mV @ 3A 60V, 3A, VF=0.7V@3A

B360AM-13-F Parametric

Parameter Name	Attribute value
DC reverse withstand voltage (Vr)	60V
Average rectified current (Io)	3A
Forward voltage drop (Vf)	700mV @ 3A

Preview

Download Datasheet

View All

Green

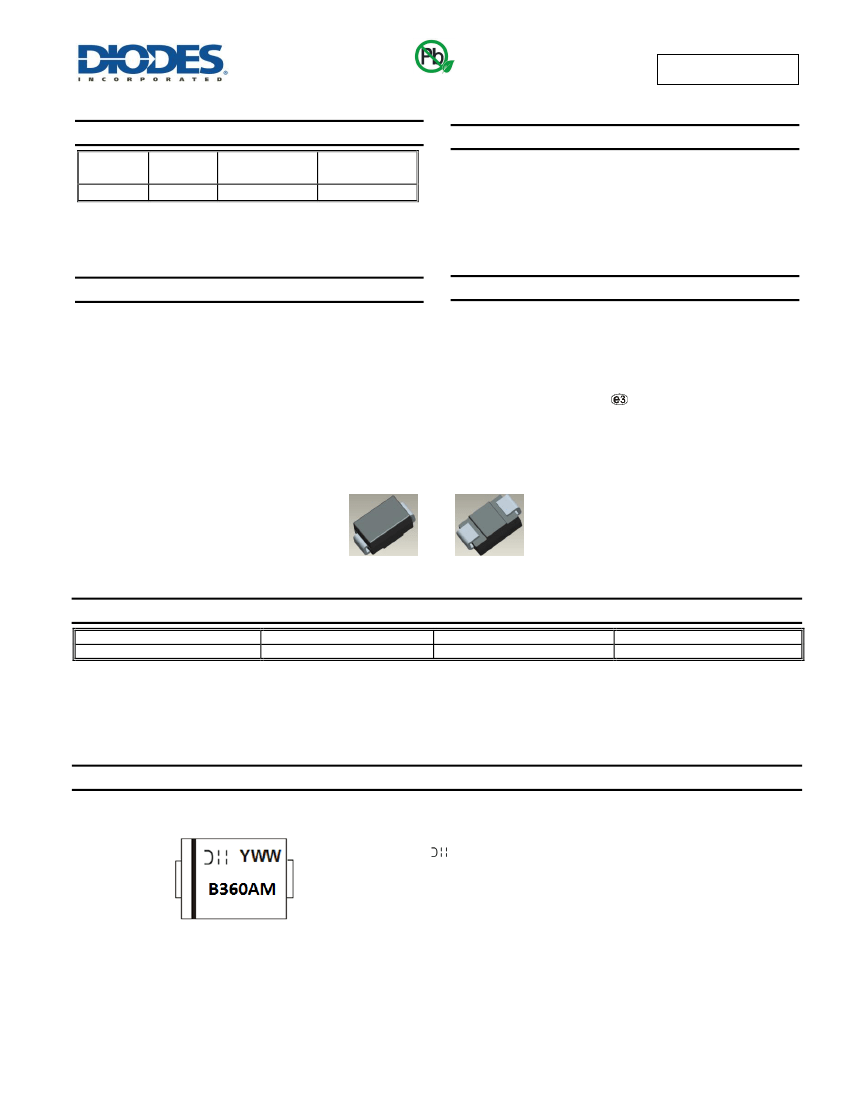

B360AM

3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Summary

RRM

(V)

(A)

3.0

F(MAX)

@ +25°C

(V)

0.70

R(MAX)

@ V

RRM

(mA)

0.10

Features



Guard Ring Die Construction for Transient Protection

Low Leakage at High Temperature

Low Power Loss, High Efficiency

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3)

Qualified to AEC-Q101 Standards for High Reliability

ADVANCED INFORMATION

Description and Applications

B360AM is a very low leakage version of B360A. For use in low

voltage, high frequency inverters, freewheeling, DC-DC converters,

and polarity protection applications.

Mechanical Data



SMA

Case: SMA

Case Material: Molded Plastic. “Green” Molding compound.

UL Flammability Classification 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead-Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.064 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number*

B360AM-13-F

Notes:

Compliance

Standard

Case

SMA

Packaging

5,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SMA

B360AM = Product Type Marking Code

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 14 for 2014)

WW = Week Code (01 to 53)

B360AM

Document number: DS37251 Rev. 2 - 2

1 of 5

www.diodes.com

February 2015

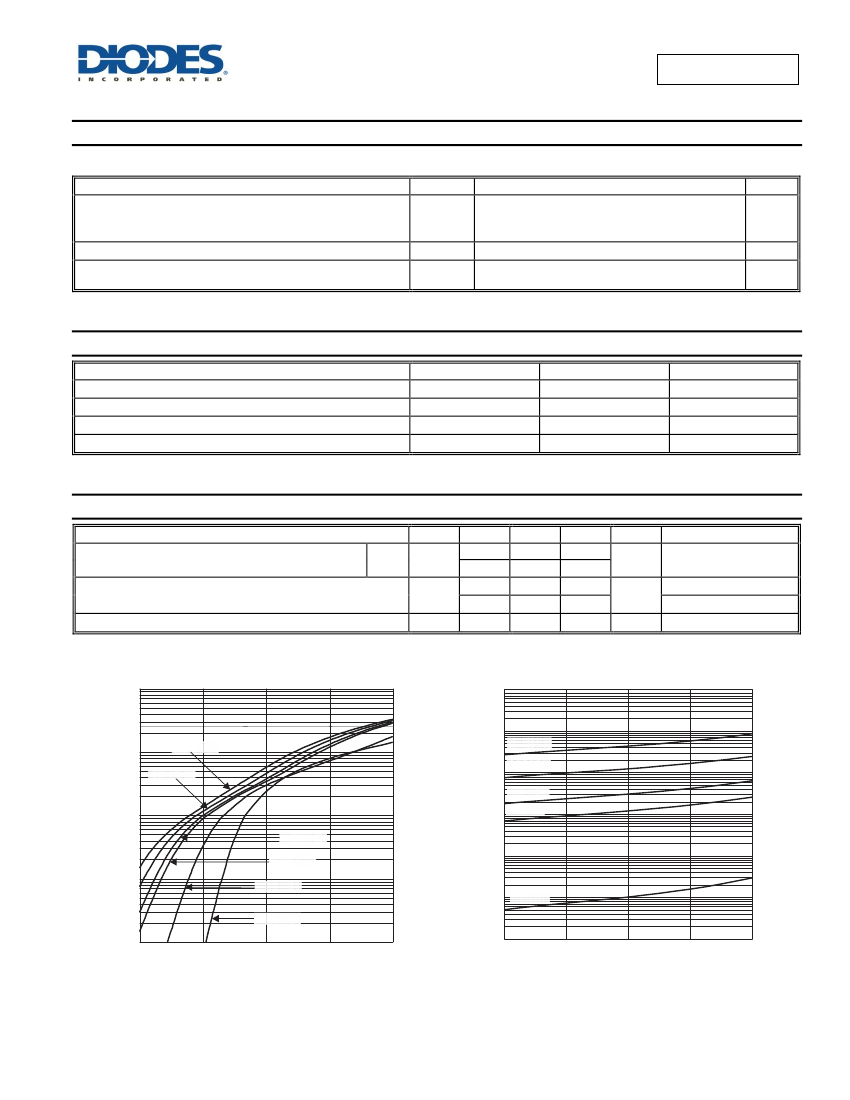

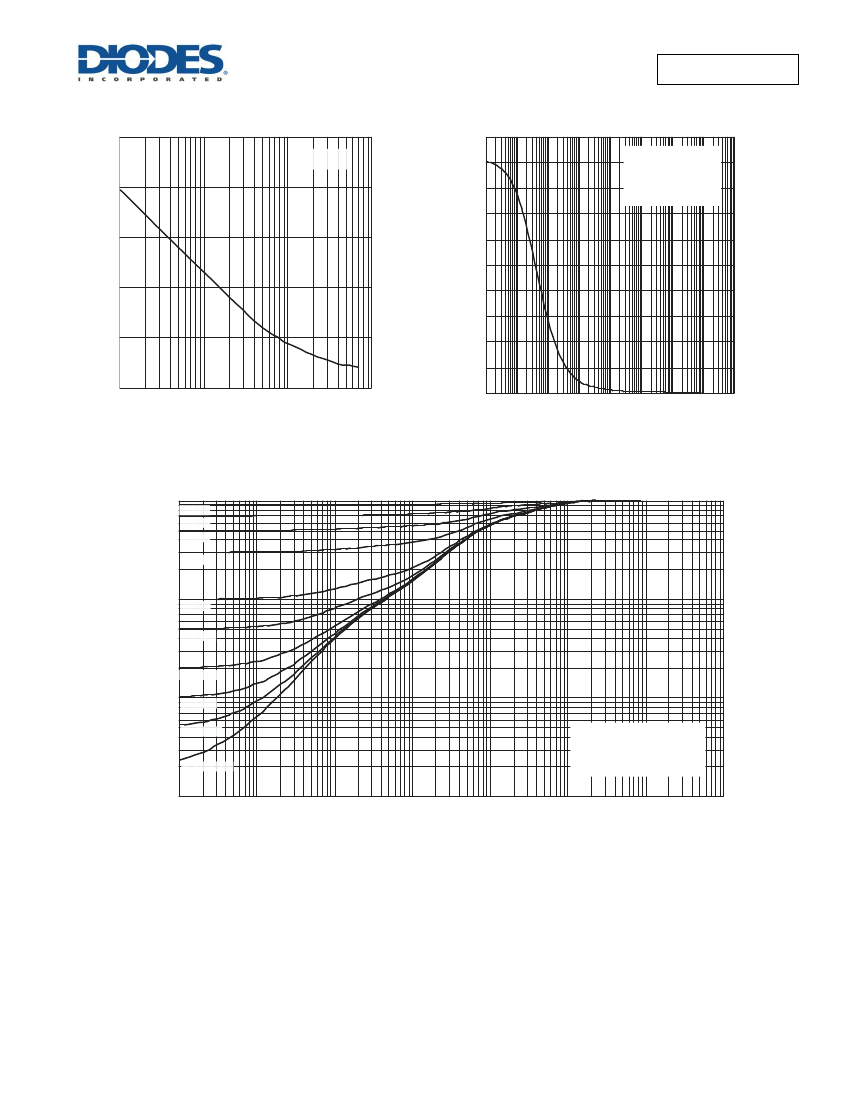

B360AM
